ICP DAS USA FR-32R Manuale utente
FR-32R Modules
User’s Manual
Warranty
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from
the date of delivery to the original purchaser.
Warning
ICPDAS assumes no liability for damages consequent
to the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, not for any infringements
of patents or other rights of third parties resulting from its
use.
Copyright
Copyright 2006 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only may be
registered trademarks of their respective companies.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
2
Table of Contents
1. Introduction..................................................... 3
2. Specifications ................................................... 4
3. Hardware description ..................................... 5
3.1. Appearance of FR-32R.......................................5
3.2. Pin Assignment....................................................6
External Power supply and signals connection ..... 6
Additional FRnet signal connectors ...................... 6
I/O connectors ....................................................... 7
3.3. Interface Circuit..................................................8
3.4. Address (Group number) Setting......................9
3.5. Communication Speed Setting.........................10
3.6. LED Indicators.................................................. 11
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
3
1. Introduction
The FR-32R has 32-channel relay outputs with serial FRnet
interface. Unlike traditional digital I/O board, each FRnet series I/O
module has an FRnet interface which can let the module become
a distributed remote I/O module. This interface is cable-saving
and provides high-speed data transmission.
The FRnet IO modules can function as remote control modules
in a field control system. After the address (or group number) of
each module is set, the IO data are mapped to a memory space to
ease the controller to do the monitoring and control. Users even
do not feel that they are using remote IO modules.
The FRnet input modules can connect with the FRnet output
modules through the twisted 2-wire bus without a CPU module to
become a MagicWire application. We call it MagicWire because
128 DI can directly map to 128 DO through only 2-wire connection;
and the maximum distance between modules can reach 400
meters (at 250Kbps communication rate). When using MagicWire
mode, address must start from 0.
Communication between PC, PAC, PLC, and other controllers
can be established via FRnet. For further information about the
networking of the FRnet modules, please refer to related literatures
on ICPDAS web site.
http://www.icpdas.com/products/Remote_IO/frnet/frnet_introduction.htm
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
4
2.
Specifications
Table 1. Specifications of FR-32R module
Characteristics Specifications
Transfer speed 250Kbps
Scan time 2.88 ms
Transfer distance 400m max.
Number of channels 32
Relay Type Form A, SPST
Nominal load 3A/125Vdc, 3A/270Vac
Max switching power 1250VA, 150W
Max switching voltage 125Vdc, 270Vac
Max switching current 5A
100,000 operations min. at full load
Life expectancy 20,000,000 operations min. at no load
Release time 5 ms
Control logic TTL low, Relay on
Power Requirement 10~30V (standard:24V)
Power Consumption 24V@240mA (max)
Operating temperature -25°C～+75°C
Storage temperature -30°C～+85°C
Operation Humidity 10%～90%, non-condensing
Storage Humidity 5%～95%, non-condensing
Dimensions 173mmX117mm
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
5
3. Hardware description
3.1. Appearance of FR-32R
Connectors for FRnet
quick connection
Group number
setting (JP2) CH17~CH32
External Power and
FRnet wiring interface
Speed and Hold
state settin
g
(
JP9
)
Termination
resistor setting
CH1~CH16
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
6
3.2. Pin Assignment
External Power supply and signals connection
J1:
Additional FRnet signal connectors
All FRnet A signals are internally connected together, and all
FRnet B signals are connected together, too. Following two
connectors are used for FRnet quick connection.
CN3/CN4
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
7
I/O connectors
CN1:
CN2:
The CMnn and NOnn in these figures represent the COM and
the N.O. pins of channel nn, respectively.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
8
3.3. Interface Circuit
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
9
3.4. Address (Group number) Setting
The group number setting table for 16-group system is shown as
follows. Each setting includes two consecutive group numbers. S4,
S5, and S6 are used for 128-group system. Although the settings for
128-group system are omitted here, they are similar to other
jumpers that construct a binary code for address.
RA0
+
RA1
RA8
+
RA9
RA2
+
RA3
RA10
+
RA11
RA4
+
RA5
RA12
+
RA13
RA6
+
RA7
RA14
+
RA15
S3
S2
S1
S3
S2
S1
S3
S2
S1
S3
S2
S1
S3
S2
S1
S3
S2
S1
S3
S2
S1
S3
S2
S1
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
10

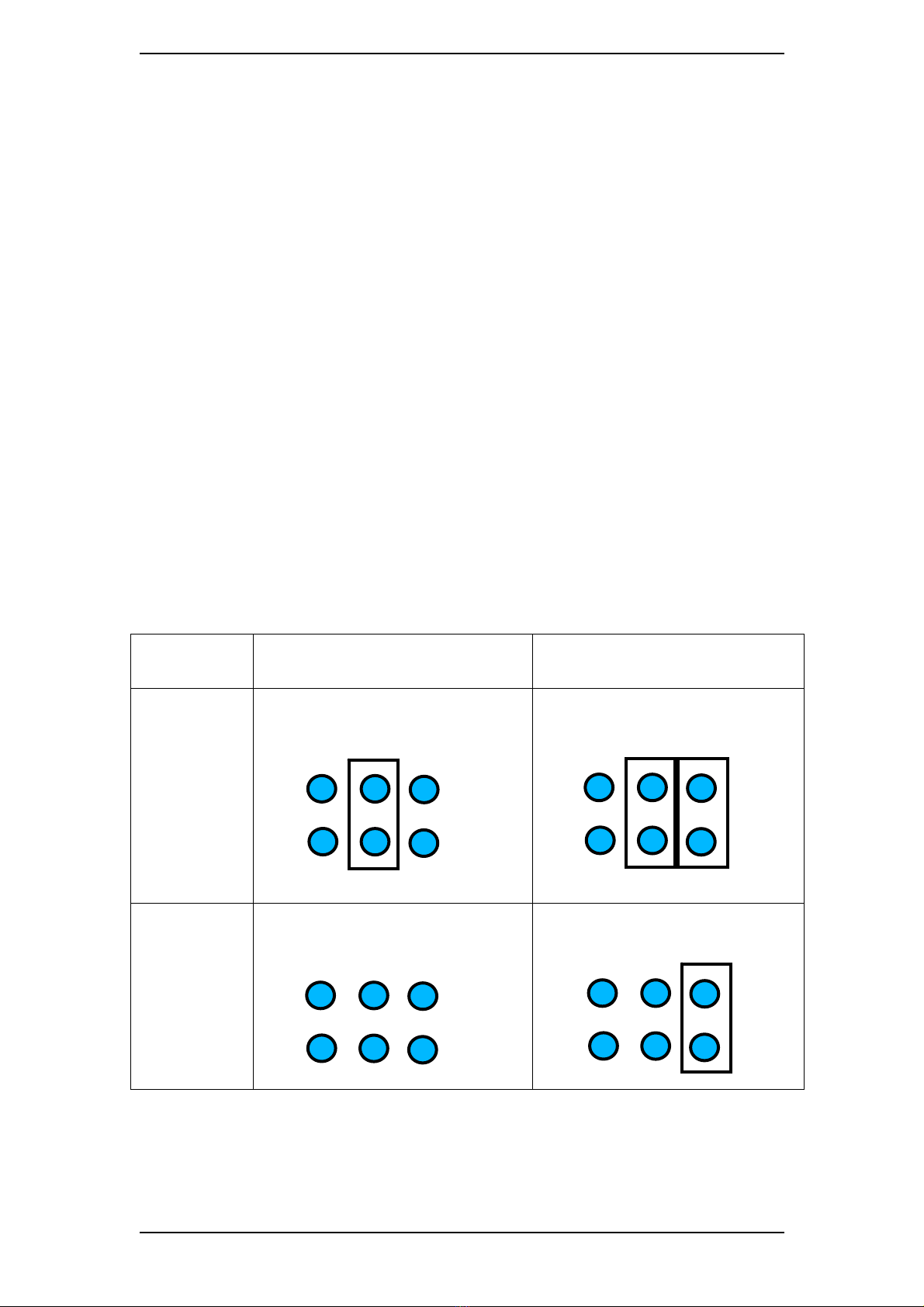

3.5. Communication Speed Setting
The settings for 250K bps and 1M bps
communication rates are listed as follows.
The settings for 250K bps and 1M bps communication
rates are listed in the following table. The standard
speed (250K bps) is set by having a jumper at CK0
position.
In the following table, the jumper at HOLD position
determines what kind of the output status will be when
the communication error happens.
JP9 output hold output reset
250K
bps
1M
bps
(
CK0
)
(
HOLD
)
(
CK0
)
(
HOLD
)
(
CK0
)
(
HOLD
)
(
CK0
)
(
HOLD
)
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
