QuickStartforMDC‐700Series



July2015,Version1.01



ThisQuickStartintendstoprovideinformationneededtogetstartedwiththeMDC‐700series

modules.Pleasealsoconsulttheusermanualfordetailedinformationonthesetupanduseofthe

module.

What’sIntheBox?

Quick Start for MDC-700 Series

Inadditiontothisguide,thepackageincludesthefollowingitems:







ModuleSoftwareUtilityCDRS‐232Cable

(CA‐0910)ScrewDriver

TechnicalSupport

UserManual

CD:\NAPDOS\Modbus\MDC_700\Document\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/mdc_700/document/

Firmware

CD:\NAPDOS\Modbus\MDC_700\Firmware\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/mdc_700/firmware/

ICPDASWebsite

http://www.icpdas.com

1ConnectingtoPC,NetworkandPower

ThemoduleisequippedwithastandardEthernetport(RJ‐45)forconnectingtoanEthernet

Hub/SwitchandPC.Moreover,youcanalsoconnectthePCdirectlywithanEthernetcable.

Powersupply(+10~+30VDC)

Hub/Switch

Quick Start for MDC-700 Series



adefaultIPaddressof192.168.255.1.

uneedfirstassignavalidIPaddressofyournetworktotheMDC‐700moduleforaccessingthe



STEP2

isnew,withthedefaultIPaddressof192.168.255.1,youmustchosean

addressforthecomputerintherangeof192.168.255.2–192.168.255.253thatisnot

essonyourcomputerdependuponthetype

chitectureandoperatingsystemyouareusing.UsethecomputerHelpandSupport

functionalitytosearchfor“IPAddressing”.



AssigninganIPaddresstoMDC‐700

TheMDC‐700isanEthernetdevice,whichcomeswith

moduleandusingthebuilt‐inweb‐basedinterface.

STEP1PoweronthecomputerandtheMDCmodule.

SettheIPconfigurationonyourcomputer.

IftheMDCmodule

alreadyinuse.



NOTE:DetailsonhowtochangetheIPaddr



Quick Start for MDC-700 Series

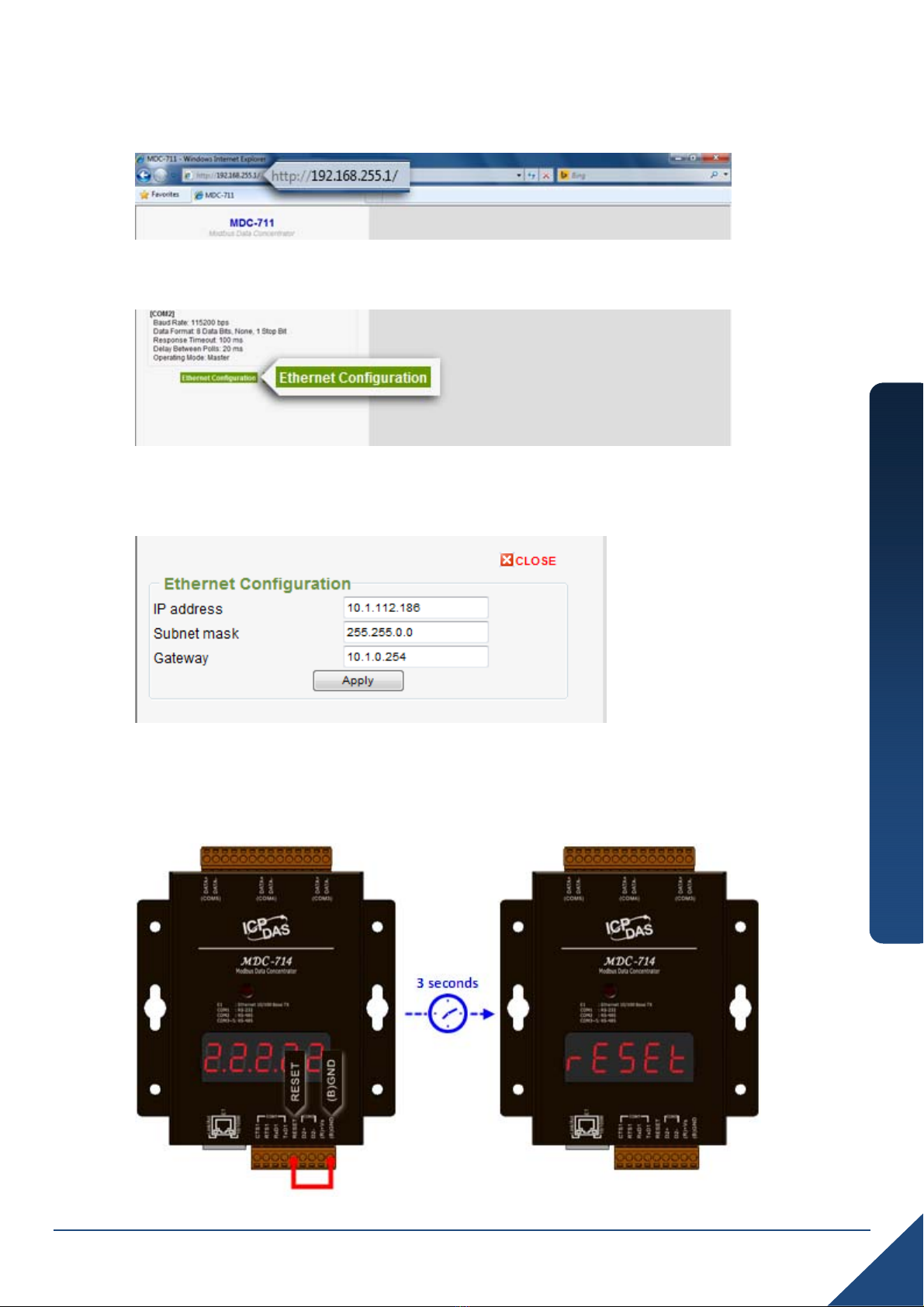

STEP3Openawebbrowserandgotothewebsiteathttp://192.168.255.1,where192.168.255.1is

theIPaddressofyourMDCmodule.



STEP4OpentheIPaddressconfigurationinterfacebyclickingtheEthernetConfiguration.



SETP5ChooseavalidIPaddressforyourMDCmodule.Makesurethattheaddressyoupickisnot

currentlyinusebyanotherdeviceonthenetwork.



NOTE:TheMDC‐700canberesettofactorydefaultsbyshortingtheRESETpintoGNDpin

over3seconds.TheLEDdisplaywillshow“RESET”asbelowandtheIPaddressset

previouslywillberemoved.



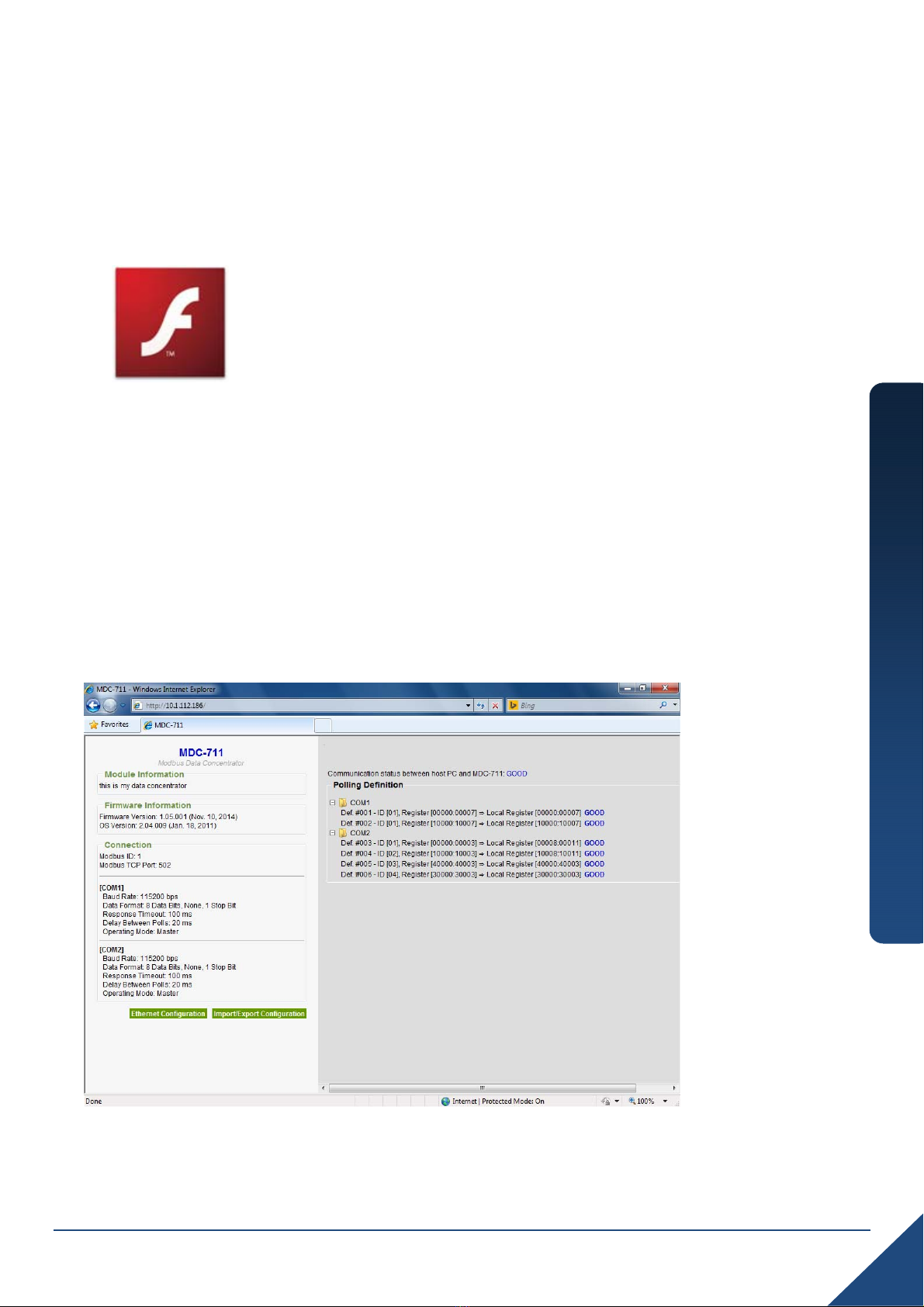

3EnablingAdobeFlashPlayerinYourBrowser

YourbrowsermustsupportAdobeFlashPlayerandhaveitenabledinordertousethebuilt‐inweb

server.Ifyoudonothaveitinstalled,pleasegotothefollowingwebsiteandinstallit.



TheAdobeFlashPlayerDownloadCenter：

http://get.adobe.com/flashplayer/

4GototheWebSitetoCheckoutFunctions

Quick Start for MDC-700 Series

Gotothewebinterfaceathttp://xxx.xxx.xxx.xxx,wherexxx.xxx.xxx.xxxistheIPaddressofyour

MDCmodule.AnystandardbrowsercanbeusedtointerfacetheMDCmodule,suchasMozilla

Firefox,InternetExplorerorGoogleChrome.



NOTE:Ifyouhaven’tchangedthedefaultIPaddressofthemodule,pleasereferto“2.AssignanIP

addresstoMDC‐700”toconfigureit.


