ICP DAS USA M-7017R Manuale utente

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

M-7017R

8 Channels Voltage & Current Input

Data Acquisition Module

Quick Start Guide

Product Website:

https://icpdas-usa.com/m_7017_r.html

http://www.icpdas-usa.com/dcon_utility_pro.html

Introduction

The M-7017R is an 8-channel analog input module with an extremely high quality

protection mechanism where the overvoltage protection is 240 Vrms. The input type

includes both voltage and current. The sampling rate of the M-7017R is adjustable,

meaning that either fast mode or normal mode can be selected. The M-7017R also

has 4 kV ESD protection as well as 3000 VDC intra-module isolation. The I-7017R-

A5 is an 8-channel analog input module that is especially designed for high voltage

input, and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V. The M-

7017R and M-7017R-A5 has the same specifications as the I-7017R and I-7017R-A5,

but provides additional support for the Modbus RTU protocol as well as the DCON

protocol.



Packing List

M-7017R

Plastic Rail

Quick Start Guide

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2



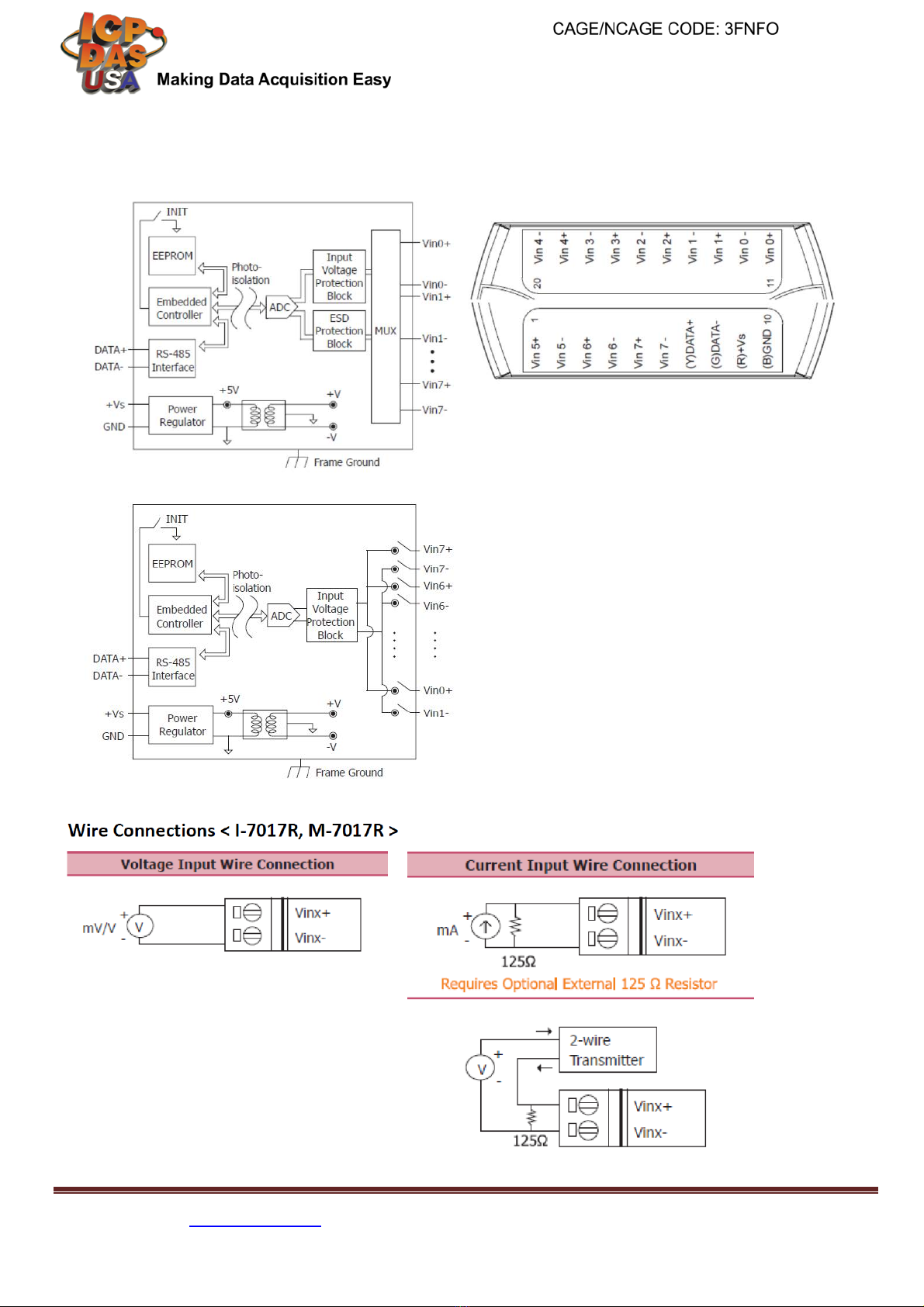

Internal I/O Structure < I-7017R >  Pin Assignments < I-7017R, M-7017R >

Internal I/O Structure (M-7017R)

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

Modbus Table (M-7017R only)

Address

Description

R/W

10129 ~

Over/under range status of channel 0

10136

to 7 for 4 ~ 20mA or 0 ~ 20mA ranges

00129 ~

00136

30001 ~

Analog input value of channel 0 to 7

30008

40001 ~

40008

40481

Firmware version (low word)

40482

Firmware version (high word)

40483

Module name (low word)

40484

Module name (high word)

40485

Module address, valid range: 1 ~ 247

R/W

40486

Bits 5:0

R/W

Baud rate, 0x03 ~ 0x0A

Code

0x03

0x04

0x05

0x06

Baud

1200

2400

4800

9600

Code

0x07

0x08

0x09

0x0A

Baud

19200

38400

57600

115200

Bits 7:6

00: no parity, 1 stop bit

01: no parity, 2 stop bit

10: even parity, 1 stop bit

11: odd parity, 1 stop bit

40487

Type code

R/W

Address

Description

R/W

40488

Modbus response delay time in ms,

R/W

valid range: 0 ~ 30

40489

Host watchdog timeout value, 0 ~

R/W

255, in 0.1s

40490

Channel enable/disable, 00h ~ FFh

R/W

40492

Host watchdog timeout count, write 0

R/W

to clear

00257

Protocol, 0: DCON, 1: Modbus RTU

R/W

00259

Filter setting, 0: 60Hz rejection, 1:

R/W

50Hz rejection

00261

1: enable, 0: disable host watchdog

R/W

00269

Modbus data format, 0: hex, 1:

R/W

engineering

00270

Host watch dog timeout status, write

R/W

1 to clear host watch dog timeout

status

00271

1: enable, 0: disable fast mode

R/W

00273

Reset status, 1: first read after

powered on, 0: not the first read after

powered on

DCON Protocol

Functions

Command

Response

Notes

Read module name

$AAM

!AA(Data)

AA: address number

Read module firmware version

$AAF

!AA(Data)

Read all analog input data

#aa

>(data)

Read analog input data of each channel (<=16 channel)

#aai

>(data)

i: channel number (Hex)

Read analog input data of each channel (>16 channel)

#aaii

>(data)

ii: channel number (Hex)

If you want to know the detail DCON protocol, please check it from CD or web

CD path: \\napdos\7000\manual\

Web: ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/7000/manual/

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

Module test and configuration

Step 1: INIT switch Operation

Step 2: Install & Run DCON Utility

Please Install DCON Utility first

You can find the software in the CD.

CD path:

<Driver>:\napdos\driver\dcon_utility\

Web link:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Run DCON utility

1. Find out the INIT switch( back of the module),

and turn to INIT.

2. Reboot the module

Step 3: Set search configuration & search module

Select COM Port Number

1. Click “COM Port”

2. Assign the communication information and click

“OK”

Module Default Setting

COM Port

Refer converter Port Number

Baud Rate

9600

Protocol

DCON for I-7000

Modbus RTU for M-7000

Parity Option

N,8,1

3. Click “Search” and select “Start Searching”

Software will search the modules from COM Port

4. Click “Search“ and select “stop searching”

Manual stop when the modules searched

Note:

When no module can be searched, please check

the wire and communication information

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

Step 4: Select Module for testing and configuration

Double click “select module”

Step 5: Configuration Settings & Channel Settings

Channel Status

Module Settings

Protocol

DCON / Modbus

Address

1~255 (0:INIT)

Baud rate

1200~115200

Parity option

N,8,1

Input range

Depends on signal

sources

Step 6: Change to normal mode and keep the settings

1. Turn the INIT Switch to Normal.

2. Reboot the module

M-7017R - 8-ch Voltage and Current Input DAQ Module - QuickStart (May/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

Trouble Shooting

Q1. How to do when forgot module address or baud rate?

Please turn to INIT mode, and run DCON Utility to search.

The module supports DCON protocol at the INIT mode.

And the address is 0. The communication setting is “9600,N,8,1”.

Q2. How to configure the I-7000 and M-7000 modules?

ICP DAS provide DCON Utility to configure I-7000 and M-7000 modules.

Please download the last version from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Q3. How to calibrate the analog input module?

Usually it is not necessary to calibrate the analog input module.

However, in case you need to perform this operation, we provide a function to calibrate the module.

Please refer to user manual 1.10.

Notice:

1. Please update DCON Utility to version 5.2.3 or more.

2. Keep the module running more than 30 minutes to warm-up.

Q4. How to measure the current?

I-7017R and M-7017R require optional external resistance (125Ω) for current measurement.

Please refer wired connections diagram.

And then select a suitable input range by DCON Utility.

Or please use our I-7017RC or M-7017RC modules.

Q5. How to programming with I-7000 or M-7000 by C#, VB, VC?

ICP DAS I-7000 and M-7000 series both support DCON protocol. And Only M-7000 series supports Modbus protocol.

For DCON protocol, please download SDK and Demo from:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_dll_new/

For Modbus protocol, please refer this web link:

http://www.icpdas.com/products/PAC/i-8000/modbus.htm

If there is any other question, please feel free to contact us. Email: [email protected]

Website: http://www.icpdas.com.tw/contact_us/contact_us.html
