ICP DAS USA PM-3133-RCT Series Manuale utente

PM-3133-RCT Quick Start

v1.4, June 2020

1. Packing List

This shipping package contains the following items

1 x PM-3133-RCT module 1 x Quick Start Screw Driver x 1 Cable ties x 3

1.1.Caution & Warning

The meter contains hazardous voltages, and should

never be disassembled. Failing to follow this practice will

result in serious injury or death. Any work on or near energized meters,

meter sockets, or other metering equipment could induce a danger of

electrical shock. It is strongly recommended that all work should be

performed only by qualified industrial electricians and metering

specialist. ICP DAS assumes no responsibility if your electrical installer

does not follow the appropriate national and local electrical codes.

ICP DAS assumes no liability for any damage resulting from the use of

this product. ICP DAS reserves the right to change this manual at any

time without notice.

Technical Support

service@icpdas.com

www.icpdas.com

1.2 Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

For Mobile Web

For Desktop Web

2. Installation

2.1.

Products come with external split type clip-on CT’s. Disconnect the

CT’s or use other CT’s is highly prohibited.

Please read this operation manual carefully before using.

Please re-confirm the measure position.

Reconfirm the RST (ABC) phase sequence of the power system.

Meter auxiliary power for PM-3133 series is DC +12V ~+48V.

Model Name

2.2.Voltage Input

1. PM-3133 series: Input Voltage up to 500V.

For any higher Input Voltage large than 500V, please add the PT

(power transformer), and Change PT RATIO setup.

2. Confirm the RST (ABC) phase sequence.

2.3. Connection

Please firstly check the current input terminal, and then in white

black, white black, white black wire sequences (CT1-P1, CT1-P2,

CT2-P1, CT2-P2, CT3-P1, CT3-P2). Then connect the CT’s, and

close the CT clip. Make sure the arrow direction sign on CT’s

follows current flow direction（P1→P2）.

2.4.Positional Accuracy

1. -500P: W Accuracy Better than 2% (PF=1; Input Current >50A; the “A” area).

-1000P: W Accuracy Better than 2% (PF=1; Input Current >50A; the “A” area).

-2000P: W Accuracy Better than 2% (PF=1; Input Current >50A; the “A” area).

-4000P: W Accuracy Better than 2% (PF=1; Input Current >50A; the “A” area).

2. Due to small variations in the winding density and coil cross-sectional area the

transducer output varies slightly depending on the position of the current within

the coil loop.

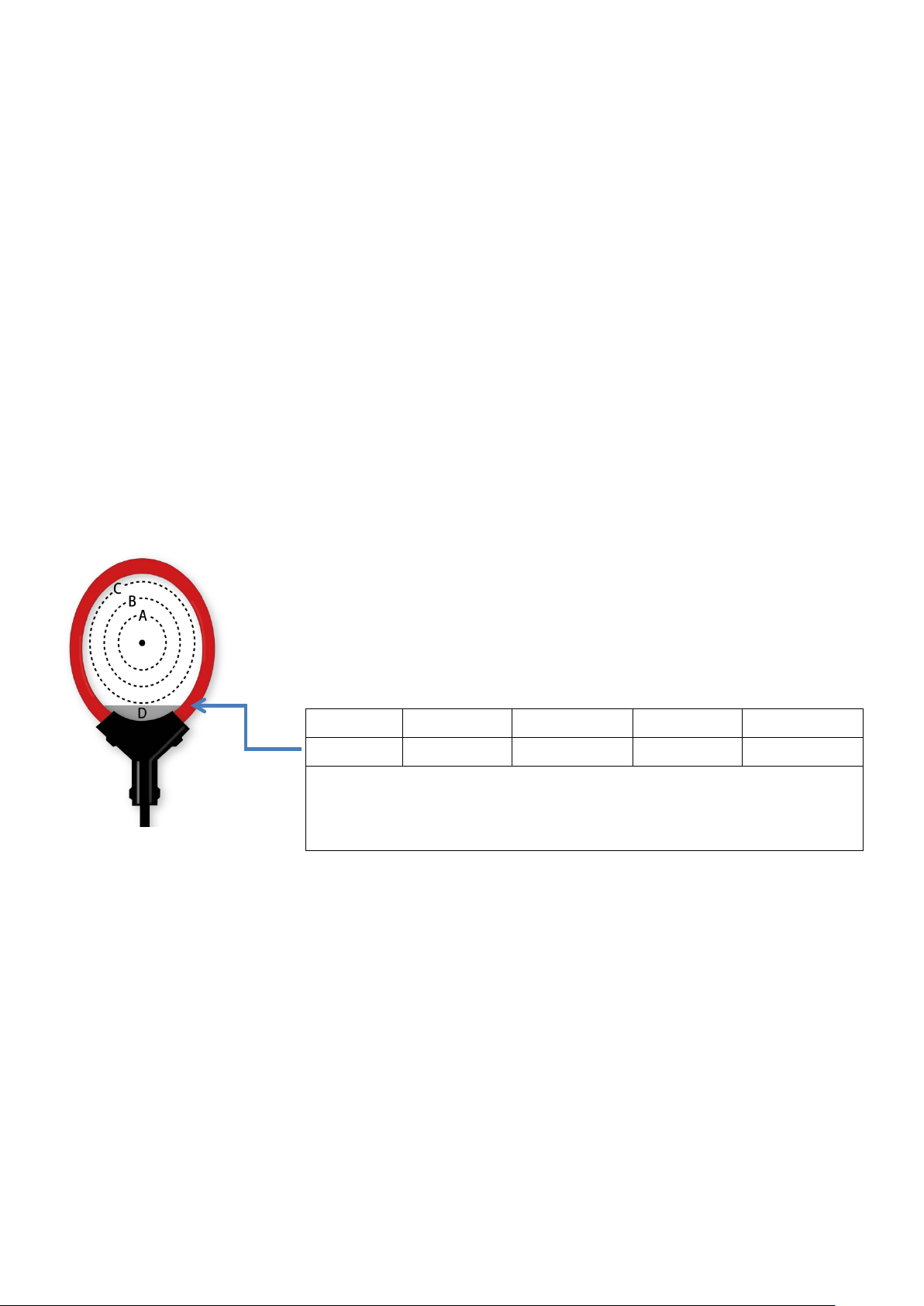

The diagram below shows the variation of accuracy throughout

the coil. The variation is greatest when the current is positioned

near the junction of the connecting cable and the coil, where

there is some discontinuity, and the error here can be typically

5%. Since in most applications the current is distributed

throughout a significant part of the area contained by the coil loop

the reading will be very close to the calibration value.

Type

Accuracy

>5%

The current should not be positioned close to the

coil-cable junction (shown by the “D” area) since the

error for this region is greater.

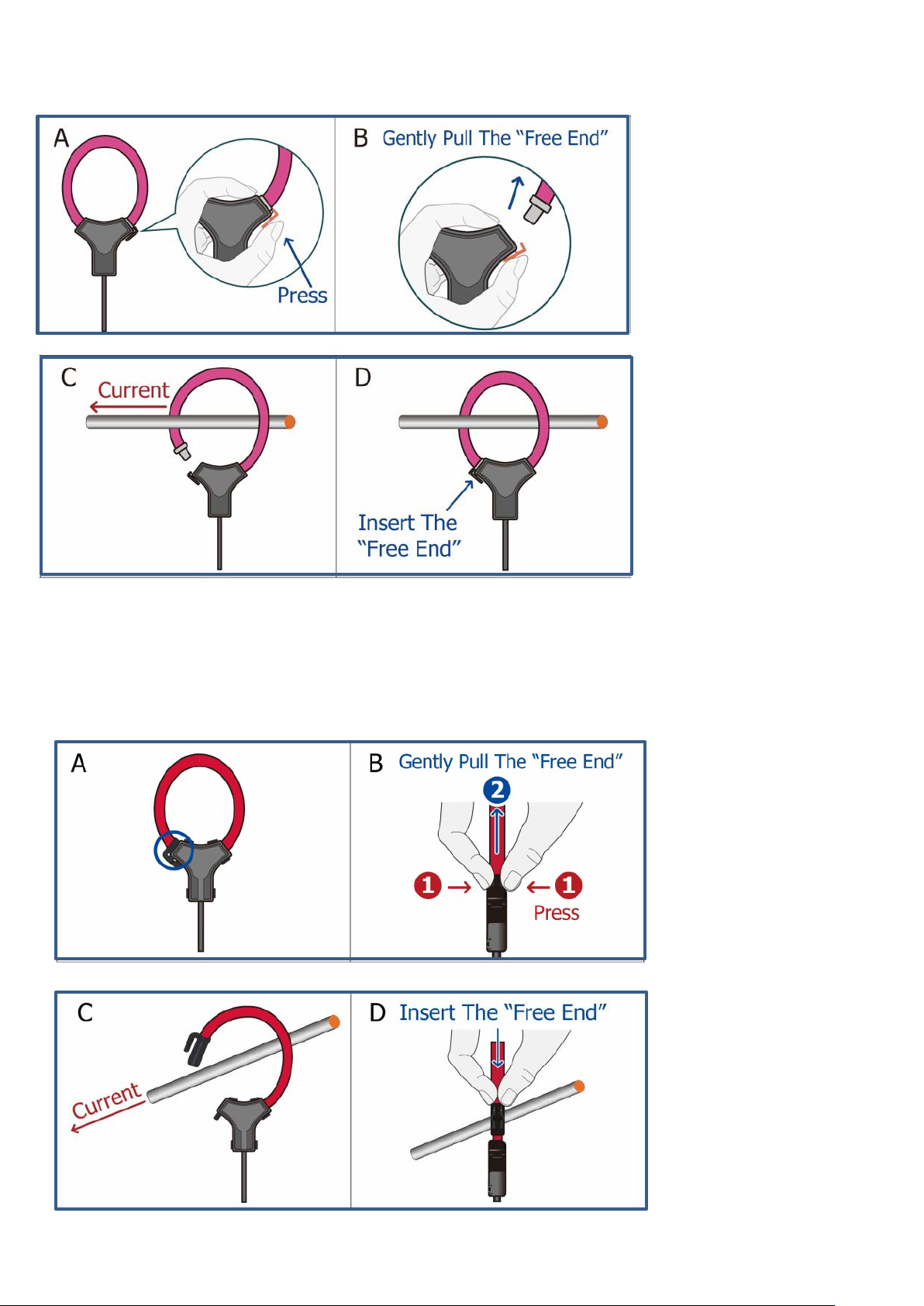

Type 1 CT’s installation steps:

Type 2 CT’s installation steps:

2.5.Wiring

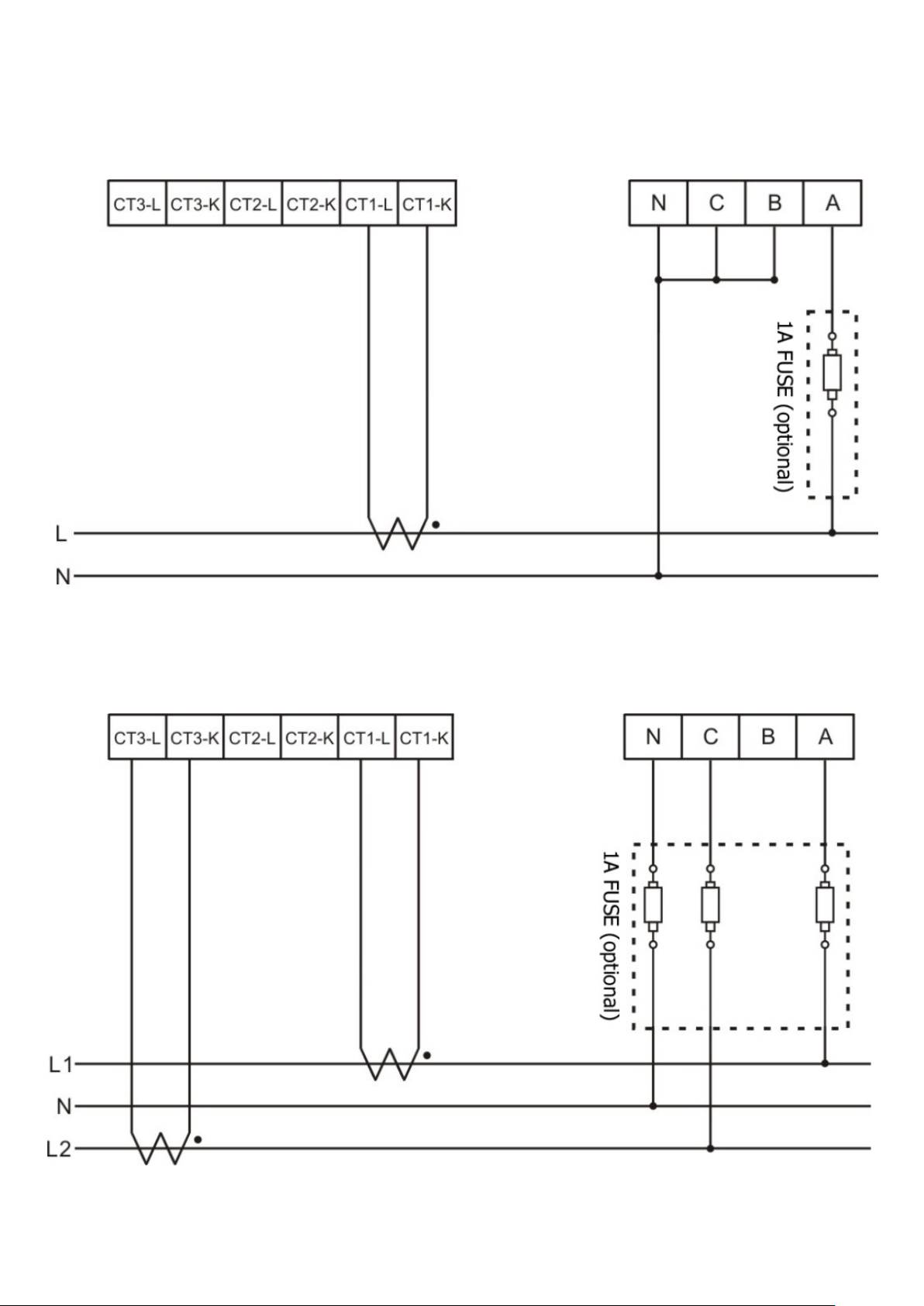

1P2W-1CT(PM-3133)

1P3W-2CT(PM-3133)

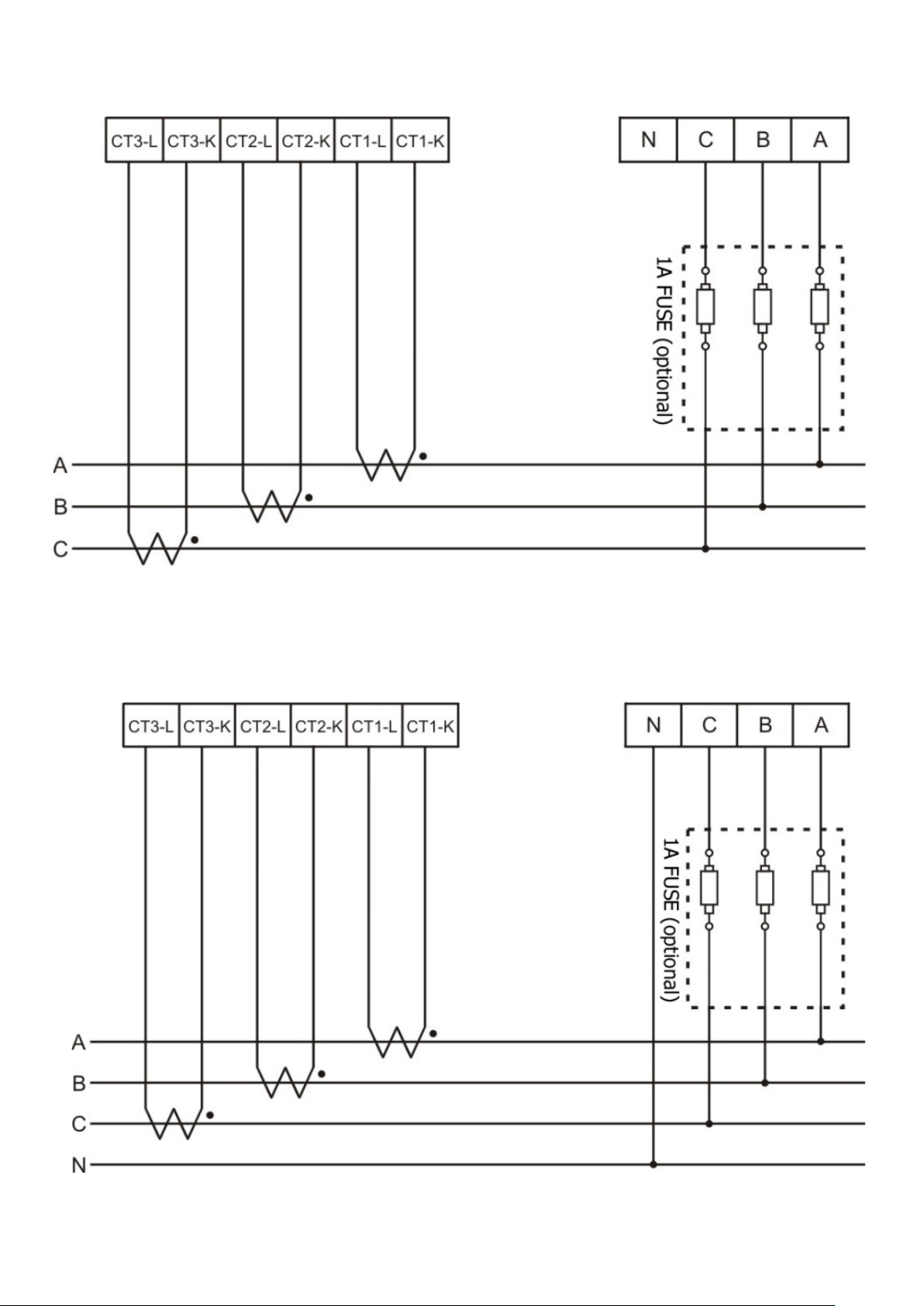

3P3W-3CT(PM-3133)

3P4W-3CT(PM-3133)

3. Communication

3.1.RS-485 & CAN setting

Default setting for RS-485: 19200, n, 8, 1 ,for CAN:125K bps

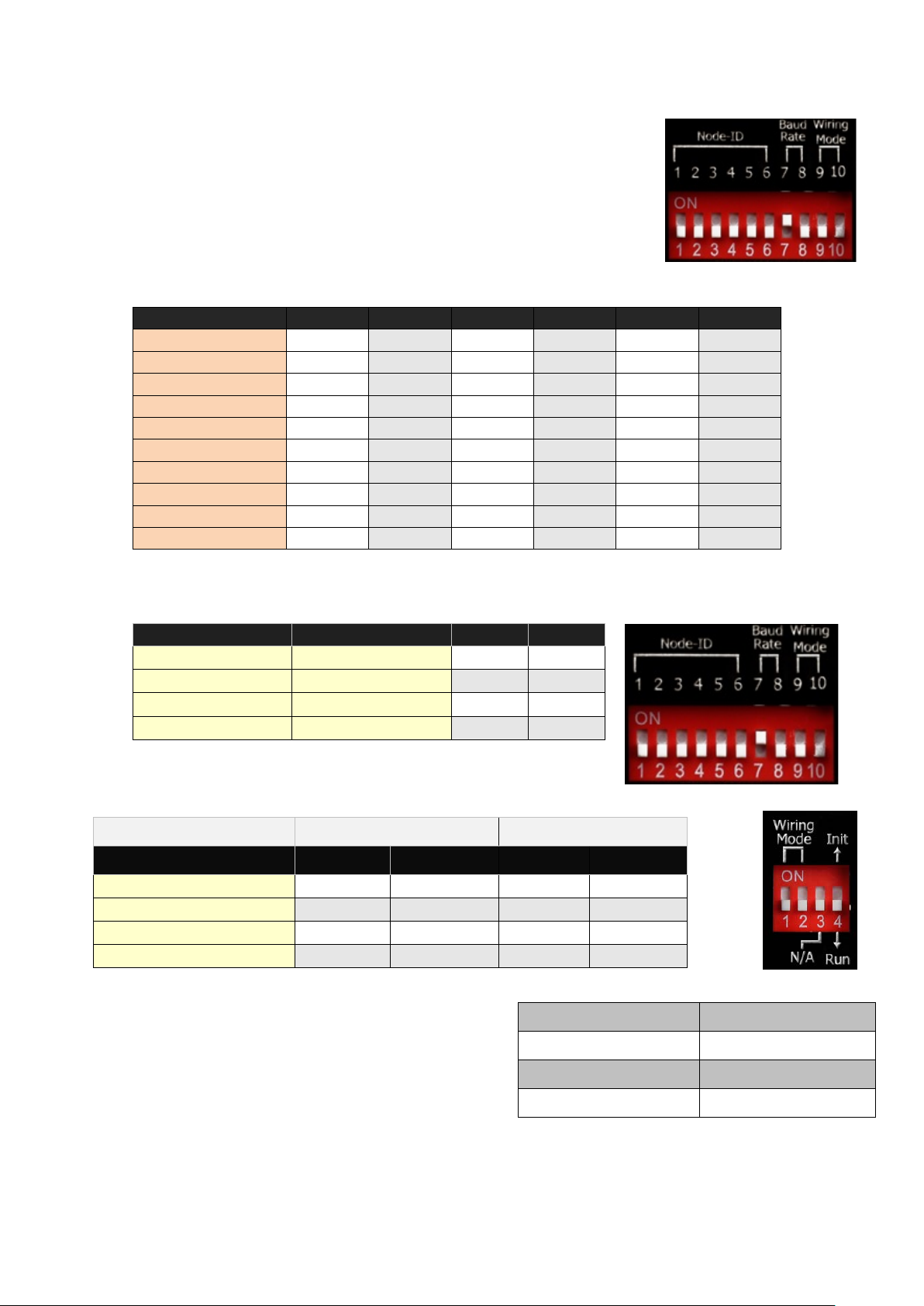

DIP switch (SW1-SW6) is used for Modbus address(or

CANopen Node ID) setting, default is 1, i.e. all OFF

For example: Modbus address(or CANopen Node ID) is 10，

find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF

SW1－SW6 setting

Setting Modbus-RTU address for communication (1-64)

Modbus Address

SW 1

SW 2

SW 3

SW 4

SW 5

SW 6

OFF

SW7－SW8 For Baud Rate Setting

RS-485

CAN

SW 7

SW8

9600 bps

125k(Default)

OFF

19200 (Default)

250k bps

OFF

38400 bps

500k bps

OFF

115200 bps

1M bps

PM-3133：Select the different wiring mode

(Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used)

Models PM-3133 PM-3133-MTCP

Wiring SW 9 SW 10 SW 1 SW 2

Software setting

OFF

3P3W-2CT

OFF

3P3W-3CT

OFF

3P4W-3CT

Ethernet default settings

：

For recovering to default settings, dip

Init/Run Switch (SW 4) to Init position for

10 seconds after power on, the settings

will be changed as default values. Must dip

back to Run position and repower on after settings changed. User also can

recover settings to default value by Modbus command.

IPAddress

192.168.255.1

Subnet mask

255.255.0.0

Gateway

192.168.0.1

Port

502
