ICP DAS USA SG-3784M Manuale utente

Ver1.00，2022 Mar. ～1～

SG-3784M

User Manual

Introduction

The SG-3784M is a 4-channel DC current input signal conditioning module which can

convert 4 ~ 20 mA current input to PWM output. This provides an economical solution when

the 4 to 20mA current need to be converted to PWM output. The duty cycle, 0% to 100%, of

the PWM output is a linear transformation of the 4 to 20mA current input. The frequency of

the PWM signal can be in the range 600Hz to 800Hz and it can be adjusted by buttons.

The SG-3784M includes a monochrome graphic LCD display which shows the duty cycle

and frequency of the 4-channel PWM output signals. 4 kV ESD and 4 kV EFT protection are

also provided to enhance noise protection capabilities in industrial environments.

Appearance

Ver1.00，2022 Mar. ～2～

PIN Assignment

Wire Connection

Iin Input

PWM Output

Ver1.00，2022 Mar. ～3～

PWM Duty Cycle and Frequency setting

PWM duty cycle and frequency setting show the button switch positions used

to configure the channel PWM duty cycle and frequency range. The PWM

frequency configuration button switches are located left side the module for

front view.

PWR The power LED of the module

Mode

Press MODE to modify the channel frequency, the channel frequency flashes.

Long press MODE to modify the four-channel frequency at the same time, and

the four-channel frequency flashes.

Up Press UP to increase the frequency, long press to increase quickly.

Down Press DOWN to decrease the frequency, long press to decrease quickly.

Set

Press SET to save the modified value. If only one channel is modified,

it will switch to the next channel.

If it is to modify the four channels, stop the modification.

Press MODE during the modification to stop the modification.

Ver1.00，2022 Mar. ～4～

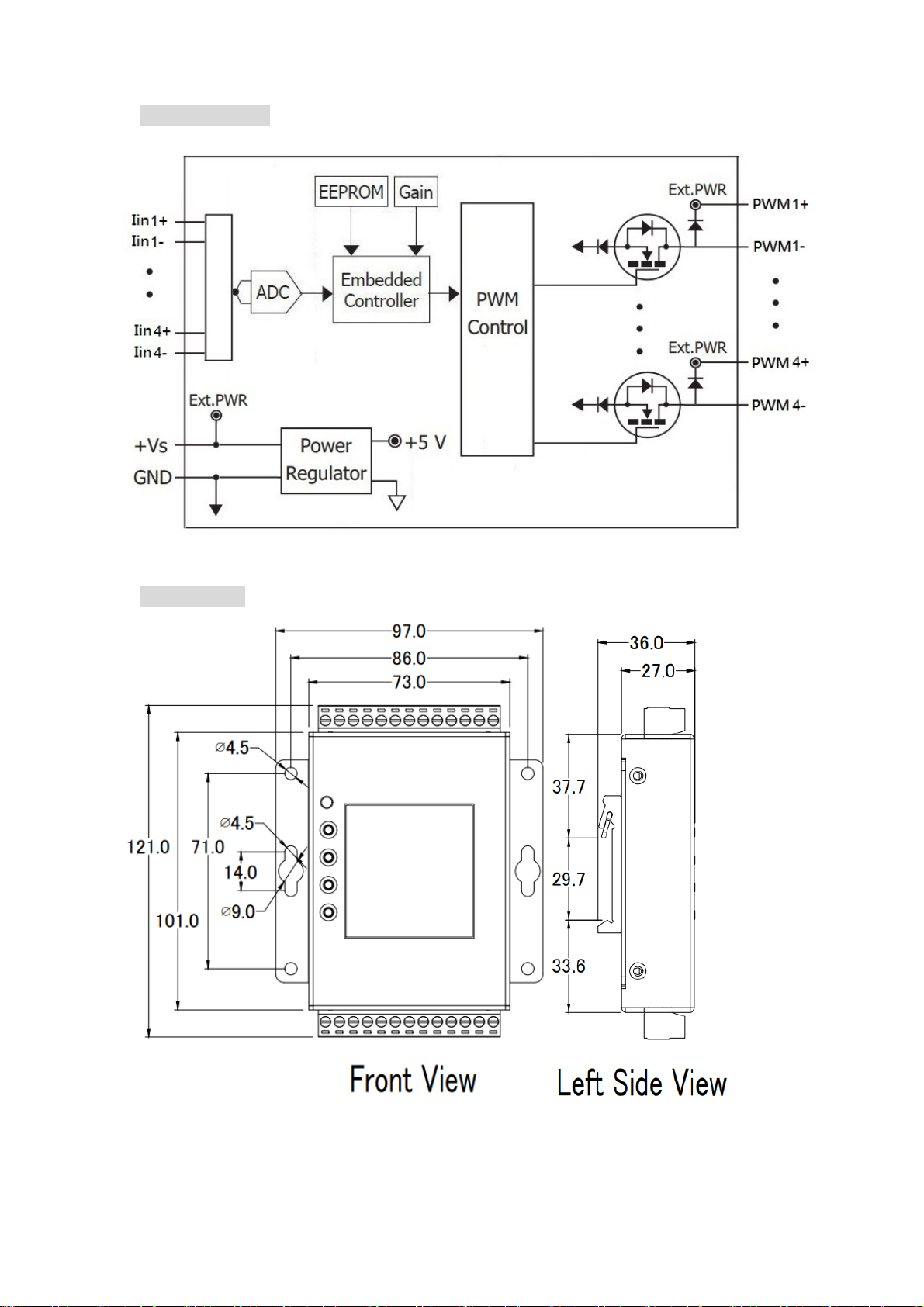

Block Diagram

Dimensions

Ver1.00，2022 Mar. ～5～

Technical Service

Please E-mail your problem description to [email protected] when you have any questions.

More detail information: www.icpdas.com
