ICP DAS USA ET-7065 Manuale utente

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

P ET-7052/ET-7052 Quick Start Guide

ET-7065

6 Channel Photo-Mos Relay Output and 6 Channel

Digital Input Data Acquisition Module

Quick Start Guide

The ET-7065 is a web-based Ethernet I/O module. It features a built-in web server which

allows configuration, I/O monitoring and I/O control by simply using a regular web browser.

Remote control is as easy as you surfing the Internet. With the web HMI function, no

programming or HTML skills are needed. Users can create dynamic and attractive web pages

for I/O monitoring and I/O control. The ET-7065 offers easy and safely access for users from

anytime and anywhere! In addition, the ET-7065 also supports Modbus/TCP protocol that

makes perfect integration for ET-7000 series to SCADA software. The ET-7000 series are

designed for applications to industrial monitoring and measurement; therefore, we have made it

toughly enough to survive the harsh and rough environment. The module contains 2-way

isolation from noise and surges, one for digital inputs and the other for Ethernet. The ET-7000

has got a wide range of power input (10~30VDC) and operating temperature (-25°C~+75°C).

What’s in the box?

In addition to this guide, the package includes the following items:

ET-7065 Module Software Utility CD

-ET-7065 Website

https://www.icpdas-usa.com/et_7065.html

-ICP DAS USA Website

http://www.icpdas-usa.com/

Phone : 1-310-517-9888

Email: [email protected]

Tech Support: [email protected]

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

-----------------------------------------------------------

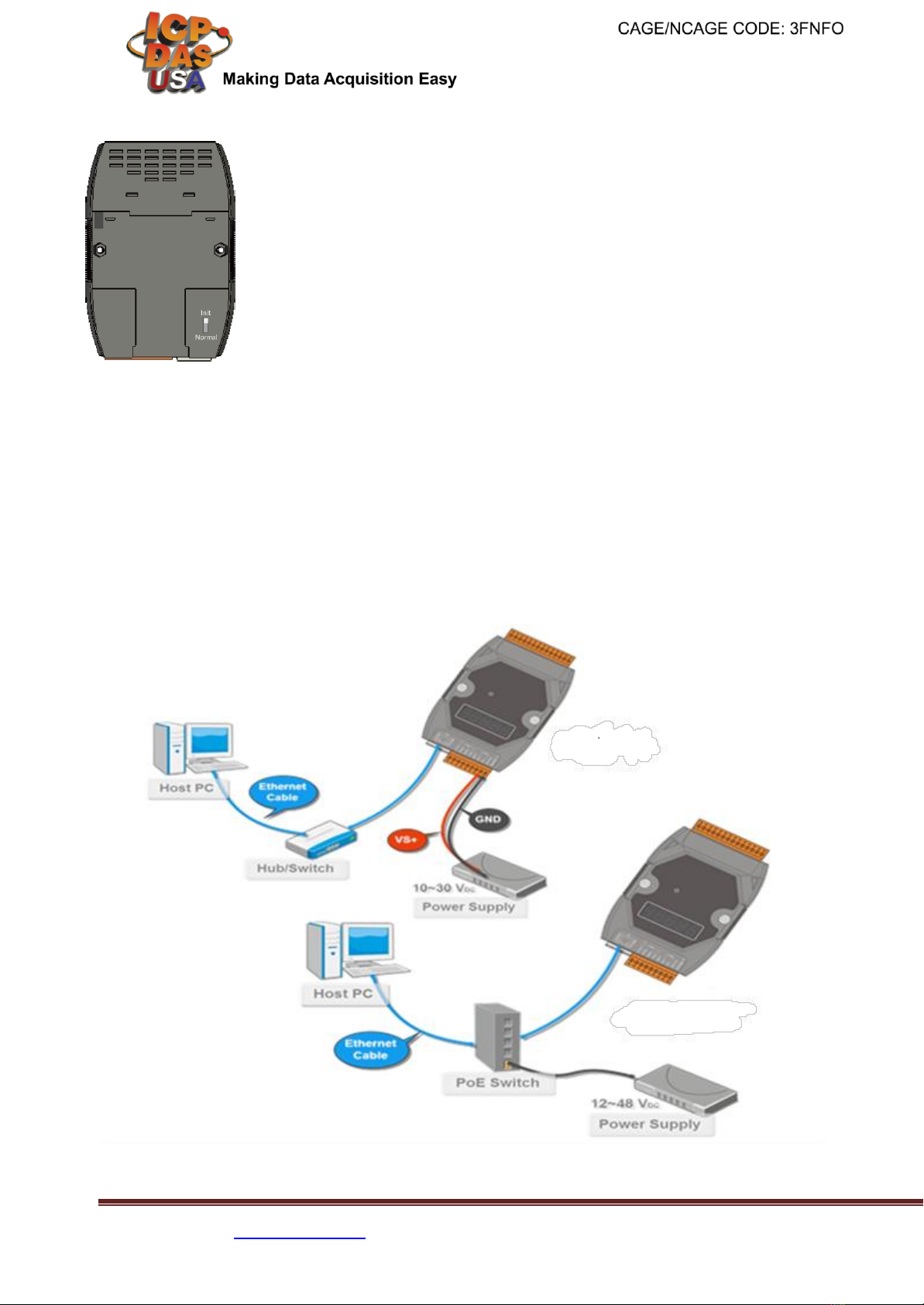

Configuring Boot Mode

Init mode: For configuration. After booting, ET-7065 will not run the

default firmware and cannot surf the internet. Use this mode to

update MiniOS7 image.

Normal mode: For normal working. After booting, ET-7065 will run the

default firmware and can use all ET-7065 functions.

----------------------------------------------------------------------------------

Connecting to Network, PC and Power

The ET-7065 is equipped with an RJ-45 Ethernet port for connection to an Ethernet

hub/switch and PC.

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

---------------------------------------------------------------------------------

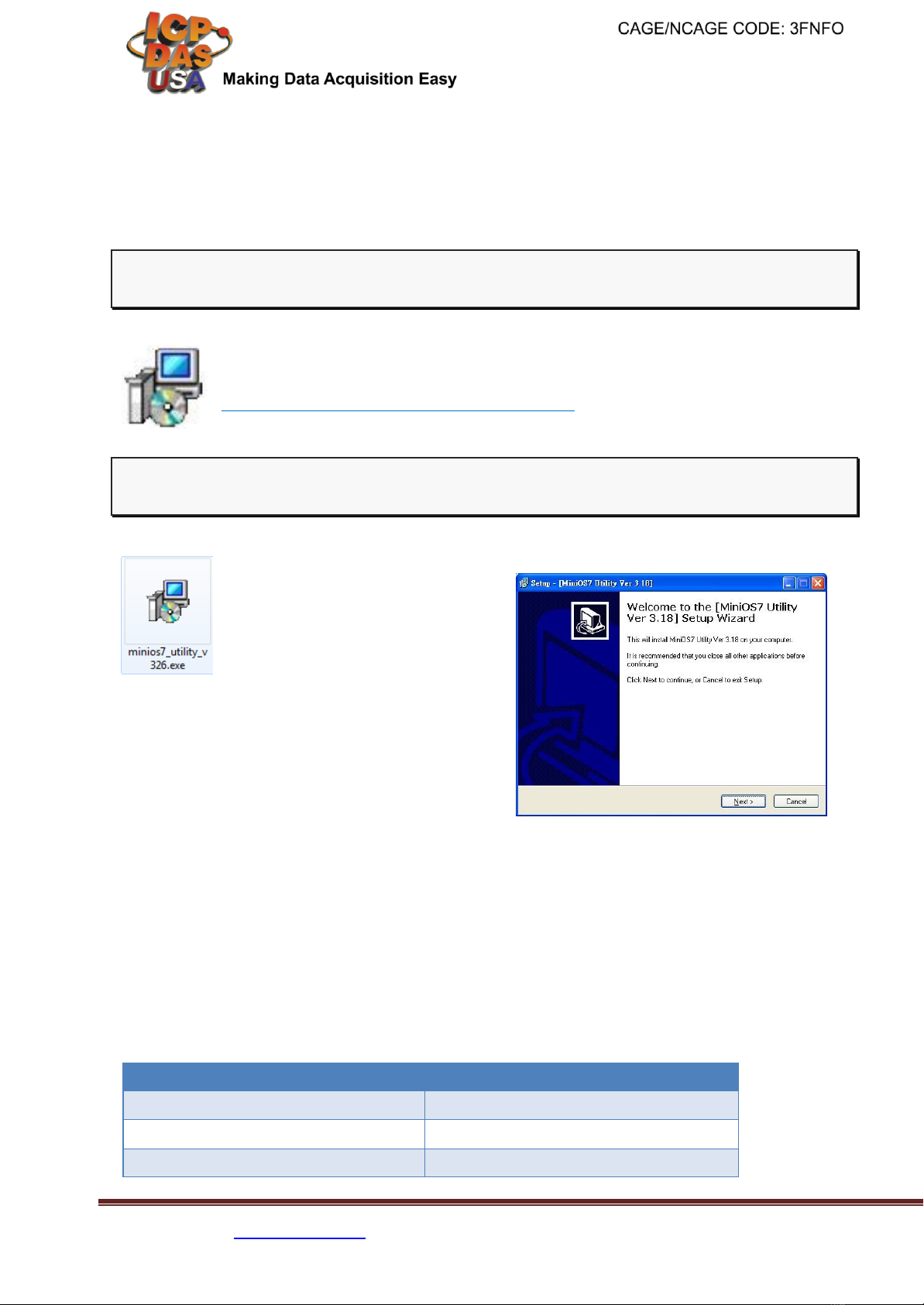

Installing the MiniOS7 Utility

Step 1: Get the MiniOS7 Utility tool

The MiniSO7 Utility can be obtained from companion CD or our site:

CD:\Napdos\minios7\utility\minios7_utility\

http://www.icpdas-usa.com/minios7utility.html

Step 2: Follow the prompts to complete the installation

After the installation has been completed, there will

be a new short-cut for MiniOS7 Utility on the

desktop.

----------------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The ET-7065 are Ethernet devices, which comes with a default IP address, therefore, you must

first assign a new IP address to the ET-7065.

The factory default IP settings are as follows:

Item

Default

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

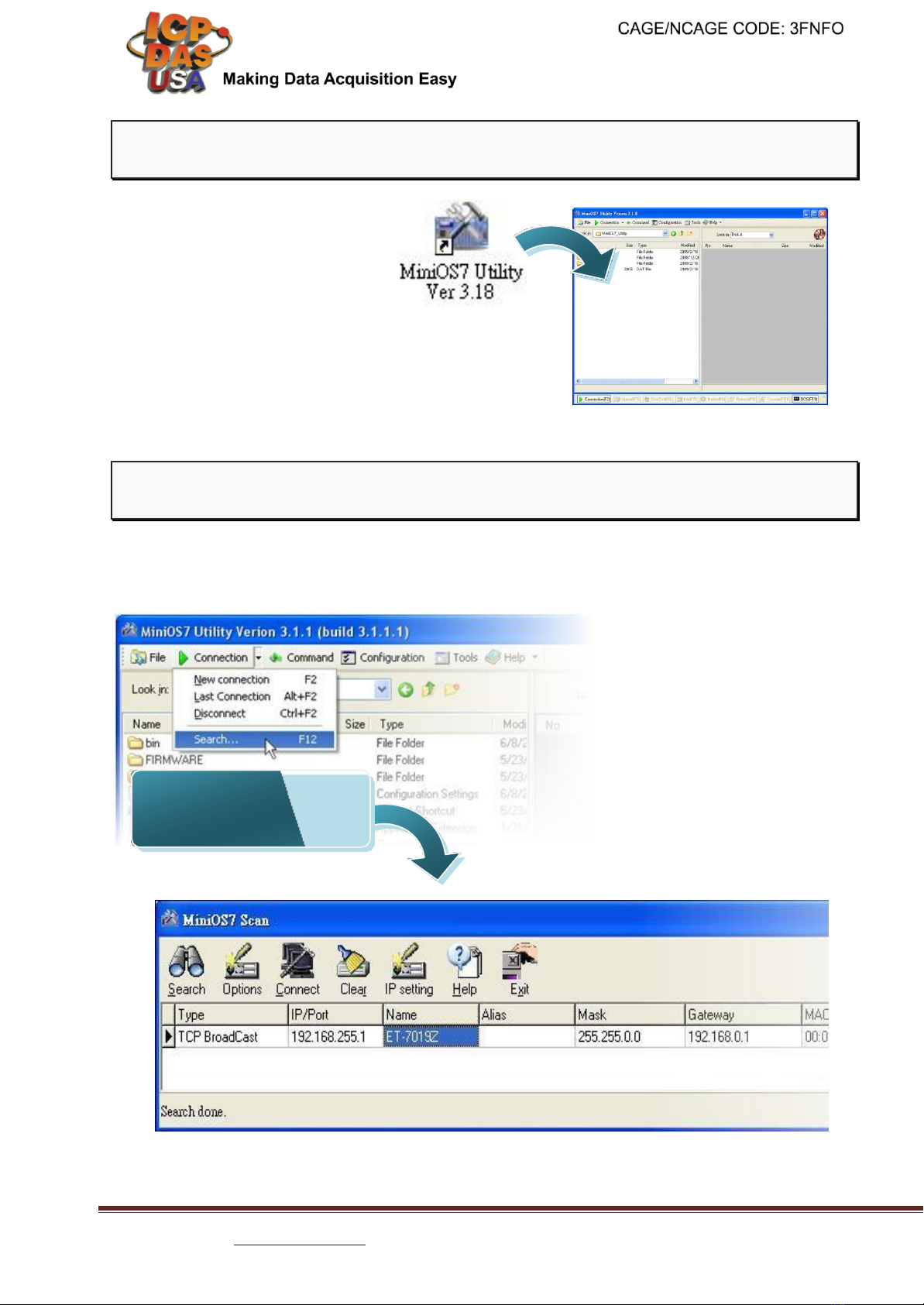

Step 1: Run the MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

Step 2: Press “F12” or choose “Search” from the “Connection” menu

After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan

dialog will appear, that will display a list of all the MiniOS7 modules on your network.

See the status tip, waiting

for the search to be done.

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Step 3: Choose the module name and then choose “IP setting” from the toolbar

Choose the module name for fields in the list, and then choose IP setting from the

toolbar.

Step 4: Assign a new IP address and then choose “Set” button

Step 5: Choose “Yes” button

After completing the settings, press the Yes

button in the Confirm dialog box to exit the

procedure.

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

----------------------------------------------------------------------------------

Enabling Adobe Flash Player in Your Brower

Your browser must support Adobe Flash Player and have it enabled in order to use the

ET-7065 web site.

If you do not have it installed, please go to the following website and install it.

The Adobe Flash Player Download Center:

http://get.adobe.com/flashplayer/

----------------------------------------------------------------------------------

Go to the ET-7065 Web Site to Check out Functions

The ET-7065 contains an advanced web configuration system that provides users with access

ET-7065 applications through a standard web browser.

Step 1: Start ET-7065

Make sure the switch placed in the

“ Normal” position.

Then reboot ET-7065

Step 2: Open a browser

Please use a standard internet browser to view the ET-7065 webpage, such as Mozilla

Firefox or Internet Explorer…etc.

If you haven’t changed the default IP address of the ET-7065, please refer to “4. Using

MiniOS7 Utility to Assign a New IP” to configure it.

Step 4: Fill out the User name and Password

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

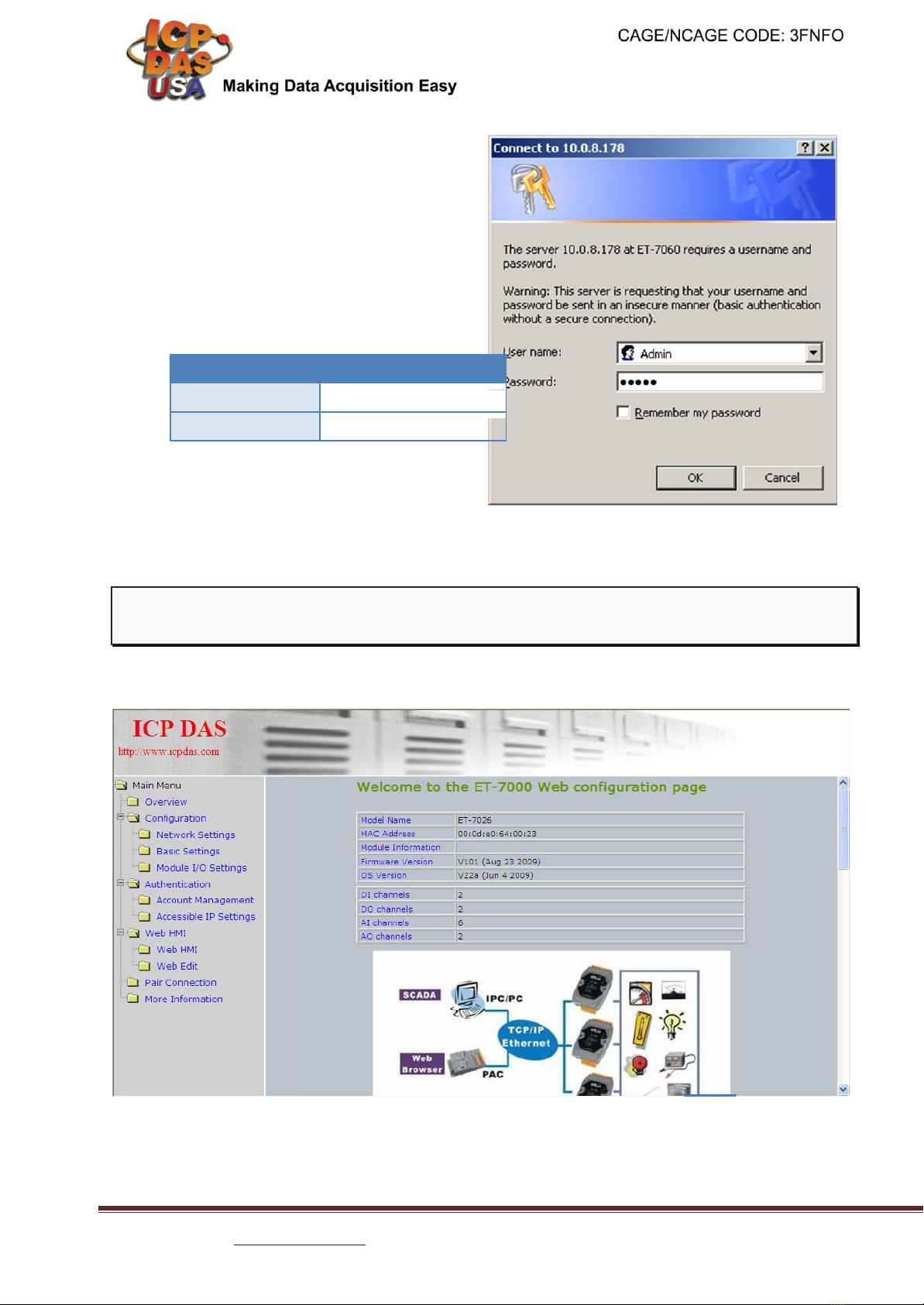

After entering the IP address, the login

dialog box will appear and prompt you to

enter your username and password.

The factory default user name and password

are as follows (Case sensitive) :

Item

Default

User name

Admin

Password

Admin

Step 5: Welcome to ET-7065 web site

After logging into the ET-7065 web site, the welcome page will appear.

ET-7065 Ethernet Remote I/O - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Under the Main Menu, expand the Web HMI, and

then select the Web HMI option to check the

values of the data acquisition.
