ICP DAS USA M-7064 Manuale utente

ICP DAS CO., LTD.

(D)

Quick St

art

Quick Start F o r M-7 0 64( D )

June 2016, Version 1.00

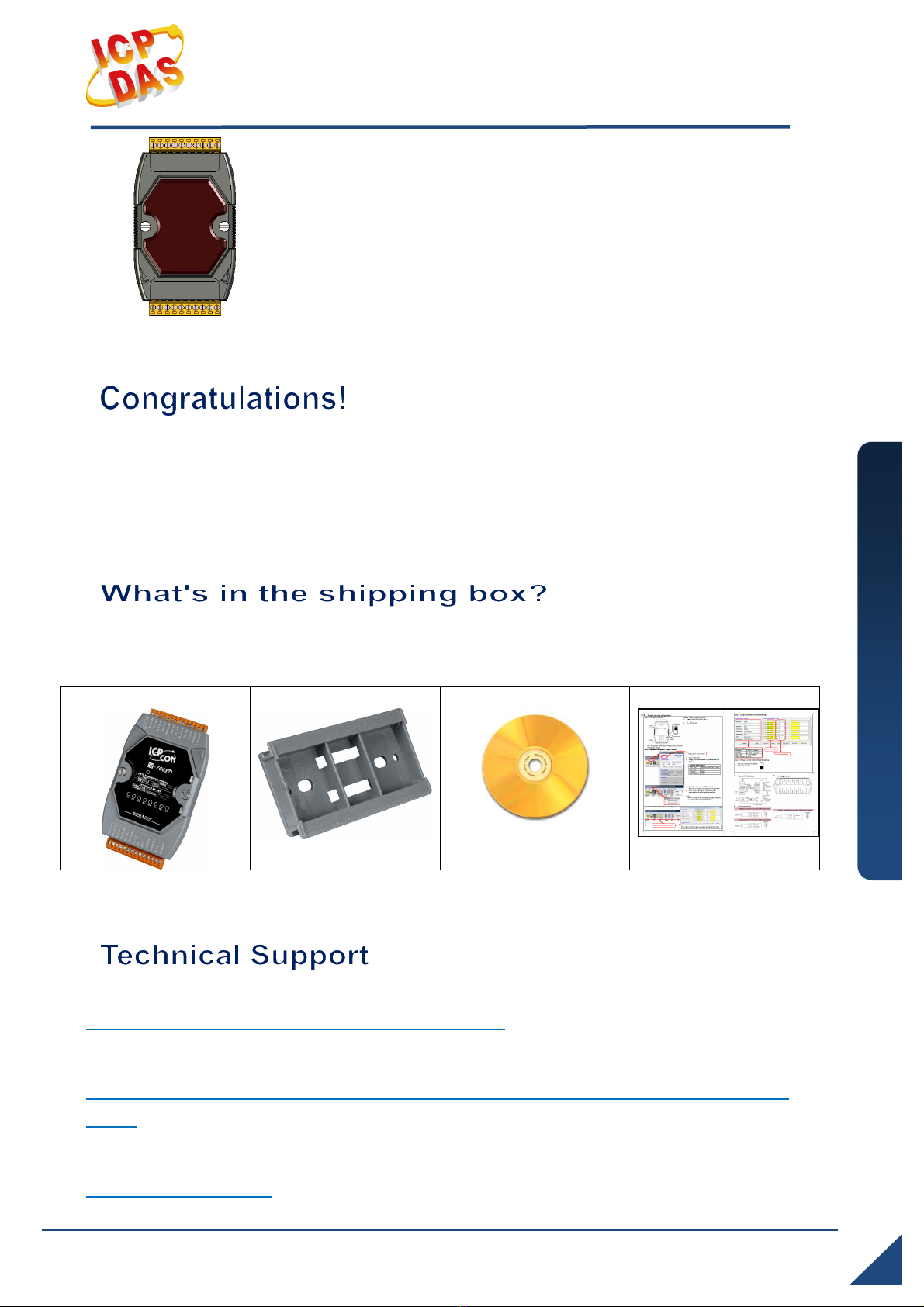

Congratulations on purchasing the M-7064(D) the most popular automation solution for

remote monitoring and control applications. This Quick Start Guide will provide

information needed to get started with the M-7064(D). Please also consult the User

Manual for detailed information on the setup and use of the M-7064(D).

In addition to this guide, the shipping box includes the following items:

7000 Series User Manual

http://www.icpdas.com/download/7000/manual.htm

I-7000 Website

http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-7000_m-7000/m-706

4.html

ICP DAS Website

http://www.icpdas.com

M-7064(D)

Plastic Rail

DVD

Quick Start Guide

ICP DAS CO., LTD.

(D)

Quick St

art

----------------------------------------------------------------------------------

Understanding the Hardware Specifications

and Wiring Diagrams

Before installing the hardware, you should have a basic understanding of hardware

specification and the wiring diagrams.

I/O Speciﬁcations Pin Assignment

Wire Connection

ICP DAS CO., LTD.

(D)

Quick St

art

Make sure the INIT* wire to (B)GND.

-----------------------------------------------------------------

-----

------------

Connecting to the PC and the Power Supply

M-7064(D) series modules are equipped with an

RS-485 port that can be used to connect to an

RS-232/USB converter to connect the module to a host

--------------------------------------------

Booting the M-7064(D) in

Init Mode

Connect to the PC

using an RS-232 Converter

Connect to the PC

using a USB Converter









          



 



  



 



  



 









  



          



  



 



  











 









  



ICP DAS CO., LTD.

(D)

Quick St

art

---------------------------------------------------------------------------------

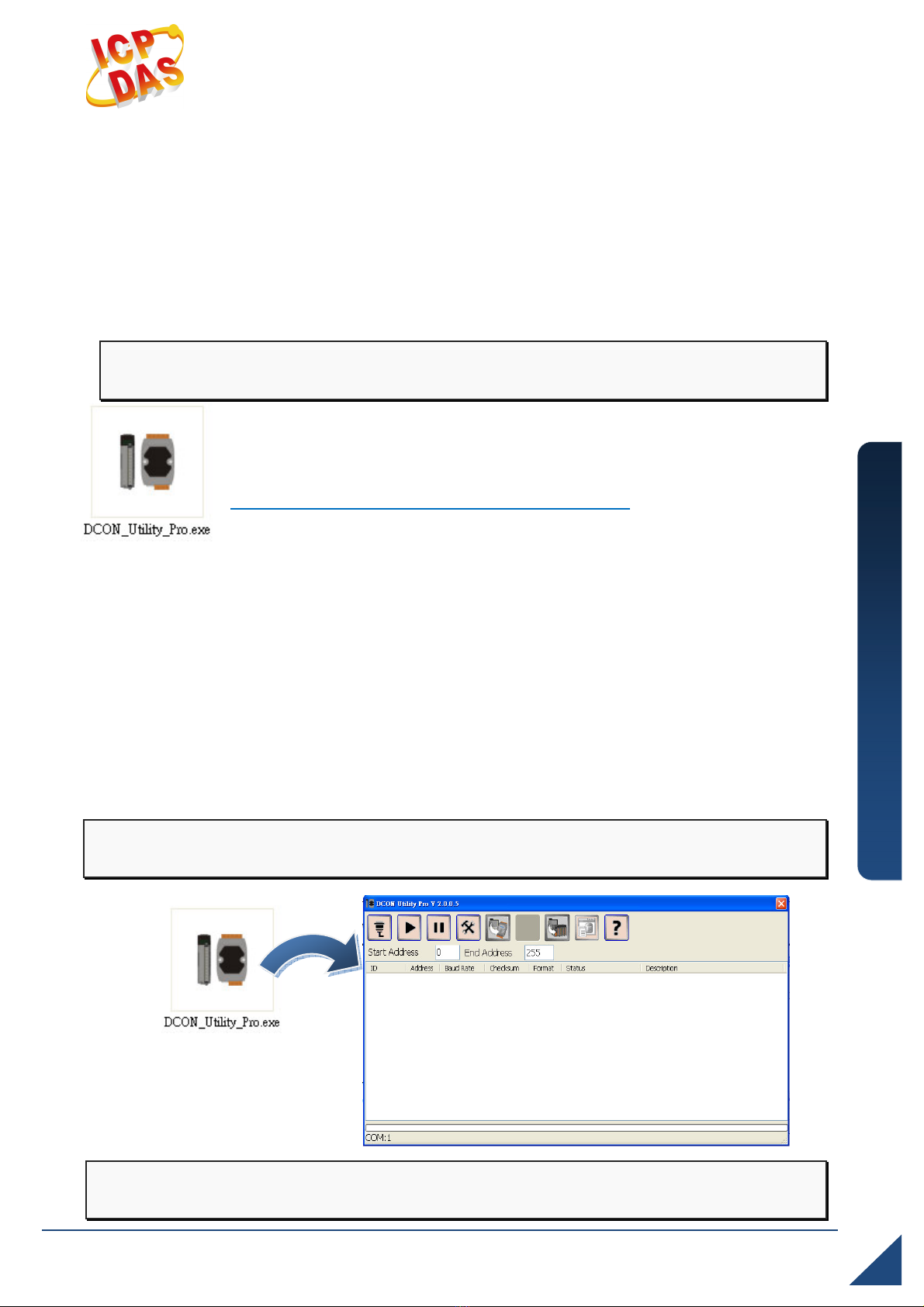

Download the DCON Utility Pro

The DCON Utility Pro is an easy-to-use tool designed to enable simple configuration

of I/O modules that use the DCON protocol Pro.

Step 1: Locate the DCON Utility

The DCON Utility Pro can be obtained from the companion from the

ICPDAS site:

http://www.icpdas.com/download/7000/7000.htm

----------------------------------------------------------------------------------

Using the DCON Utility Pro to Initialize the

M-7064(D) Module

The M-7064(D) is an I/O module based on the DCON protocol, meaning that you can

use the DCON Utility Pro to easily initialize it.

Step 1: Run the DCON Utility Pro

Double-click the DCON Utility

shortcut on your desktop.

Step 2: Use the COM1 port to communicate with the M-7064(D)

ICP DAS CO., LTD.

(D)

Quick St

art

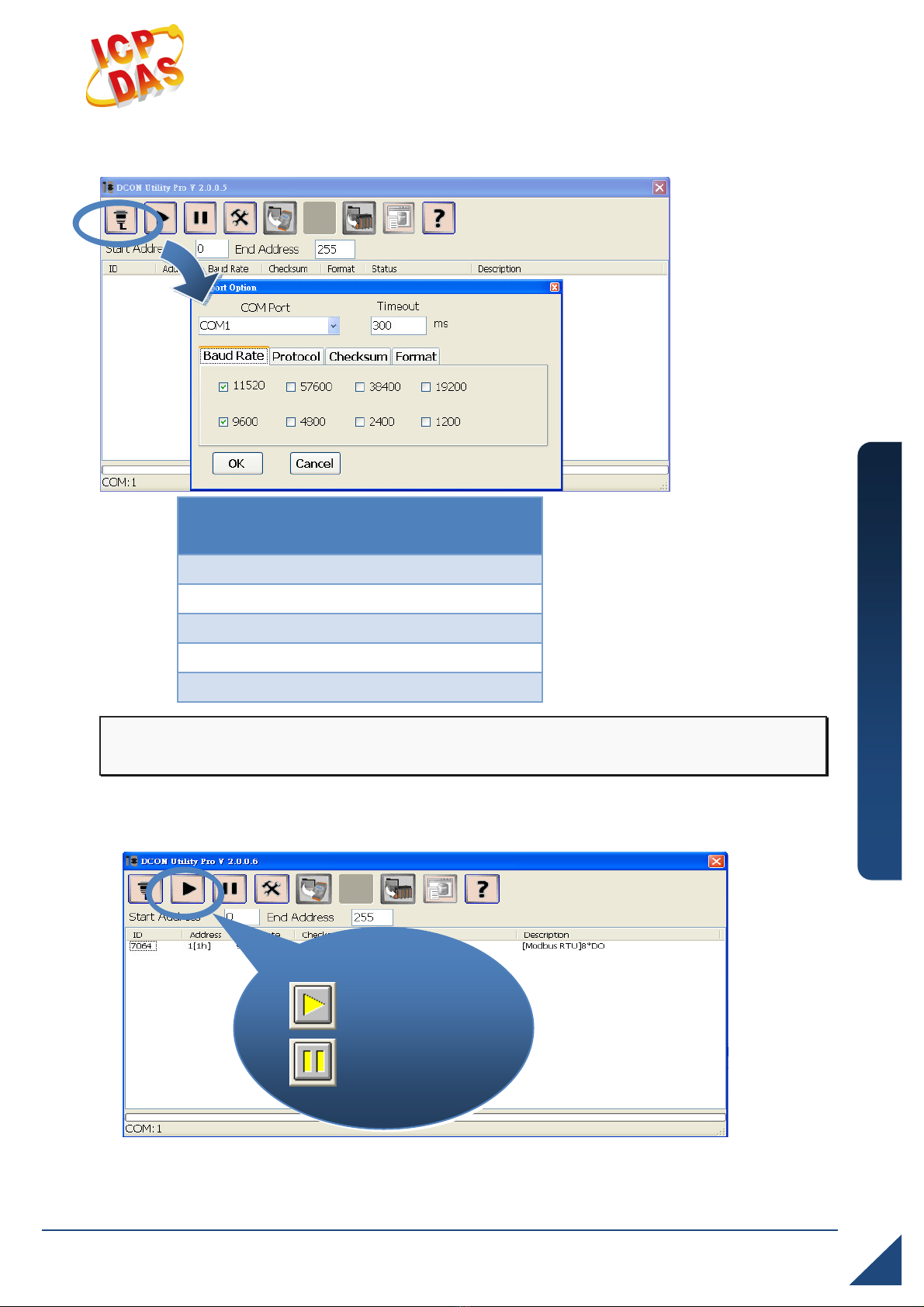

Click the “COM Port” option from the menu and a dialog box will be displayed that will

allow you to set the communication parameters as described in the table below.

Step 3: Search for the

M-7064(D)

module

Click “Start Search” button from the toolbox to search for the M-7064(D) module.

After the M-7064(D) module was display in the list, click “Stop Search” button.

Communication

parameter

Factory

default Value

Address 00

Baud Rate 9600

Protocol DCON

Checksum Disabled

Parity N,8,1

Start Search

Stop Search

ICP DAS CO., LTD.

(D)

Quick St

art

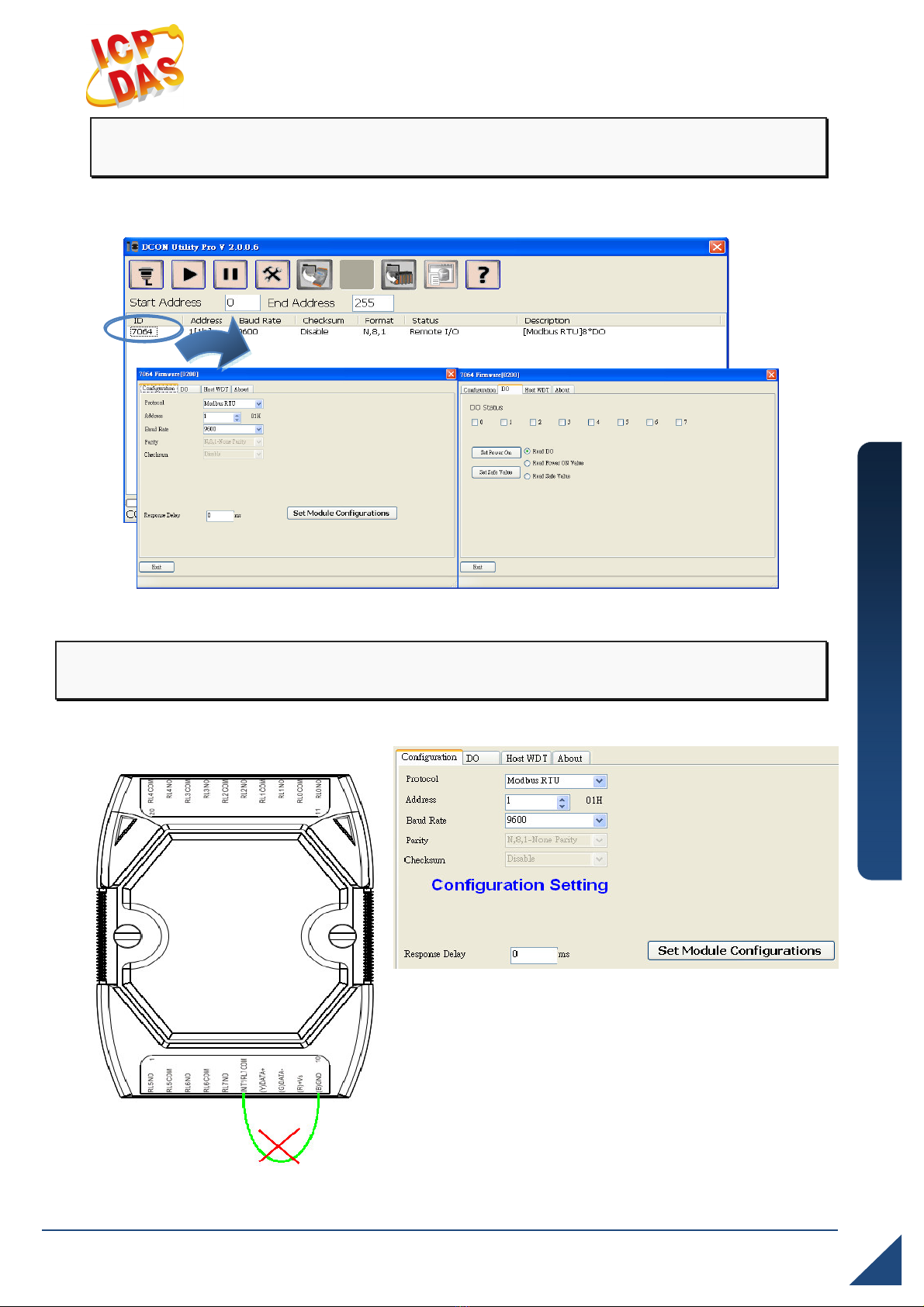

Step 4: Connect to the M-7064(D)

After clicking on the name of the module in the list, a dialog box would be display.

Step 5: Initialize the M-7064(D) module

Set the “Address” field in the dialog box to 1 and then click “Setting” button to save the

settings.

Make sure the INIT* and (B)GND

connection has been disconnected

--------------------------------------------

Rebooting the M-7064(D)

Module in Normal Mode

ICP DAS CO., LTD.

(D)

Quick St

art

----------------------------------------------------------------------------------

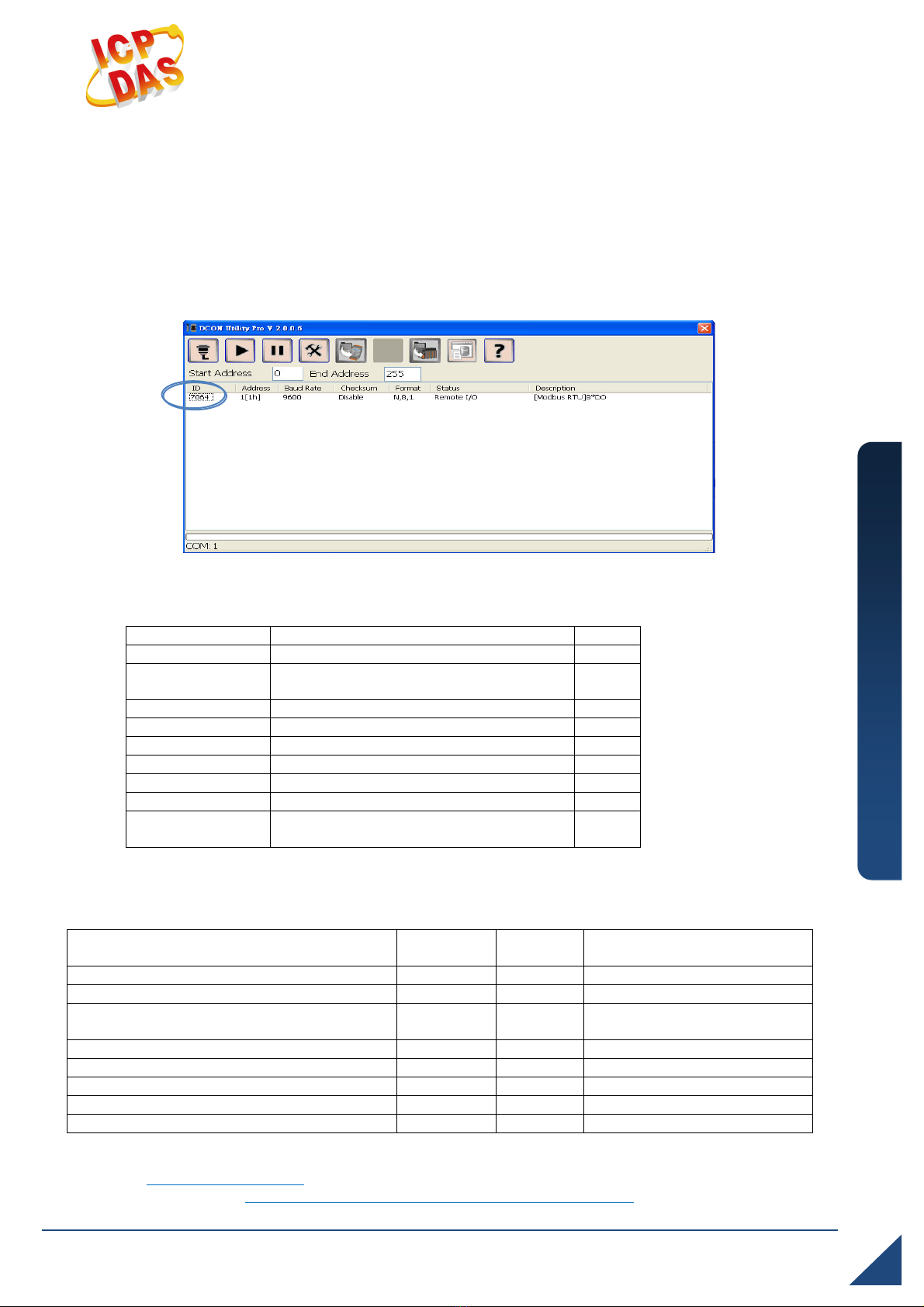

Starting the Module Operation

After rebooting the M-7064(D) module, search for the module to make sure the

settings have been changed. You can double click on the name of the module in the

list to open the configuration dialog box.

 Modbus Table



  DCON Pro Protocol

For more details regarding the DCON protocol, please check the enclosed CD at:

CD path: \\napdos\7000\manual\

Or from our web site at: ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/7000/manual/

Address

Description

R/W

00001 ~ 00004 DO Value R/W

00033 ~ 00036

10001 ~ 10004 DI Value R

00065 ~ 00068 DI Latch High Value R

00069 ~ 00072 DO Latch High Value R

00097 ~ 00100 DI Latch Low Value R

00101 ~ 00104 DO Latch Low Value R

00264 Write 1 to clear latch values (FC 05) W

00513 ~ 00516 Write 1 to clear DI counter (FC 05, FC15)

30001 ~ 30004

40001 ~ 40004 DI Counter Value R

Function

Command

Respons

Notes

Reads the name of the module $AAM !AA(Data)

AA: module address

Reads the firmware version of the module $AAF !AA(Data)

Reads the status of the digital output

channels @AA (Data)

Sets the digital output channels @AA(Data)

0~F

Reads the digital input counter of channel N #AAN !AA(Data)

N: The channel to be read

Clears the digital input counter of channel N $AACN !AA

Reads the status of the latched DO channels

$AALS !(Data) S: 0 is low, 1 is high

Clears the status of the latched DO channels

$AAC !AA
