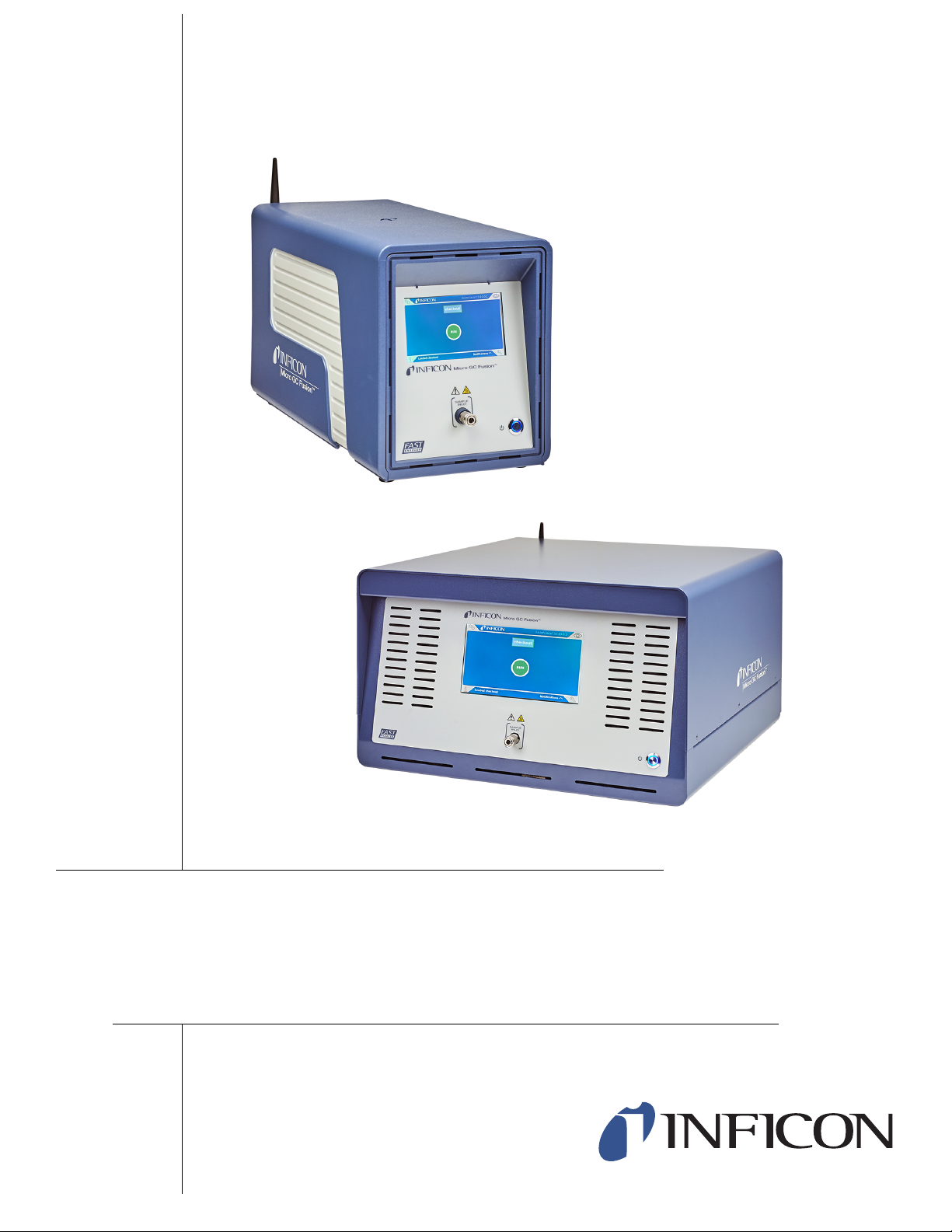

Inficon Micro GC Fusion Manuale utente
INSTALLATION GUIDE
PN 074-663-P1B
C
over
P
age
EZ IQ and Micro GC Fusion Driver
Installation Guide
Micro GC Fusion
®
Trademarks
The trademarks of the products mentioned in this manual are held by the companies that
produce them.
Micro GC Fusion® is a registered trademark of INFICON GmbH.
Windows® and Microsoft® are registered trademarks of Microsoft Corporation.
All other brand and product names are trademarks or registered trademarks of their respective companies.
Disclaimer
The information contained in this manual is believed to be accurate and reliable. However, INFICON assumes
no responsibility for its use and shall not be liable for any special, incidental, or consequential damages related
to the use of this product.
Due to our continuing program of product improvements, specifications are subject to change without notice.
Copyright
©2017 All rights reserved.
Reproduction or adaptation of any part of this document without permission is unlawful.
TOC – 1
Micro GC EZ IQ Installation and Driver Configuration
Table Of Contents
Cover Page
Trademarks
Disclaimer
Copyright
Chapter 1
EZ IQ Installation
1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Computer Minimum Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.3 Install EZ IQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.4 EZ IQ Installation Qualification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Chapter 2
Micro GC Fusion Driver Installation and Configuration
2.1 Installing Micro GC Fusion Driver for EZ IQ . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2 Micro GC Fusion Driver License Activation . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2.3 Configuring EZ IQ for Micro GC Fusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Chapter 3
Customer Support
3.1 How To Contact Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1–1
EZ IQ and Micro GC Fusion Driver Installation Guide
Chapter 1
EZ IQ Installation
1.1 Introduction
Micro GC Fusion is compatible with INFICON EZ IQ software (PN G2801-64002).
To connect Micro GC Fusion to EZ IQ, the Micro GC Fusion driver for EZ IQ must
be installed on the EZ IQ computer and a license for Micro GC Fusion driver on
OpenLAB or EZ IQ (PN 952-389-G1) must be obtained from INFICON and installed
on Micro GC Fusion.
1.2 Computer Minimum Requirements
The EZ IQ computer must meet the following requirements:
1.2.1 Important Notes
Microsoft TCP/IP networking is required for all products. WAN’s (wide area
networks) are not supported.
Disk space requirements should be adjusted based on archival periodicity.
INFICON recommends a minimum of one year of the expected disk usage on
top of the recommendation of the operating system. For reference, each
analysis will generate a data file of ~200 KB.
Micro GC Fusion software must be upgraded to version 1.3 or higher.
Table 1-1 Computer mimumum requirements
Type Microsoft Operating System CPU RAM1Disk Space Network Graphics
Minimum
Configuration
XP Pro. SP3 with.Net 3.0 or
Vista Business SP1 or
Windows 7 Pro 32-bit
2 GHz 2 GB 10 GB See
section
1.2.1.
1024 x 768
Recommended
Configuration
XP Pro. SP3 with.Net 3.0 or 3.5 SP1 or
Vista Business SP1 or
Windows 7 Pro 32-bit
Dual core
2 GHz
2 GB 10 GB and
>60% free HD
space
100 Mbps or
higher
1280 x 1024
or higher
1RAM total available memory for EZ IQ including the operating system, but no other application.
1–2
EZ IQ and Micro GC Fusion Driver Installation Guide
1.3 Install EZ IQ
To install EZ IQ onto a Windows computer:
1Insert the EZ IQ Installation CD into the computer CD-ROM drive.
2The CD Installer window will display. (See Figure 1-1.) If it does not display,
double-click CDInstaller.exe under the CD-ROM root drive.
3Click Install EZ IQ to start the installation.

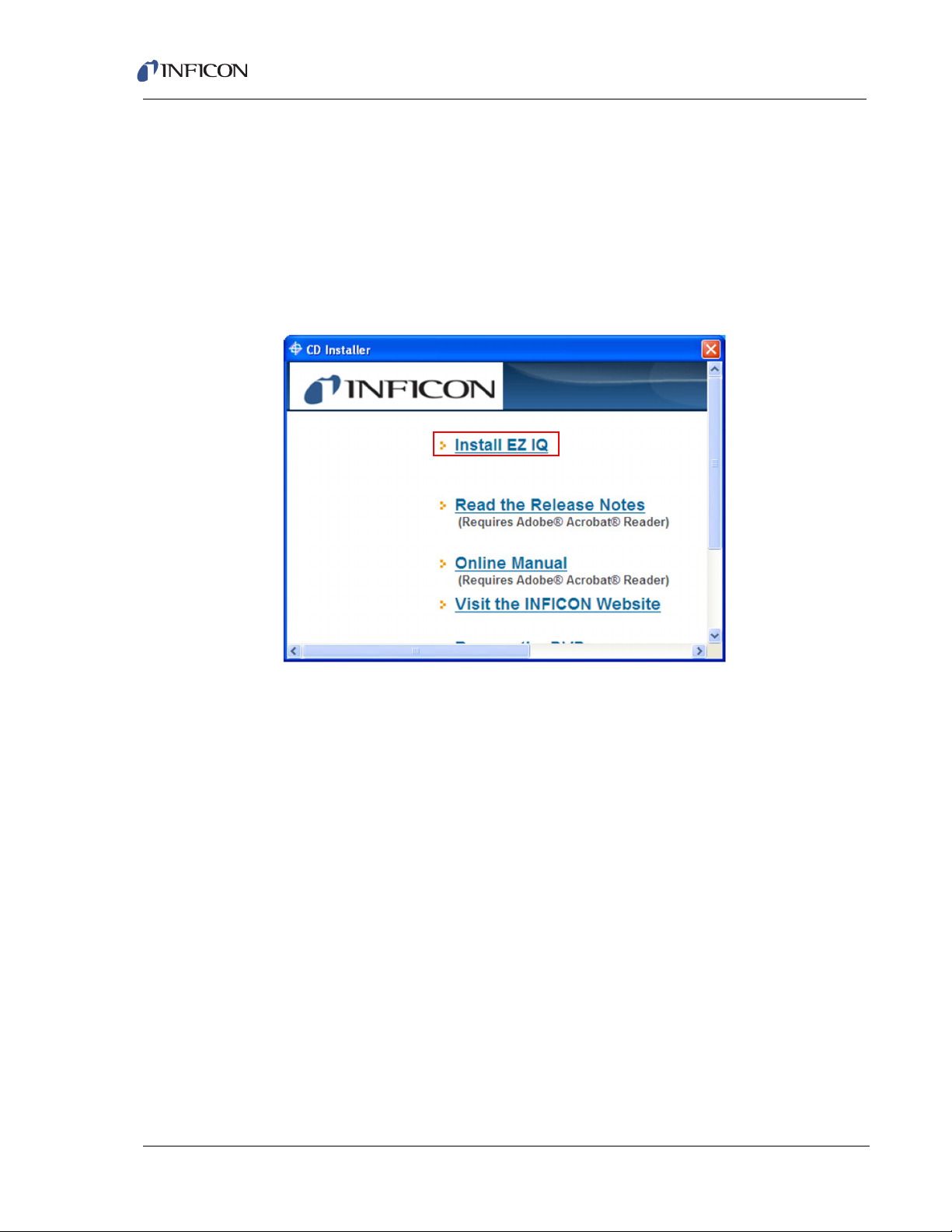

Figure 1-1 CD Installer window
1–3
EZ IQ and Micro GC Fusion Driver Installation Guide
4The EZ IQ Setup - Welcome to the InstallShield Wizard for EZ IQ window
will display. (See Figure 1-2.) Click Next>.

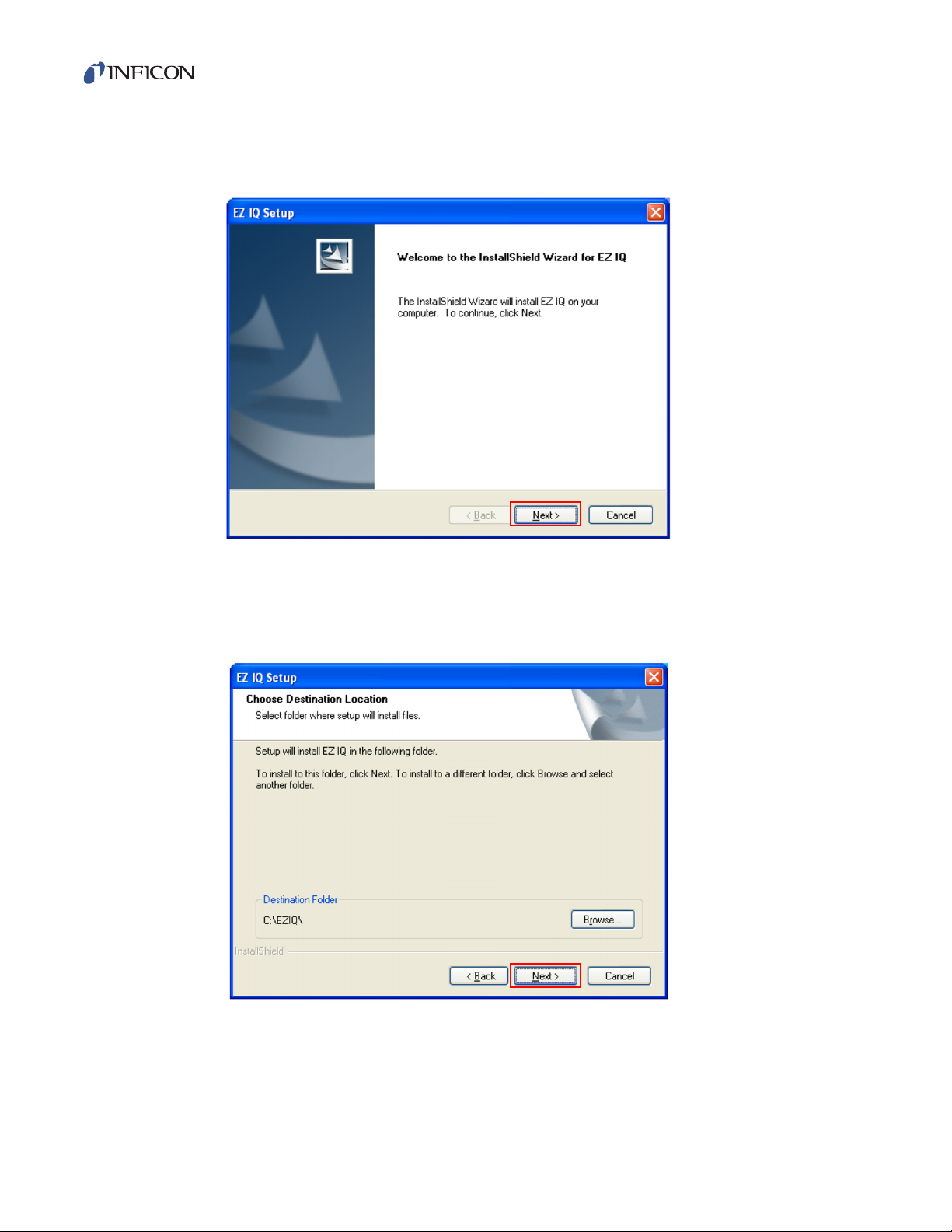

Figure 1-2 EZ IQ Setup - Welcome window
5The EZ IQ Setup - Choose Destination Location window will display.
(See Figure 1-3.) Choose an EZ IQ software installation destination folder. It is
recommended to use the default destination folder C:\EZIQ. Click Next>.
Figure 1-3 EZ IQ Setup - Choose Destination Location window
1–4
EZ IQ and Micro GC Fusion Driver Installation Guide
6The EZ IQ Setup - Select Program Folder window will display. (See Figure
1-4.) Type in a name for the Program Folder. This name will be shown in the
Start >> All Programs menu. It is recommended to use the default
Chromatography program folder name. Click Next>.

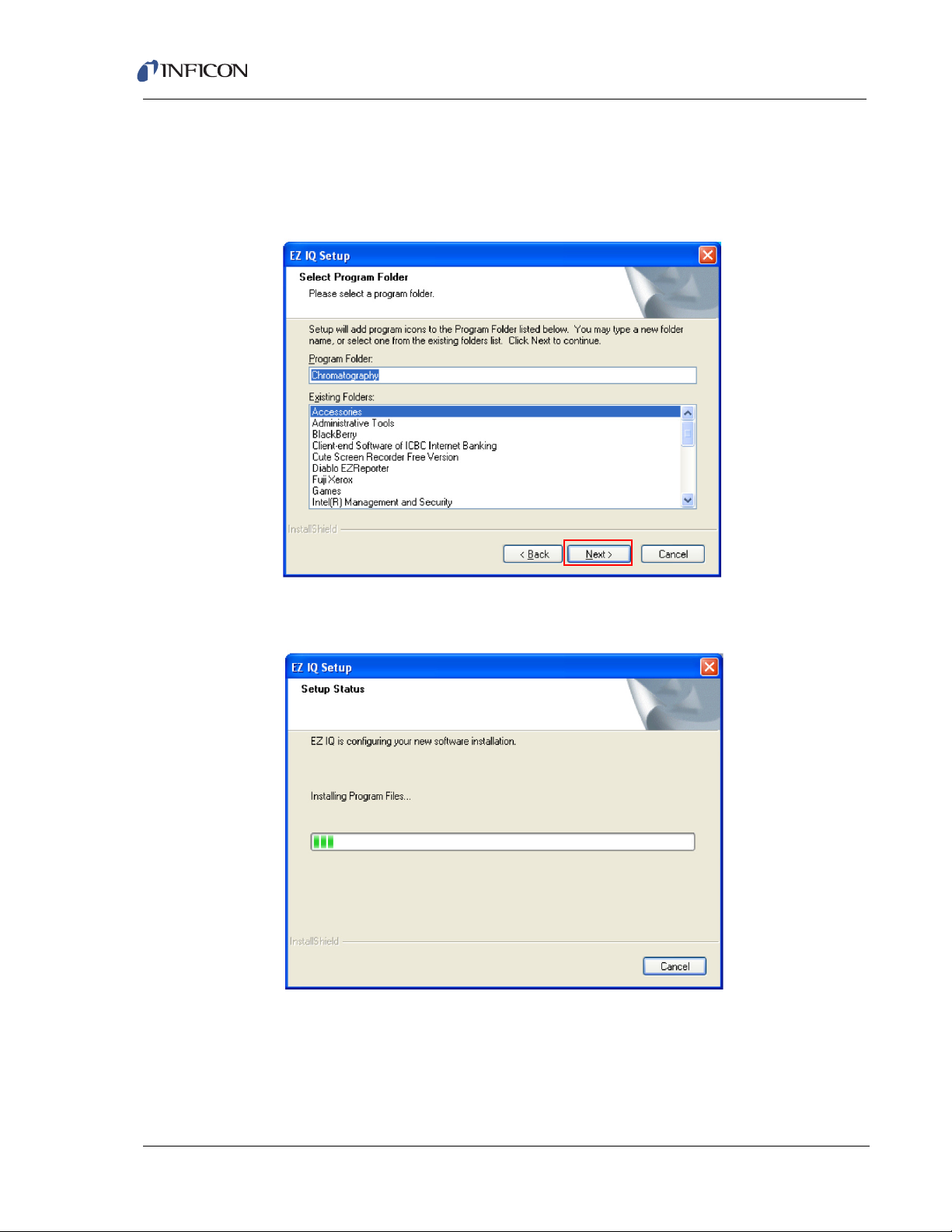

Figure 1-4 EZ IQ Setup - Select Program Folder window
7The EZ IQ Setup - Setup Status window will display. (See Figure 1-5.)
Figure 1-5 EZ IQ Setup - Setup Status window
1–7
EZ IQ and Micro GC Fusion Driver Installation Guide

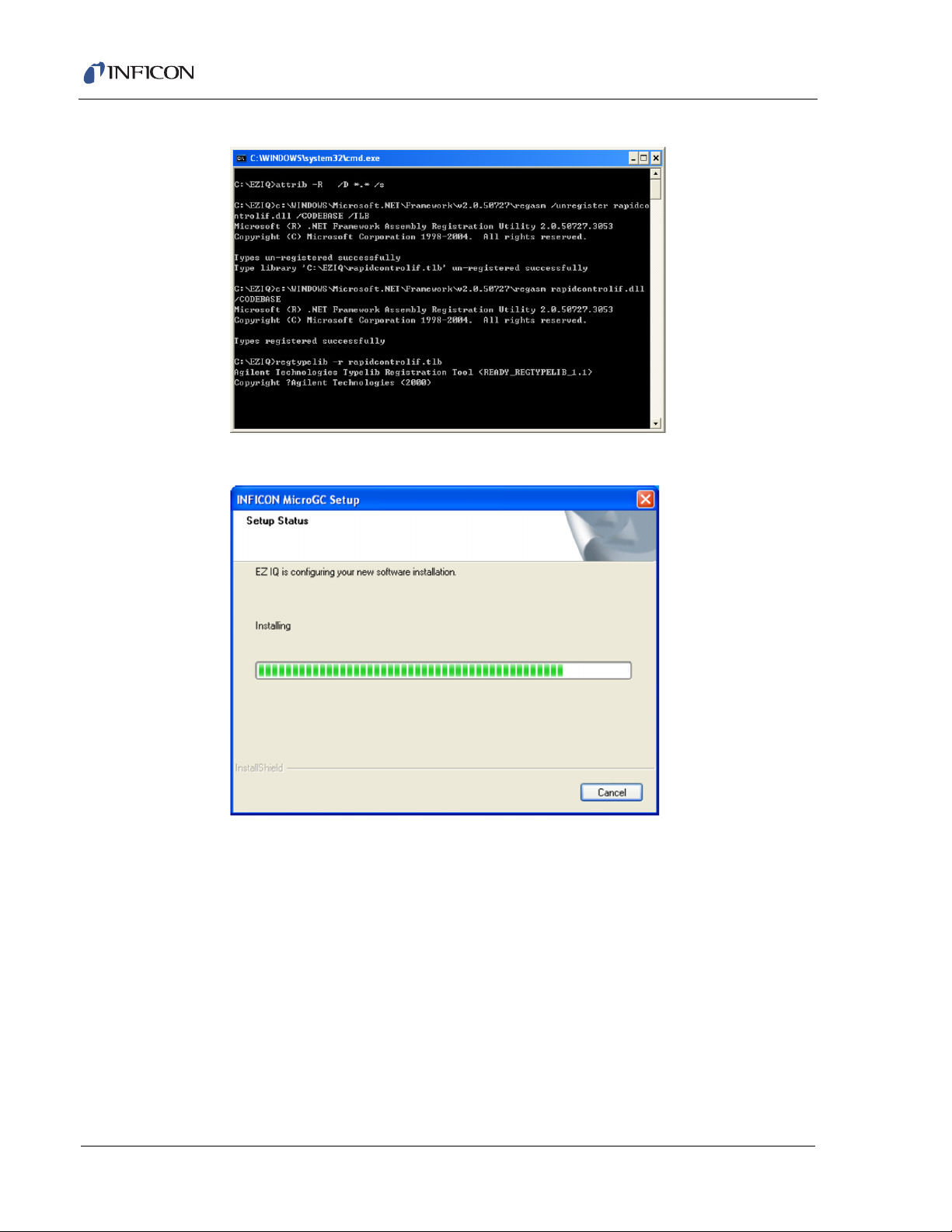

Figure 1-9 EZ IQ Setup - cmd.exe window
Figure 1-10 INFICON MicroGC Setup - Setup Status window
