Intel VX PENTIUM PCI Manuale utente

INTEL VX PENTIUM PCI

MAINBOARD

USER’S MANUAL

Version #7502/004/1196

P/N #73-75021040-000

Trademark Acknowledgments

Trademark Acknowledgments:

•IBM PC, PC/XT and PC/AT all are registered trademarks of International

Business Machines Corporation.

•Pentium is a trademark of Intel Corporation.

•AMD is a registered trademark of Advanced Micro Devices Inc.

•AWARD is a registered trademark of Award Software Inc.

•PCI is registered trademark of PCI Special Interest Group.

•MS-DOS and WINDOWS NT are registered trademarks of Microsoft

Corporation.

The manufacturer reserves the right to modify any product’s specifications in order

to meet advances in hardware and software technology.

Table of Content

1. INTRODUCTION.............................................................................................................1

1.1 OVERVIEW................................................................................................................1

1.2 GREEN PC POWER MANAGEMENT.......................................................................3

1.3 CHECKLIST ...............................................................................................................5

1.4 PT-7502-2 SYSTEM BOARD SPECIFICATIONS......................................................6

1.5 STATIC ELECTRICITY PRECAUTION....................................................................8

2. HARDWARE CONFIGURATION..................................................................................10

MAINBOARD COMPONENT LOCATIONS.....................................................................10

2.1 JUMPERS & CONNECTORS...................................................................................13

2.2 EXTERNAL CACHE CONFIGURATION................................................................26

2.3 MEMORY INSTALLATION ....................................................................................27

3 AWARD BIOS SETUP ...................................................................................................33

3.1 STANDARD CMOS SETUP.....................................................................................36

3.2 BIOS FEATURES SETUP .......................................................................................41

3.3 CHIPSET FEATURES SETUP ................................................................................51

3.4 POWER MANAGEMENT SETUP...........................................................................55

3.5 PNP/PCI SLOT CONFIGURATION........................................................................60

3.6 LOAD SETUP DEFAULTS .....................................................................................63

3.7 INTEGRATED PERIPHERALS SETUP..................................................................65

3.8 USER PASSWORD SETTING.................................................................................65

3.9 IDE HDD AUTO DETECTION ...............................................................................65

3.10 SAVE & EXIT SETUP...........................................................................................25

3.11 EXIT WITHOUT SAVING....................................................................................25

Statements

"This is an ENERGY STARTM compliant product."

The Environmental Protection Agency ENERGY STARTM program defines that as an Ally

of this program the specified manufacturer must produce systems, or system components

which enable a computer system to operate and draw 30 watts or less of power in idle mode.

Although the EPA do not endorse any particular product or service, the program is designed

to offer a cooperative effort between the EPA and the component manufacturer (Ally) to

provide energy saving products and education to customers."

"FCC Approval"

The PT-7502-2 motherboard has been approved for FCC Class B when properly installed in a

barebone configuration using the following case/power supply:

Brand Model FCC ID

Procase PC-109 SM JPJPINE429G1

Procase PC-609 T/M JPJPINE429G6

Procase PC-709 T/M JPJPINE429G7

FCC Notice:

Information to the User

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. Should you

experience interference to radio or television reception then the user is encouraged to try to

correct this interference by one or more of the following measures:

Re-locate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help and for additional

suggestions.

The user may find the following booklet prepared by the Federal Communications

Commission helpful:

“How to identify and Resolve Radio-TV Interference Problems.” This booklet is available

from the U.S. Government Printing Office, Washington, DC20402, Stock No. 004-000-

00345-4.

FCC Warning

The user is cautioned that changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate this equipment.

Note : In order for the installation of this product to maintain compliance with the limits for

a Class B device, shielded

Page

Introduction

1. Introduction

1.1 Overview

•The PT-7502-2 motherboard offers 64-bit programming architecture compatible with the

software base of 486 and 586 microprocessors. It is a reliable motherboard, using a Intel

i430VX chipset and a multi-layer printed circuit board. The chipset consists of a TVX

(Host Bridge & Cache Memory Controller), two TDX (Write Buffer Data Path

Controller), and 82371SB, PIIX3 (ISA Bridge & System I/O Controller).

•The PT-7502-2 is a PCI Local Bus motherboard. The four Master Mode PCI Local Bus

slots fully comply with the PCI (Peripheral Component Interconnect) Local Bus

Specification Rev. 2.1. The speed of I/O peripherals can be dramatically increased by

connecting PCI compatible interface cards to the PCI Local Bus slots on the PT-7502-2.

PINE is a member of PCI SIG (Special Interest Group).

•The PT-7502-2 is a ‘green’ design motherboard which means if there is no system activity

for a specific period of time (this period is software programmable), the PT-7502-2 will

slow down its original working frequency to zero. This will help to save power

consumption, reduce energy related pollution and protect our environment.

•The PT-7502-2 has the full complement of I/O on-board: FDC, PCI local bus Enhanced

IDE, printer port, COM ports, and dual USB port as well.

1.2 Green PC Power Management

The Green PC mode is a state that minimizes power consumption. There are two different

levels of Green PC modes :

•Standby mode. The spin motor of the HDD can be turned off.

•Inactive mode / Sleep Mode. The PT-7502-2 can stop the CPU clock under this mode.

The PT-7502-2 will be placed into Green PC mode as a result of one of the following events :

When the SMI header is connected to a momentary switch, pressing the switch will put

PT-7502-2 into Green mode.

Expiration of the internal Green PC Timer. The Green PC Timer is software programmable

which can configure in the "Power Management Setup" option of the BIOS CMOS setup. The

power management feature will be enabled as default; however, the timing may differ due to

production control. It is recommended that you re-adjust these timings according to your

personal requirements/set-up.

Through system activity monitoring and management, the PT-7502-2 will not go into Green

PC mode if any of the following activity is detected:

•PCI Master 0 activity •COM port activity

•PCI Master 1 activity •ISA master & DMA activity

•PCI Master 2 activity •IDE activity

•LPT port activity •Floppy activity

•COM port activity •Keyboard activity

Page

Introduction

1.3 Checklist

Please check your PT-7502-2 package to ensure that it contains the following items :

•PT-7502-2 Main Board

•PT-7502-2 User Manual

•Jumper Setting List

•Cable Pack included

1 x 40 way flat cables

1 x FDC flat cable

1 x DB9 flat cable and one DB25 flat cable with a bracket (COM 1 & COM 2)

1 x DB25 flat cable with a bracket (Printer port)

•Cache Module (either 512KB , 256KB or not bundle)

If any of these items are missing or damaged, please contact your local dealer or sales

representative for assistance.

1.4 PT-7502-2 System Board Specifications

•Intel i430VX PCIsetTM chipset

•Support either 75/90/100/120/133/166/180/200 MHz PENTIUMTM CPUs with 321 pin

ZIF socket

•Support Pentium P55C

•Support Dual Voltage Regulator Module

•Support Cyrix 6x86, AMD K5 CPUs

•Uses 72-pin SIMM modules x 4 auto banking in multiple configuration up to 128MB

•Support Both Fast Page Mode and Extended DATA Output (EDO) DRAM module

•Support SDRAM/EDO DRAM/Page Mode DRAM use 168-pin DIMMx2

•Support cache module socket, cache module options 256KB or 512KB pipeline burst

SRAM module

•4 PCI Local Bus slots, and 3 x 16 bits ISA Bus slots

•All 4 PCI slots support Master mode

•System BIOS support 4 IDE harddisk drivers that don't need device driver for S/W

application, the capacity each harddisk can large than 528MB up to 8.4GB

•PCI Bus master IDE interface on board with two connectors support 4 IDE devices in 2

channel, the PCI IDE Controller supports PIO mode 0 to Mode 4 at maximum transfer

rate of 16.67 MB/s and Bus master IDE DMA Mode 2.

•On board super Multi-I/O chip that support 2 serial port with 16550 Fast UART

compatible, 1 parallel port with SPP, EPP and ECP capabilities, and a floppy disk drive

interface.

•Support PS/2TM connector.

•Support the Universal Serial Bus (U.S.B.) (option)

•System BIOS supports NCR810 SCSI BIOS firmware and Green feature function, Plug

and Play Flash ROM

Page

Introduction

1.5 Static Electricity Precaution

Static electricity can easily damage your PT-7502-2 mainboard.

Observing a few basic precautions can help you safeguard against damage that could result in

expensive repairs. Follow the measures below to protect your equipment from static

discharge:

-Keep the mainboard and other system components in their anti-static packaging until

you are ready to install them.

-Touch a grounded surface before you remove any system component from its

protective anti-static packaging. A grounded surface within easy reach is the

expansion slot covers at the rear of the system case or any other unpainted portion of

the system chassis.

-During configuration and installation, touch a grounded surface frequently to discharge

any static electric charge that may build up in your body. Another option is to wear a

grounding wrist strap.

-When handling a mainboard or an adapter card, avoid touching its components.

Handle the mainboard and adapter cards either by the edges or by the mounting

bracket that attaches to the slot opening in the case.

Page

Hardware Configuration

2. Hardware Configuration

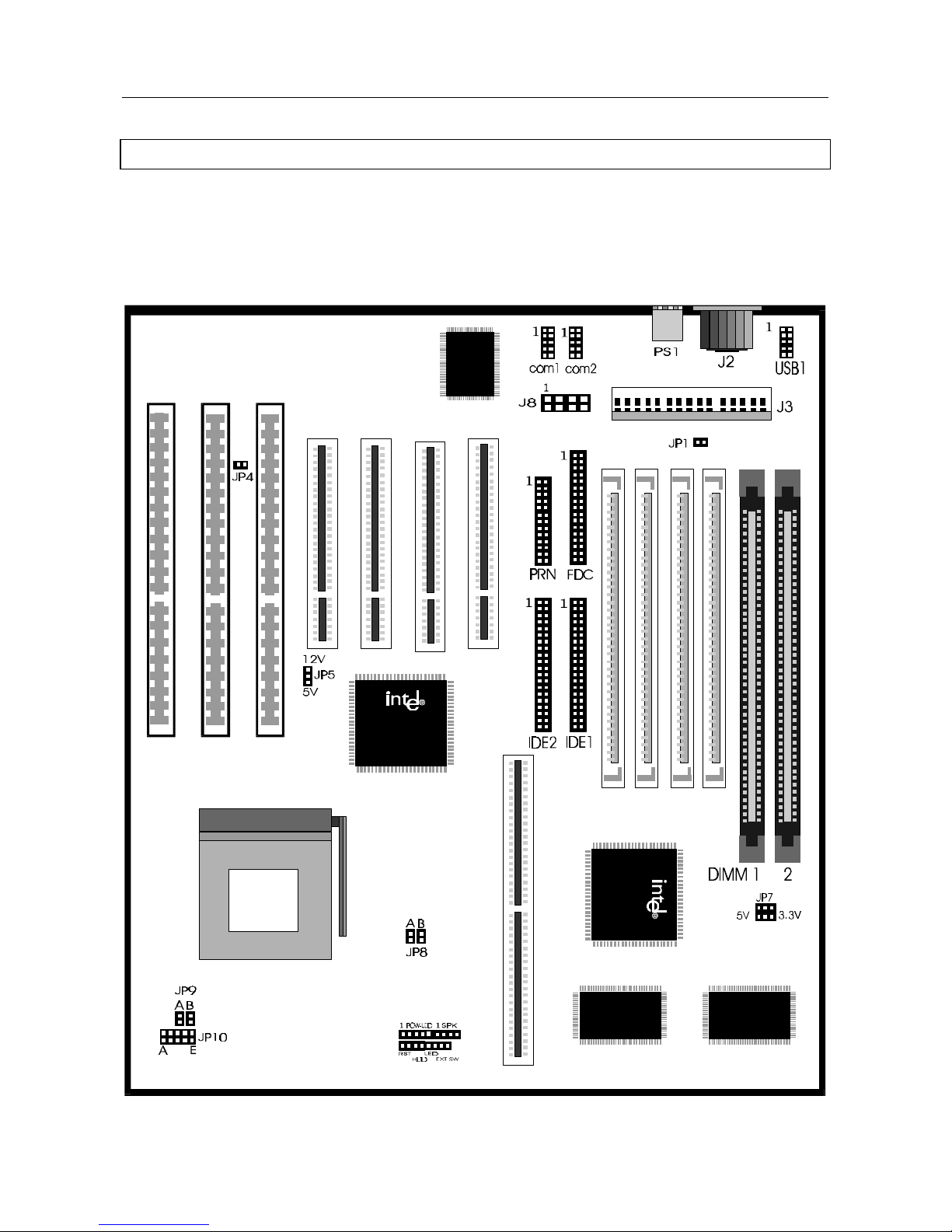

Mainboard Component Locations

Page

Hardware Configuration

2.1 Jumpers & Connectors

Jumpers/Connector Description

J2 Keyboard Connector

J3 Power Supply Connector

J6 Power-LED Keylock & Connector

J6 Speaker Connector

J7 HDD LED Connector

J7 Reset Switch

J7 External Battery Selector

J8 PS/2 Mouse Connector

JP1 Clear CMOS

JP4 AT Bus Clock Selector

JP5 FlashRom Voltage Selector

JP7A, JP7B DIMM Socket Voltage Select

JP8A, JP8B CPU Speed Selectors

JP9A, JP9B CPU Internal Clock Speed Selectors

JP10 P54C/P55C CPU Voltage Selectors

J2 Keyboard Connectors

A standard five-pin female DIN keyboard connector is located at the rear of the board J2.

Pin Description

1Keyboard Clock

2Keyboard Data

3N.C.

4Ground

5+5VDC

J2 USB Universal Serial Bus Connector

Pin Description Pin Description

1+5 VDC 7+5 VDC

2DATA - 8DATA -

3DATA + 9DATA +

4Ground 10 Ground

5N.C. 11 N.C.

COM 1 : Serial port #1

COM 2 :Serial port #2

PRN 1 :Parallel port

Page

Hardware Configuration

J3 Power Supply Connectors

The power supply connectors are two six-pin male header connectors. Plug the dual

connectors from the power directly onto the board connectors.

Most of the power supply have two leads. Each lead has six wires. Two of which are black,

orient the connectors, so the black wires are in the middle.

The black wires should be in the middle

P1 P12

Pin Description Pin Description

1Power Good 7Ground

2+ 5V DC 8Ground

3+12V DC 9- 5V DC

4- 12V DC 10 +5V DC

5Ground 11 +5V DC

6Ground 12 +5V DC

J6 Power-LED Keylock & Power-LED Connector

J6 is a keylock connector that enables and disables the keyboard and the Power-LED on the

case.

Pin Description

1LED Output

2NC

3Ground

4Keylock

J6 SPK Speaker Connectors

Attach the system speaker to connector J6.

Pin Description

1DATA Out

2NC

3Ground

4+ 5V

J7 HDD LED Connector

Pin Description

15V

2Active Low

Indice

Altri manuali Intel Scheda madre

Intel

Intel BLKDG41CN Guida alla configurazione

Intel

Intel BLKD101GGCL Manuale utente

Intel

Intel KEMX-2030 Manuale utente

Intel

Intel D915GMH Manuale utente

Intel

Intel D410PT Manuale utente

Intel

Intel BLKDG41MJ Guida alla configurazione

Intel

Intel BLKDH55PJ Manuale utente

Intel

Intel BLKD945GCPE - LGA775 1066FSB 2DDR2 2GB Audio Video Lan mATX 10Pack... Guida alla configurazione

Intel

Intel D945GCLF2 Manuale utente

Intel

Intel DQ67OW Manuale utente

Intel

Intel BX Manuale utente

Intel

Intel DH57DD Manuale utente

Intel

Intel DH55PJ Manuale utente

Intel

Intel DG41KR Manuale utente

Intel

Intel DP55KG - Desktop Board Extreme Series... Guida rapida

Intel

Intel BLKD945GCNL Guida alla configurazione

Intel

Intel 815TM5 Manuale utente

Intel

Intel D845GBV Manuale tecnico

Intel

Intel D33217GKE Manuale utente

Intel

Intel Desktop Board D2700MUD Manuale utente

Intel

Intel Desktop Board D845GVFN Manuale utente

Intel

Intel B785Z Manuale utente

Intel

Intel DZ87KLT-75K Manuale utente

Intel

Intel D865GSA Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
