TruVision TVD-7120VE-2 /

TVD-7125VE-2 Camera

User Manual

P/N 1072794B-EN • REV 1.0 • ISS 17JUN14

Interlogix is part of UTC Building & Industrial Systems, a unit of

Trademarks and

patents

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacture

United Technologies Corporation.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance Class A: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

Canada This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-003 du Canada.

ACMA compliance Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

European Union

directives

12004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance or with the essential

requirements and other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information For contact information, see www.utcfireandsecurity.com or

www.utcfssecurityproducts.eu.

TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual 1

Content

Product overview 2

Package contents 2

Features 2

User guidelines 2

Product description 3

Installation 4

Mount the camera 4

Connect the cables 5

Adjust the lens 5

Programming 7

OSD control button 7

Access the Setup Menu 7

Save changes 9

Select the lens type 9

Set the shutter/AGC 9

Set the white balance 11

Set the backlight compensation (BLC) 12

Adjust the picture characteristics 12

Set the ATR level 12

Set the motion detection 13

Set the privacy areas 13

Set the Day/Night mode 14

Set the image noise reduction 15

Set the camera ID 15

Set the sync mode 16

Select the language 17

Reset camera settings 17

Specifications 18

Dimensions 18

Menu tree 19

2 TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual

Product overview

The TVD-7120VE-2-N(-P)/ TVD-7125VE-2-N(-P) color dome camera uses a

digital signal processor (DSP) to process video signals. The camera includes a

microcontroller to provide high-quality images with high-color reproduction and

sharp pictures.

Package contents

The package contains the following:

• Camera

• Hex wrench

• Drilling template

• Composite video BNC cable

• Screws

• Quick Start Guide

• User Manual (on CD)

Features

The camera includes the following features:

• Super HAD II (hole accumulated diode) technology

• High horizontal resolution 700 TVL

• Smart digital control automatic BLC (backlight compensation)

• Digital WDR (wide dynamic range)

• Advanced auto exposure system for both fixed iris and auto iris lenses to

optimize the amount of light

• Internal and line lock synchronization

• Eight privacy mask areas to protect privacy concerns

• Signal-to-noise ratio better than 62 dB

• Long life and high reliability

• Isolated switching power 12 VDC and 24 VAC

User guidelines

• Program the camera settings as much as possible before mounting the

camera. Take appropriate safety precautions while completing programming

after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the

camera.

TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual 3

• Do not use the camera over the temperature range specifications: -30°C to

+60°C (22°F to 140°F)

• If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

WARNING: To reduce the risk of fire or electronic shock, do not expose the

camera to rain or moisture or open the back of the camera.

Product description

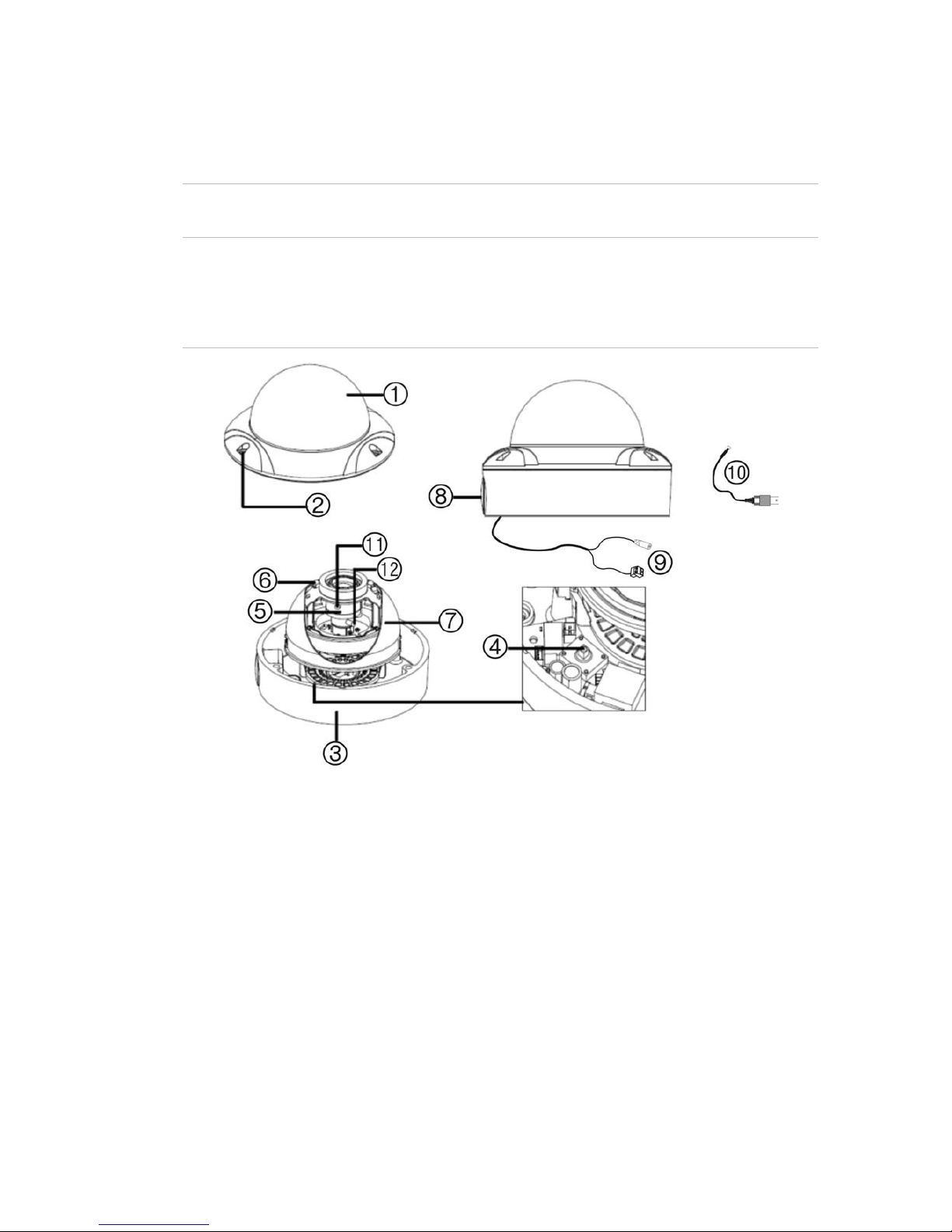

Figure 1: Product description

1. Dome cover

2. Screw hole

3. Base

4. OSD control button

5. Lens

6. IR LED (only for TVD-7125VE-2)

7. IR LED cover

8. Outlet hole

9. Power supply and video BNC cables

10. Composite video BNC cable

11. Focus adjustment

12. Zoom adjustment

4 TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual

Installation

Please check the package contents and make sure that the device in the

package is in good condition and all the assembly parts are included.

To install the camera, you will need to prepare the mounting surface, mount the

camera, make cable connections, and adjust the lens.

Note: Before installing, please ensure that the mounting surface is strong enough

to withstand three times the weight of the camera. If the mounting surface is not

strong enough, the camera may fall and cause serious damage.

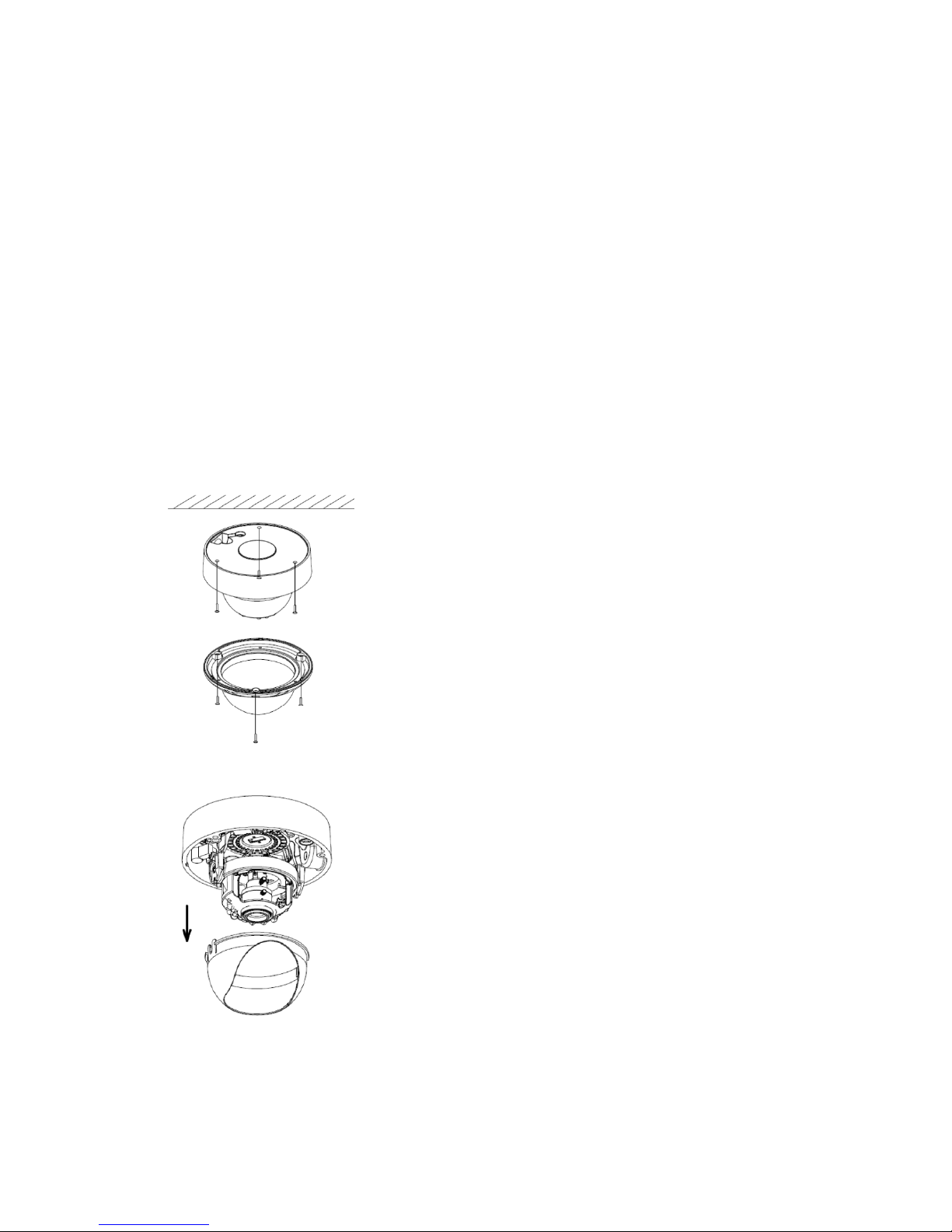

Mount the camera

To mount the camera:

1. Prepare the mounting surface.

2. Remove the dome cover.

3. Secure the camera to the mounting surface with screws.

4. Remove the IR LED cover to adjust the lens and the viewing angle.

TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual 5

Connect the cables

To make the cable connections:

1. Connect a 12 VDC or 24 VAC power supply to the power input.

2. Connect a coaxial cable from the camera’s BNC connector to a CCTV

monitor or video recording device.

Adjust the lens

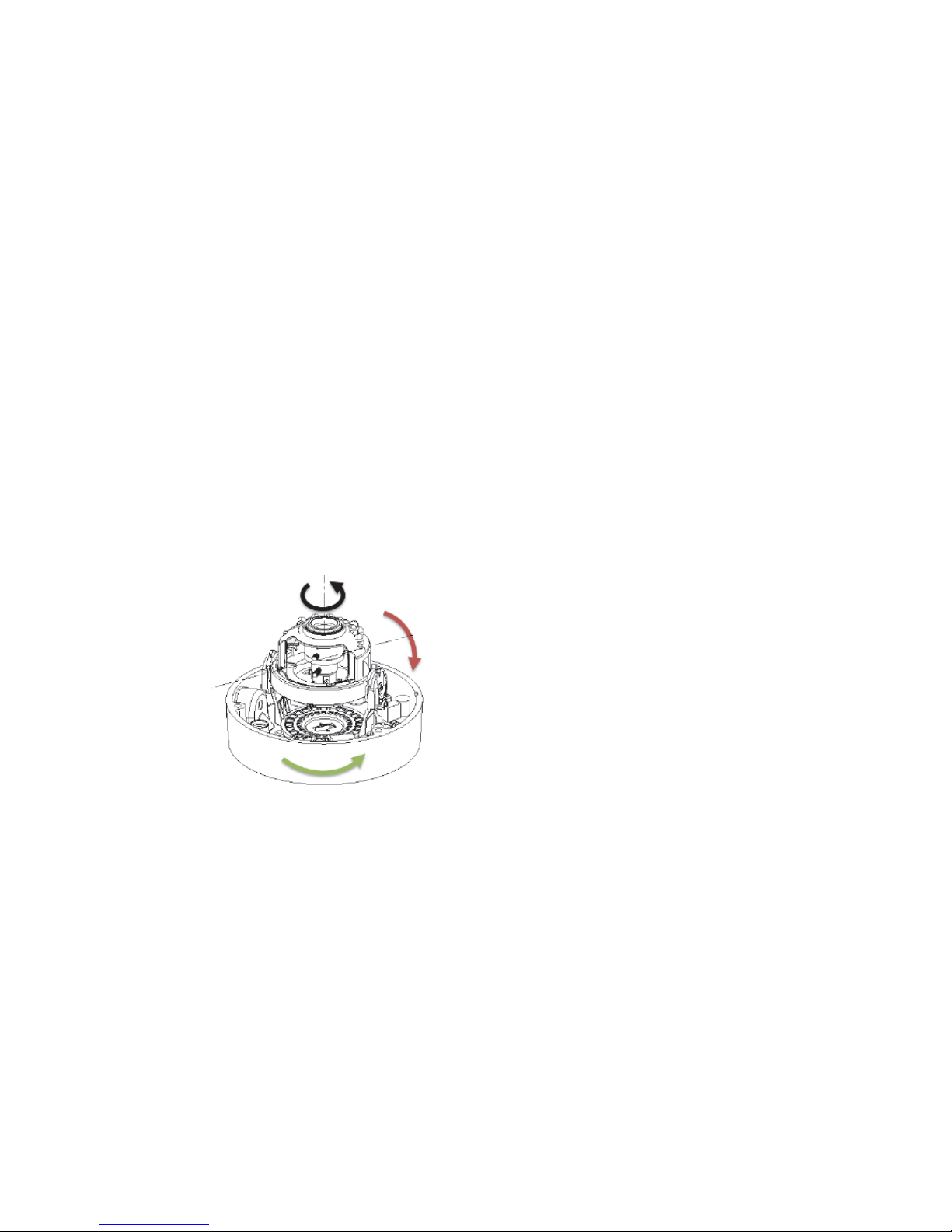

The camera is mounted on a pan-tilt-twist (3-axis gimbal) rotating platform so that

it is easy to adjust the camera orientation.

To adjust the lens:

1. Rotate the panning table to adjust the panning position of the camera. The

adjusting range is from 0 to 355 degrees.

2. Rotate the tilting table to adjust the tilting position of the camera. The

adjusting range is from 0 to 75 degrees. Tighten the tilting table lock screw.

3. Rotate the lens to adjust the azimuth angle of the image. The adjusting range

is from 0 to 355 degrees.

Rotation 0-355°

Tilt 0-75°

Pan 0-355°

4. Adjust the lens to obtain the appropriate angle of view and the optimum focus.

Tighten the focus lock lever.

5. Replace the IR LED and dome covers on the camera.

6. Secure the dome cover with screws.

6 TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual

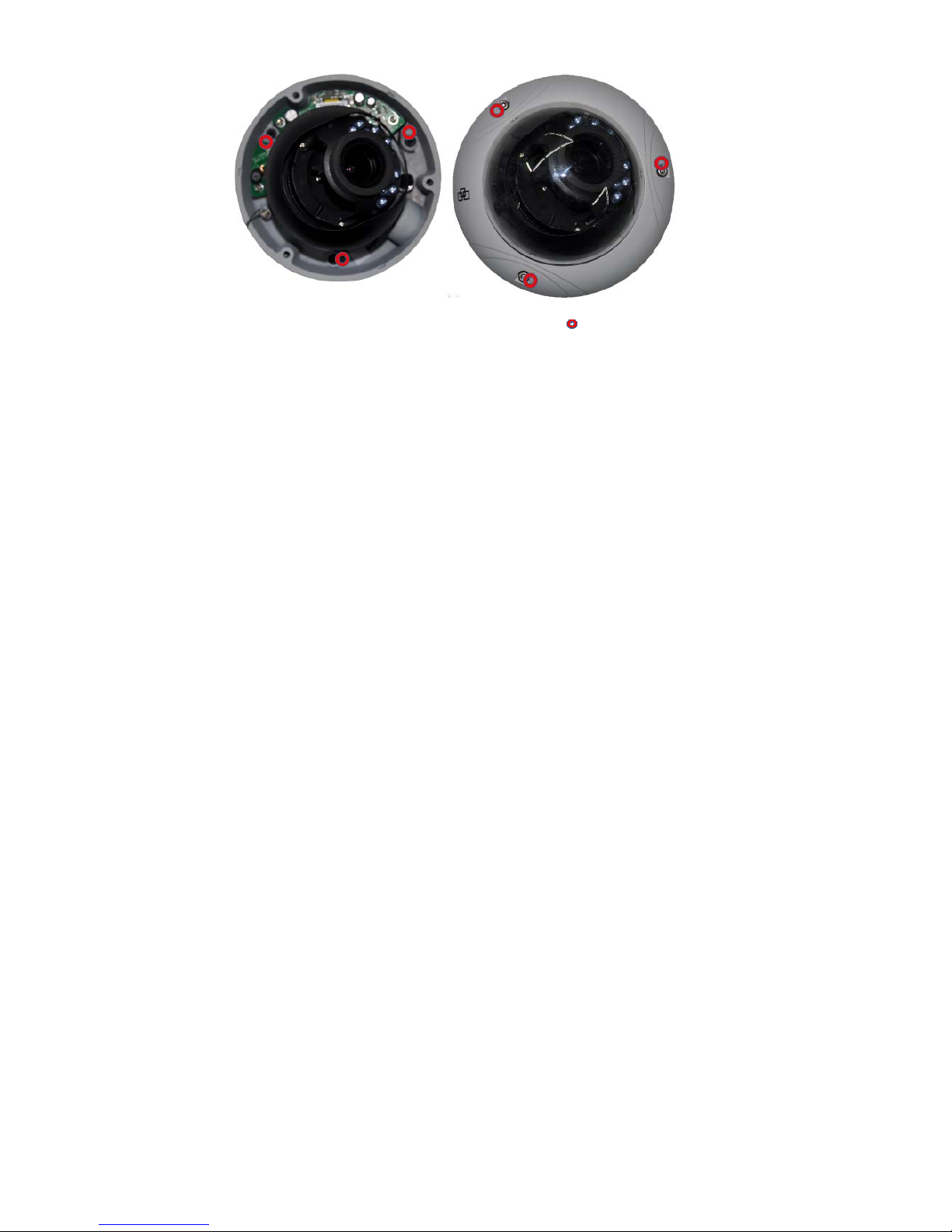

Note: Ensure that the screws highlighted above with a “ ” have been tightened

securely to prevent water seepage.

TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual 7

Programming

Once the camera hardware has been installed, the camera can then be

configured.

Program the camera by attaching a standard video monitor to the system.

To connect the monitor:

1. Plug the monitor output cable to the video monitor output connector.

2. Connect the BNC cable to the video monitor.

3. Press Enter on the OSD menu button to display the Setup Menu. See Table

1 for instructions on how to move the cursor.

OSD control button

The on-screen display (OSD) control button (see Figure 1) is a five-direction

joystick that lets you manually control the camera functions. Table 1 below lists

the OSD control button functions and describes their use.

Table 1: Using the OSD control button

Button direction Description

Up Moves the cursor upward to select an item

Left Moves the cursor left to select or adjust the parameters of the selected

item.

Right Moves the cursor to the right to select or adjust the parameters of the

selected item.

Down Moves the cursor downward to select an item.

Enter Press the center of the button to display the Setup Menu. If the selected

item has its own menu, press the button to enter a submenu.

Access the Setup Menu

The Setup Menu provides access to the camera configuration options.

8 TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual

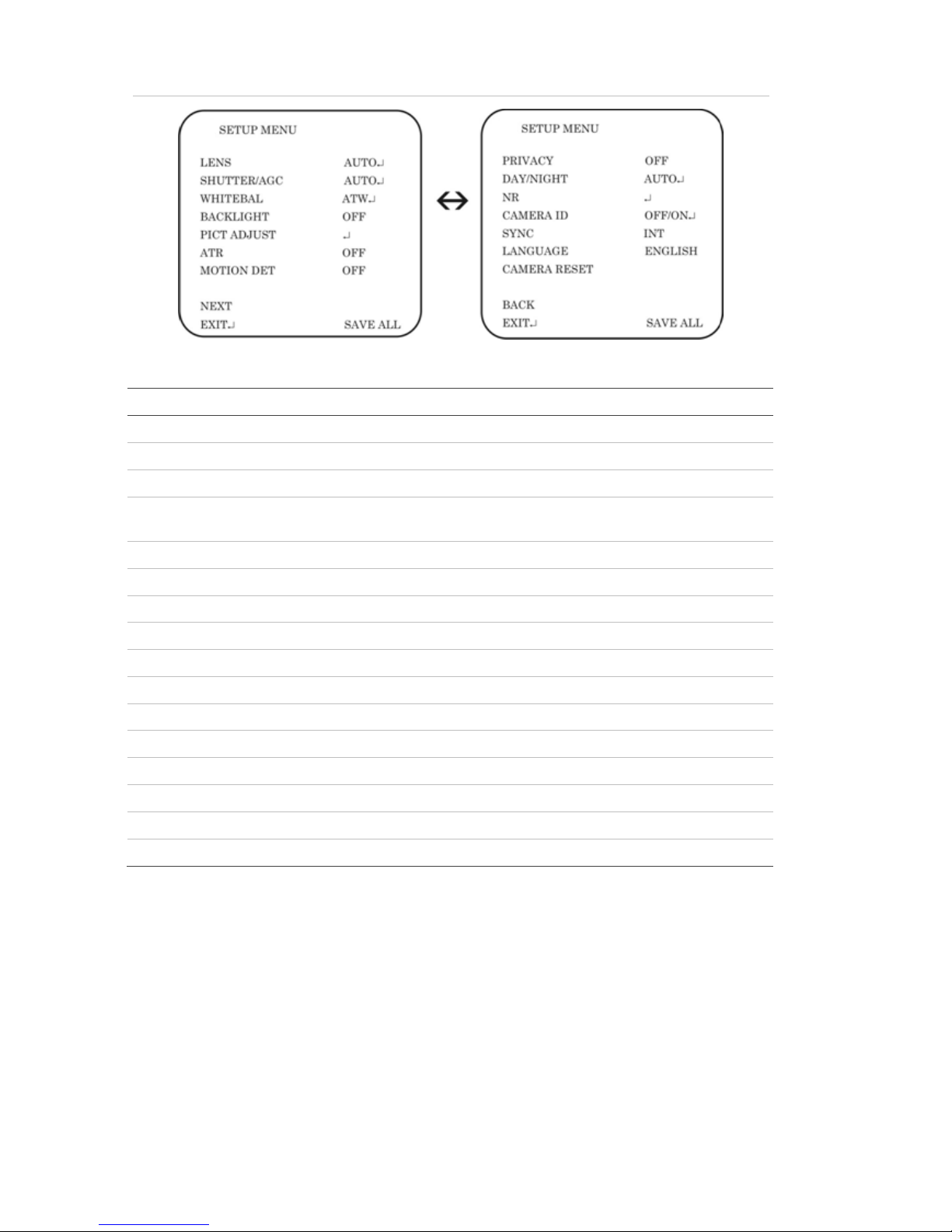

Figure 2: The Setup Menu

Table 2: Setup Menu description

Menu item Description

Lens Defines autoiris or manual iris.

Shutter/AGC Defines the method of light control.

White Bal Defines the white balance (WB) set up.

Backlight Defines the highlight compensation (HLC) and backlight compensation

(BLC) set up.

Pict Adjust Defines the image quality functions.

ATR Defines the adaptive tone reproduction set up.

Motion Det Defines the motion detection set up.

Privacy Defines privacy mask set up.

Day/Night Defines the day/night (D/N) set up.

NR Defines the digital noise reduction level.

Camera ID Defines the camera ID displayed on-screen.

Sync Displays the current synchronization mode.

Language Defines the language of the OSD.

Camera Reset Resets the camera to factory default settings.

Save All Saves all configuration changes.

Exit Exits the menu and returns to live mode.

To access the Setup Menu:

1. Press the OSD control button to access the Setup Menu and its submenus.

2. Push the button up/down to move between menu options.

3. Push the button left/right to select an option.

4. Select Next to move to the next Setup Menu screen and Back to return to the

previous Setup Menu screen.

5. When in a sub menu, select Return to return to the previous menu.

6. To exit the Setup Menu and return to normal camera operation mode, move

the cursor to Exit at the bottom of the screen and press Enter.

Altri manuali per TruVision TVD-7120VE-2

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Interlogix Telecamera di sicurezza

Interlogix

Interlogix UVD-XP3DNR Istruzioni per il montaggio

Interlogix

Interlogix TruVision TVA-1101 Manuale utente

Interlogix

Interlogix TruVision TVB-2403 Foglio di istruzioni

Interlogix

Interlogix MobileView MVC-7100-29-BL Manuale utente

Interlogix

Interlogix TruVision 4 IP Series Foglio di istruzioni

Interlogix

Interlogix TVB-5801 Foglio di istruzioni

Interlogix

Interlogix TruVision TVB-4402 Manuale utente

Interlogix

Interlogix TruVision TVB-2402 Foglio di istruzioni

Interlogix

Interlogix UVD-XP4DNR Manuale utente

Interlogix

Interlogix TruVision 5 Series Foglio di istruzioni

Interlogix

Interlogix UVC-XP4DN-HR-P Manuale utente

Interlogix

Interlogix UltraView IP PTZ 36X Manuale utente

Interlogix

Interlogix TruVision Line Manuale utente

Interlogix

Interlogix TVD-5125TE-3 Manuale utente

Interlogix

Interlogix TruVision TVD-6120VE-2 Manuale utente

Interlogix

Interlogix UVD-XP4DNR(-P) Manuale utente

Interlogix

Interlogix UVP-N120P-36X(-P) Manuale utente

Interlogix

Interlogix UltraView UVD-6130VE-2 Series Manuale utente

Interlogix

Interlogix TruVision HD-TVI 3MPX Foglio di istruzioni

Interlogix

Interlogix TruVision Line Foglio di istruzioni

Interlogix

Interlogix UVC-XP4DN-HR Manuale utente

Interlogix

Interlogix 36X Manuale utente

Interlogix

Interlogix TruVision TVB-2402 Istruzioni operative e di manutenzione

Interlogix

Interlogix True Vision TVP-5104 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
