IOM2710 and IOM3710 Input/Output Modules Installation Instructions 1

Applications

The Input/Output Module (IOM) 2710 and IOM3710 are

members of the Metasys® system Field Equipment

Controller (FEC) family. The IOM controller provides

increased capacity to larger FEC applications when

used on the Sensor-Actuator (SA) Bus. The IOM

controller can also be used on the Field Controller (FC)

Bus to connect additional I/O points to the system.

North American Emissions Compliance

United States

Canada

Installation

Observe the following guidelines when installing the

IOM controller:

• Transport the IOM controller in the original

container to minimize vibration and shock damage

to the IOM.

• Do not drop the IOM controller or subject it to

physical shock.

Materials and Special Tools Needed

You need either of the following items to install the IOM

controller:

• three fasteners appropriate for the mounting

surface (#8 screws or M4 screws)

• one 20.3 cm (8 in.) or longer piece of DIN rail and

appropriate hardware for mounting the DIN rail

Mounting

Follow these guidelines when mounting an IOM

controller:

• Ensure that the mounting surface can support the

IOM controller and any user-supplied enclosure.

• Mount the IOM controller in the proper orientation.

See the Wall Mount Applications and DIN Rail

Mount Applications sections.

• Mount the IOM controller on an even surface

whenever possible.

• Use shims or washers to mount the unit securely

on the mounting surface.

• Mount the IOM controller in areas free of corrosive

vapors and observe the environmental limitations

listed in the Technical Specifications section.

IMPORTANT: The MS-IOM2710-0U and MS-

IOM3710-0U models are used in Metasys Release

8.1 smoke control applications and are UL 864

UUKL/UUKLC 10th Edition Smoke Control Listed.

You must refer to the Metasys® System UL 864

10th Edition UUKL/ORD-C100-13 UUKLC Smoke

Control System (LIT-12012487) for detailed

requirements and procedures for installing,

commissioning, and operating UL 864 UUKL/

UUKLC Listed Metasys system devices. The UL 864

UUKL/UUKLC listing for Smoke Control Equipment

is voided if (1) you do not use the required software

tools at the requiredversions; or (2) you do not meet

the requirements or do not follow the procedures as

documented in the Metasys® System UL 864 10th

Edition UUKL/ORD-C100-13 UUKLC Smoke

Control System (LIT-12012487).

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when this equipment is

operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference, in which case

the user will be required to correct the interference

at his/her own expense.

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

(barcode for factory use only)

IOM2710 and IOM3710 Input/Output Modules

Installation Instructions

MS-IOM2710-0U, MS-IOM3710-0U Part No. 24-10144-262, Rev. A

Release 8.1

Issued March 2018

IOM2710 and IOM3710 Input/Output Modules Installation Instructions2

• Do not mount the IOM controller on surfaces that

are prone to vibration, such as duct work, or in

areas where electromagnetic emissions from other

devices or wiring can interfere with IOM controller

communication.

• Allow sufficient space for cable and wire

connections (minimum of 51 mm [2 in.] in each

direction).

On panel or enclosure mount applications, observe

these guidelines:

• Do not install the IOM controller in an airtight

enclosure.

• Mount the IOM controller so that the enclosure wall

or the transformer does not obstruct ventilation of

or radiate heat into the IOM controller housing.

Wall Mount Applications

Use the holes in the mounting clips for wall mount

applications.

To mount the IOM controller on a wall or other vertical

surface:

1. Ensure that the bottom mounting clip(s) are pulled

outward and snapped firmly into the extended

position and that the top clip is securely installed

(Figure 2).

2. Mark the location of the wall mount holes using the

dimensions in Figure 3, or hold the IOM controller

up to the wall as a template and mark the locations.

Note: Mount the IOM controller horizontally for proper

airflow.

Figure 1: IOM27/37 Controller Physical Features

and Wiring Terminals

FAULT

POWER

ADDRESS

+15V

+5V

IN 1

ICOM 1

IN 2

ICOM 2

+15V

+5V

IN 3

ICOM 3

IN 4

ICOM 4

UNIVERSAL

COM

–

COM

PWR

COM

HOT

OUT 7

OCOM 7

OUT 8

OCOM 8

OUT 5

OCOM 5

OUT 6

OCOM 6

OUT 4 NO

OCOM 4

OUT 4 NC

OUT 3 NO

OCOM 3

OUT 3 NC

OUT 2 NO

OCOM 2

OUT 2 NC

OUT 1 NO

OCOM 1

OUT 1 NC

ADDRESS Ø = ALL OFF

EOL

SA/FC Bus

Terminals

Status LEDs

FAULT

POWER

ADDRESS

+15V

+5V

IN 1

ICOM 1

IN 2

ICOM 2

+15V

+5V

IN 3

ICOM 3

IN 4

ICOM 4

UNIVERSAL

COM

–

COM

PWR

COM

HOT

OUT 7

OCOM 7

OUT 8

OCOM 8

OUT 5

OCOM 5

OUT 6

OCOM 6

OUT 4 NO

OCOM 4

OUT 4 NC

OUT 3 NO

OCOM 3

OUT 3 NC

OUT 2 NO

OCOM 2

OUT 2 NC

OUT 1 NO

OCOM 1

OUT 1 NC

ADDRESS Ø = ALL OFF

EOL

SA/FC Bus

Port

EOL Switch

Universal Inputs

Universal Outputs 24 VA

Power Terminal

Device Address

DIP Switches

Relay Outputs

FIG:IOM2710_3710_wir

ET SY

FAULT

POWER

ADDRESS

+15V

+5V

IN1

ICOM1

IN2

ICOM2

+15V

+5V

IN3

ICOM3

IN4

ICOM4

UNIVERSAL

COM

–

COM

PWR

COM

HOT

OUT7

OCOM7

OUT8

OCOM8

OUT5

OCOM5

OUT6

OCOM6

OUT4NO

OCOM4

OUT4NC

OUT3NO

OCOM3

OUT3NC

OUT2NO

OCOM2

OUT2NC

OUT1NO

OCOM1

OUT1NC

ADDRE SS Ø = AL L OFF

EOL

ETSY

FAUL

POWER

ADDRESS

+15V

+5V

IN1

ICOM1

IN2

ICOM2

+15V

+5V

IN3

ICOM3

IN4

ICOM4

UNIVERSAL

COM

–

COM

PWR

COM

HOT

OUT7

OCOM7

OUT8

OCOM8

OUT5

OCOM5

OUT6

OCOM6

OUT4NO

OCOM4

OUT4NC

OUT3NO

OCOM3

OUT3NC

OUT2NO

OCOM2

OUT2NC

OUT1NO

OCOM1

OUT1NC

ADDRESSØ=ALLOFF

EOL

FIG:IOM273710_wll

Figure 3: Required Orientation for Wall Mount

Applications

IOM2710 and IOM3710 Input/Output Modules Installation Instructions 3

3. Drill holes in the wall at the locations marked in

Step 2 and insert wall anchors (if necessary).

4. Position the IOM controller and insert the screws

through the holes in the mounting clips, and

carefully tighten all the screws.

DIN Rail Mount Applications

To mount the IOM controller on a DIN rail:

1. Securely mount the section of DIN rail horizontally

and centered in the required space.

2. Carefully pull down (outward) the bottom mounting

clips until they lock in place (Figure 4).

Note: The top mounting clip is not used on DIN

rail applications. You may remove the clip.

3. Hang the IOM controller on the DIN rails using the

DIN rail hooks on the back of the IOM controller.

4. Secure the IOM controller on the DIN rail by

pressing the bottom mounting clips up until they

snap into place.

To remove the IOM controller from the DIN rail, snap

the bottom DIN clips to the outboard position and

carefully lift the IOM controller off the DIN rail.

Wiring

Refer to the MS/TP Communications Bus Technical

Bulletin (LIT-12011034) for more information on MS/TP

devices.

To wire the IOM controller:

1. Terminate wiring per engineering drawings.

2. If the IOM is connected to the FC Bus of a Network

Automation Engine (NAE) or Network Control

Engine (NCE), wire the FC Bus in a daisy chain.

IMPORTANT: Do not overtighten the mounting

screws. Overtightening the screws may damage the

mounting clips or IOM housing.

1-7/8()

3-1/2() 90

3-1/2()

143

5-5/8()

127

5()

DIN Rail

Channel DIN Rail

Hooks

3-3/4()

FIG:IOM2710_3710_mnt_dim

Mounting Clips

(in Extended Positions)

1-7/8() 48

1-7/8

()

Figure 2: IOM27/37 Controller Mounting Features,

mm (in.)

IMPORTANT: Do not connect 24 VAC supply

power to the IOM controller before finishing wiring

and checking all wiring connections. Short circuits or

improperly connected wires may result in permanent

damage to the equipment.

IMPORTANT: Use copper conductors only. Make

all wiring in accordance with local, national, and

regional regulations. The IOM controller is a

low-voltage (<30 VAC) device. Do not exceed the

IOM controller electrical ratings.

IMPORTANT: Prevent any static electric discharge

to the IOM controller. Static electric discharge can

damage the IOM controller and void any warranties.

Figure 4: Required Orientation for DIN Rail

Mount Applications

FAULT

POWER

ADDRESS

+15V

+5V

IN 1

ICOM 1

IN 2

ICOM 2

+15V

+5V

IN 3

ICOM 3

IN 4

ICOM 4

UNIVERSAL

COM

–

COM

PWR

COM

HOT

OUT 7

OCOM 7

OUT8

OCOM 8

OUT 5

OCOM 5

OUT6

OCOM 6

OUT 4 NO

OCOM 4

OUT 4 NC

OUT 3 NO

OCOM 3

OUT 3 NC

OUT 2 NO

OCOM 2

OUT 2 NC

OUT 1 NO

OCOM 1

OUT 1 NC

ADDRESS Ø = ALL OFF

EOL

FIG:IOM273

710_DIN

IOM2710 and IOM3710 Input/Output Modules Installation Instructions4

3. If the IOM is connected to the SA Bus of an NCE or

FEC, wire the SA Bus in a daisy chain (Figure 6).

Note: The SA/FC Bus Port (RJ-12 6-position

modular connector) provides 15 VDC on one of its

pins, which is used to power the MS-BTCVT.

Note: If the IOM controller is at one end of the SA

Bus daisy chain, set the End-of-Line (EOL) switch

to ON.

4. Connect power to the IOM controller.

5. Download and commission the IOM controller. See

the Commissioning section.

SA/FC Bus Port

The SA/FC Bus port on the front of the IOM is an

RJ-12, 6-position modular jack that provides a

connection for the Wireless Commissioning Converter.

See Table 1 for more information. The SA/FC Bus Port

pin assignment is shown in (Figure 7).

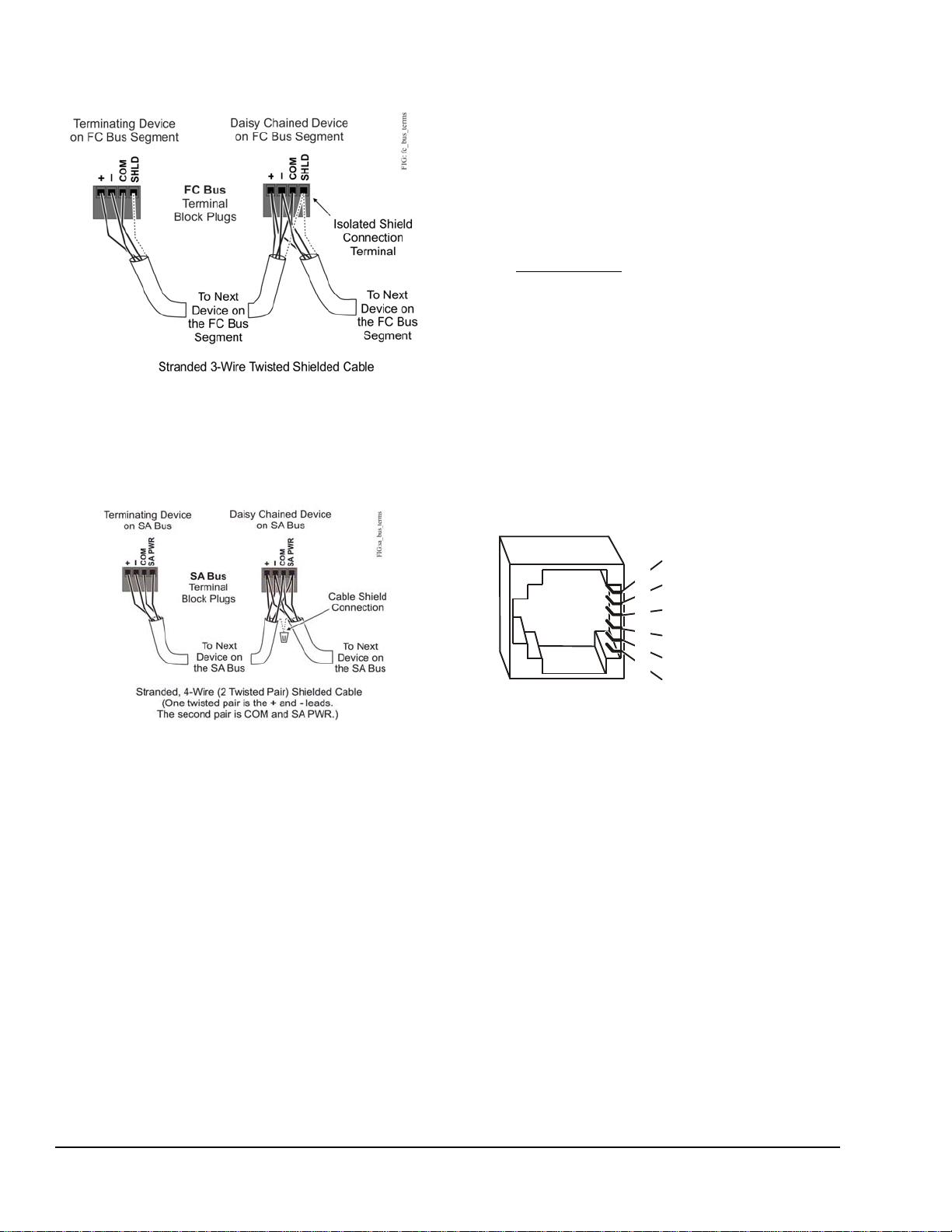

Figure 5: FC Bus Terminal Block Wiring

Figure 6: SA Bus Terminal Block Wiring

Figure 7: Pin Number Assignments for

Sensor, SA Bus, and FC Bus Ports on

FEC, IOM, and VMA16

Power

(15 VDC)

SA or FC Bus +

SA or FC Bus

Bus and Power Common

Power

(15 VDC)

Sensor, SA Bus, or FC Bus Port

(RJ-12 Modular Jack)

Bus and Power Common

FIG:RJ_pinout

IOM2710 and IOM3710 Input/Output Modules Installation Instructions 5

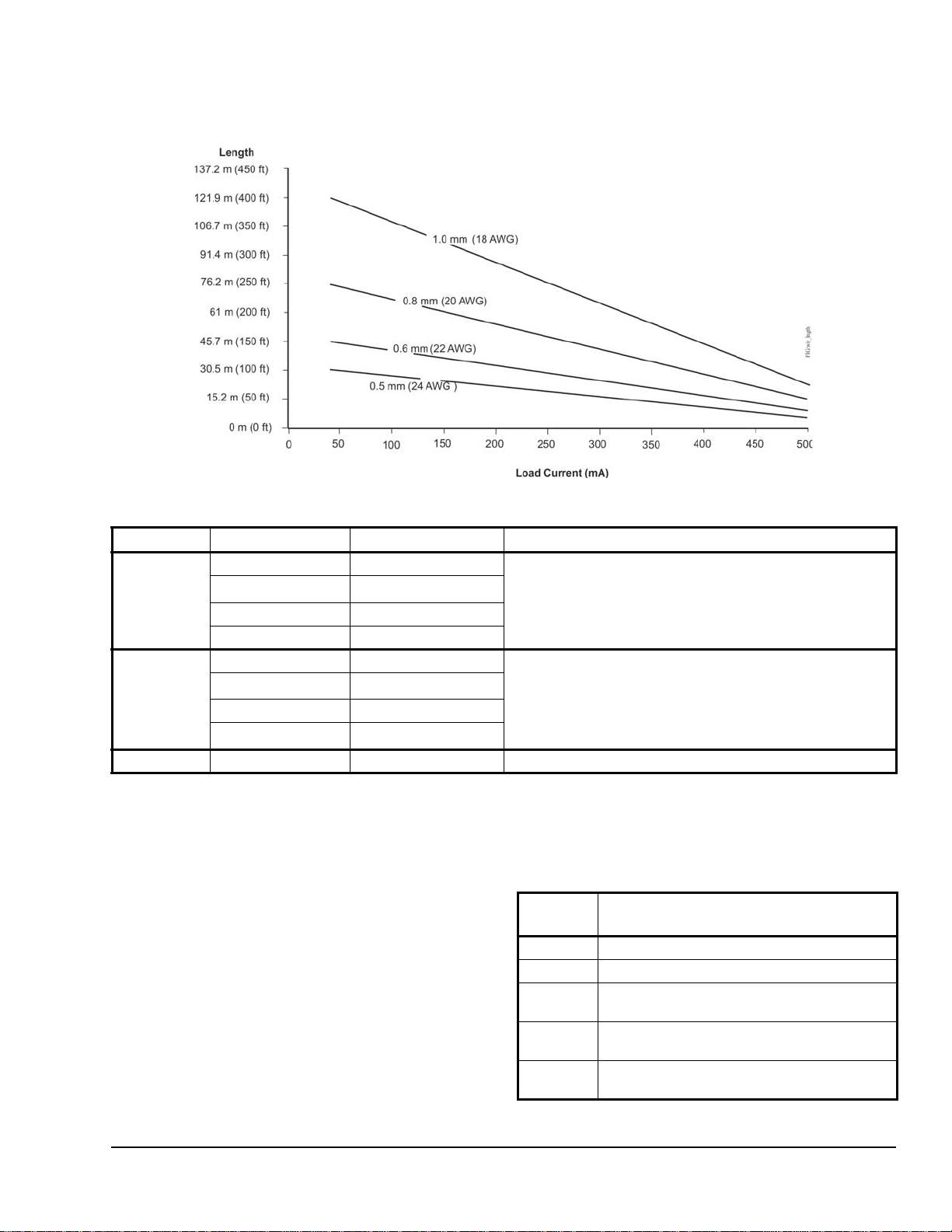

Table 1: IOM2710 and IOM3710 Controller Wiring List (Part 1 of 2)

Terminal

Block1Terminal

Labels Function and Electrical Ratings/Requirements Wiring Requirements

(See Table 2 for A, B, or C.)

Universal IN +5 V Sources 5 VDC power for active devices

60 mA total current Same as IN

+15 V Sources 15 VDC power for active devices

35 mA total current Same as IN

IN nAnalog Input, Voltage Mode

Accepts a 0-10 VDC input signal.

10 VDC Maximum Input Voltage

Internal 75k ohm Pulldown

Analog Input, Current Mode

Accepts a 4-20 mA input signal.

Note: For current sensing applications, the IOM2710

and IOM3710 Controllers do not provide a jumper to

close the current loop when the controller is powered off.

This option is available on IOM4710 Controllers only.

Analog Input, Resistive Mode

Accepts 0-600k ohm input signal.

Internal 12 V, 15k ohm Pullup

Binary Input, Dry Contact Maintained Mode

1 s minimum pulse width (0.5 Hz at 50% duty cycle)

Internal 12 V, 15k ohm Pullup

Binary Input, Dry Contact Pulse Counter Mode

1 s minimum pulse width (0.5 Hz at 50% duty cycle)

Internal 12 V, 15k ohm Pullup

ICOM nThe input signal common for Universal IN terminals;

isolated from all other terminal commons. Same as IN

Universal

OUT OUT nAnalog Output, Voltage Mode

Sources 0-10 VDC output voltage

1k ohm minimum load

10 VDC maximum output voltage

10 mA maximum output current

Binary Output Mode

24 V AC/DC FET

Connects OUT to OCOM when activated.

30 V AC/DC maximum output voltage

0.5 A maximum output current

40 mA minimum load current (hold current)

Analog Output, Current Mode

Sources 4-20 mA output current

External 300 ohm maximum load required

OCOM nThe output signal common; isolated from all other

terminal commons, including UO terminal commons. Same as OUT

IOM2710 and IOM3710 Input/Output Modules Installation Instructions6

Relay

Output

Control

OUT NO nNormally Open Contact

Connects OCOM to OUT NO when activated.

240 VAC maximum voltage

1/3 hp 125 VAC, 1/2 hp 250 VAC

400 VA Pilot Duty @ 240 VAC

200 VA Pilot Duty @ 120 VAC

3 A Noninductive 24-240 VAC

OCOM nThe relay signal common; isolated from other terminal

commons, including Relay Output terminal commons.

OUT NC nNormally Closed Contact

Connects OCOM to OUT NC when activated.

240 VAC maximum voltage

1/3 hp 125 VAC, 1/2 hp 250 VAC

400 VA Pilot Duty @ 240 VAC

200 VA Pilot Duty @ 120 VAC

3 A Non-inductive 24-240 VAC

SA/FC Bus

Port2,3 SA/FC Bus Provides SA Bus communication network

RJ-12 6-position modular connector 30.5 m (100 ft) maximum length

phone cord

SA Bus3+

COM

Provides SA Bus communication network. Daisy-chained

366 m (1,200 ft) maximum length

0.6 to 1.5 mm2(18 to 24 AWG)

[22 AWG Recommended]

FC Bus1+

COM

Provides FC Bus communication network. Daisy-chained

1,524 m (5,000 ft) maximum length

0.6 to 1.5 mm2(18 to 24 AWG)

[22 AWG Recommended]

SHLD Provides an optional shield connection.

24~ Power Hot AC Supply Input

Supply 20-30 VAC (Nominal 24 VAC) 16 AWG

COM The 24~ Power common; isolated from all other terminal

commons.

1. The terminal block column displays all the points for the IOM3710 model.

2. The SA Bus and the SA/FC Bus are daisy-chained internally.

3. The SA Bus and FC Bus specifications in this table are for MS/TP bus communications at 38.4k baud. For more

information, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034).

Table 1: IOM2710 and IOM3710 Controller Wiring List (Part 2 of 2)

Terminal

Block1Terminal

Labels Function and Electrical Ratings/Requirements Wiring Requirements

(See Table 2 for A, B, or C.)

IOM2710 and IOM3710 Input/Output Modules Installation Instructions 7

Wiring Requirements

Setup and Adjustments

The IOM controller can reside on either the FC Bus or

the SA Bus. When you set the address, you are setting

the address for the specified bus. The IOM controller

can only be on one bus at a time.

Determining the FC Bus or SA Bus Address

The ADDRESS DIP switch sets a unique address for

the controller (or module) on the FC Bus or SA Bus.

Set the address to 4-127 for an IOM. For best

performance, all devices on the same Bus (FC Bus or

SA Bus) should have consecutive addresses. Do not

use Addresses 128 and above when connecting the

IOM to the FC Bus or SA Bus. For more information,

refer to the MS/TP Communications Bus Technical

Bulletin (LIT-12011034).

Table 3 shows and describes the valid FC Bus and

SA Bus devices addresses for FECs and IOMs on

Johnson Controls® MS/TP communications bus

applications.

Table 2: Wire Gauge and Length Guidelines

Guideline Cable Size Maximum Length Assumptions

A1.0 mm (18 AWG) 457.2 m (1,500 ft) 100 mV maximum voltage drop

0.8 mm (20 AWG) 297.2 m (975 ft)

0.6 mm (22 AWG) 182.9 m (600 ft)

0.5 mm (24 AWG) 106.7 m (350 ft)

B1.0 mm (18 AWG) 228.6 m (750 ft) 100 mV maximum voltage drop

0.8 mm (20 AWG) 137.1 m (450 ft)

0.6 mm (22 AWG) 91.4 m (300 ft)

0.5 mm (24 AWG) 61 m (200 ft)

CSee Figure 8. See Figure 8. N/A

Figure 8: Maximum Wire Length by Current and Wire Size

Table 3: FC Bus Device Address Descriptions

Device

Address Description

0 Reserved for FC Bus supervisory controller.

1-3 Reserved for peripheral devices.

4-127 Available for FECs on the FC bus and IOMs

on the SA or FC Bus.

128 Disables (Off) or Enables (ON) a controller for

wireless operation. Set to OFF.

129-255 Are not valid addresses for FEC or IOM

controllers on the SA or FC Bus.

IOM2710 and IOM3710 Input/Output Modules Installation Instructions8

Setting the FC Bus or SA Bus Address

For most devices on an FC Bus or SA Bus, the

(non-supervisory) device address is set using the DIP

switches on the device’s ADDRESS DIP switch block.

The DIP switch blocks are binary switch blocks and

each switch represents a binary numerical value when

the switch is set to the ON position. For example,

positioning switches 16, 4, and 1 to ON, as shown in

Figure 9, sets the device address to 21. Always set

switch 128 to OFF to enable wired FC or SA Bus

operation.

FC Bus or SA Bus EOL Switch

The EOL switch applies power termination to the

device’s FC Bus or SA Bus. If the IOM is at the

End-of-Line (EOL) position on the Bus, set the EOL

switch to the ON position. Otherwise, set the EOL

switch to the OFF position (Figure 10). The controller

ships with the EOL switch set in the OFF position.

Commissioning

Commission the IOM controller with the Controller

Configuration Tool (CCT) software. For details, refer to

the Controller Tool Help (LIT-12011144).

Troubleshooting

Use Table 4 to troubleshoot the IOM controller.

Repair Information

The MS-IOM2710-0U and MS-IOM3710-0U models

are UL 864 10th Edition UUKL/ORD-C100-13 UUKLC

listed for smoke control. If the device fails to operate

within its specifications, contact the Johnson Controls

Repair Center in Louisville, Kentucky, at 1-502-671-

7312.

Accessories

Use Table to order accessories for the IOM controller.

Figure 9: Device Address Switches Set to 21

FIG:fec_dip_swtch

128

Note:

Switch 128 is

used to enable or

disable an FEC for

wireless operation.

Figure 10: EOL Switch Positions

FIG:E

OL_Swtch

EOL ON Position EOL Off Position

Table 4: Status Light-Emitting Diodes (LEDs)

Name Color Normal Descriptions

Power Green On Steady Off Steady = No Power

On Steady = Power is supplied by primary voltage.

Fault Red Off Steady Blink - 2 Hz = Download or startup in progress, not ready for normal operation

Off Steady = No faults

On Steady = Device fault or no application loaded

SA/FC Bus Green Blink - 2 Hz Blink - 2 Hz = Data transmission (normal communication)

Off Steady = No data transmission (auto baud in progress)

On Steady = Communication lost, waiting to join communication ring

FEC/IOM Accessories (Order Separately)

Product Code

Number Description

PAN-PWRSP-U Transformer, 120/24 VAC, 96 VA, with circuit breaker and 120 VAC outlet, approved for Smoke

Control

IOM2710 and IOM3710 Input/Output Modules Installation Instructions 9

Technical Specifications

IOM2710 and IOM3710 Input/Output Modules

Product Code Numbers MS-IOM2710-0

MS-IOM3710-0

Supply Voltage 20-30 VAC at 50 or 60 Hz, Class 2

Power Consumption 10 VA typical, 14 VA maximum plus all BO and Configurable Output loads

Ambient Conditions Operating: 0 to 50°C (32 to 122°F); 10 to 90% RH noncondensing

Storage: -40 to 70°C (-40 to 158°F); 10 to 90% RH noncondensing

Terminations Screw terminals, 3-Position Screw Terminal Pluggable Blocks, 4-Position Screw Terminal

Pluggable Blocks

Controller Addressing DIP switch set (4-127). Addresses 1-3, 128-255 are reserved.

Communications Bus BACnet® MS/TP; 3-wire FC Bus between the NAE/NCE and other devices. 4-wire SA Bus

when used as expansion to FEC.1

AnalogInput/Analog Output

Resolution and Accuracy Analog Input: 16-bit resolution

Analog Output: 16-bit resolution and ±200 mV in 0-10 VDC applications

Mounting On flat surface with screws on three mounting clips or a single 35 mm DIN rail

Dimensions

(Height x Width x Depth) IOM2710: 180 x 127 x 58 mm (7-1/16 x 5 x 2-1/4 in.)

IOM3710: 180 x 127 x 58 mm (7-1/16 x 5 x 2-1/4 in.)

Housing Plastic housing

Plastic material: ABS + polycarbonate UL94 5VB

Weight IOM2710: 0.48 kg (1.1 lb)

IOM3710: 0.55 kg (1.2 lb)

Compliance United States:

UL Listed, File E107041, CCN PAZX, UL 916, Energy Management Equipment

UL Listed, File S4977, UL 864 UUKL/UUKLC 10th Edition Listed, Smoke Control Units and

Accessories for Fire Alarm Systems Equipment

FCC Compliant to CFR47, Part 15, Subpart B, Class A

Canada:

UL Listed, File E107041, CCN PAZX7, CAN/CSA C22.2 No. 205, Signal Equipment;

Industry Canada Compliant, ICES-003

UL Listed, File S4977, UL 864 UUKL/ORD-C100-13 10th Edition Listed, Smoke Control

Units and Accessories for Fire Alarm Systems

Europe:

CE Mark, EMC Directive 89/336/EEC, in accordance with EN 61000-6-3 (2001) Generic

Emission Standard for Residential and Light Industry and EN 61000-6-2 (2001) Generic

Immunity Standard for Heavy Industrial Environment and the Low Voltage Directive

73/23/EEC in accordance with EN 60730-1 (1999) Automatic electrical controls for

household and similar use.

Australia and New Zealand:

C-Tick Mark, Australia/NZ Emissions Compliant

BACnet International:

BACnet Testing Laboratories™ (BTL) 135-2004 Listed BACnet Application Specific

Controller (B-ASC)

1. For more information, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034).

The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these

specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or

misuse of its products.

Published in U.S.A. www.johnsoncontrols.com

IOM2710 and IOM3710 Input/Output Modules Installation Instructions10

Building Technologies & Solutions

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls.

European Single Point of Contact: NA/SA Single Point of Contact: APAC Single Point of Contact:

JOHNSON CONTROLS

WESTENDHOF 3

45143 ESSEN

GERMANY

JOHNSON CONTROLS

507 E MICHIGAN ST

MILWAUKEE WI 53202

USA

JOHNSON CONTROLS

C/O CONTROLS PRODUCT MANAGEMENT

NO. 22 BLOCK D NEW DISTRICT

WUXI JIANGSU PROVINCE 214142

CHINA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Johnson Controls Unità di controllo

Johnson Controls

Johnson Controls GS-20 Series Manuale utente

Johnson Controls

Johnson Controls Digital Vision Network 5000 Series Guida rapida

Johnson Controls

Johnson Controls tyco AMD-2 Manuale utente

Johnson Controls

Johnson Controls VMA 1410 Guida all'installazione

Johnson Controls

Johnson Controls System 450 Series Manuale operativo e di manutenzione

Johnson Controls

Johnson Controls VF Series Manuale utente

Johnson Controls

Johnson Controls M300CJ Manuale utente

Johnson Controls

Johnson Controls Tyco TJPX0500003 Manuale utente

Johnson Controls

Johnson Controls VP140 L Series Manuale utente

Johnson Controls

Johnson Controls Penn System 450 Series Manuale utente

Johnson Controls

Johnson Controls TYCO DPV-1 Manuale di istruzioni

Johnson Controls

Johnson Controls V46SA Series Manuale utente

Johnson Controls

Johnson Controls 300 Series Manuale utente

Johnson Controls

Johnson Controls System 450 Series Manuale utente

Johnson Controls

Johnson Controls tyco AMD-1 Manuale utente

Johnson Controls

Johnson Controls LP-FXGPRSU-0 Manuale utente

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuale utente

Johnson Controls

Johnson Controls Tyco RV-1A Manuale utente

Johnson Controls

Johnson Controls IOM3723 Manuale utente

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuale utente

Johnson Controls

Johnson Controls Penn System 350 S350P Manuale utente

Johnson Controls

Johnson Controls M300CJ Manuale utente

Johnson Controls

Johnson Controls GS Series Manuale utente

Johnson Controls

Johnson Controls Mercury 3 Series Manuale

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
