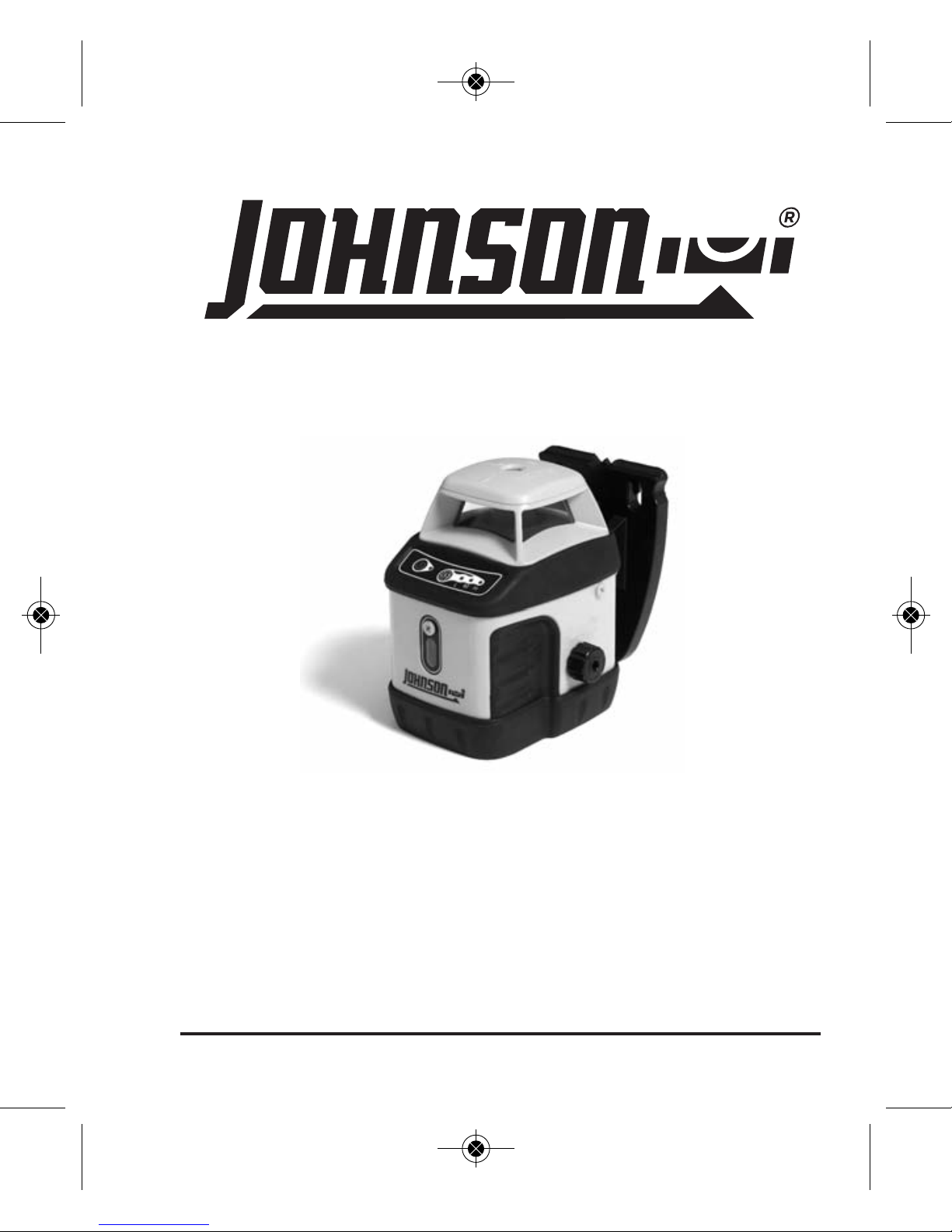

Self-Leveling Rotary Laser
Model No. 40-6519
Instruction Manual
Congratulations on your choice of this Self-Leveling Rotary Laser. We
suggest you read this instruction manual thoroughly before using the
instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
1658i-English_Manuals 1/11/17 11:50 AM Page 1
2©2017 Johnson Level & Tool - Rev. 1
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content of Warning
Labels
5. Location of
Parts/Components
6. Operating Instructions
7. Using the Product
8. Laser Placement
9. Application Demonstrations
10. Troubleshooting uide
11. Calibration
12. Technical Specifications
13. Care and Handling
14. Product Warranty
15. Warranty Registration
16. Accessories
1. Kit Contents
Description ty.
Self-Leveling Rotary Laser
1
“AA” Alkaline Batteries 6
Wall/Ceiling Mount 1
8' rade Rod 1
Elevating Tripod 1
Detector with 2 “AA” Alkaline Batteries 1
Tinted lasses 1
Target 1
Instruction Manual 1
Hard-Shell Carrying Case 1
1658i-English_Manuals 1/11/17 11:50 AM Page 2
©2017 Johnson Level & Tool - Rev. 1 3
2. Features and Functions
• Self-leveling with magnetically dampened compensation system.
• If laser is out of its self-leveling range, rotation stops and
alarm sounds.
• Projects (1) a horizontal laser plane and a vertical plumb beam
or (2) a vertical laser plane with a simultaneous 90° split beam.
• Laser rotation speed is 200rpm (Low), 400rpm (Medium),
600rpm (High).
• Illuminated vial for alignment in vertical plane.
• Water and dust resistant.
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may void the warranty.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EXPOSURE.
1658i-English_Manuals 1/11/17 11:50 AM Page 3
4©2017 Johnson Level & Tool - Rev. 1
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
1658i-English_Manuals 1/11/17 11:50 AM Page 4
©2017 Johnson Level & Tool - Rev. 1 5

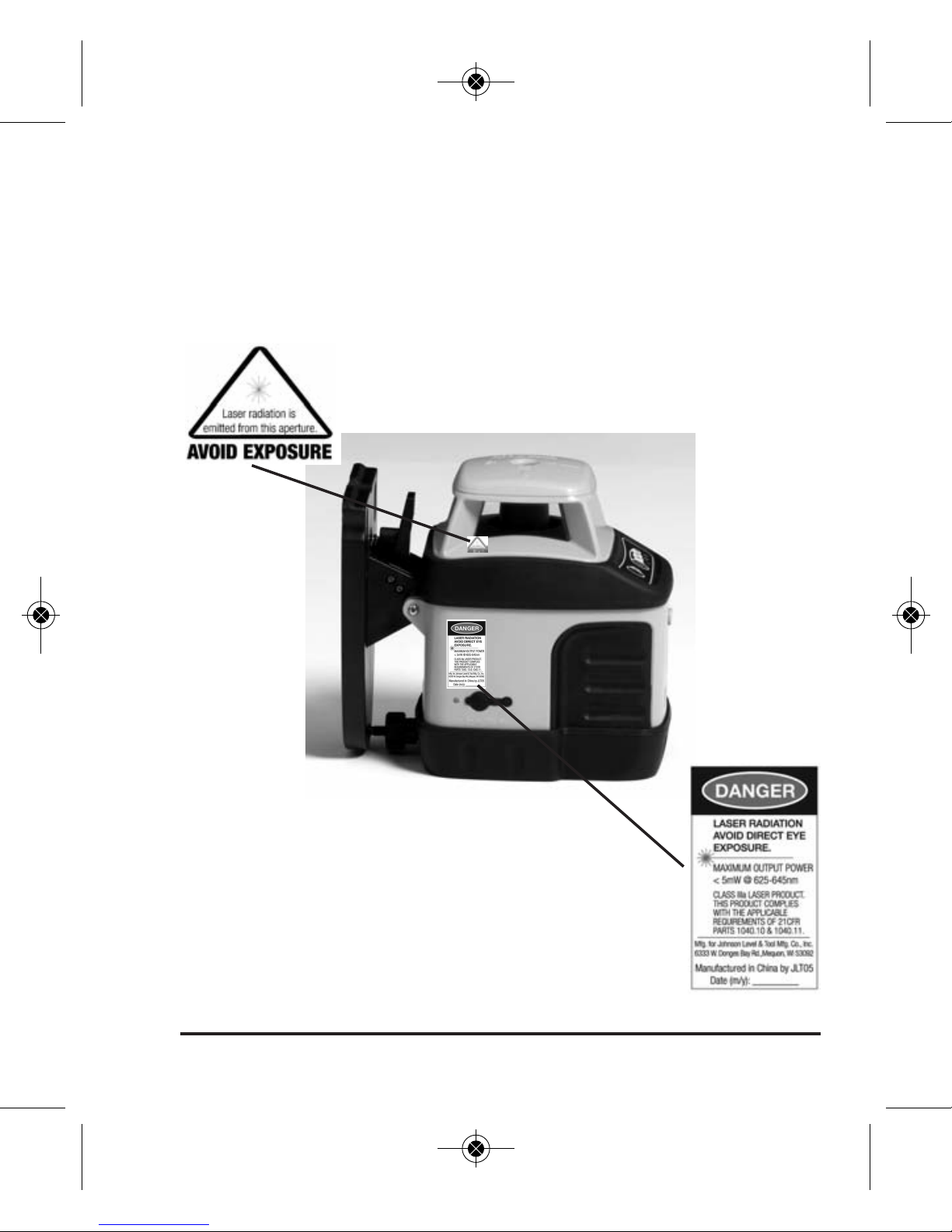

4. Location/Content of Warning Labels
1658i-English_Manuals 1/11/17 11:50 AM Page 5
6©2017 Johnson Level & Tool - Rev. 1

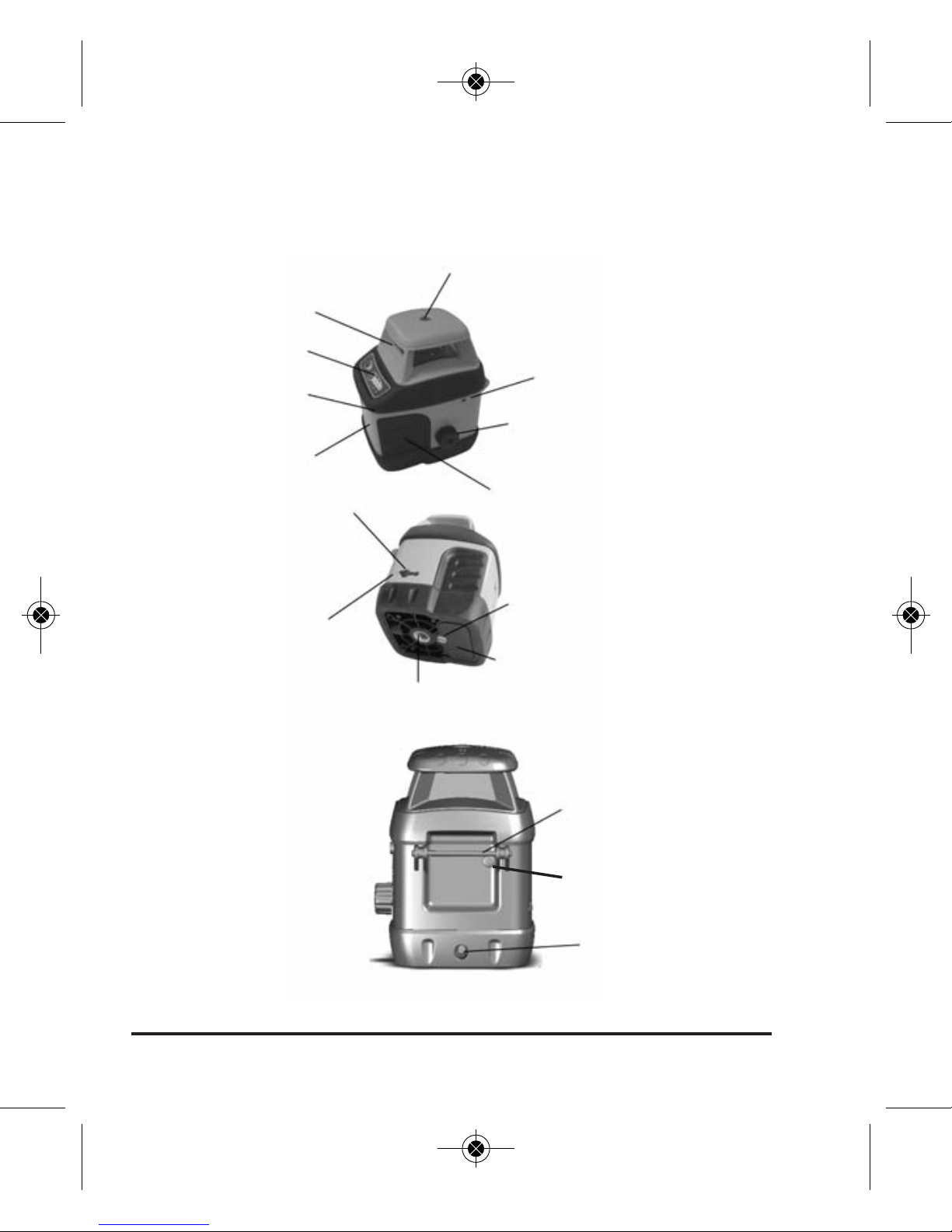

5. Location of Part/Components
Line Laser Output Window
X-Calibration Hole Bolt
Y-Calibration Hole Bolt
Bubble Adjustment
Bolt
Keypad
Rotating Laser
Output Window
Hand rips
Vial
Battery Cover Screw
Battery Cover
5/8" - 11 Screw Thread
Leveling Base
Connecting Bar
Adjustment Knob
Receiver
Lock Knob -
Compensator/Transportation
Charging LED Indicator
DC 6V Outlet
(6V Charger not included)
1658i-English_Manuals 1/11/17 11:50 AM Page 6
©2017 Johnson Level & Tool - Rev. 1 7
Keypad
Leveling Base
5/8" - 11 Screw Thread
Adjustment Knob
Release Lever
Rotating Speed
Switch Button Medium Speed LED
High Speed LED
Low Speed LED
Power LED
Power Button
Hanging Holes
1658i-English_Manuals 1/11/17 11:50 AM Page 7
8©2017 Johnson Level & Tool - Rev. 1
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Battery Installation
Note: Always check that the compensator lock knob is in the “Off”
position before removing and/or replacing batteries.

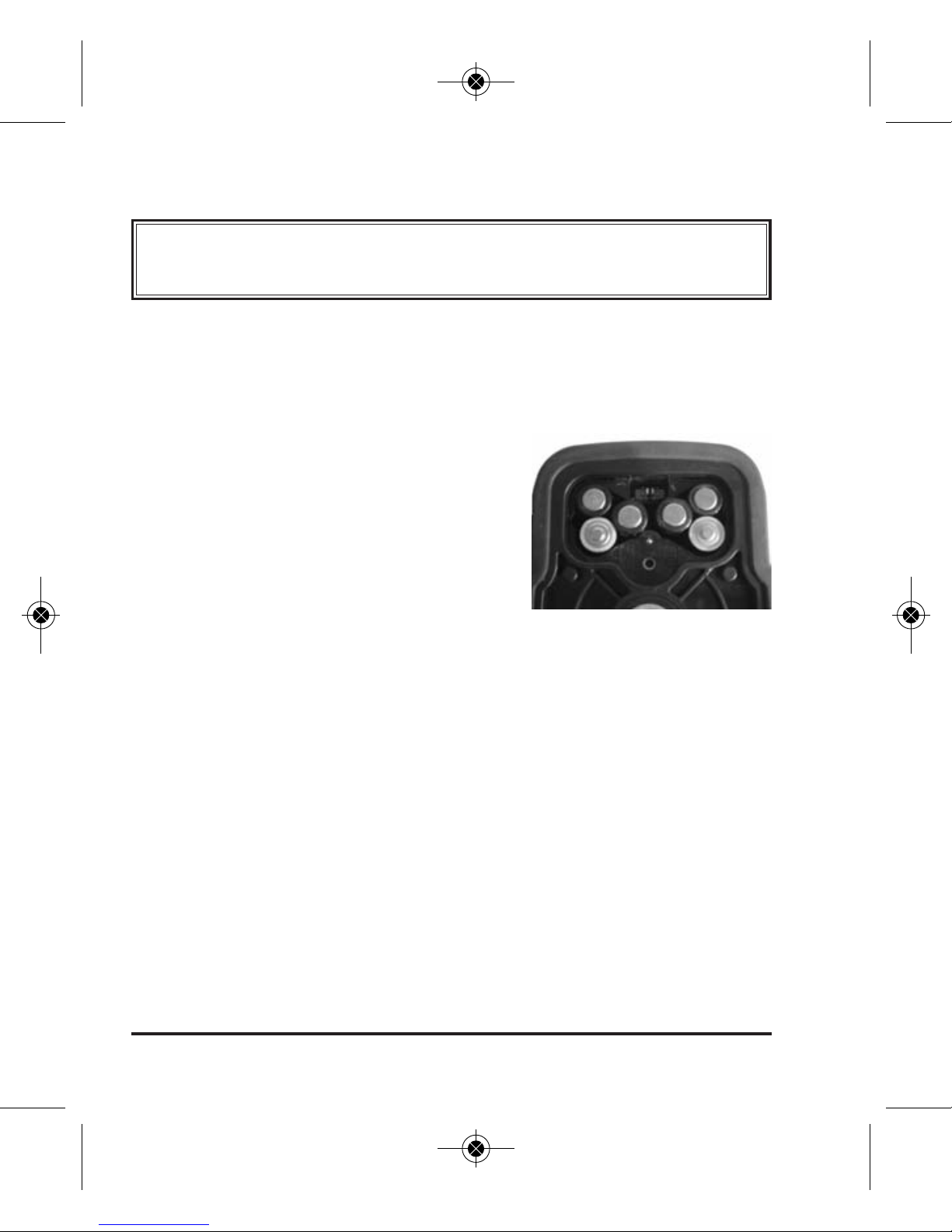

1. Unscrew the battery cover screw in a
clockwise direction to open the battery
cover.
2. Insert six “AA” alkaline batteries into
the battery compartment according to
the polarity illustrated inside.
3. Close the battery cover.
4. Screw in the battery cover screw in a counter-clockwise direction
to lock the battery cover.
1658i-English_Manuals 1/11/17 11:50 AM Page 8
©2017 Johnson Level & Tool - Rev. 1 9
7. Using the Product
Power On/Off the Laser
Press the button to power on/off the laser. The rotating speed
will be set to high.
Power LED: Lighted LED indicates power is on.
Extinguished LED indicates power is off.
Flashing LED indicates low batteries – if flashing,
please change the batteries.

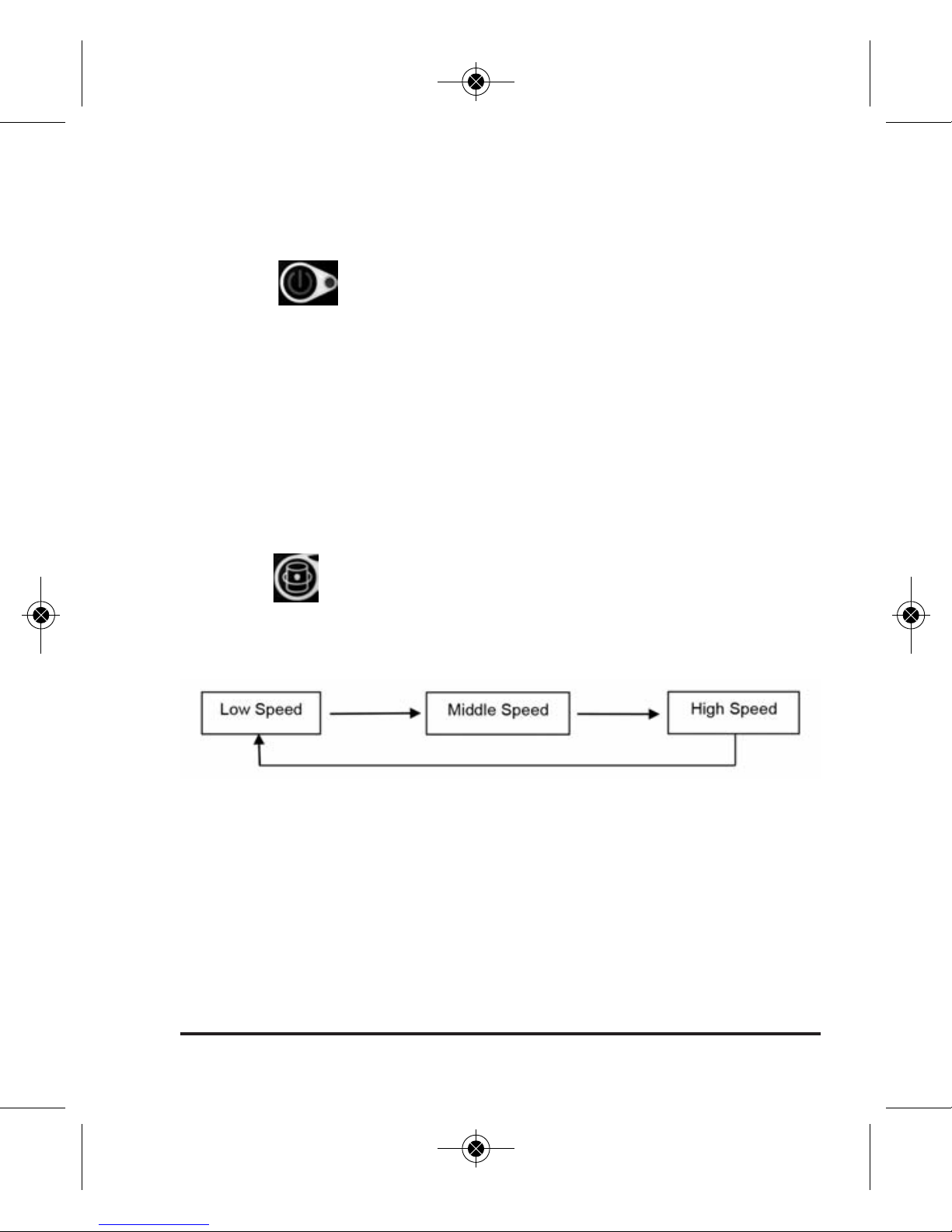

Change Rotating Speed
Press the button to change the rotating speed from high (600
rpm), to medium (400 rpm) and to low (200 rpm). When changing
the rotating speed, the corresponding LED will illuminate.
Notes:
• When starting the unit, the laser will be in high-speed mode.
• Low speed is recommended for indoor use to give the best
beam visibility.
• High speed is recommended when used with a detector.
1658i-English_Manuals 1/11/17 11:50 AM Page 9
10 ©2017 Johnson Level & Tool - Rev. 1
Manual vs. Self-leveling Operation
1. Turn the lock knob counter-clockwise to the “Off” position to lock
the compensator. The laser will be operating in manual mode and
will not be self-leveling.
2. Turn the lock knob clockwise to the “On” position to unlock the
compensator and allow the laser to self-level.
3. Place the laser on a relatively smooth, flat and level surface.
4. Set the lock knob to the “On” position.
5. Press the button to power on the laser.
6. Laser must be within ±3º of level for the self-leveling feature to
function properly. If the laser is tilted to exceed its self-leveling
range, it will stop rotating and will sound an intermittent beeping
sound.
Leveling the Laser for use in Vertical Mode
(Bubble Level Adjustment)

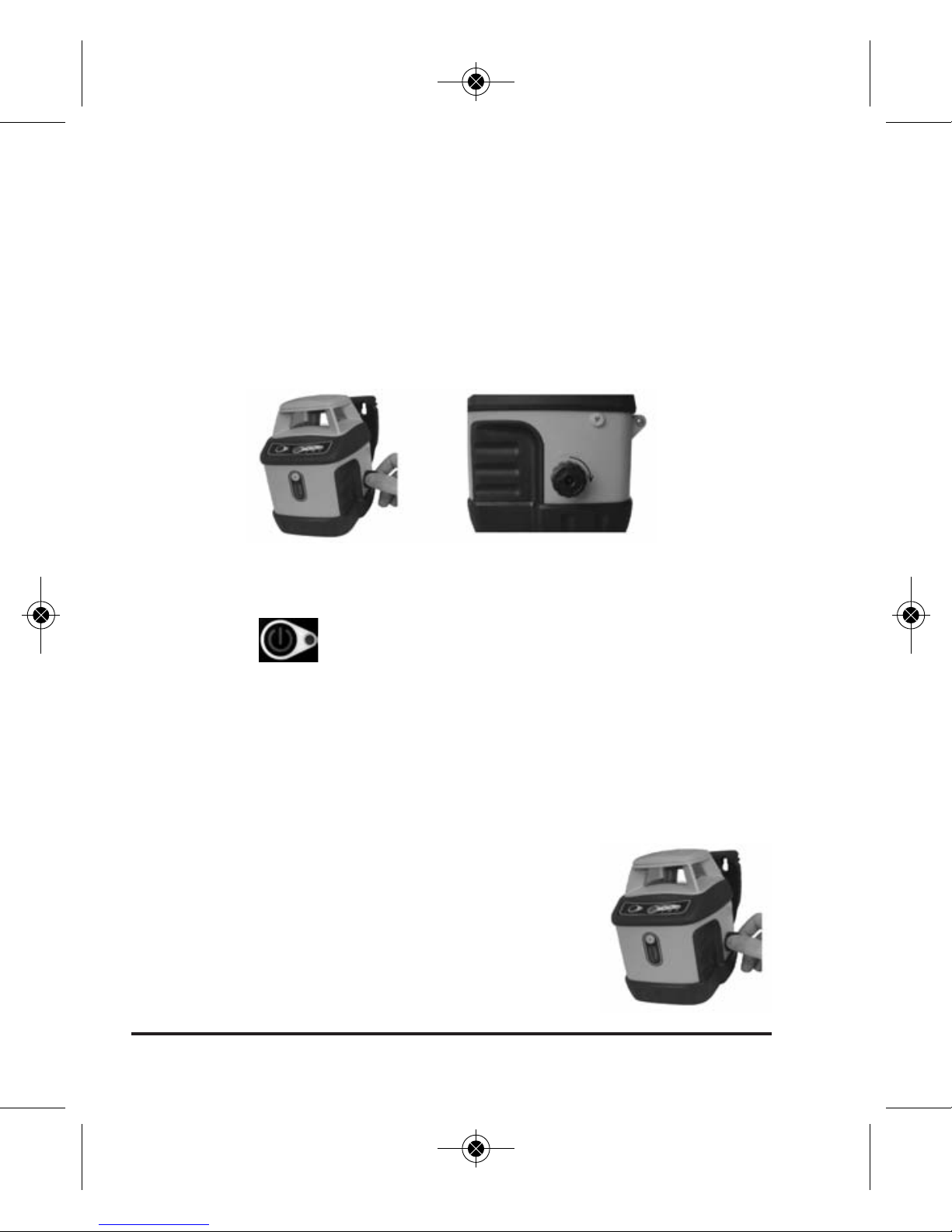

1. Turn the lock knob counter-clockwise to the
“Off” position to lock the compensator. The
laser will be operating in manual mode and will
not be self-leveling.
1658i-English_Manuals 1/11/17 11:50 AM Page 10
