KitchenAid KGCK306VSS00 Manuale utente

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCK306VSS00

(Stainless)

10−07 Litho in U.S.A (amd) Part No. W10172317 Rev. A

30" GAS COOKTOP

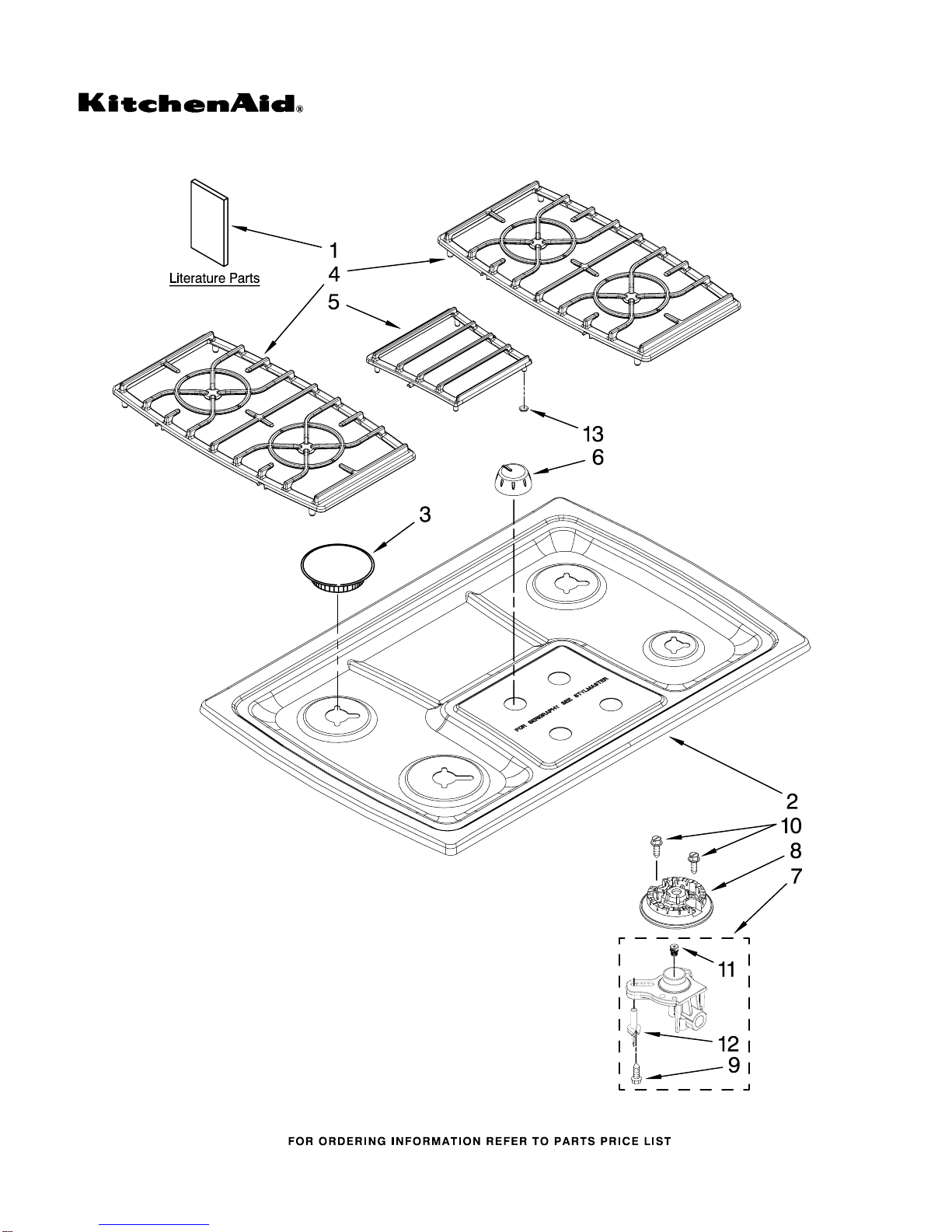

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCK306VSS00

(Stainless)

W10172317

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

W10131955

Installation

Instructions

W10169072

Use & Care Guide

3192098 Wiring Diagram

Safe Cooking Tips

3191638 English

9759133 French

W10169218

LP Conversion

Instructions

W10140181

Cooktop

3 Cap, Burner

8286153CB

8286154CB

8286155CB

8286156CB

8285876CB

Grate, Burner

8285877CB

Grate, Center

8286094BL

Knob, Control (4)

7 Holder, Orifice

W10128448

W10128450

8287052 RR

W10128445

8 Head, Burner

8286181 RF

8286184 LR

8286182 RR

8286183 LF

9 4449809 Screw

10 3368921 Screw

11 Orifice

3192529 RF

3192523 LR

8287051 RR

8286474 LF

12 9782116 Electrode

13 8286452 Grommet, Grate

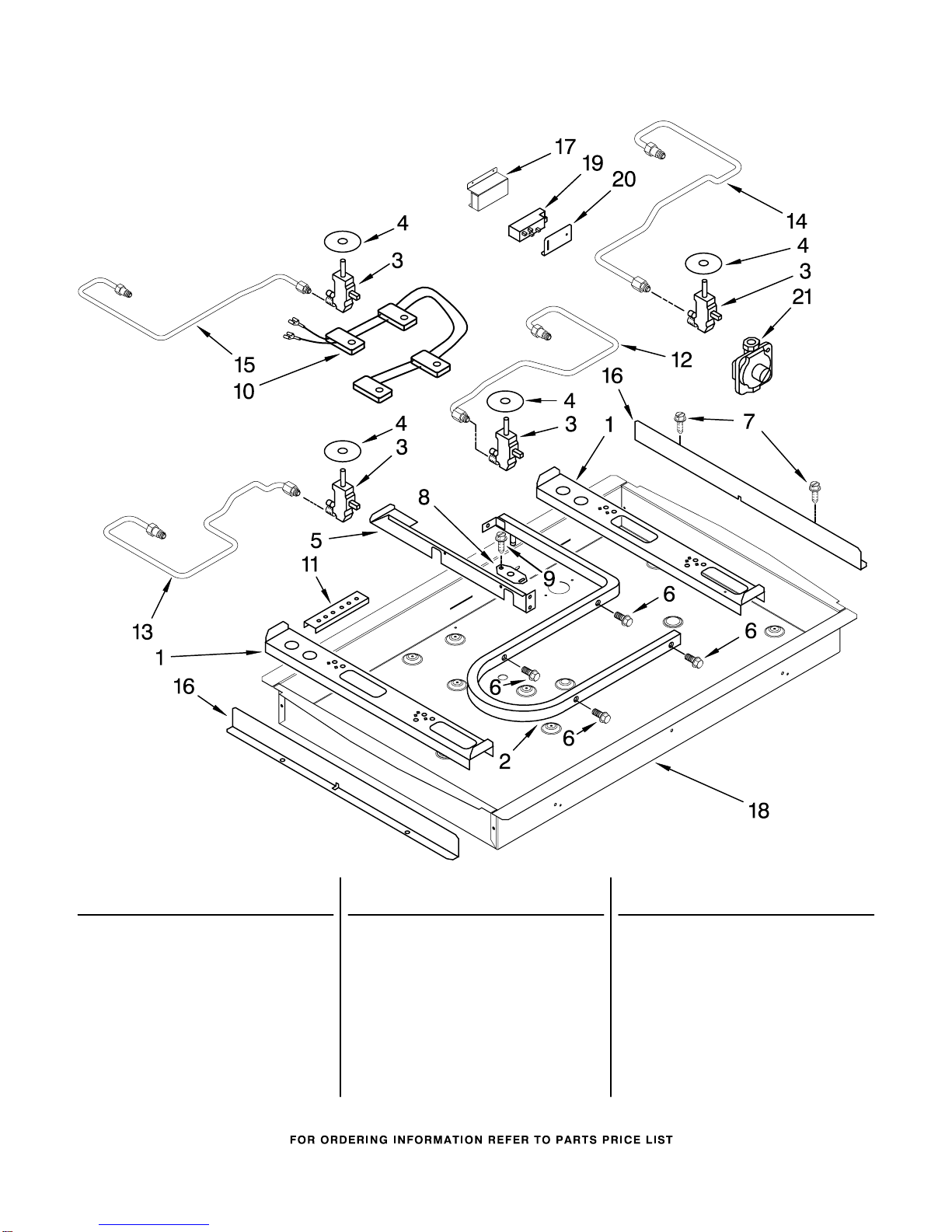

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCK306VSS00

(Stainless)

W10172317

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8285796 Rail, Burner

2 8286069 Pipe, Manifold

3 Valve, Gas Burner

8286559 White

4456817 Black

8286560 Yellow

8286561 Orange

4 3191387 Seal, Shaft

5 8285791 Rail, Center

6 8523704 Bolt, Gas Valve

7 3400843 Screw

8 3192491 Bracket, Mainfold

9 3196160 Screw

10 4456905 Harness & Switches

11 4455917 Bracket, Mounting

12 8285793 Tubing, Gas

Burner (RF)

13 8285794 Tubing, Gas

Burner (LF)

14 8285792 Tubing, Gas

Burner (RR)

15 8285795 Tubing, Gas

Burner (LR)

16 3191462 Shield, Heat (2)

17 8285788 Shield, Heat

18 9760837 Burner Box

19 8522423 Module Spark

20 4455837 Bracket, Spark

Module

W10131956

Regulator,

Pressure

OPTIONAL PARTS (NOT INCLUDED)

For Models: KGCK306VSS00

(Stainless)

W10172317

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

9763116 Cord, Power

3177991 Screw

9759145 Bracket, Mounting

Miscellaneous

8286320 Spud Kit

8537055 Stainless Cleaner

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)
