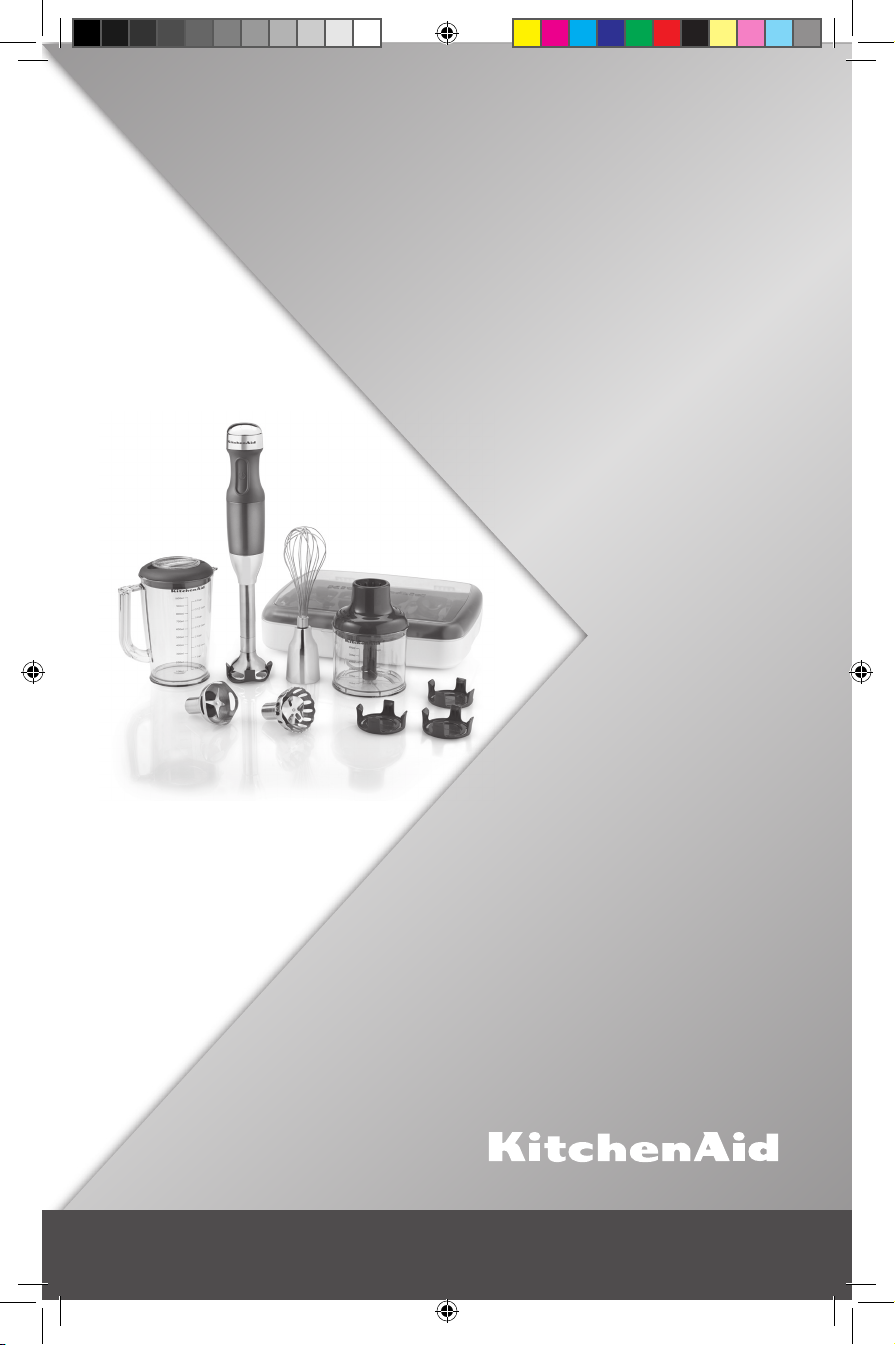

KitchenAid 5KHB2569 Manuale utente

5KHB2569,

KEB25

W11332784A.indd 1 2/18/2019 5:01:57 PM

W11332784A.indd 2 2/18/2019 5:01:57 PM

ENGLISH

| 3

TABLE OF CONTENTS

PARTS AND FEATURES��4

Hand Blender parts.........................................................................................4

Hand Blender features....................................................................................5

HAND BLENDER SAFETY ��6

Important safeguards .....................................................................................6

Electrical requirements...................................................................................8

OPERATING HAND BLENDER ��9

Assembling Hand Blender..............................................................................9

Twist-lock blending arm................................................................................10

Whisk attachment.........................................................................................11

Chopper attachment ....................................................................................12

Chopper attachment (cont.) .........................................................................13

Operating tips ..............................................................................................13

Attachment guide.........................................................................................14

CARE AND CLEANING ��15

Hand Blender................................................................................................15

Hand Blender accessories and attachements...............................................15

W11332784A.indd 3 2/18/2019 5:01:58 PM

4 | PARTS AND FEATURES

Chopper Attachment

Blending Pitcher

S-Blade

Multi-Purpose

Blade

Frother/Beater

1�5 m (5 ft�)

Power Cord

20 cm (8")

Stainless Steel

Blending Arm

Motor

Body

One-Touch

Power Button

Speed Control Dial

1 Cup

1/2 Cup

1 1/2 Cup

2 Cup

2 1/2 Cup

3 Cup

4 Cup

3 1/2 Cup

Bell Guard

Pan Guard

Bell Blades

* Shown with

S-Blade attached

Storage Case

Whisk Attachment

PARTS AND FEATURES

HAND BLENDER PARTS

W11332784A.indd 4 2/18/2019 5:01:59 PM

ENGLISH

PARTS AND FEATURES | 5

Speed Control Dial

Variable speeds provide greater processing

control that adjusts to handle a variety of

foods, beverages and soups.

One-Touch Power Button

Activate the Hand Blender by pressing

and holding the POWER button during

blending. To stop blending, simply release

the power button.

Motor Body

Designed for a comfortable, non-slip grip.

Powerful DC Motor (not shown)

Provides a powerful blending action and is

designed for quiet, long-life operation.

1.5 m (5 ft.) Power Cord

Long enough to take the Hand Blender

to the cooktop or work area, the Power

Cord is rounded with no grooves for easy

clean up. A silicone cord strap is included

for convenient cord storage.

Twist-Lock Stainless Steel

Blending Arm

Attaches onto the Motor Body with a

simple twist and rotate motion to lock into

place. Attach the Bell Blades for blending.

All attachments utilize the

same twist and lock mounting system.

Whisk Attachment

Optimized for whipping egg whites and

whipping cream.

Chopper Attachment

Perfect for small chopping jobs like herbs,

nuts, and vegetables. Chopper includes

a bowl, blade, and chopper adapter. The

Chopper bowl has a non-slip base to

prevent movement during the chopping

process.

Blending Pitcher

1 L (4 cup) BPA-Free Pitcher with

convenient handle and no splash lid.

Bell Blades

With the three interchangeable Bell Blades,

you will always have the right tool for a

multitude of tasks. From crushing ice, to

chopping cooked meats, and frothing

milk, the KitchenAid Hand Blender has you

covered.

Pan Guard

Protects your cookware by snapping

on the Bell Blades.

Bell Guard

Protects the Bell blades while not in use.

Storage Case

Keeps accessories organized, protected,

and clean.

PARTS AND FEATURES

HAND BLENDER FEATURES

W11332784A.indd 5 2/18/2019 5:01:59 PM

6 | HAND BLENDER SAFETY

HAND BLENDER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety

precautions should always be followed, including

the following:

1. Read all instructions. Misuse of appliance may result

in personal injury.

2. To protect against risk of electrical shock do not

put motor body, cord, or electrical plug of this

Hand Blender in water or other liquid.

3. This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

4. Children should be supervised to ensure they do not

play with the appliance.

5. Do not allow children to use the Blender without

supervision.

W11332784A.indd 6 2/18/2019 5:01:59 PM

ENGLISH

HAND BLENDER SAFETY | 7

6. Turn the appliance OFF, then unplug from the outlet

when not in use, before assembling or disassembling

parts and before cleaning. To unplug, grasp the plug

and pull from the outlet. Never pull from the power

cord.

7. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

8. Always disconnect the blender from the supply if it is

left unattended and before assembling, disassembling

or cleaning.

9. Avoid contacting moving parts. Keep hands, hair,

clothing, as well as spatulas and other utensils away

from blade during operation to reduce the risk of injury

to persons and/or damage to the appliance.

10. Do not operate any appliance with a damaged cord

or plug or after the appliance malfunctions or has

been damaged in any manner. Return appliance to the

nearest Authorised Service Centre for examination,

repair, or adjustment.

11. The use of attachments not recommended or sold

by the manufacturer may cause re, electric shock

or injury.

12. Be certain Chopper Adapter is securely locked

in place before operating appliance.

13. Do not use outdoors.

14. Do not let cord hang over edge of table or counter.

15. Do not let cord contact hot surfaces, including

the stove.

16. When mixing liquids, especially hot liquids, use

a tall container or make small quantities at a time

to reduce spillage.

17. Be careful if hot liquid is blended in the jar, as it can be

ejected out due to a sudden steaming.

HAND BLENDER SAFETY

W11332784A.indd 7 2/18/2019 5:01:59 PM

8 | HAND BLENDER SAFETY

SAVE THESE INSTRUCTIONS

Volts: 220-240 V.A.C.

Hertz: 50-60 Hz

A short power-supply cord is provided to

reduce the risk resulting from becoming

entangled in or tripping over a longer cord.

If a long extension cord is used:

• The marked electrical rating of the

extension cord should be at least as

great as the electrical rating of the

appliance.

• The cord should be arranged so it

will not drape over the counter top

or tabletop where it can be pulled by

children or tripped over unintentionally.

18. Keep hands and utensils out of the container while

blending to prevent the possibility of severe injury

to persons or damage to the unit. A scraper may

be used, but must be used only when the unit

is not running.

19. Blade is sharp, handle carefully. Care shall be taken

when handling sharp cutting blades, emptying

the bowl, and during cleaning.

20. Refer to the “Care and Cleaning” section for

instructions on cleaning the surfaces in contact with

food.

21. This appliance is intended to be used in household and

similar applications such as:

-staff kitchen areas in shops, ofces, and other

working environments;

-farmhouses;

-by clients in hotels, motels, and other residential

type environments;

-bed and breakfast type environments

HAND BLENDER SAFETY

ELECTRICAL REQUIREMENTS

W11332784A.indd 8 2/18/2019 5:01:59 PM

ENGLISH

OPERATING HAND BLENDER | 9

Before using the KitchenAid Hand Blender

for the ﬁrst time, wipe the motor body and

attachment adapters with a clean, damp

cloth to remove any dirt or dust. Mild dish

soap may be used, but do not use abrasive

cleansers.

NOTE: Do not immerse the motor body or

the adapters in water.

Dry with a soft cloth. Wash all the

attachments and accessories by hand

or in the dishwasher. Dry thoroughly.

NOTE: Always be sure to unplug the

power cord from the wall socket before

installing or removing attachments.

Blending Arm

Attachment

Chopper Adapter

Whisk Adapter

Bell Guard

Easily snaps onto Bell Blade and provides

protection to blades while the Hand

Blender is not in use.

Pan Guard

The Pan Guard snaps onto any of the

included Bell Blades and provides

protection to the Hand Blender and your

cookware.

NOTE: Ensure Bell Guard is installed with

the mounting clips positioned between the

ports on the Bell Blades.

NOTE: Ensure Pan Guard is installed with

the mounting clips positioned between the

ports on the Bell Blades.

Port Port

OPERATING HAND BLENDER

ASSEMBLING HAND BLENDER

W11332784A.indd 9 2/18/2019 5:02:00 PM

10 | OPERATING HAND BLENDER

Use the Blending Arm attachment for

smoothies, milk shakes, soup, cooked

vegetables, frosting, or baby food.

1. Insert Blending Arm into Bell Blade (see

“Attachment Guide”) and twist to lock

until it clicks.

NOTE: Hand Blender should only be

immersed in liquids the length of the

attachment. Do not submerge beyond

the seam of the blending attachment.

Do not immerse the motor body into

liquids or other mixtures.

2. Insert Blending Arm into Motor Body

and twist to lock until it clicks.

Blending

Drawing up

Wrist

movement

Insert Hand Blender with Blending

Arm attached into the Blending Pitcher

containing ingredients at an angle. Use

your free hand to cover the top of the

Blending Pitcher for better stability and

avoid splattering. Remember to stop the

Hand Blender before removing it from the

pitcher to avoid splashing.

Rest the Hand Blender on the bottom

of the Blending Pitcher momentarily

then hold at an angle and slowly draw it

upwards against the side of the Pitcher.

As the Hand Blender is drawn up you will

notice the ingredients from the bottom

of the Pitcher being drawn up. When the

ingredients are no longer being drawn up

from the bottom, return the Hand Blender

to the bottom of the Pitcher and repeat

the process until the ingredients are at the

desired consistency.

Using a light circular motion from your

wrist, draw the Hand Blender up slightly

and let it fall again into the ingredients.

Allow your wrist motion and the weight of

the Hand Blender to do the work.

6. Press the Power button to activate

the Hand Blender.

7. When blending is complete, release

the power button before removing

Hand Blender from the mixture.

8. Unplug immediately after use, before

removing or changing attachments.

3. Plug the electrical cord into an electrical

wall socket.

4. Set Hand Blender to Speed 1. Adjust the

speed by turning the Speed Control Dial

on top of the Hand Blender.

5. Insert the Hand Blender into the

OPERATING HAND BLENDER

TWIST-LOCK BLENDING ARM

W11332784A.indd 10 2/18/2019 5:02:00 PM

Altri manuali per 5KHB2569

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KitchenAid Elettrodomestico da cucina

KitchenAid

KitchenAid KST4054 Manuale utente

KitchenAid

KitchenAid 5KMC4241 Manuale utente

KitchenAid

KitchenAid KST4054 Manuale utente

KitchenAid

KitchenAid KSM2SCA Manuale utente

KitchenAid

KitchenAid KMC4241 Manuale utente

KitchenAid

KitchenAid KSBC1B2 Manuale utente

KitchenAid

KitchenAid KSMMGA Manuale utente

KitchenAid

KitchenAid KAC-22 Manuale utente

KitchenAid

KitchenAid 790-0007A Scheda informativa del prodotto

KitchenAid

KitchenAid KSM1CB Manuale utente

KitchenAid

KitchenAid 780-0018 Scheda informativa del prodotto

KitchenAid

KitchenAid KHBC308OB Manuale utente

KitchenAid

KitchenAid KSS3121 Manuale utente

KitchenAid

KitchenAid 5KSM7990 Manuale utente

KitchenAid

KitchenAid KVXXX 14600 Manuale utente

KitchenAid

KitchenAid KESMK5 Manuale utente

KitchenAid

KitchenAid KHB1231 Manuale utente

KitchenAid

KitchenAid KHB3581 Istruzioni per il montaggio

KitchenAid

KitchenAid KSMSIA Manuale utente

KitchenAid

KitchenAid 5KCF0103 Manuale utente

KitchenAid

KitchenAid KI422BBONA Manuale utente

KitchenAid

KitchenAid KBCO24LSBX - 24" Wine Cooler Manuale elenco delle parti

KitchenAid

KitchenAid KUBR204EPA Manuale utente

KitchenAid

KitchenAid KST4054 Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
