KitchenAid KSM200 Series Manuale utente

Stand Mixer

K45 Series,

KSM45 - KSM200 Series

12 13 14 16

1Motor Head (locking lever not shown)

2Attachment Knob

3Attachment Hub

4Motor Head

5Speed Control Lever

6Beater Height Adjustment Screw

(not shown)

7Bowl Clamping Plate

8Bowl**

9Beater Shaft

10 Pouring Shield*

11 2.8 L Stainless Steel Bowl*

12 Flat Beater*

13 Flex Edge Beater*

14 Wire Whip

15 Dough Hook

16 Pastry Beater*

PARTS AND FEATURES

*Included with select models only. Also available as an optional accessory.

**The Bowl design and material depend on the Stand Mixer model.

ENGLISH

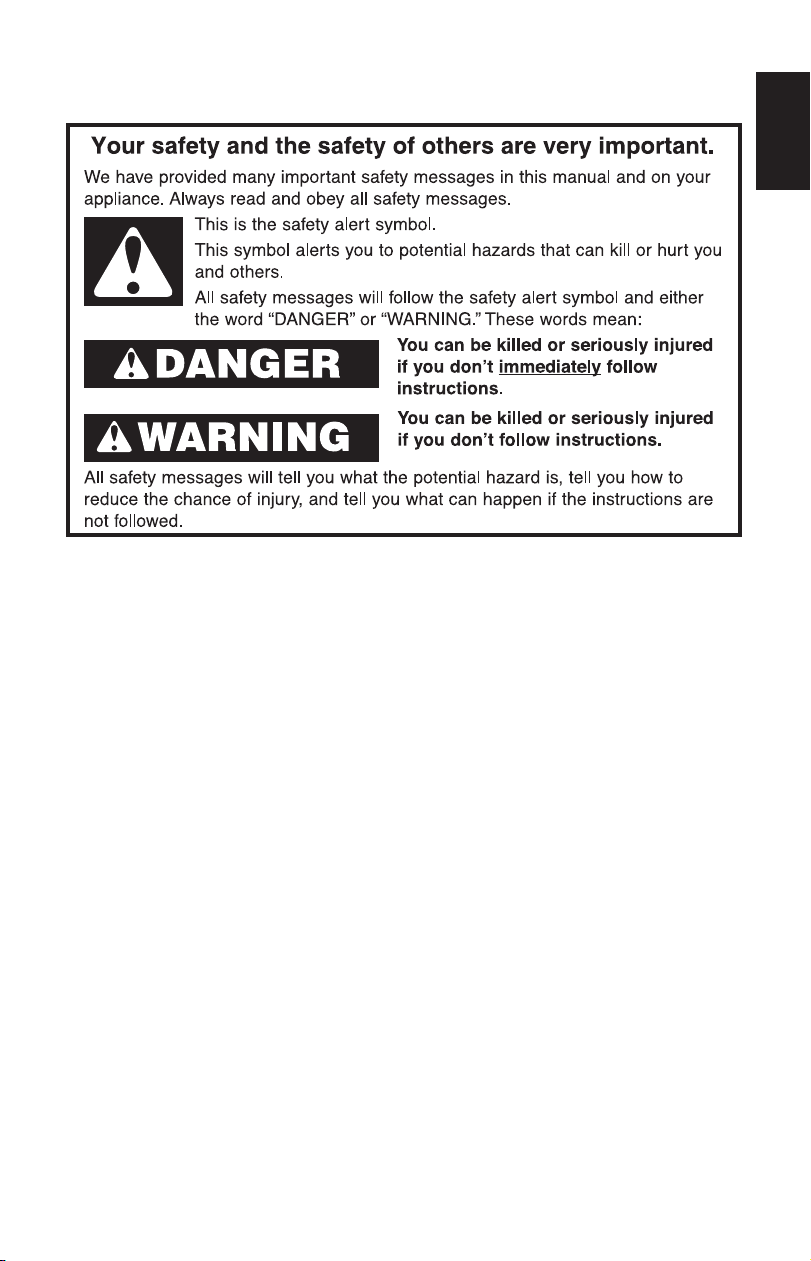

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put Stand Mixer in water or

other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they are closely supervised and instructed concerning

use of the appliance by a person responsible for their safety. Close

supervision is necessary when any appliance is used by or near children.

Children should be supervised to ensure that they do not play with the

appliance.

4. Turn the appliance OFF/0, then unplug from the outlet when not in use,

before assembling or disassembling parts, and before cleaning. To unplug,

grasp the plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well

as spatulas and other utensils, away from beater during operation to reduce

the risk of injury to persons and/or damage to the Stand Mixer.

6. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorized Service Facility for examination, repair,

or electrical or mechanical adjustment.

7. The use of accessories or attachments not recommended or sold by the

manufacturer may cause fire, electric shock or injury.

8. Do not use the Stand Mixer outdoors.

PRODUCT SAFETY

9. Do not let the cord hang over the edge of table or counter.

10. Remove the beaters, wire whip, or dough hook from the Stand Mixer before

washing.

This product is designed for household use only.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS

Voltage: 120 V

Frequency: 60 Hz

Wattage: 275 Watts MAX for models

K45, KSM45-KSM80

300 Watts MAX for models

KSM85-KSM110

325 Watts MAX for models

KSM120-KSM200

NOTE: The power rating for your Stand

Mixer is printed on the serial plate.

Do not use an extension cord. If the

power supply cord is too short, have

a qualified electrician or service technician

install an outlet near the appliance.

The maximum rating is based on the

attachment that draws the greatest

load (power). Other recommended

attachments may draw significantly

less power.

GETTING STARTED

Accessory Use to mix Suggested items

Flat Beater

Flex Edge Beater* Normal to heavy

mixtures Cakes, creamed frostings, candies, cookies,

biscuits, pie pastry, meatloaf, mashed potatoes.

Pastry Beater* Cut butter into

flour

For pie dough, biscuits and other pastries,

mashing fruits and vegetables, and shredding

meats.

Wire Whip Mixtures

that need air

incorporated

Eggs, egg whites, heavy cream, boiled frostings,

sponge cakes, mayonnaise, some candies.

Dough Hook Mixing and

kneading yeast

doughs Breads, rolls, pizza dough, buns.

CHOOSING THE RIGHT ACCESSORY

*Included with select models only. Also available as an optional accessory.

ENGLISH

SPEED CONTROL GUIDE

Note:The speed control can be set to obtain speeds 1, 3, 5, 7, and 9 if a finer adjustment is

required. Do not exceed Speed 2 when preparing yeast doughs as this may cause damage to

the Stand Mixer.

Speed Accessory Action Description

Stir Flat Beater

Flex Edge Beater* Stir For starting all mixing procedures, slow

stirring, and combining.

Pastry Beater* Stir Cut butter into flour to make pastry dough;

Mash fruits and vegetables.

Flat Beater

Flex Edge Beater*

Slow mixing

For slow mixing, mashing, and faster stirring.

Dough Hook To mix and knead yeast doughs, heavy

batters, and candies; mix thin or splashy

batters.

Flat Beater

Flex Edge Beater*

Mixing,

beating

For mixing semi-heavy batters, such

as cookies, or to combine sugar and

shortening. Medium speed for cake mixes.

Pastry Beater* For shredding meats.

Wire Whip For adding sugar to egg whites for

meringues.

Flat Beater

Flex Edge Beater* Beating,

creaming

For medium-fast beating (creaming),

or whipping. Use to ﬁnish mixing cake,

doughnut, and other batters. High speed for

cake mixes.

Wire Whip For medium-fast whipping of ingredients

requiring incorporation of air, such as egg

whites.

8Wire Whip Fast

beating,

whipping

For whipping cream, egg whites,

and boiled frostings.

NOTE: To move the Speed Control Lever with ease, lift slightly up as you move it across

the settings in either direction.

PRODUCT ASSEMBLY

Unplug and turn the Stand Mixer

“OFF/0”.

Unlock and lift the Motor Head. Then,

lock** the head to keep it lifted.

*Included with select models only. Also available as an optional accessory.

**Locking option is available on selected models.

PRODUCT ASSEMBLY

Place the Bowl* on the Clamping Plate

and twist to lock in place.

Slide and rotate the accessory, aligning

over the pin on the shaft.

Unlock the Motor Head and move it

down. Then, lock** the head to keep

it down. Before mixing, test lock by

attempting to raise the Motor Head.

(OPTIONAL) To adjust Beater to Bowl

Clearance: Tilt and lock** the Motor

Head back. Turn the screw slightly

counterclockwise (left) to raise the

beater, or clockwise (right) to lower it.

NOTE: If you over-adjust the screw, the

Bowl lock lever may not lock into place.

(OPTIONAL) Place the Pouring

Shield***: From the front of the Stand

Mixer, place the Pouring Shield onto

the bowl so that the motor head covers

the u-shaped gap in the shield. This will

position the pouring chute just to the

right of the attachment hub as you face

the mixer. Press lightly so that the Easy

Snap tabs snap the shield onto the bowl.

*The Bowl design and material depend on the Stand Mixer model.

**Locking option is available on select models.

***Included with select models only. Also available as an optional accessory.

ENGLISH

PRODUCT USAGE

Plug it into a grounded 3 prong outlet.

Start with lower speed to avoid splashing,

and increase speed gradually.

Refer to the “Speed Control Guide”.

Do not scrape the Bowl*while operating.

Scraping the Bowl*once or twice during

mixing is usually sufficient.

(OPTIONAL): Pour ingredients into the

Bowl* through the pouring chute.

*The Bowl design and material depend on the Stand Mixer model.

DISASSEMBLING THE PRODUCT

Turn the Stand Mixer “OFF/0” and

unplug. Unlock and lift the Motor Head.

Then, lock* the head to keep it lifted.

(OPTIONAL): Lift the front of the Pouring

Shield** clear of the rim of the Bowl***.

Pull away from the Stand Mixer.

Press the accessory upward, turn it and

pull it away from the Beater Shaft.

Twist to unlock the Bowl*** from the

Clamping Plate.

Unplug and turn the Stand Mixer

“OFF/0”.

KitchenAid®offers a wide range of optional attachments such as the Spiralizer, Pasta

Cutters, or Food Grinder that may be attached to the Stand Mixer attachment power hub

as shown here.

Remove the Attachment Hub cover.

*Locking option is available on selected models.

**Included with select models only. Also available as an optional accessory.

***The Bowl design and material depend on the Stand Mixer model.

OPTIONAL ATTACHMENTS

ENGLISH

Insert attachment into Attachment Hub,

making certain that attachment power

shaft ﬁts into the square Attachment

Hub socket.

Tighten the Attachment Knob by turning

it clockwise until the attachment is

secured to the Stand Mixer.

OPTIONAL ATTACHMENTS

IMPORTANT: Do not immerse the Stand Mixer body in water or other liquids.

CARE AND CLEANING

Unplug and turn the Stand Mixer

“OFF/0”.

Dishwasher-safe parts, top rack only:

Stainless Steel Bowl, Bowl Lid*,

Flat Beater*, Dough Hook, Flex Edge

Beater*, Pouring Shield*, and Pastry

Beater*.

Wipe the Stand Mixer body with a soft,

damp cloth.

Clean the Wire Whip thoroughly with

hot sudsy water and hand wash only.

*Included with select models only. Also available as an optional accessory.

TROUBLESHOOTING GUIDE

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

Problem Solution

If Stand Mixer warms up

during use:

Under heavy loads with extended mixing time periods, you

may not be able to comfortably touch the top of the unit.

This is normal.

If the Flat Beater hits the

bowl: Stop the Stand Mixer. See the “Product Assembly” section

and adjust the Beater to Bowl Clearance.

The Speed Control Lever does

not move smoothly or easily: To move the Speed Control Lever with ease, lift slightly up

as you move it across the settings in either direction.

If your Stand Mixer should fail

to operate, please check the

following:

Is the Stand Mixer plugged in?

Is the fuse in the circuit to the Stand Mixer in working order?

If you have a Circuit Breaker Box, be sure the circuit is

closed.

Turn off the Stand Mixer for 10-15 seconds, then turn it back

on. If the Stand Mixer still does not start, allow it to cool for

30 minutes before turning it back on.

Note: If the problem cannot be corrected, See the “Warranty and Service” section.

Do not return the Stand Mixer to the retailer; retailers do not provide service.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KitchenAid Elettrodomestico da cucina

KitchenAid

KitchenAid KF26M22 Manuale utente

KitchenAid

KitchenAid KGM Guida rapida

KitchenAid

KitchenAid KBCO24LSBX - 24" Wine Cooler Manuale elenco delle parti

KitchenAid

KitchenAid FVSFGA Manuale utente

KitchenAid

KitchenAid KBCS24 Manuale elenco delle parti

KitchenAid

KitchenAid KFP1466 Manuale utente

KitchenAid

KitchenAid 5FGA Guida rapida

KitchenAid

KitchenAid Professional 600 RKP26M1XBY Manuale utente

KitchenAid

KitchenAid 5KSMMGA Manuale utente

KitchenAid

KitchenAid KSS1121 Manuale utente

KitchenAid

KitchenAid 5KSMSSA Manuale utente

KitchenAid

KitchenAid KFFU271 Manuale utente

KitchenAid

KitchenAid KSMMGA Manuale utente

KitchenAid

KitchenAid KP Manuale utente

KitchenAid

KitchenAid 780-0018 Scheda informativa del prodotto

KitchenAid

KitchenAid KSBC1B2CU Manuale utente

KitchenAid

KitchenAid 5KSM7990 Manuale utente

KitchenAid

KitchenAid 5K45 Series Manuale utente

KitchenAid

KitchenAid SAUSAGE STUFFER Manuale utente

KitchenAid

KitchenAid 9KSM150 Manuale utente

KitchenAid

KitchenAid KMC4241 Istruzioni per il montaggio

KitchenAid

KitchenAid KSM2APC Manuale utente

KitchenAid

KitchenAid KSM1CB Manuale utente

KitchenAid

KitchenAid KSMVSA Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
