Galil 6-AW Quick Start Guide

This guide helps you install and use your Galil 6-AW for the first time.

Go to www.kramerav.com/downloads/Galil 6-AW to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

Galil 6-AW All Weather Speakers

4 knobs

2 cable glands

1 Quick start guide

2 mounting U-brackets

4 mounting screws

2 grommets

1 User manual

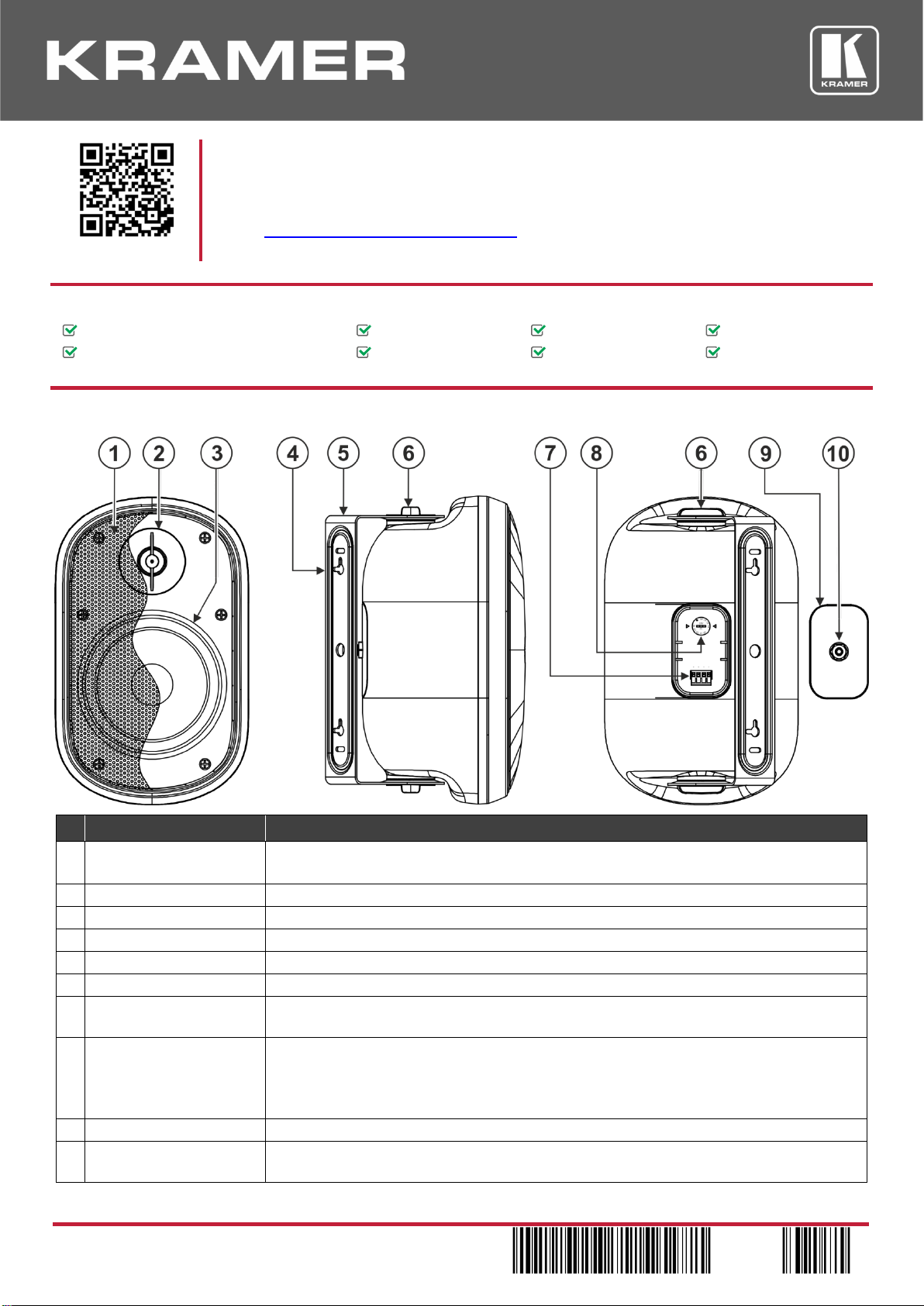

Step 2: Get to know your Galil 6-AW

Feature

Function

Speaker Grille

Protects the internal components of the speaker from foreign objects.

Do not remove the grille from the speakers.

Tweeter

Emits high frequency sounds.

Woofer Driver

Emits low frequency sounds.

Keyhole Mounting Point

Use to attach the U-bracket to a wall.

U-Bracket

Use to mount the speaker onto a wall (allowing left/right rotation).

U-Bracket knobs (2x2)

Use to fasten the U-bracket to the speaker (two knobs per bracket).

Input and Output Terminal

Block Connectors

One +, - pair for the input and one +, - pair to output to the next speaker in an array

configuration.

Tap Selector

Adjust each speaker to the appropriate tap setting:

For 70V: select 3.7W, 7.5W, 15W, or 30W; For 100V: select 7.5W, 15W, or 30W.

Alternatively, select 8to bypass the transformer when connecting directly to an amplifier

without using the 70/100V array option.

Protective Cover

Protects speaker cables and tap selector.

Cable Gland/Grommet

Pass the speaker cable through the cable gland/grommet to protect the connectors from outdoor

weather conditions.

Step 3: Choose the best location

Before installing the speakers:

•Experiment by placing the speakers in different locations before finally deciding on the most suitable location.

•Be sure that the wall type is appropriate for the mounting U-brackets, that is, either solid wood, bricks, concrete,

hollow building blocks, or wood studs.

•Check that the mounting location is free of obstructions, such as electrical piping, AC ducts or water lines, and so on.

Step 4: Install the Galil 6-AW

Always switch OFF the power on each device before connecting it to your Galil 6-AW.

To connect the Galil 6-AW to the amplifier:

1. Cut the dual color cable wires to similar lengths, leaving some excess wire to easily

remove the speakers from the U-brackets.

For outdoor installations you need to use weatherproof cables.

2. Adjust the tap setting.

3. Connect the wires to the appropriate terminal block connectors on the speaker.

4. Mount the grommet/cable gland on the protective cover and pass the cables

through the grommet/cable gland and the protective cover.

5. Close the tap selector and connector opening with the protective cover.

6. Connect the mounting U-brackets.

7. Connect the wires to the amplifier (left speaker wires to amplifier “L” terminal blocks

and right speaker to amplifier “R” terminal blocks.

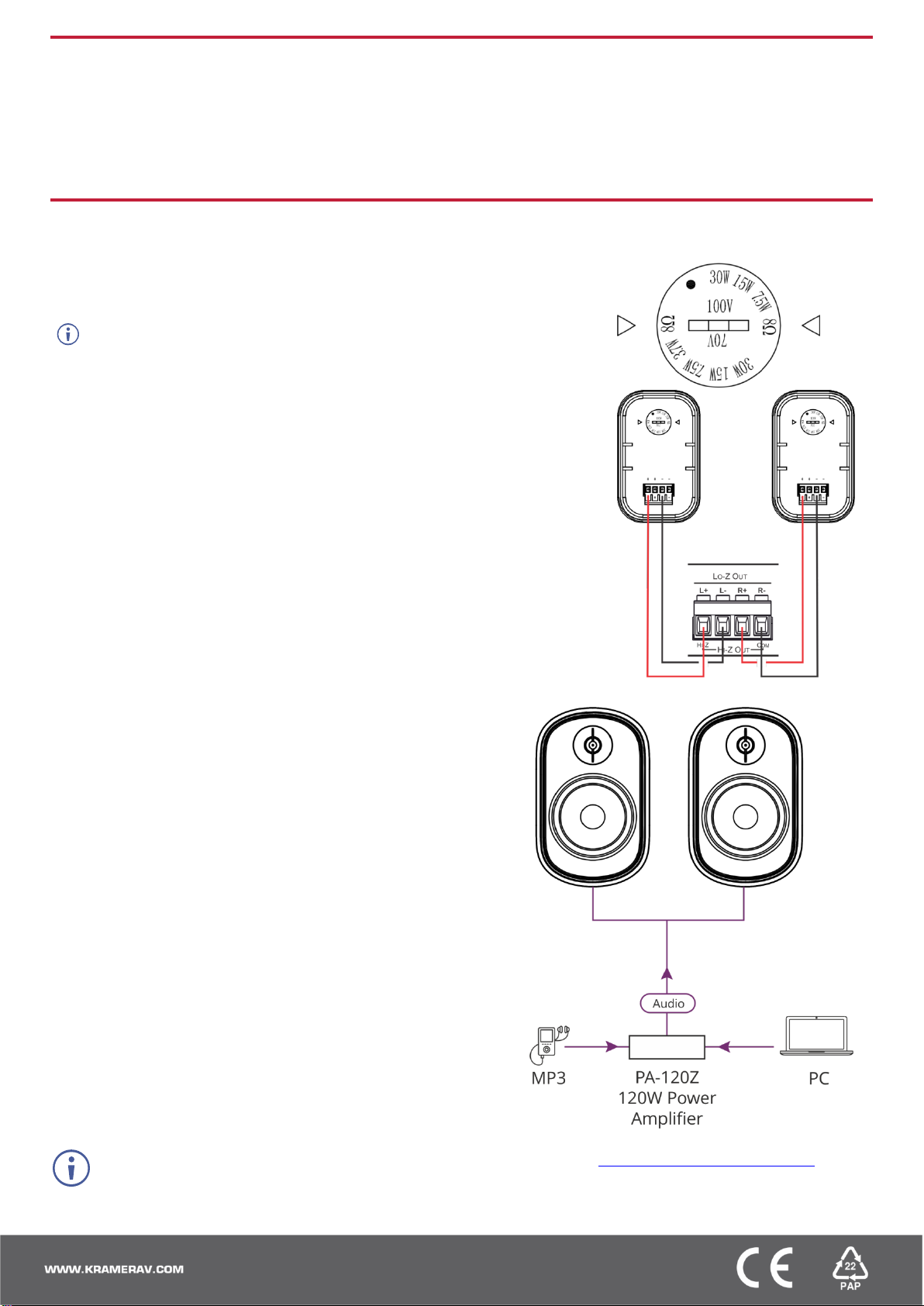

The following diagram displays the Galil 6-AW speakers connected

to a recommended Kramer power amplifier

(for example, PA-120Z):

For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/Galil 6-AW.

Using third-party cables may cause damage!
