Lantech IES-3 Series Manuale utente

I(P)ES-3XXX

I(P)ES-5XXX

IP30-rated Series

IP30-rated DIN Rail L2+ Industrial Managed Switch

User Manual (Hardware)

*For 19-inch rack-mount models, please refer to hardware manual with specific model name.

Oct. 2022

Recommendation for Shielded network cables

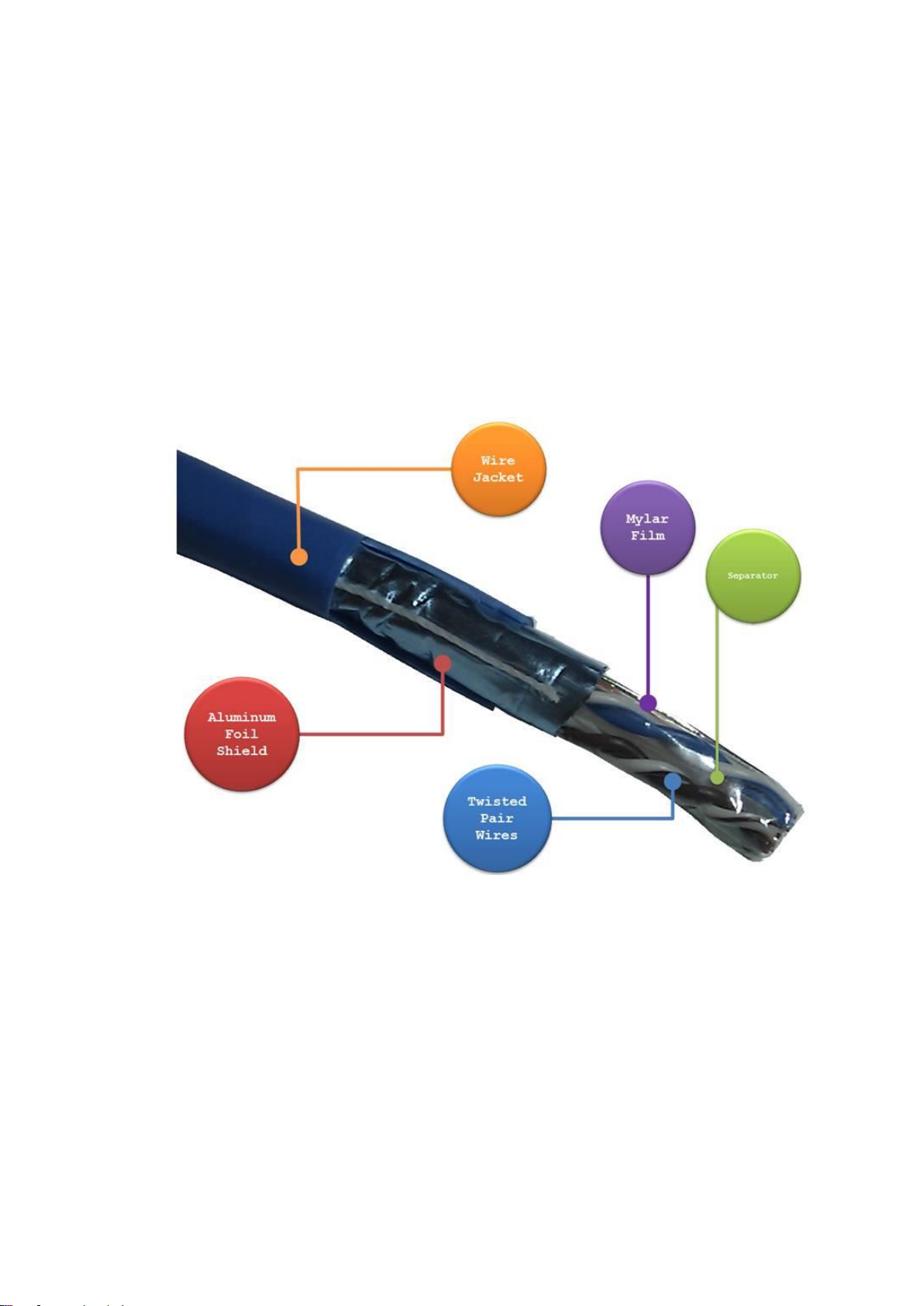

STP cables have additional shielding material that is used to reduce external interference.

The shield also reduces the emission at any point in the path of the cable. Our

recommendation is to deploy an STP network cable in demanding electrical environments.

Examples of demanding indoor environments are where the network cable is located in

parallel with electrical mains supply cables or where large inductive loads such as motors

or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an

STP cable where the power device (like IP camera) is used outdoors or where the network

cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial or industrial installation. This equipment generates, uses, and

can radiate radio frequency energy. It may cause harmful interference to

radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Hardware Features.................................5

Chapter 2 Hardware Description ............................5

2.1 IP Protection................................................... 5

2.2 LED Indicators................................................ 8

Chapter 3 Hardware Installation...........................10

3.1. Hardware installation.................................... 10

3.2DIN-Rail Mounting........................................ 12

3.3 Wall Mount Plate Mounting.......................... 14

3.4 Wiring the Power Inputs............................... 15

3.4.1. For 12V / 24V / 48V models........................... 15

3.4.2. For HV models............................................... 16

3.5 Wiring the Fault Alarm Contact.................... 17

3.6 Wiring the DIDO........................................... 18

3.7 Cabling......................................................... 19

Chapter 4 Console Management ..........................23

4.1. Connecting to the Console Port................... 23

4.2. Login in the Console Interface ..................... 24

Chapter 1 Hardware Features

Lantech 3000/5000 series industrial Ethernet switch is a high performance L2+ Ethernet

switch that provides advanced security function for network aggregation deployment.

*For detail specifications, please refer to product datasheet.

Chapter 2 Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

2.1 IP Protection

The IP Code, Ingress Protection Rating, sometimes also interpreted as International

Protection Rating, classifies and rates the degree of protection provided against the

intrusion (including body parts such as hands and fingers), dust, accidental contact, and

water in mechanical casings and with electrical enclosures. It is published by the

International Electrotechnical Commission (IEC)

Solid particle protection

The first digit indicates the level of protection that the enclosure provides against access

to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid

foreign objects.

Level

Object size

protected against

Effective against

—

No protection against contact and ingress of objects

>50 mm

Any large surface of the body, such as the back of a

hand, but no protection against deliberate contact

with a body part

>12.5 mm

Fingers or similar objects

>2.5 mm

Tools, thick wires, etc.

>1 mm

Most wires, screws, etc.

Dust protected

Ingress of dust is not entirely prevented, but it must

not enter in sufficient quantity to interfere with the

satisfactory operation of the equipment; complete

protection against contact

Dust tight

No ingress of dust; complete protection against

contact

Liquid ingress protection

The second digit indicates the level of protection that the enclosure provides against

harmful ingress of water.

Level

Protected

against

Testing for

Details

Not

protected

—

Dripping

water

Dripping water (vertically

falling drops) shall have no

harmful effect.

Test duration: 10 minutes

Water equivalent to 1 mm

rainfall per minute

Dripping

water when

tilted up to

15°

Vertically dripping water

shall have no harmful effect

when the enclosure is tilted

at an angle up to 15°from

its normal position.

Test duration: 10 minutes

Water equivalent to 3 mm

rainfall per minute

Spraying

water

Water falling as a spray at

any angle up to 60°from

Test duration: 5 minutes

Water volume: 0.7 litres per

the vertical shall have no

harmful effect.

minute

Pressure: 80–100 kPa

Splashing

of water

Water splashing against

the enclosure from any

direction shall have no

harmful effect.

Test duration: 5 minutes

Water volume: 10 litres per

minute

Pressure: 80–100 kPa

Water jets

Water projected by a

nozzle (6.3 mm) against

enclosure from any

direction shall have no

harmful effects.

Test duration: at least

15 minutes

Water volume: 12.5 litres per

minute

Pressure: 30 kPa at distance

of 3 m

Powerful

water jets

Water projected in powerful

jets (12.5 mm nozzle)

against the enclosure from

any direction shall have no

harmful effects.

Test duration: at least

3 minutes

Water volume: 100 litres per

minute

Pressure: 100 kPa at

distance of 3 m

Immersion

up to 1 m

Ingress of water in harmful

quantity shall not be

possible when the

enclosure is immersed in

water under defined

conditions of pressure and

time (up to 1 m of

submersion).

Test duration: 30 minutes

Immersion at depth of at

least 1 m measured at

bottom of device, and at least

15 cm measured at top of

device

Immersion

beyond 1 m

The equipment is suitable

for continuous immersion in

water under conditions

which shall be specified by

the manufacturer.

Normally, this will mean

Test duration: continuous

immersion in water

Depth specified by

manufacturer

that the equipment is

hermetically sealed.

However, with certain types

of equipment, it can mean

that water can enter but

only in such a manner that

it produces no harmful

effects.

Powerful

high

temperature

water jets

Protected against close-

range high pressure, high

temperature spray downs.

—

2.2 LED Indicators

The diagnostic LEDs that provide real-time information of system and optional status are

located on the front panel of the industrial switch. The following table provides the

description of the LED status and their meanings for the switch.

LED

Color

Status

Meaning

R.M

Green

The switch unit is owner switch of ITU-Ring

Off

The switch is not owner switch

PWR1

Green

Power 1 is active

Off

Power 1 is inactive

PWR2

Green

Power 2 is active

Off

Power 2 is inactive

FAULT

Red

Power or port failure

Off

No failure

RJ45 Port

Link/Ack

A network device is detected.

LED

Blinking

The port is transmitting or receiving packets

from the TX device.

Off

No device attached

PoE FWD

(For PoE

model)

Off

The port is not operating in PoE mode.

The port is operating in PoE mode.

SFP Port

LED

A network device is detected.

Blinking

The port is transmitting or receiving packets

from the TX device.

Off

No device attached.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lantech Interruttore

Lantech

Lantech IES-5216DF Manuale utente

Lantech

Lantech IES-5416DF Series Manuale utente

Lantech

Lantech IPGS-5008T Series Manuale utente

Lantech

Lantech IES-2208C Manuale utente

Lantech

Lantech IPES-5408T-X-IGN Series Manuale utente

Lantech

Lantech IPES-0208CA-12V Manuale utente

Lantech

Lantech IPES-5222T Series Manuale utente

Lantech

Lantech IPES-0208 Series Manuale utente

Lantech

Lantech IES-5416T Series Manuale utente

Lantech

Lantech LGS-1104 Manuale utente

Lantech

Lantech IPGS-5 Series Manuale utente

Lantech

Lantech IES-2208CA Manuale utente

Lantech

Lantech IPGS-5400-2P Manuale utente

Lantech

Lantech IPES/IES-5416T Series Manuale utente

Lantech

Lantech IPGS-0204DSFP-12V Manuale utente

Lantech

Lantech LGS-2300-RPS Manuale utente

Lantech

Lantech IPES/IES-5416DFT Series Manuale utente

Lantech

Lantech IES-2208CA-DNV Manuale utente

Lantech

Lantech LPGS-2424C Series Manuale utente

Lantech

Lantech IGS-0208GSFP Manuale utente

Lantech

Lantech IPES-3408GSFP Manuale utente

Lantech

Lantech IPES-5416T Series Manuale utente

Lantech

Lantech IPES-3424DSFP-2P Manuale utente

Lantech

Lantech IPES-0104FA Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
