Quick Start Guide v1.0

Lenovo S850

English/Español

English

Electronic emission

notices

Learn more

Legal notices Lenovo and the Lenovo logo are trademarks

of Lenovo in the United States, other

countries, or both.

Other company, product, or service names

may be trademarks or service marks of

others.

Read this guide carefully before using your smartphone.

Radio and Telecommunications Terminal

Equipment Directive

This product is in compliance with the

essential requirements and other relevant

provisions of the Radio and Telecommunica-

tions Terminal Equipment Directive,

1999/5/EC.

European Union conformity

To learn more information about your

Lenovo smartphone and obtain the latest

smartphone manuals, go to:

http://support.lenovo.com/.

Getting support For support on network service and billing,

contact your wireless network operator. For

instructions on how to use your device, go

to: http://support.lenovo.com/.

Type: CMOS

Pixels: 13.0 megapixels (back) + 5.0 megapixels (front)

Processor: MT6582V/W, quad-core, 1.3 GHz

Size: 5 inches Screen: multi-touch

Resolution: 1280 × 720 pixels LCD type: IPS

Model: Lenovo S850 System: Android 4.4

Bluetooth 4.0; WLAN; WCDMA, GSM; GPS

Battery: 2150 mAh

Height: 141.2 mm (5.56 inches) Width: 71.5 mm (2.81 inches)

Depth: 8.2 mm (0.32 inches) Weight: 140 g (0.31 lb)

①Depending on the measuring method, the dimensions and weight

might vary slightly.

Model and system

Display

Battery

Processor

①Dimensions and weight

Camera

Wireless Communication

Technical speciﬁcations

Microphone

Flashlight Micro USB

connector

Speaker

Front-facing camera

On/Off button

Volume buttons

Rear-facing camera

Headset connector Micro-SIM-card

tray

Receiver

Light/Proximity

sensor

Back key

Home key Menu key

13 14 15

First glance

1 2

678

11 12 13

A Micro SIM card provided by your carrier is required in order to use

cellular services. Install the Micro SIM card as shown.

Step 1.

Step 2.

Step 3.

Insert the SIM eject tool that comes with your smartphone

into the hole in the Micro-SIM-card tray.

Pull out the Micro-SIM-card tray and position the Micro SIM

card into the tray in correct orientation.

Carefully insert the tray with the installed Micro SIM card

back into the slot.

Only Micro SIM cards work with your smartphone.

Always turn off your smartphone ﬁrst before you insert or

remove a Micro SIM card. Insert or remove a Micro SIM card

with your smartphone on may damage your Micro SIM card or

smartphone permanently.

Installing the Micro SIM card

Low battery power Fully charged Charging

Your smartphone has a built-in rechargeable battery. For more

information about battery safety, see the “Built-in rechargeable

battery notice” in the Important Product Information Guide shipped

with your smartphone. The battery in this product cannot be easily

replaced by users themselves.

Charge the battery as shown.

Turning on or turning off your smartphone

Turn on: Press and hold the On/Off button until

the Lenovo logo appears.

Turn of f: Press and hold the On/Off button for a

few seconds, then tap Power off.

Restart: Press and hold the On/Off button for

about 10 seconds.

Method 1.

Method 2.

Connect your smartphone to a power outlet using the

cable and USB power adapter that come with your

smartphone.

Connect your smartphone to a computer using the cable

that comes with your smartphone.

Charging the battery

Español

Avisos de emisiones

electrónicas

Conocer más

Aviso legal Lenovo y el logo de Lenovo son marcas

comerciales de Lenovo en Estados Unidos,

en otros países o en ambos.

Otros nombres de servicio, empresa o

producto pueden ser marcas comerciales

o marcas de servicios de terceros.

Lea cuidadosamente esta guía antes de usar su smartphone

Directiva de equipo terminal de radio y

telecomunicaciones

Este producto cumple con los requisitos

esenciales y otras estipulaciones relevantes

de la Directiva de equipo terminal de radio y

telecomunicaciones (R&TTE Directive),

1999/5/EC.

Conformidad de la Unión Europea

Para obtener más información acerca de

su smartphone Lenovo y para obtener los

últimos manuales de este, visite:

http://support.lenovo.com/.

Cómo obtener

asistencia

Para obtener asistencia sobre el servicio de

red y facturación, póngase en contacto con

su operador de red inalámbrica. Para

obtener instrucciones sobre cómo utilizar el

dispositivo, visite http://support.lenovo.com/.

Tipo: CMOS

Píxeles: 13,0 megapíxeles (reverso) + 5,0 megapíxeles (frente)

Procesador: MT6582V/W, cuatro núcleos, 1,3 GHz

Tamaño: 5 pulgadas Pantalla: multitáctil

Resolución: 1280 × 720 píxeles Tipo de LCD: IPS

Modelo: Lenovo S850 Sistema: Android 4.4

Bluetooth 4.0; WLAN; WCDMA, GSM; GPS

Batería: 2150 mAh

Alto: 141,2 mm (5,56 pulgadas)

Ancho: 71,5 mm (2,81 pulgadas)

Profundidad: 8,2 mm (0,32 pulgadas) Peso: 140 g (0.31 lb)

① Según el método de medida, las dimensiones y el peso pueden

variar levemente.

Modelo y sistema

Pantalla

Batería

Procesador

① Dimensiones y peso

Cámara

Comunicación inalámbrica

Especiﬁcaciones técnicas

Micrófono

Linterna Conector

micro-USB

Altavoz

Cámara frontal

Botón de Encendido/

Apagado

Botones de

volumen

Cámara posterior

Conector de

casco con

auriculares

Bandeja para

tarjeta Micro SIM

Receptor

Sensor de luz/

proximidad

Tecla Atrás

Tecla Inicio Tecla Menú

13 14 15

Primera mirada

1 2

678

11 12 13

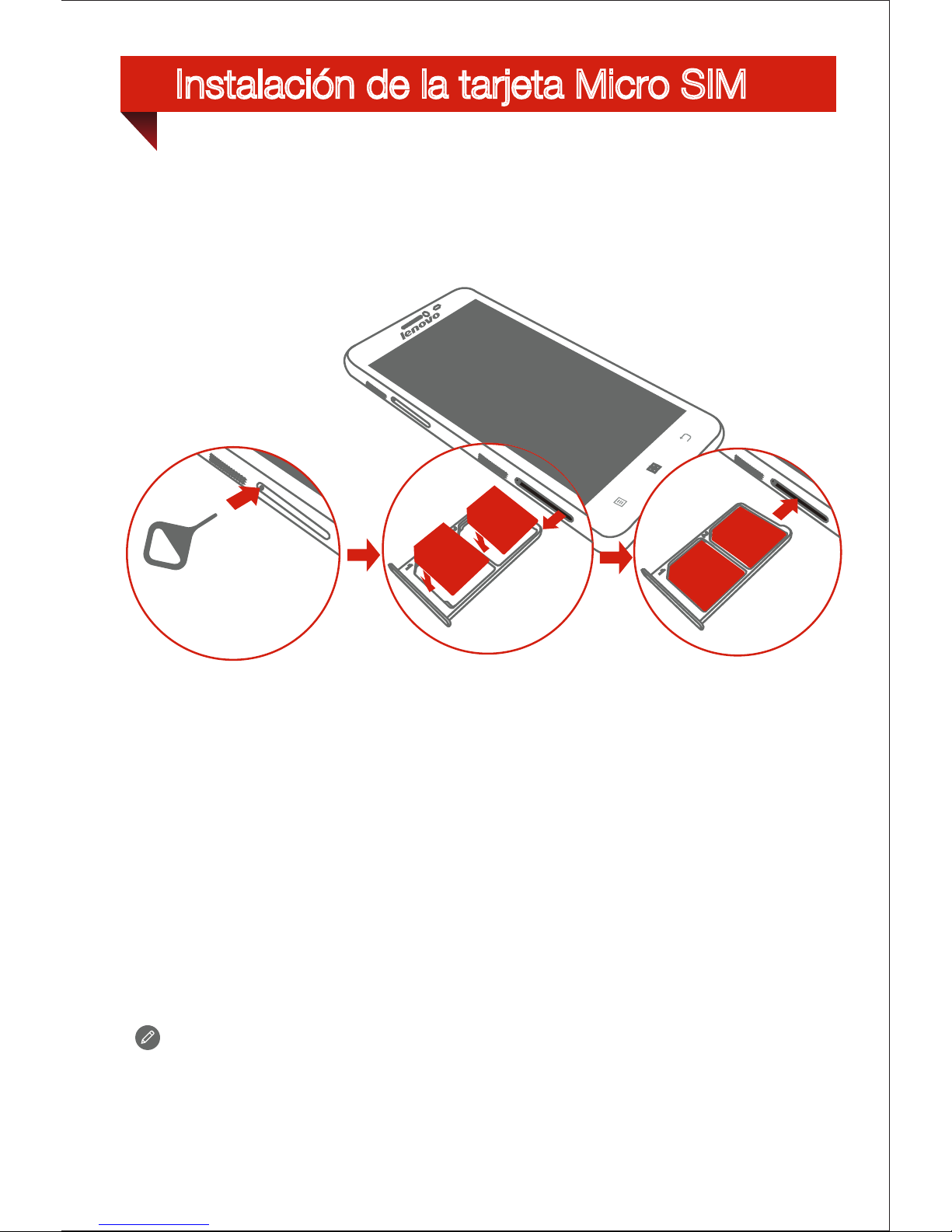

Se requiere una tarjeta Micro SIM proporcionada por su operador

para utilizar los servicios de telefonía celular. Instale la tarjeta

Micro SIM como se indica

Paso 1. Inserte la herramienta de expulsión de la tarjeta SIM,

incluida con el smartphone, en el oriﬁcio de la bandeja de

la tarjeta Micro SIM.

Paso 2. Saque la bandeja de la tarjeta Micro SIM y colóquela en la

bandeja con la orientación correcta.

Paso 3. Inserte con cuidado la bandeja con la tarjeta Micro SIM

instalada en la ranura.

Solo las tarjetas Micro SIM funcionan con el smartphone.

Siempre apague su smartphone antes de insertar o quitar una

tarjeta Micro SIM. Si inserta o quita una tarjeta Micro SIM con

el smartphone encendido, podría dañar la tarjeta Micro SIM o

el smartphone permanentemente.

Instalación de la tarjeta Micro SIM
