Life Span SP-870 Manuale utente

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

SP-870 OWNER’S MANUAL

SP-870

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. EXPLODED DIAGRAM 5

3. COMPUTER OPERATION 6

4. ASSEMBLY INSTRUCTION 7

5. COMPUTER OPERATION 12

6. EXERCISE GUIDE 18

7. WARRANTY REGISTRATION 20

SP-870

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

It is important your spinning bike receives regular maintenance to prolong its useful life. Failing to

regularly maintain your spinning bike may void your warranty.

1. Keep children and pets away from the machine at all times. Do not leave unattended

children in the same room of the machine.

2. Handicapped or disabled persons should not use the machine without the presence of a

qualified health professional or physician.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,

STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Before beginning training, remove all within a radius of 2 meters from the machine. DO

NOT place any sharp objects around the Spinning Bike.

5. Position the machine on a clear, level surface away from water and moisture. Place mat

under the unit to help keep the machine stable and to protect the floor.

6. Use the machine only for its intended use as described in this manual. DO NOT use

any other accessories not recommended by the manufacturer.

7. Assemble the machine exactly as the descriptions in the instruction manual.

8. Check all bolts and other connections before using the machine for the first time and

ensure that the trainer is in the safe condition.

9. Hold a routine inspection of the equipment. Pay special attention to components which

are the most susceptible to wear off, i.e. connecting points and wheels. The defective

components should be replaced immediately. The safety level of this equipment can

SP-870

only be maintained by doing so. Please don't use the machine until it is repaired well.

10.NEVER operate the machine if it is not functioning properly.

11.This machine can be used for only one person’s training at a time.

12.Do not use abrasive cleaning articles to clean the machine. Remove drops of sweat

from the machine immediately after finishing training.

13.Always wear appropriate workout clothing when exercising. Running or aerobic shoes

are also required.

14.Before exercising, always do stretching first.

15.The power of the machine increases with increasing the speed, and the reverse. The

machine is equipped with adjustable knob, which can adjust the resistance.

SP-870

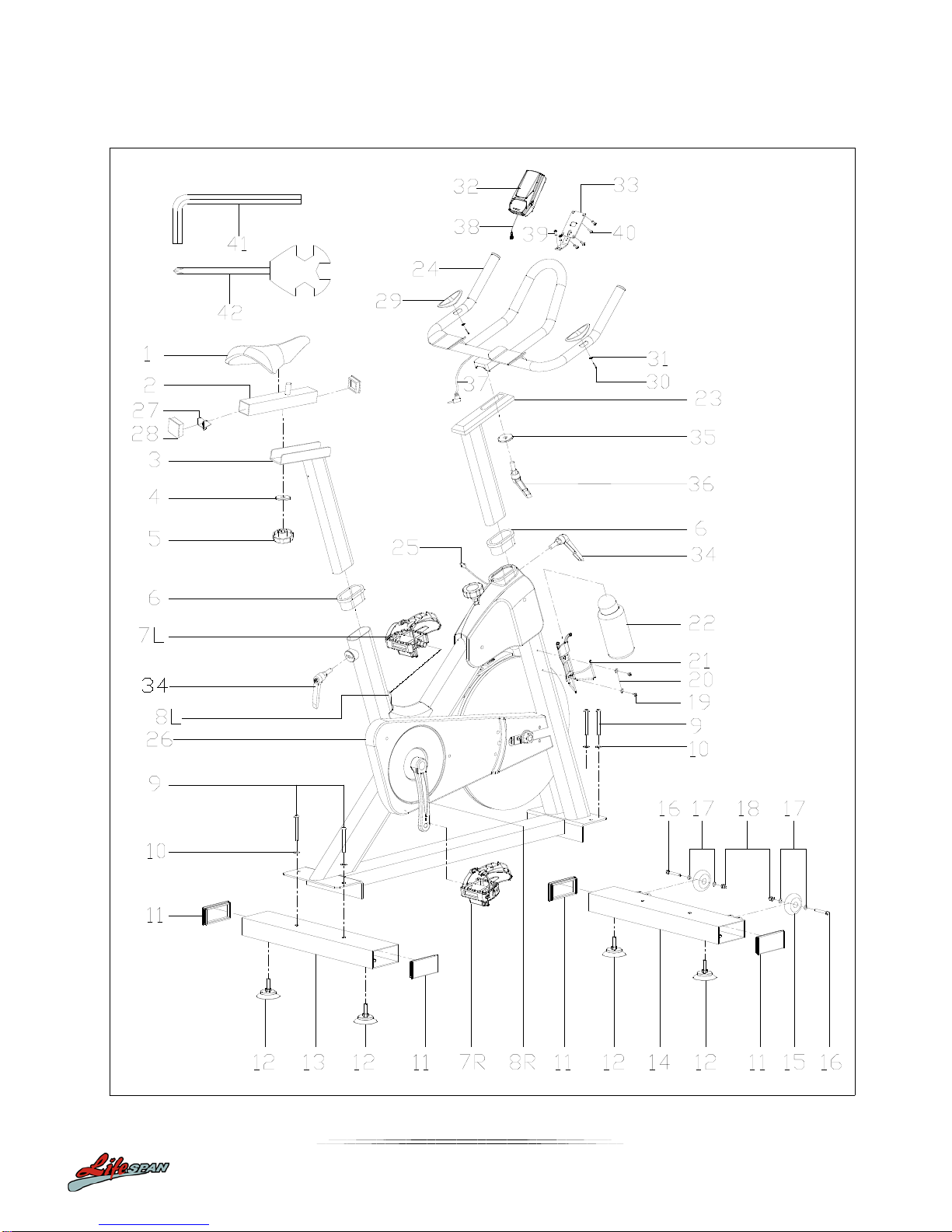

2. EXPLODED DIAGRAM

SP-870

3. PARTS LIST

No. Description Qty No. Description Qty

1 Saddle 1 24 Handlebar post 1

2 Saddle tube post 1 25 Sensor wire 1

3 Saddle join 1 26 Main frame 1

4 Washer d10*Φ20*2 1 27 U-post 1

Knob M10

1 28 Square end cap F38*38*1.5 2

Bushing PT80*40*1.5

2 29 Pulse pad 2

7L/R Pedal 2 30 Screw ST4.2*19 2

8L/R Crank 2 31 Washer d6*Φ12*1 2

9 Screw M8*65 4 32 Computer 1

10 Washer d8*Φ16*1.5 4 33 Computer support join 1

11 Square end cap J100*50*25 4 34 L knob M10*18 2

12 Foot pad join 4 35 Washer d10*Φ40*4 1

13 Rear stabilizer 1 36 L knob M10*25 1

14 Front stabilizer 1 37 Pulse wire 2

15 Roll wheel 2 38 Computer wire 1

16 Bolt M6*45 2 39 Screw M5*10 2

17 Washer d6*Φ12*1.5 4 40 Screw M5*10 4

18 Nylon nut M6 2 41 Wrench S6 1

19 Screw M5*16 2 42 Wrench S13-14-15 1

20 Washer d5*Φ10*1 2

21 Bottle holder 1

22 Bottle 1

23 Up-right post 1

SP-870

4. ASSEMBLY INSTRUCTIONS

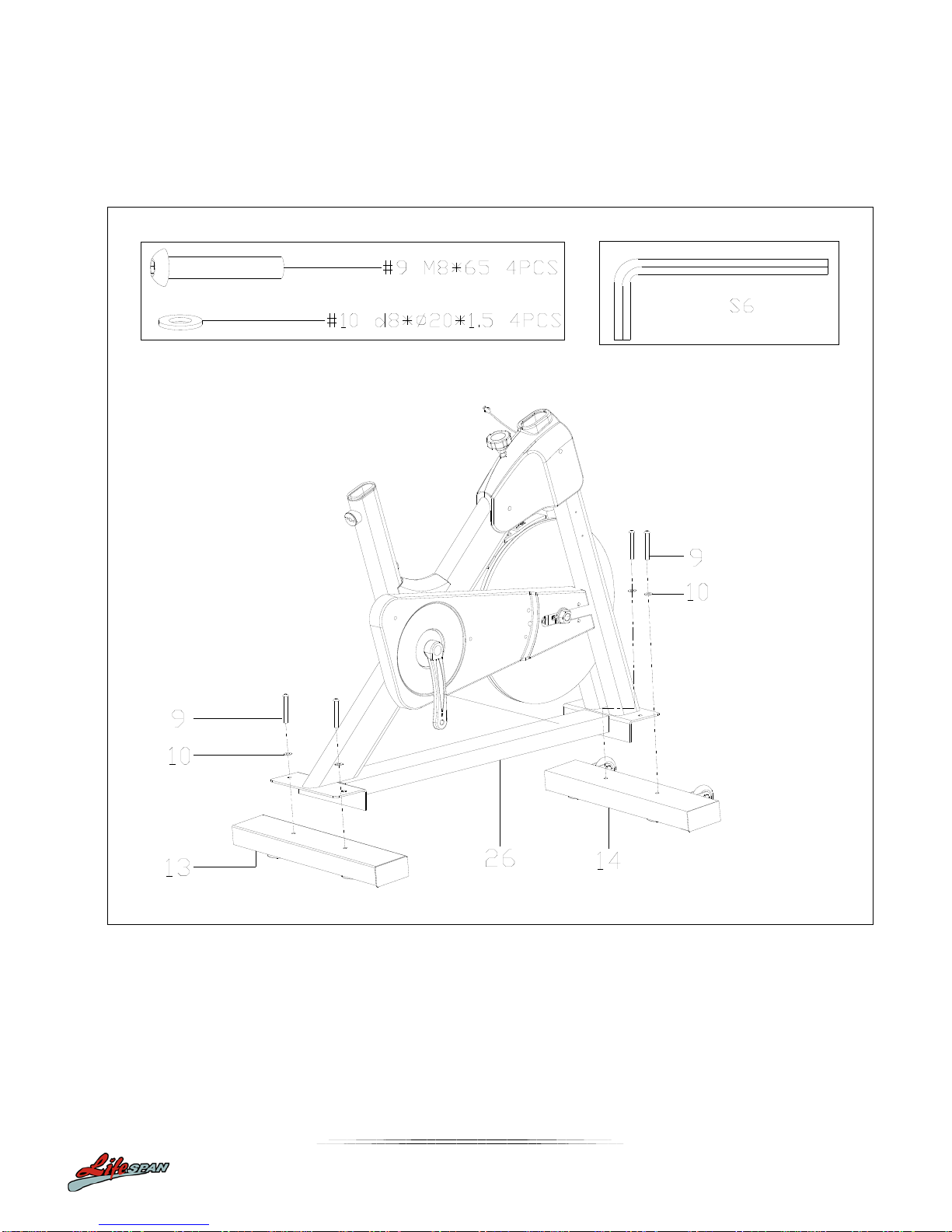

STEP 1

Secure the front stabilizer (14) and rear stabilizer (13) onto the main frame (26) with the screw (9) and

washer (10)

SP-870

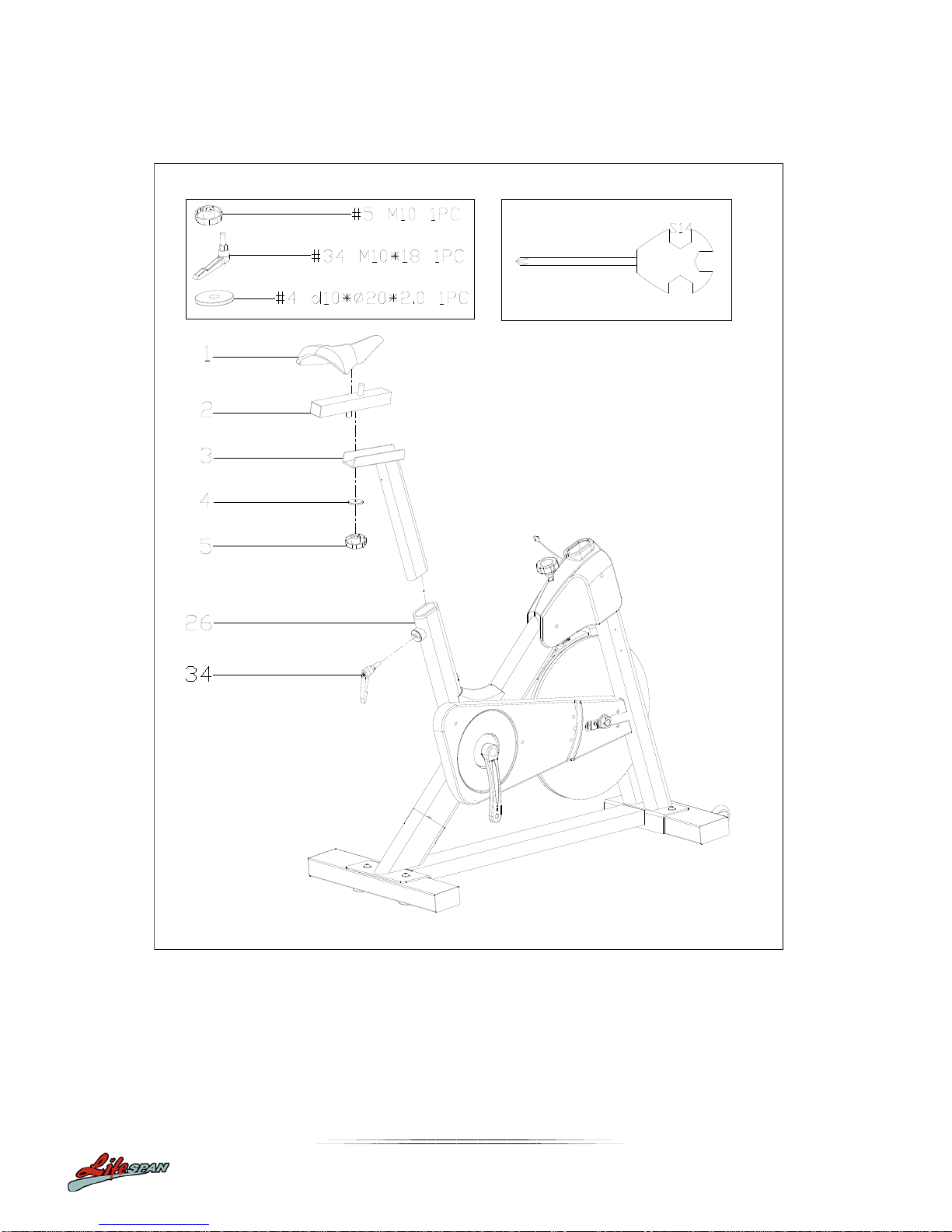

STEP 2:

1. Secure the saddle join (3) on the main frame (26) using the L knob (36)

2. Secure the saddle tube post (2) on the saddle join (3) using the nut (5) and washer (4)

3. Secure the saddle (1) on the saddle tube post (2)

SP-870

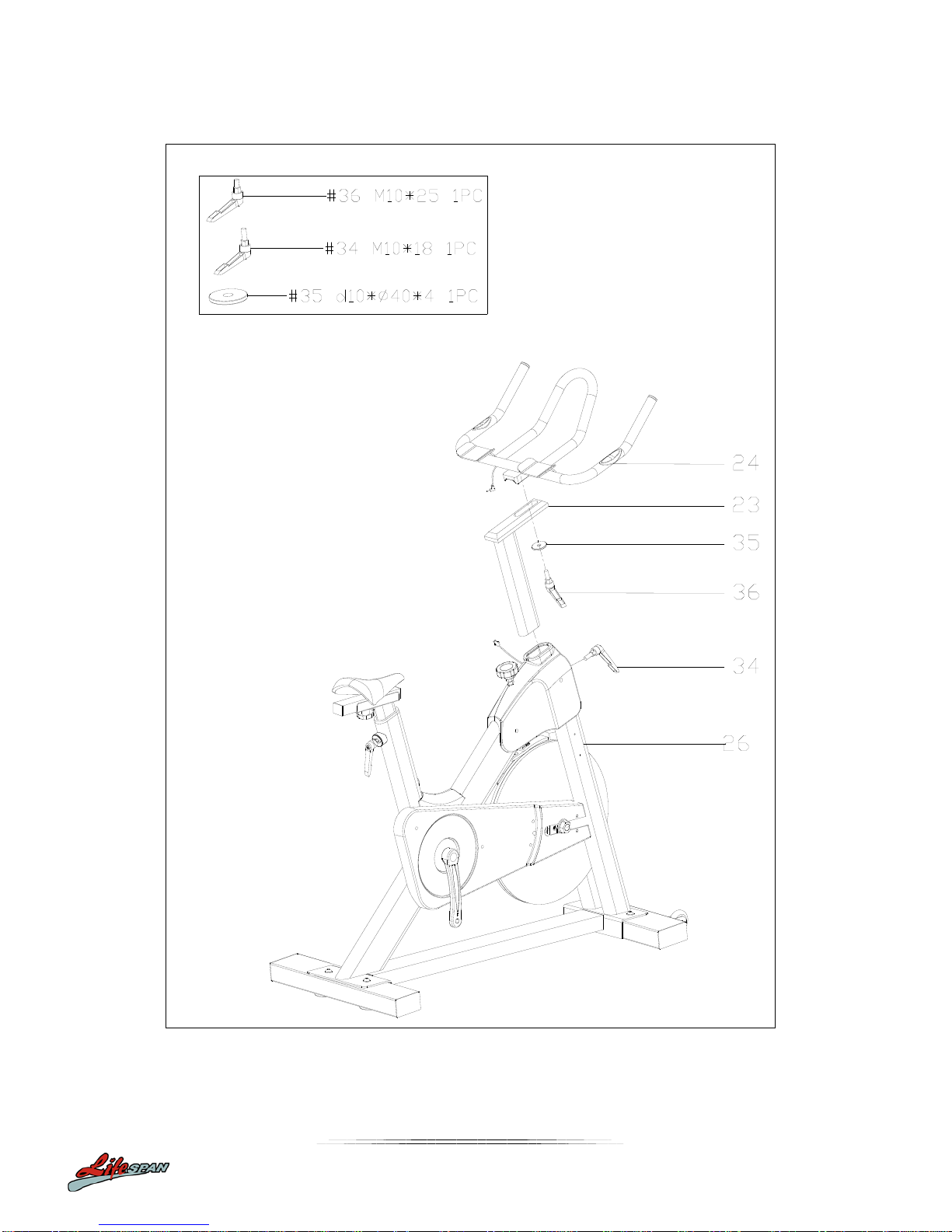

STEP 3:

1. Secure the up-right post (23) on the main frame (26) using the L knob (34)

2. Secure the handlebar post (24) on the up-right post (23) using the L knob (36) and washer (35)

SP-870

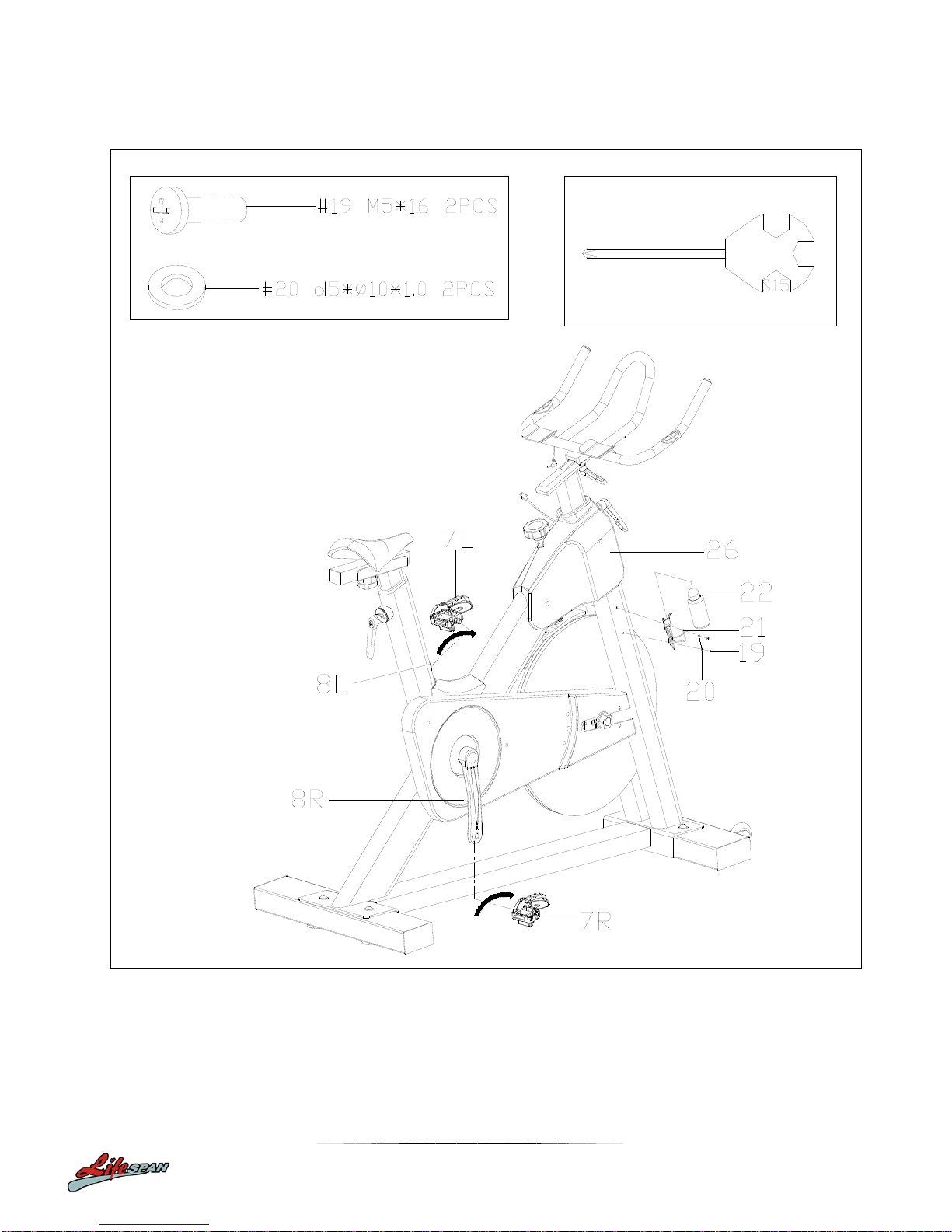

STEP 4:

1. Secure the pedal(7L/R) on each crank(8L/R) of the main frame

2. Secure the bottle holder (21) on the main frame (26) with the screw (19) and washer (20). Place

the bottle (22) into the bottle holder (21)
