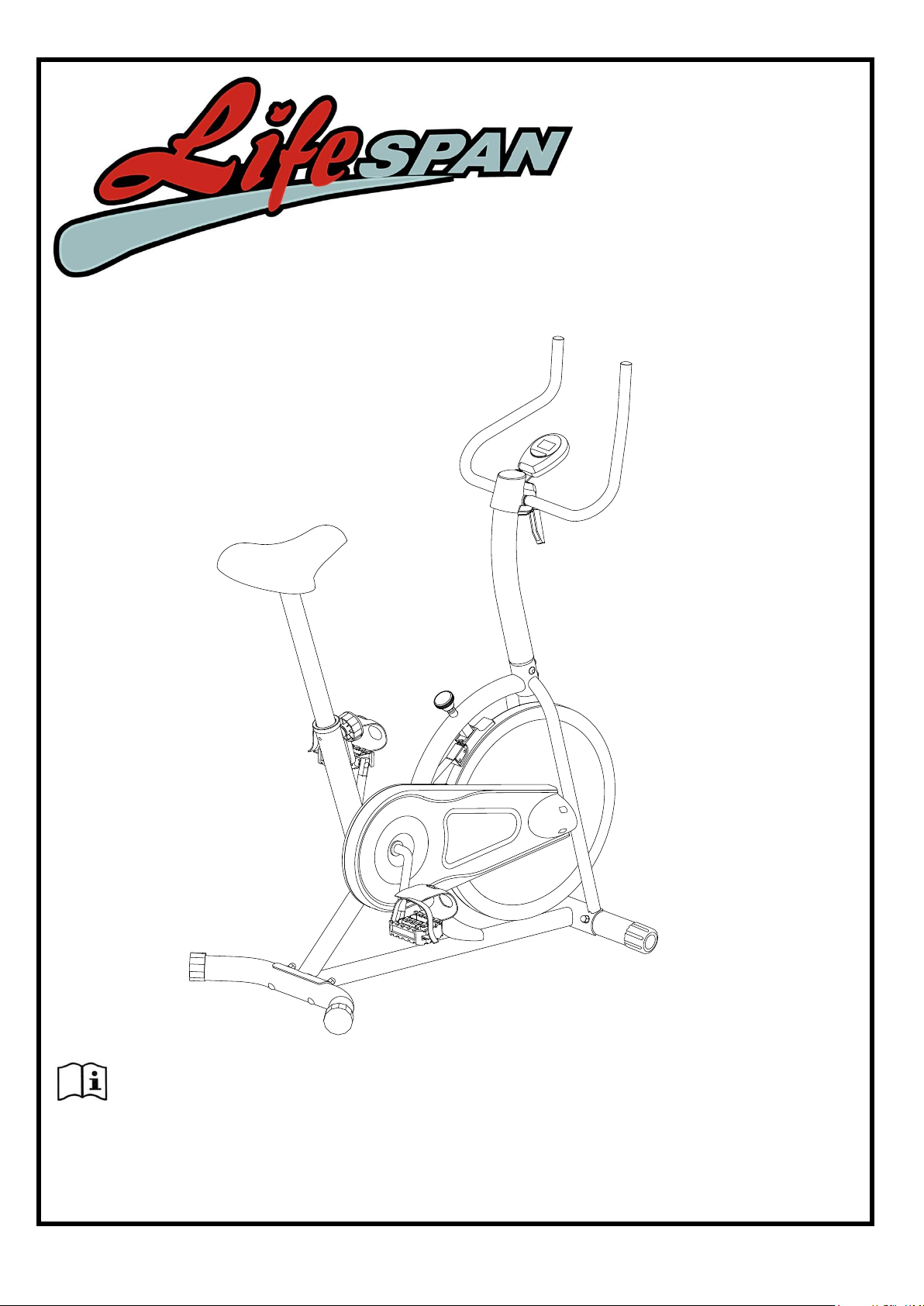

Life Span SP150 Manuale utente

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

SP150 OWNER’S MANUAL

SP150

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. EXPLODED DIAGRAM 5

3. PARTS LIST 6

4. ASSEMBLY INSTRUCTIONS 8

5. ADJUSTMENT 11

6. EXERCISE GUIDE 12

7. WARRANTY 16

SP150

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this spinning bike.

It is important your spinning bike receives regular maintenance to prolong its useful life. Failing to

regularly maintain your spinning bike may void your warranty.

1. Keep children and pets away from the Spinning Bike at all times. DO NOT leave

unattended children in the same room with the machine.

2. Handicapped or disabled persons should not use the Spinning Bike without the

presence of a qualified health professional or physician.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,

STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Before beginning training, remove all within a radius of 2 meters from the machine. DO

NOT place any sharp objects around the Spinning Bike.

5. Position the Spinning Bike on a clear, level surface away from water and moisture.

Place mat under the unit to help keep the machine stable and to protect the floor.

6. Use the Spinning Bike only for its intended use as described in this manual. DO NOT

use any other accessories not recommended by the manufacturer.

7. Assemble the machine exactly as the descriptions in the instruction manual.

8. Check all bolts and other connections before using the machine for the first time and

ensure that the trainer is in the safe condition.

9. Hold a routine inspection of the equipment. Pay special attention to components which

are the most susceptible to wear off, i.e. connecting points and wheels. The defective

components should be replaced immediately. The safety level of this equipment can

SP150

only be maintained by doing so. Please don't use the Spinning Bike until it is repaired

well.

10.NEVER operate the Spinning Bike if it is not functioning properly.

11.This machine can be used for only one person’s training at a time.

12.Do not use abrasive cleaning articles to clean the machine. Remove drops of sweat

from the machine immediately after finishing training.

13.Always wear appropriate workout clothing when exercising. Running or aerobic shoes

are also required.

14.Before exercising, always do stretching first.

15.The power of the machine increases with increasing the speed, and the reverse. The

machine is equipped with adjustable knob, which can adjust the resistance.

WARNING: BEFORE BEGINNING THIS OR ANY EXERCISE PROGRAM,

CONSULT YOUR PHYSICIAN F I R S T. THIS IS ESPECIALLY IMPORTANT

FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-

EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE

USING THE SPINNING BIKE. THANE ASSUMES NO RESPONSIBILITY FOR

PERSONAL INJURY OR PROPERTY DAMAGE SUSTA I N E D BY OR

THROUGH THE USE OF THIS PRODUCT

SP150

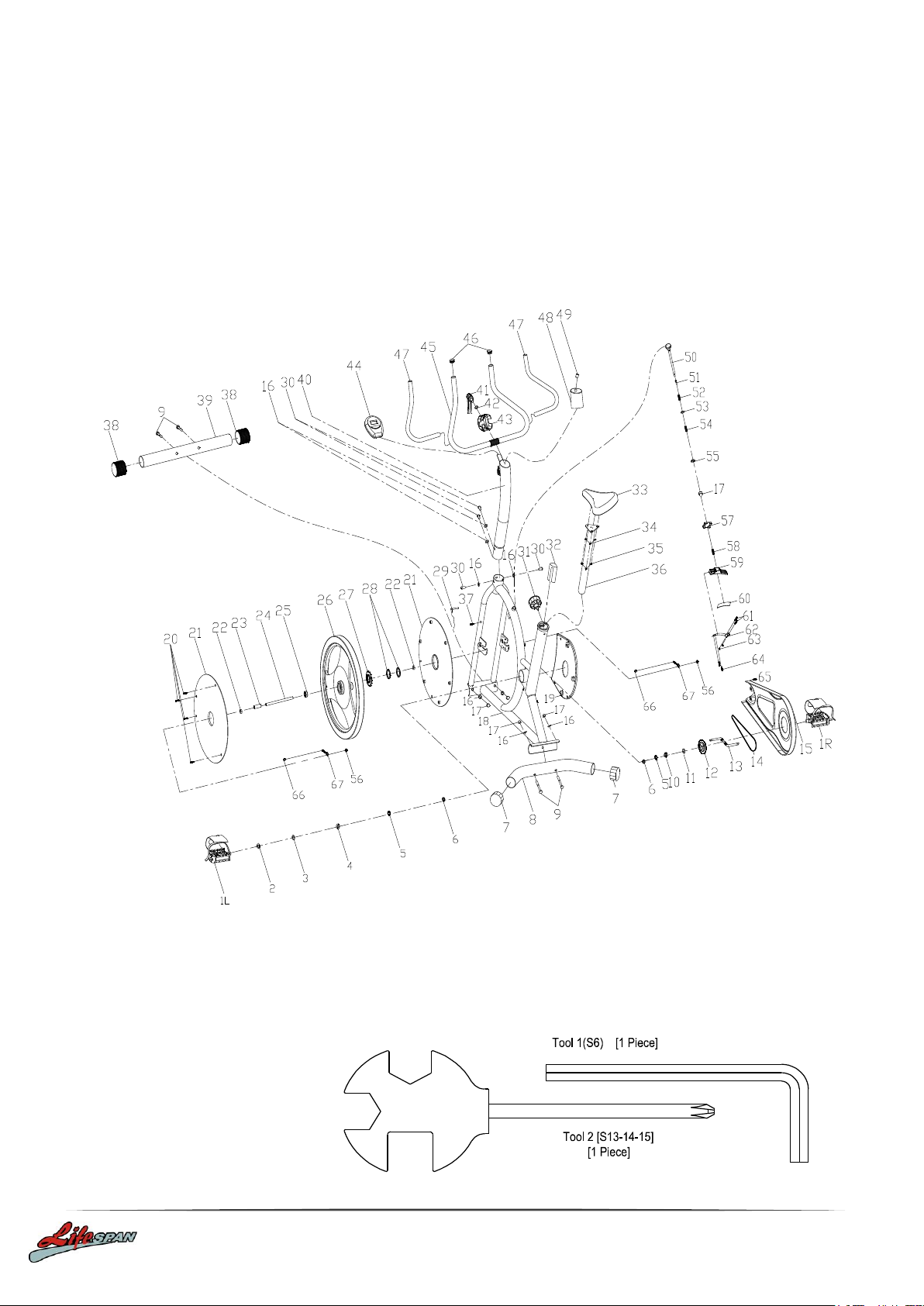

2. EXPLODED DIAGRAM

SP150

3. PARTS LIST

NO NAME QUANTITY SPEC

1PEDAL 1 JD-2B 1/2"

2NUT 1 7/8"

3 WASHER (L) 1 Φ35*22.8*2

4 FIXING WASHER (L) 1 7/8''LEFT

5 COLLAR BALL/COLLAR HOUSING 2 Φ44.5

6 COLLAR HOUSING 2 Φ55.5*16

7 ADJUSTABLE END CAP 2 62*42

8 REAR STABILIZER 1 Φ50*1.5

9 CARRIAGE BOLT 4

GB/T 12-1988 M8X62

10 FIXING WASHER (R) 1 15/16''

11 WASHER (R) 1 Φ40*2.5

12 CHAIN WHEEL 1 P=12.7,Z=52（25x25 ）

13 CRANK 1Φ16*140

14 CHAIN 1 d=7.75,P=12.7,L=96

15 OUTER CHAIN COVER 1 677*280*29

16 ARC WASHER 8 φ8

17 DOMED NUT 5 GB/T 802-1988 M8

18 MAIN FRAME 1 WEDLING

19 INNER CHAIN COVER 1 277*260*18.5

20 SCREW1 11

GB/845-85 ST4.2X9.5

21 FLYWHEEL COVER 2 φ387*6.5

22 FIXING NUT 2 3 GB/T 6173-2000 M10*1.0

23 FIXING TUBE 1 φ13.6*φ10.3*35

24 FLYWHEEL SHAFT 1 φ10*147

25 BEARING 2 6000ZZ

26 FLYWHEEL 1 φ450*15 (13KG)

27 CHAIN WEEL 1 A7K-16 1/2"*1/8" 16T（1.37"）

28 LOCK NUT 2 M33*1*4

29 SENSOR 1 SR-202

30 BOLT 4

GB/T 70.2-2000 M8*15 （

6# ）

31 ADJUSTMENT KNOB 1 φ57*62 (M16*1.5)

32 PLASTIC SLEEVE 1 38.1D *2.0

33 SEAT 1 PVC98-2

34 FLAT WASHER 3 GB/T 95-2002 8

SP150

NO NAME QUANTITY SPEC

35 LOCK NUT 3 GB/T 889.1-2000 M8

36 VERTICAL SEAT POST 1 WEDLING

37 SCREW2 3 GB/T 15856.1-2002 ST4.2X16

38 FRONT END CAP 2 Φ65*46

39 FRONT STABILIZER 1

40 HANDLE BAR POST 1 WEDLING

41 L SHAPE 1 90X68（M8X25）

42 SPRING WASHER 1 GB/T 859-1987 8

43 PROTECT COVER 1 35，19g

44 COMPUTER 1 HS-6065

45 HANDLE BAR 1 φ22*1.5

46 END CAP 3 2 φ22*12

47 FOAM GRIP 2 φ30*φ20*500

48 HANDLEBAR COVER 1 115*89*75

49 LITTLE END CAP 1 φ14*14

50 BREAK 1 φ40*118

51 LITTLE PLASTIC 2 1 φ16*25

52 SPRING 1 1 φ1.0X35

53 FIXING NUT 3 1 15X15X4

54 SPRING 2 1 δ1.8X25

55 FLAT WASHER 2 4

GB/T 95-2002 6

56 FIXING NUT 2 2

GB/T 6177.2-2000 M10*1.0

57 RUBBER/SPRING COVER 1 32*23*2

58 SPRING 1 φ2.2

59 PLASTIC FRAME 1 200*47*30

60 WOOLLY BLOCK 1 113*25*5

61 BOLT 2 2 GB/T 5780-2000 M5*30

62 ADJUSTING METAL 1 δ1.0

63 NYLON NUT2 2 GB/T 889.1-2000 M5

64 BOLT 3 2 GB/T 5780-2000 M5*10

65 SCREW3 3 GB/T 15856.1-2002 ST4.2X19

66 BOLT 4 5

GB/T 41-2000 H=5

67 FIXING BOLT 2 M6*55

SP150

4. ASSEMBLY INSTRUCTIONS

STEP 1: PREPARATION

A. Before assembling make sure that you will have enough space around the item.

B. Use the present tooling for assembling.

C. Before assembling please check whether all needed parts are available (at the above of this instruction

sheet you will find an explosion drawing with all single parts (marked with numbers) which this item

consists of.

STEP 2:

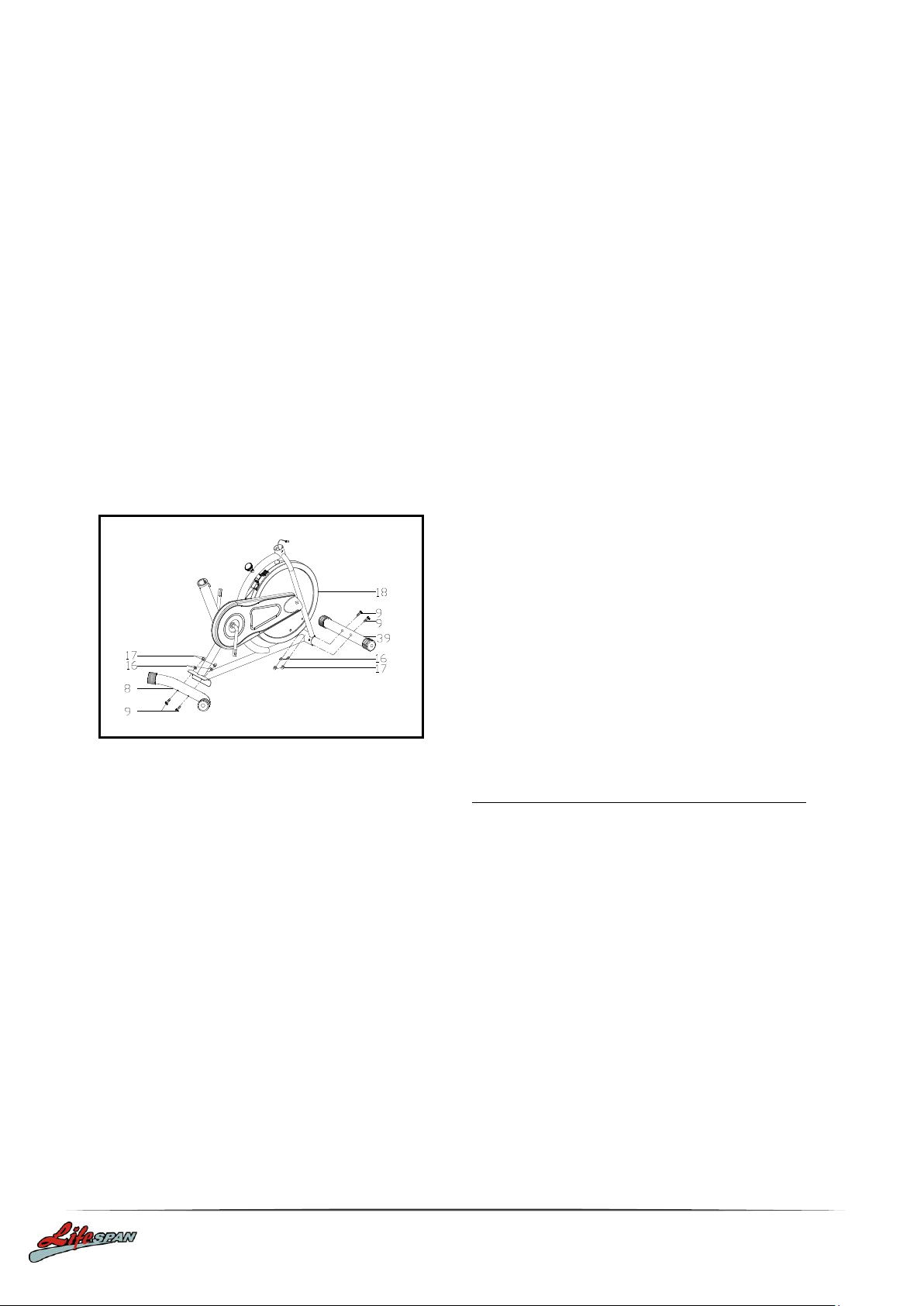

1. Attach the Front Stabilizer (pt.39) to the

Main Frame (pt.18) using two sets of

Ø8 Flat Washers (pt.16), M8 Domed

Nut (pt.17) and M8*62 Carriage bolt (9).

2. Attach the Rear Stabilizer (pt.8) to the

Main Frame (pt.18) using two sets of

Ø8 Flat Washers (pt.16), M8 Domed

Nut (pt.17) and M8*62 Carriage bolt (9).

SP150

STEP 3:

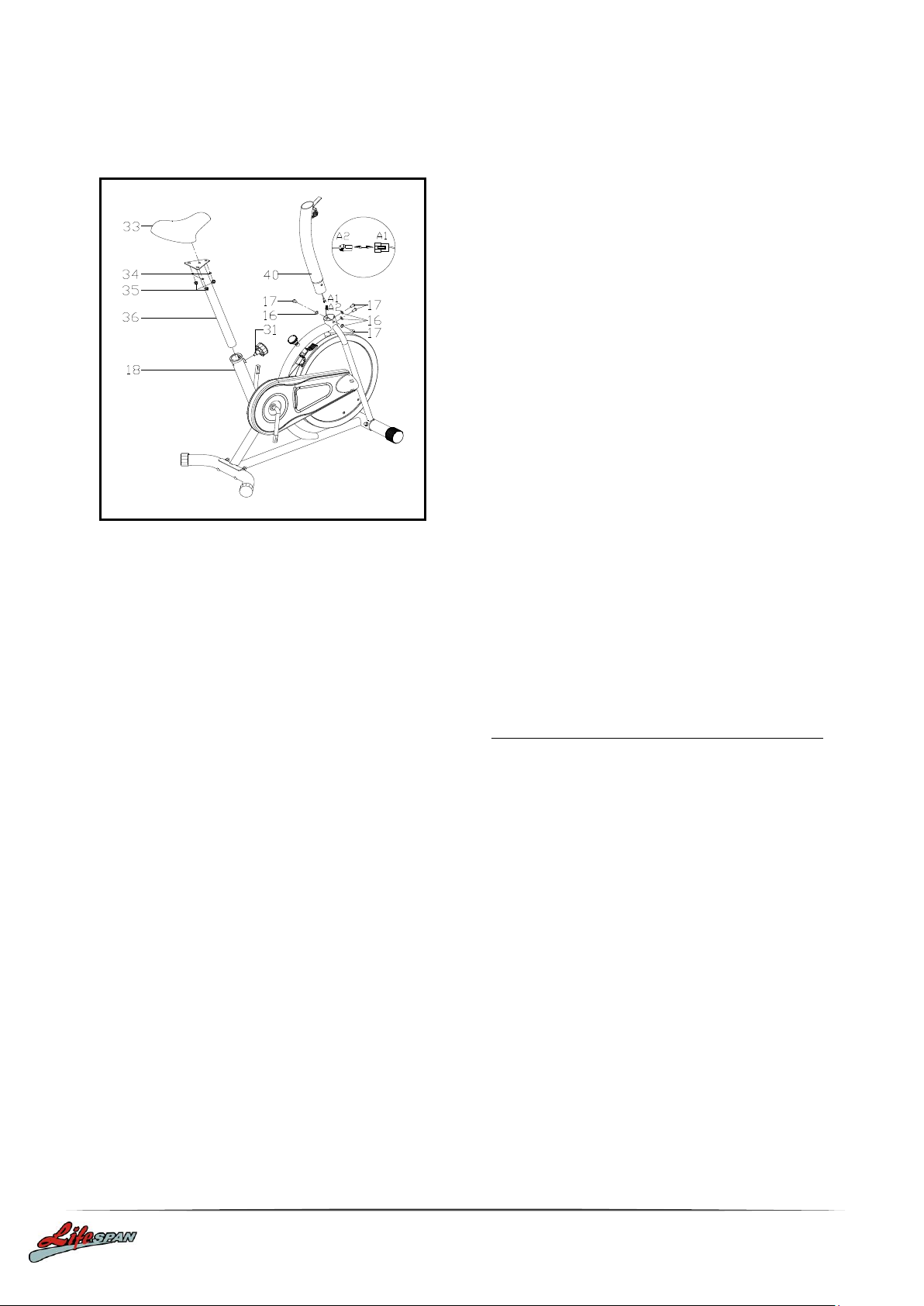

1. Fix the Seat (33) to the Vertical Seat

Post (pt.36) as shown, with the flat

washer (34) and the nylon nut (35).

2. Insert the vertical Seat Post (36) into

the main frame (18) and line up the

holes.

3. Secure the saddle in position with the

Adjustment Knob (31). The correct

height for the seat can be adjusted

after the bike is fully assembled.

connect the sensor A1&A2 as shown in

FIG.2,

4. Install the Handlebar Post (40) onto the

main frame (18) with arc washer (16)

and M8 Domed Nut (pt.17).

SP150

STEP 4:

STEP 5:

1. Attach the handle bar (45) to the

Handlebar Post (40) as shown in FIG.3,

Insert and tighten the L shape (41), the

protect cover (43) and the spring

washer (42).

2. Connect the sensor B1&B2 as shown

in FIG.3, then Install the computer (23)

into the Handlebar Post (40) on the

main frame (18)

1. The Pedals (pt.1 L & pt.1 R) are marked

"L" and "R" - Left and Right. Connect

them to their appropriate crank arms.

The right crank arm is on the right- hand

side of the cycle as you sit on it.

Note that the Right pedal should be threaded

on clockwise and the Left pedal anticlockwise.
