Lightolier 4X4 MATRIX SERIES Manuale utente

27” long: Cat. No. 1951

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR: 4X4, 4X9, AND 9X9

MATRIX

ERIES RECESSED DOWNLIGHTS

FOR CHICAGO PLENUM

INSTRUCTION SHEET NO.

IS:4X4LC

A0602 Page 1 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

90°

A. FRAME-IN AND WIRE-IN

Install FRAME-IN KIT (FIK) using ADJUSTABLE MOUNTING BRACKETS (Fig.’s 1-3). Fixture must be secured to

structural ceiling members. Connect to supply leads; white fixture lead to neutral (white) supply lead, black fixture

lead to hot supply lead, bare copper and/or green insulated wire(s) must be connected to supply ground. Use

wirenuts (local hardware items). Place all electrical connections in the J-BOX and close cover.

CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY

PART OF THE LUMINAIRE (FIXTURE)

UTION: USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS’ REFLECTOR

TRIMS MAY VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

NCHOR CLIP

MOUNTING BAR

T-BAR

WIRE

FIG. 4

FIG. 5

For suspended T-bar ceilings: T-bar ANCHOR CLIPS

accessory No. 1956 (order separately) may be used with

18” or 27” MOUNTING BARS (Fig. 4), or simply wire

MOUNTING BARS, EMT TUBING, or CHANNELS to

ceiling members (Fig. 5).

FIK must be securely attached to and unable to lift from

ceiling members after installation is complete.

For wood joist construction: Mounting bars may be

used to secure FIK. to joists (Fig. 6). MOUNTING BARS

may be bent where required to allow precise placement

of FIK between joists. Use nails to secure to joists.

DJUSTMENT

SCREW

DJUSTMENT

SCREW

DJUSTMENT

SCREW

FIK.

HOUSING

DJUSTABLE

MOUNTING

BRACKET

MOUNTING

BAR

3/4” OR 1-1/2”

CHANNEL

(BY OTHERS) 1/2” EMT

(11/16” OD)

(BY OTHERS)

DJUSTABLE

MOUNTING

BRACKET

DJUSTABLE

MOUNTING

BRACKET

FIG. 1

FIG. 2

FIG. 3

FIK.

HOUSING

FIK.

HOUSING

BALLAST

MOUNTING BAR

J-BOX

NAILS JOISTS

MOUNTING BAR ordering information:

18” long: Cat. No. 1950

Note: If FIK is to be used with a WALL-WASH LOUVER TRIM

(Fig. 7), FIK must be installed with either J-BOX side or

BALLAST side parallel to wall to be washed.

Direction of wall to be washed

FIG. 6

FIG. 7

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:4X4 LC

A0602 Page 2 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

90°

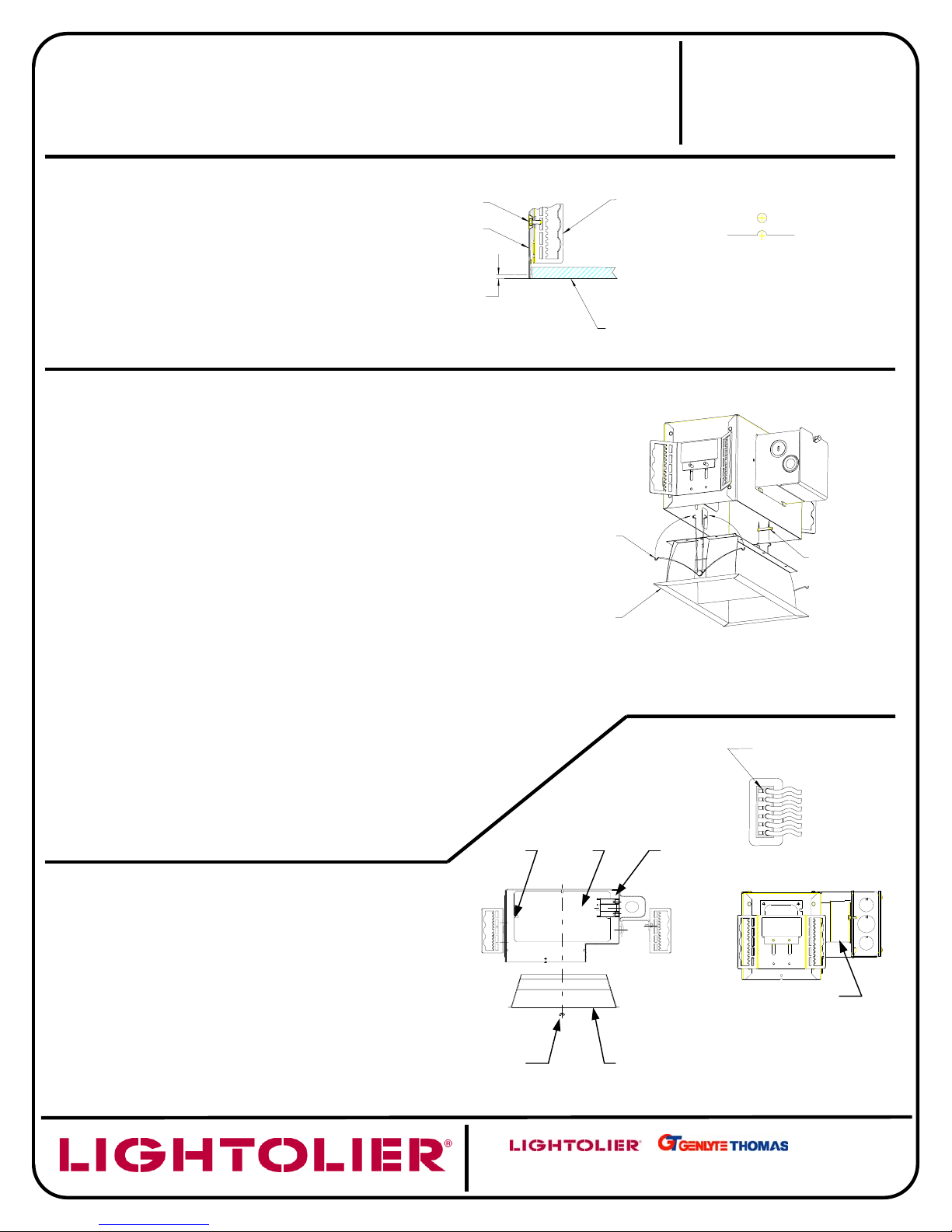

B. ADJUST FI

Set FIK so that bottom edge is flush to, or

recessed 1/8” above finished ceiling (Fig. 8).

Final vertical adjustment may be made by means of

DJUSTMENT SCREWS on inside of FIK.

C. CLOSE-IN

Close-in and finish ceiling as required.

D. INSTALLATION OF REFLECTOR TRIM FOR STANDARD AND CHICAGO

PLENUM UNITS

1. Squeeze both TORSION SPRINGS and insert ends into

EMBOSSED SLOTS.

2. Push REFLECTOR TRIM up into FIK until flange is seated firmly

against ceiling surface.

**Care and Maintenance of “Alzak” REFLECTOR TRIM finish:**

If handling of REFLECTOR TRIM with anodized or Alzak finish is required, the

use of clean white or plastic film gloves is recommended to avoid fingerprints.

nodized or Alzak surfaces can be cleaned by the following methods:

1. Wipe off with a soft, clean, dry, lint-free cloth.

2. Wipe off with a soft clean cloth dampened in mild detergent solution.

Rinse, then wipe dry with lint-free cloth or paper towel.

3. Wipe off with a clean cloth dampened with a solution of wetting agent and

water (such as 2 oz. Per gallon “Pluronic L62-LF” by Wyandotte Products).

Wipe dry.

4. Use a liquid wax such as Glass Wax. Avoid gritty cleaning agents.

E. RE-LAMPING

1. Turn off power

2. Pull REFLECTOR TRIM down until ends of TORSION

SPRINGS reach EMBOSSED SLOTS.

3. Squeeze TORSION SPRINGS to disengage from EMBOSSED

SLOTS, and remove REFLECTOR TRIM.

4. Replace lamp (Do not exceed maximum wattage marking).

5. Replace REFLECTOR TRIM.

F. BALLAST REPLACEMENT

1. Make sure AC power is OFF at fuse-box.

2. Remove reflector trim & lamp(s) (See E.).

3. Undo wingnut(s) and remove upper reflector.

4. Remove ballast access plate from housing.

5. Remove screws that secure ballast to junction box cover, pull

Ballast through opening into fixture.

6. Disconnect wire leads from ballast push-in terminals.

(Insert pin or paper clip in RELEASE SLOT, Fig. 11)

7. Remove ballast from mounting plate, and install new ballast.

8. Insert wire leads into ballast. Follow wiring diagram on

BALLAST.

9. Reattach ballast access plate, upper reflector, lamp(s), and

reflector trim.

BALLAST

FIG. 12

FIG. 11

RELEASE

SLOT

UPPER

REFLECTOR

NUTS HOUSING

WINGNUT

TORSION

SPRING

EMBOSSED

SLOT

REFLECTOR

TRIM

FIG. 10

BALLAST

PLATE

DJUSTABLE

MOUNTING

BRACKET

FINISHED

CEILING

FLUSH TO CEILING OR

UP TO 1/8” RECESSED

DJUSTMENT

SCREWS

FIG. 8

FIK

Base of FIK is provided with a

hole pattern (Fig. 9) to assist with the

alignment of multiple FIK’s. This hole

pattern will facilitate the use of laser

beams, plumb lines, etc.

FIG. 9
