Lightolier ProSpec 37224 Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

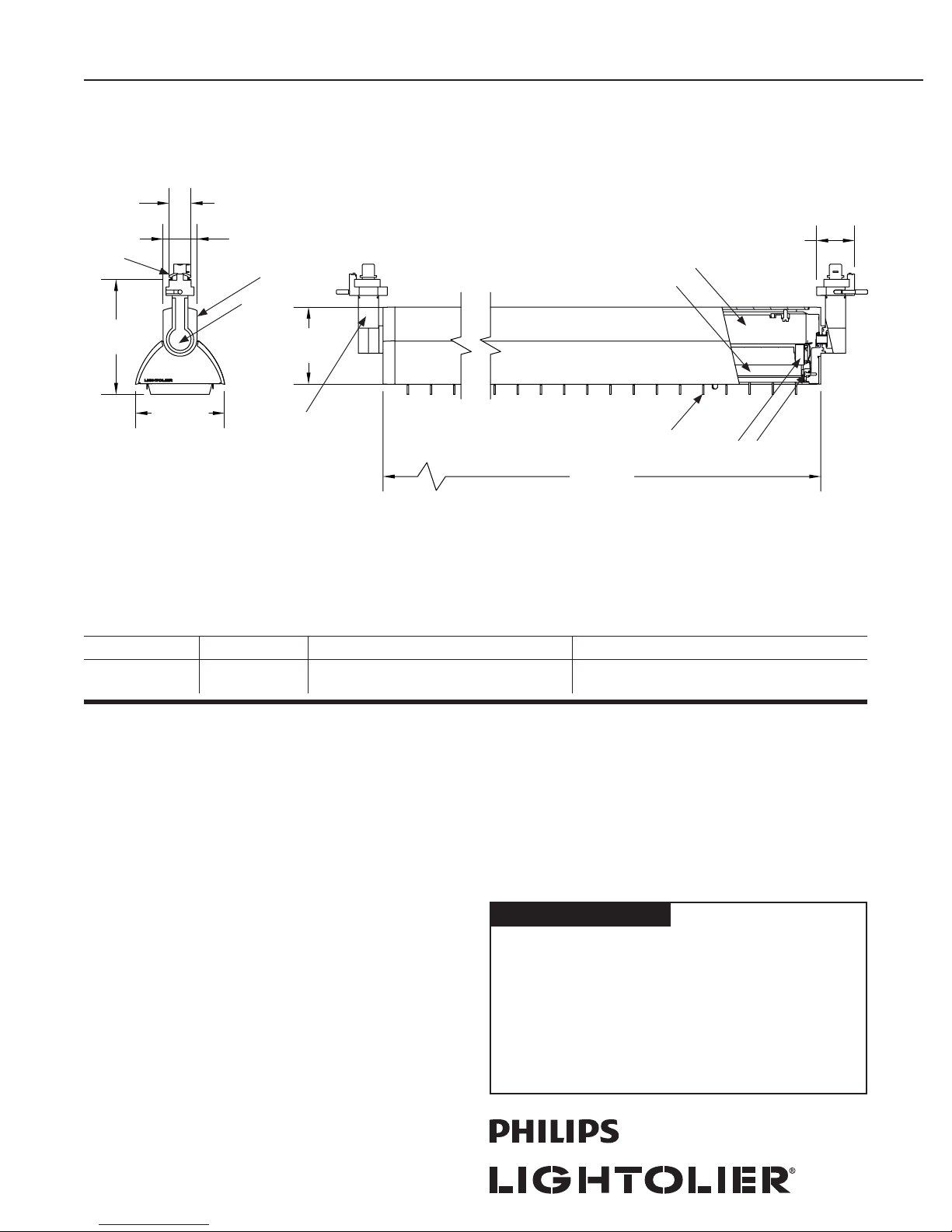

ProSpec®120V/277V Track Lighting 37224

Page 1 of 2 PowerWash™ T5 2 Foot Track Mounted 24 Watt High Output Fluorescent

Features

1. Ballast & Reflector Housing: Aluminum with die-cast endcaps.

2. Ballast: Electronic.

3. Flood Reflector: Aluminum, with highly reflective and

semispecular finish for a smooth wash of light.

4. Louver: Aluminum, for glare control, with captive locking springs for easy

installation and removal. White for 37224WH, Silver for 37224EBK

5. Vertical Pivot: Die cast rotation housing with positive rotation stop

provides 0° (NADIR) –130° vertical rotation in both directions.

6. Sockets: 600v rated mini bi pin sockets with 90° rotor lock to engage

contacts and retain with a positive detent.

7. Socket Bracket: Adjustable steel, mounting bracket slides out for easy

lamping.

8. Attachment Fitting: Molded polycarbonate; pin rotates fitting into track to

engage luminaire.

9. Track Adapter Arm: Die-cast aluminum.

Electrical

Class P T5HO Universal Electronic Ballast

Input Voltage: 120V/277V Sound Rated: A

Power Factor: >97% Minimum Start Temp: 0°F

Input Power: 55W/54W (2 lamps) Do Not Use on Dimming Circuit

Max Input Current: 0.47A @ 120V/0.20A @ 277V

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Ordering Information

Catalog No. Finishes Track Mountings Lamp

37224WH

37224EBK

Matte White

Matte Black

ProSpec® 120V/277V track systems only.

Not compatible with MonoPoint.

2 x 24W T5 High Output (Fluorescent) - Not Included

23 3/4 in

[603 mm]

3 9/32 in

[83 mm]

3 3/4 in

[96 mm]

4 7/8 in

[124 mm]

1 7/16 in

[37 mm]

15/16 in

[24 mm]

1 5/8 in

[41 mm]

Advent®is a registered trademark of Lightolier.

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

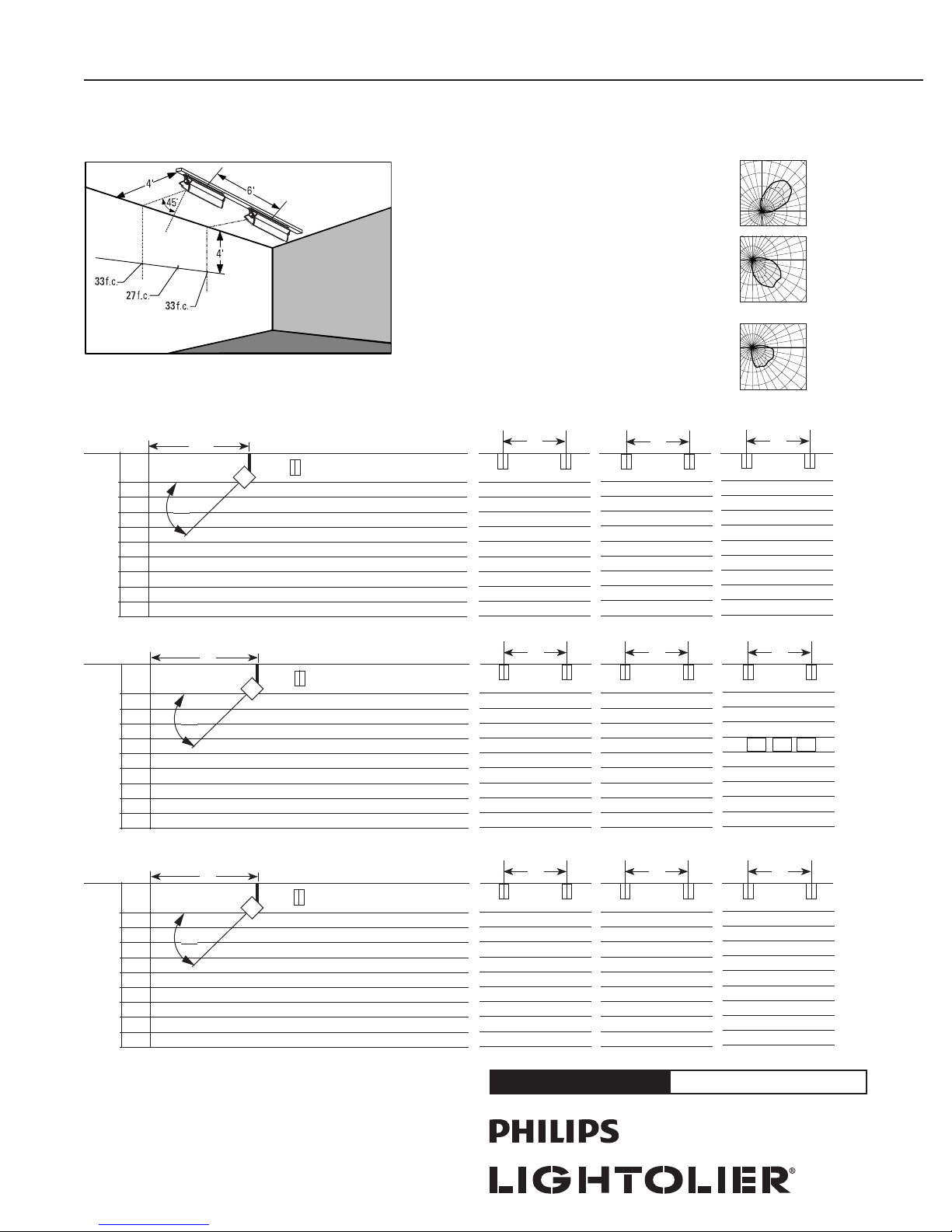

ProSpec®120V/277V Track Lighting 37224

Page 2 of 2 PowerWash™ T5 2 Foot Track Mounted 24 Watt High Output Fluorescent

EXAMPLE: With track located 4’ from wall and multiple units spaced 6’ on center and aimed

45˚ from horizontal, the illumination on wall 4’ from ceiling will be 33 f.c. beneath units and 27

f.c. between units.

0’ 1’ 2’ 3’ 4’ 5’

Lighting Data 2 - 24W T5 High Output

1’ 100 78 40 18 9 5

2’ 78 62 35 16 7 3

3’ 48 41 26 15 7 3

4’ 31 27 19 12 7 4

5’ 18 16 12 8 5 3

6’ 11 11 8 6 4 3

7’ 7 7 6 4 3 2

8’ 5 5 4 3 2 2

9’ 3 3 3 2 2 2

120 88 120

92 74 92

63 56 63

48 45 48

29 20 29

23 22 23

15 15 15

11 11 11

9 9 9

107 38 107

80 33 80

51 29 51

37 20 37

21 17 21

17 15 17

11 10 11

8 7 8

6 6 6

Footcandles on Wall

Track 3 Feet From Wall Single Unit Multiple Units

4’ 6’

3’

Distance From Ceiling

45˚

1’ 54 44 27 13 5 1

2’ 53 45 30 16 8 4

3’ 39 34 24 15 8 4

4’ 29 25 19 13 8 5

5’ 20 18 15 11 7 5

6’ 13 12 10 8 6 4

7’ 9 9 7 6 4 3

8’ 7 6 5 5 4 3

9’ 5 4 4 3 3 2

62 53 62

69 62 69

56 52 56

46 44 46

38 37 38

27 26 27

20 20 20

17 17 17

13 13 13

56 37 56

60 45 60

47 39 47

38 34 38

32 29 32

22 21 22

17 16 17

14 14 14

11 10 11

54 25 54

56 32 56

43 29 43

33 27 33

28 24 28

19 17 19

14 13 14

12 12 12

9 9 9

Track 4 Feet From Wall Single Unit Multiple Units

4’ 5’ 6’

4’

Distance From Ceiling

45˚

Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.

Footcandles on wall:

One Lamp, with louver,

aimed 45˚ down.

Two Lamps, without louver,

aimed 45˚ up.

Two Lamps, with louver,

aimed 45˚ down.

Beam Center

La mp Information:

2 X 24W T5 High Output

Mini Bi-Pin Fluorescent (9276)

1 x 24W T5 High Output

Mini Bi Pin Fluorescent (9277)

111 58 111

84 50 84

54 41 54

41 35 41

24 21 24

19 18 19

13 12 13

9 9 9

7 7 7

5’

0’ 1’ 2’ 3’ 4’ 5’

1’ 37 32 23 15 9 5

2’ 37 33 24 16 10 6

3’ 33 30 23 16 10 6

4’ 24 22 17 13 9 5

5’ 18 17 14 10 8 5

6’ 14 13 11 9 7 5

7’ 10 10 8 7 5 4

8’ 7 7 6 5 4 3

9’ 6 5 5 4 3 3

57 54 57

60 57 60

58 56 58

44 43 44

36 35 36

30 30 30

25 25 25

19 18 19

15 15 16

49 42 49

51 45 51

49 45 49

36 34 36

30 29 30

25 24 25

21 20 21

15 15 15

13 13 13

44 32 44

45 35 45

44 36 44

32 28 32

25 23 25

22 20 22

18 17 18

13 12 13

11 11 11

Track 5 Feet From Wall Single Unit Multiple Units

4’ 5’ 6’

5’

Distance From Ceiling

45˚

Beam Center

one lamp aimed

45degrees down

0˚ 30˚

90˚

60˚

180˚ 150˚

120˚

90˚

0˚ 30˚

90˚

60˚
