Lightolier SLB2SFSVA26U Manuale utente

SLB Surface Box 2' x 2' Fluorescent SLB2SFSVA26U

Page 1 of 2 Flat Steel or Regressed Aluminum Frame, 2-6"U Lamp T8 or T12, 4-2' Linear T8 or T12 Lamp

Features

• Shallow 4" deep body.

• Positive cam-action latches frame on either side.

• Efﬁciency 63.6% (2 T8U6).

• Center mounted ballast compartment.

• Snap-on wiring channel cover removed without tools.

• Matte black light seal on both sides to prevent light leaks.

• Spot welded one-piece construction.

Mounting Methods Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

(102mm)

24" (610mm)

3-1/2"

(89mm) 3"

(76mm)

24"

(610mm)

(178mm)

(51mm)

Dia. K.O.

7/8" (22mm) Dia. K.O. 9 Places

FS: Flat Steel lens frame (standard)

RA: Regressed aluminum lens frame

Stem mounting (four per ﬁxture is required) One-piece construction

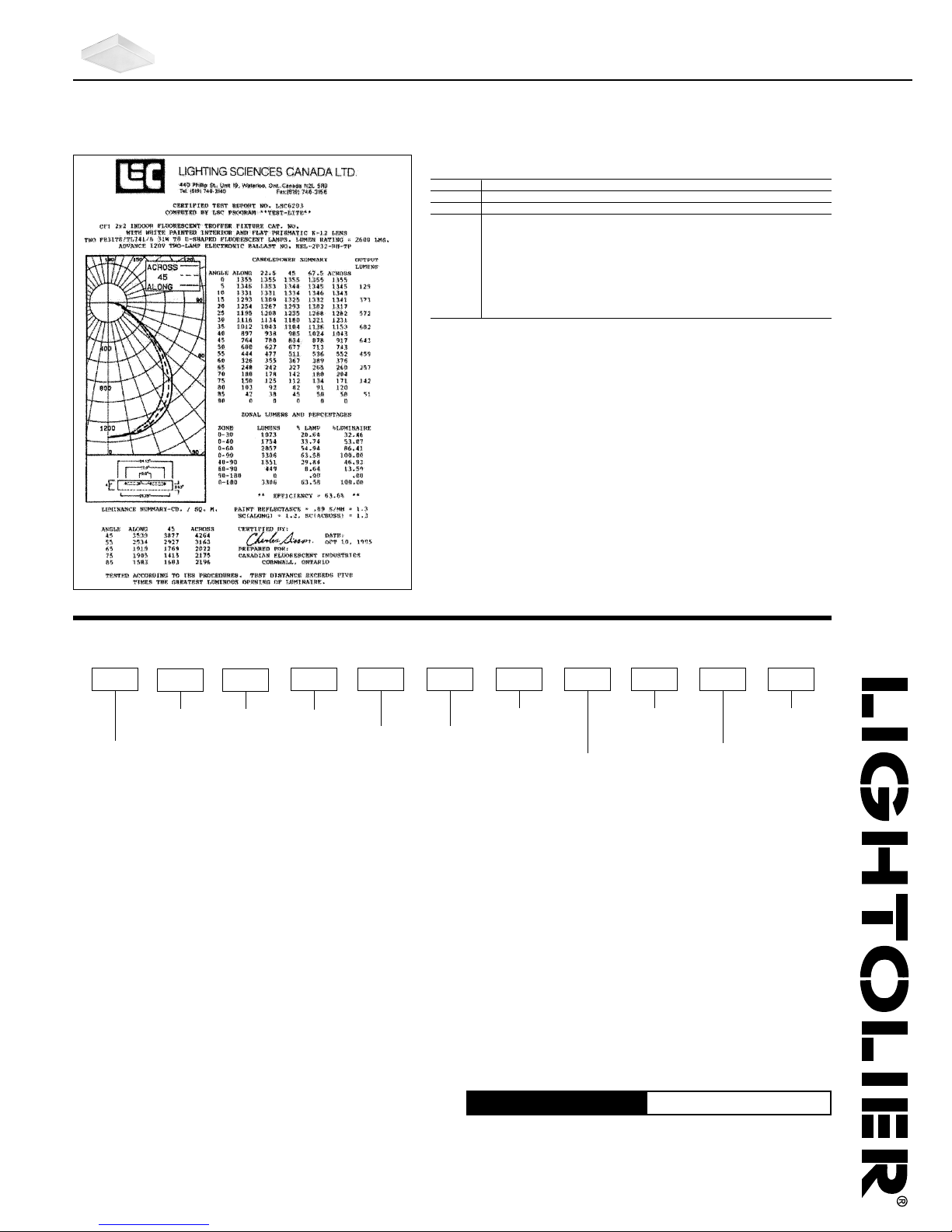

SLB Surface Box 2' x 2' Fluorescent SLB2SFSVA26U

Page 2 of 2 Flat Steel or Regressed Aluminum Frame, 2-6"U Lamp T8 or T12, 4-2' Linear T8 or T12 Lamp

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

Photometry Model No. SLB2SFSVA26U120SO

coefﬁcients of utilization — zonal cavity method

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1706845 646260 616059

2656157 575452 555351

3605450 524845 504744

4554944 464239 454239

5514438 423734 403734

6473934 383330 373330

7443630 343027 332926

8403227 312623 302623

9372924 282320 272320

10 34 26 21 25 21 18 25 21 18

room cavity ratio

Ordering Information

Explanation of Catalog Number. Example: SLB2SFSVA26U120SO

Options & Accessories

Fusing: Internal fast-blow fusing. Sufﬁx: GLR.

Internal slow-blow fusing. Sufﬁx: GMF.

Electrical/Wiring Options: Consult factory.

Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One per ﬁxture.

Sufﬁx: R. One per ballast. Sufﬁx: B.

Stem and Canopy Sets: Suspends ﬁxture 6", 12" 18" or 24" from surface. (Four

per ﬁxture is recommended. Catalog Number: ASC6 CSP (6"), ASC12 CSP (12"),

ASC18 CSP (18"), ASC24 CSP (24").

Speciﬁcations

Performance: In an installation of 2 lamp 32W luminaires in a room cavity

ratio of 1, with a reﬂectance of 80% ceiling, 50% wall, 20% ﬂoor, the C.U. shall

not be less than .68. To prevent glare the average brightness at 65° shall not

exceed 2022 candelas per square meter. To control veiling reﬂections, luminaire

output in the 30–90° zone shall be not less than 67.5%.

Materials: Chassis parts are die-formed 20 gauge cold rolled steel.

Finish: White baked polyester powder coat.

Electrical: Thermally protected class “P” ballast C.B.M. approved, non PCB. If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and C-UL.

SLB Surface:

Lens Frame

Surface

Fluorescent

Body Style:

Surface Box

Fixture

Width

Ceiling Type:

S = Surface

Lens

Frame:

FS = Flush full-

size steel

frame

RA = Regressed

ﬂush full-

size

aluminum

frame

Lamp

Quantity:

2 = 2 Lamp

4 = 4 Lamp

Lamp/Fixture Length:

6U = T8, 6"U Lamp

17 = T8, 2' Lamp

20 = T12, 2' Lamp

(Nominal 24")

Voltage:

120 or 277

Ballast Type:

1- 2 Lamp Mag. T12 LE

Standard Electro Magnetic P

T12 (20 watt only)

<20THD <10THD

1-2 Lamp Elec. T8 SO* HI*

1-4 Lamp Elec. T8 O4* H4*

LOL Dimming T8 PS*

*Instant Start Standard

Other dimming options. Consult factory.

Options:

Add appropriate

sufﬁx to catalog

no, ie: (GLR)

Lens

Shielding Type:

VA = Pattern 12

lens, .095"

nominal pris-

matic lens

(standard).

see options

and consult

factory.

SLB2SFSVA26U120SO
