Lippert Components Happijack FT-DR2 Manuale utente
Frame Mount
Camper Tiedown System
Models: FT-DR2
FRONT ANCHOR INSTALLATION
"L" Shaped Frame Brace
Guide Plate
Stabilizer Bar
LOADING, UNLOADING & LEVELING THE CAMPER
When loading and unloading, the height at which the camper is set above the bed is critical to the proper
operation of the rear centering guide locks.
ALWAYS: Keep the camper bottom within " of the truck bed. While it is important to keep the camper close
to the truck, serious damage and injury can result if the truck "hooks" the camper as you pull from beneath it.
MOVE SLOWLY!!! Be Careful.
NEVER: Allow the camper to come above the rear centering guide locks! If the camper were lowered onto
the top of the centering guide lock, severe damage could occur to truck, camper, or both!
NEVER: Rely on the centering guide locks to align the camper as you load. While they will move the camper
SLIGHTLY side to side, their purpose is to lock the camper in place, on center in the truck once loaded.
Attempting to load when truck to camper alignment is poor can also cause serious damage to truck bed,
wheel wells, tail lights, etc.
ALWAYS: Remember to remove the turnbuckles prior to raising camper to unload.
NEVER: Attempt to level the camper on the truck with the turnbuckles installed!
ALWAYS: Remove the turnbuckles before leveling the camper. Your jacks were not
designed to lift both the truck and camper. Damage to the truck, tiedowns or camper is also likely to occur if
the turnbuckles are not removed when leveling.
NEVER: Lift the camper completely off the truck to level unless the truck is being moved
from beneath the camper and the camper is being lowered close to the ground. The camper is not stable at
that height and unsafe for occupancy unless resting on the truck.
ALWAYS: Lower the camper as close to the ground as possible when not on the truck.
The closer to the ground, the more stable the camper becomes.
NEVER: Allow the front of the camper to become lower than the back when loading or unloading. Doing so
shifts a tremendous amount of weight over the front jacks which could cause a dangerously overloaded
situation. Whenever the camper is not on the truck, it is a good idea to keep the front 4" higher than the back.
Except when the camper is lowered close to the ground and leveled for occupancy.
NEVER: Leave the camper up in the air on extended jacks. Lower the camper as low as possible when not
on the truck.
Guide Plate
Guide Plate

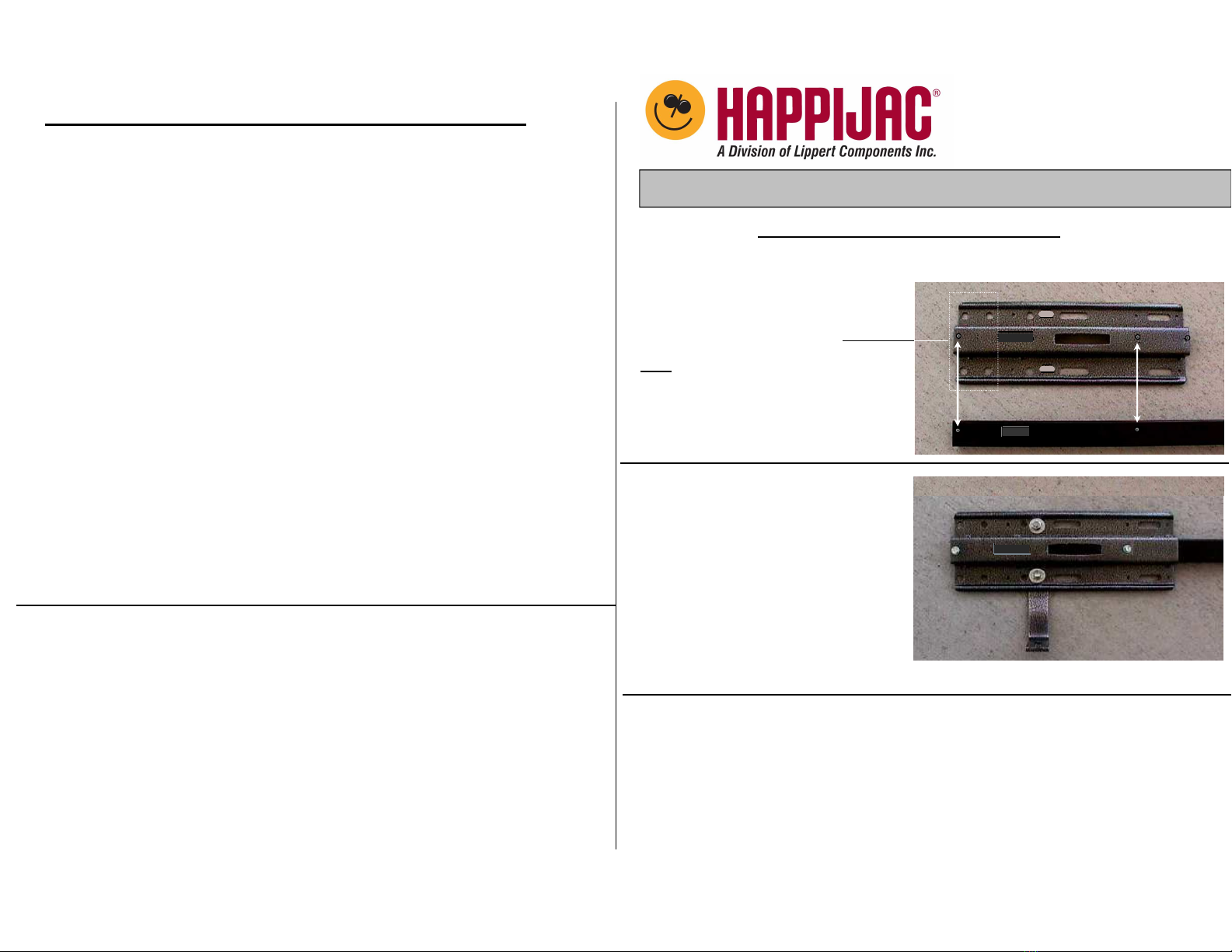

STEP 1 – Place the guide plates over the stabilizer bar and attach
both using #10 x ¾” sheet metal
screws provided in Kit A
The arrows show the location of
these sheet metal screws
Note: The 4 large round holes
in guide plate must be to the
outer ends of the assembly at both
ends
STEP 2 – Attach frame braces to guide
plates Insert the flat head, square
shouldered plow bolts through the
countersunk hole in frame brace from
the back side, then through the shorter
slotted hole in the guide plate Secure
with flat washer, split lock washer and
nut
See diagram for specific locations
Note: Do not tighten the nuts at this time. They will be tightened at a later step.
STEP 3 – [Hardware Kit B]
In this step, refer to the illustrations on the following page.
Center the assembly against front wall of truck bed. Select the screw location (A or B) where the
sil er/gray guide plate fits tightest against the front wall. Drill a 3/32” pilot hole for the sheet metal
screw at best locations. Note: These screws are used to hold the assembly in place while drilling
the mounting holes for the anchor plates. Generally only one screw per side is needed.
It is a good idea to put a piece of wood between the bed and cab to prevent drill bit
from striking the cab.
.
..
.
STEP 5 – Drill
four 7/16" holes
through guide
plate and bed
front wall using
the four large
round holes
as a drill guide.
These holes
align with
the threaded
holes in
the black anchor
plate.
It is a good idea to put a piece of wood
between the bed and cab to prevent drill
bit from striking the cab.
Mounting Holes
A B

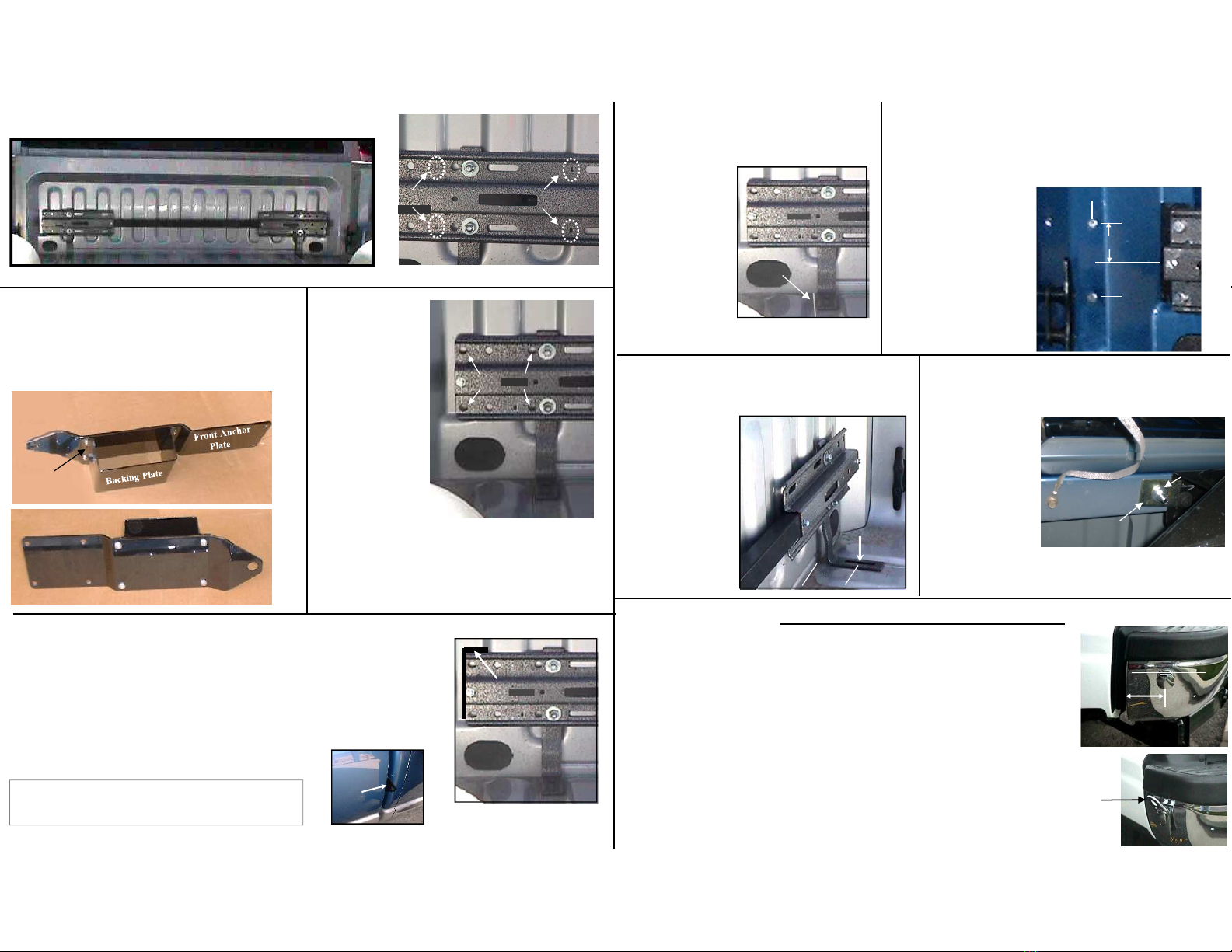

STEP 4 – Front Anchor Assembly
Attach backing bracket to front anchor plate
using the1/4" sheetmetal screws pro ided in
hardware Kit J. (Short flange toward tip)
#10 Sheet Metal Screw
(4 Places)
7/16" Hole
Short
Flange
STEP 3 - Continued (Illustrations)
STEP 6 – [Hardware Kit B] Install Front Anchors.
This is most easily accomplished if one person pushes
the bracket up between the bed and cab from beneath
the truck, while another starts the bolts.
Remo e board from between bed & cab and slide black front
Anchor plate assembly into place. Put the black plastic spacer
Under the outer holes in the guide plate to fill the oid, then
start (do not tighten) all 4 bolts through guide plate
into threaded holes in black anchor plate.
Hint: The bolts will start easier if prior to installation
on truck, you run the bolts through the threaded holes
in the anchor plate to clear out paint.
Cab
Anchor
Plate
Plastic Spacer
Set frame braces straight up & down.
STEP 7 – Set the “L” shaped frame
braces straight up and down with the
foot against the inside edge of the
flute, along side
the weld seam.
Tighten the
nuts holding
the frame
brace to the
guide
plate.
STEP 9 – [Hardware Kit D]
Drill 3/8” dia. Hole through frame brace foot ,
bed, and frame/bed cross member 3 inches
back from bed
front wall.
Make sure drill
is as close to
ertical as
possible in
all directions.
x
STEP 10 – Insert 5” carriage bolt through hole
and secure from beneath truck with reinforcing
plate, flat washer, lock washer & hex nut. The
reinforcing plate
will rest o er the
edge of the
frame tab
THIS COMPLETES THE FRONT ANCHOR
INSTALLATION.
Reinforcing
plate
Flat washer
Lock Washer
Hex Nut
Bed cross
member FRAME
Weld
Seam
3/8" Hole
3"
Grounding strap
STEP 8 – [Hardware Kit J] Using the #10 self drilling
& self tapping screws, install 2 screws through bed
front wall into the black anchor plate at the locations
shown below. NOTE: A small pilot hole may be drilled
but is normally not necessary as this particular screw will
drill it's own pilot. Use a
punch to start either the
screw or pilot bit to avoid
drift.
Set 1-3/4" each side of
a center line drawn
from the guide
plate & approx. 1"
back from bend in
bed front wall.
1-3/4
1
REAR ANCHOR INSTALLATION
NOTE: Rear anchors are installed in the end of the bumper. There is no
precise mounting location since a ariety of bumpers may be
installed. The general guidelines are as follows:
1. Mounting location should be as flat & ertical as possible.
2. Be sure no moldings or bumper caps interfere with remo able coupler.
3. Check back side of selected mounting location to ensure adequate
access for tightening nut.
4. Choose a location as far back as possible from the front edge of bumper
while gi ing consideration to the other criteria listed abo e and center
punch and drill a 1/8” pilot hole, then enlarge to 1/2”.
Install Anchor Bolt with 2” fender washer, lock washer & nut.
Flat edges of nchor Bolt must be horizontal.
Remove
coupler
when not
in use to
prevent loss.
Flats Horizontal
Place well back
From front edge
Of bumper
