LSL 150H074 Manuale utente

Fitting Instruction

Article-No. : 150H074

Product : Tour Match Kit

Vehicle-Manufacturer : Honda

Model (Type) : CBR 1100XX (SC35A) 2001 Æ

Important:

Read this instruction manual carefully and mind all warnings and tips. You should do this work

only if you‘re qualified; otherwise we recommend this mounting to be done by a qualified

workshop. Improperly mounting of this kit can reduce the driveability of the motorcycle and may

be a risk to your health and life.

Special works are marked with the following signs. Please take special care on these works.

Warning! Important mounting instruction. It shows risks to your life and health.

LTips for mounting and maintenance or to avoid damage.

Fitting:

Mounted conversion kit

———————————————— Accessories from — The Original ——

Date: 05/06/2008 Page 1 of 2

LThe battery ground should be disconnected before working on electric wiring and switches!

Remove handlebar controls, clutch and brake cylinder assy, then remove the original clip-ons.

Mount Tour-Match clamps instead, align them and tighten them slightly. Now install the tubes with

M6x22 and tighten these bolts with 10Nm (7.31lbf ft).

Now you should check the clearance to the tank and faring, therefore you need to mount all

controls provisorily on the clip-ons.

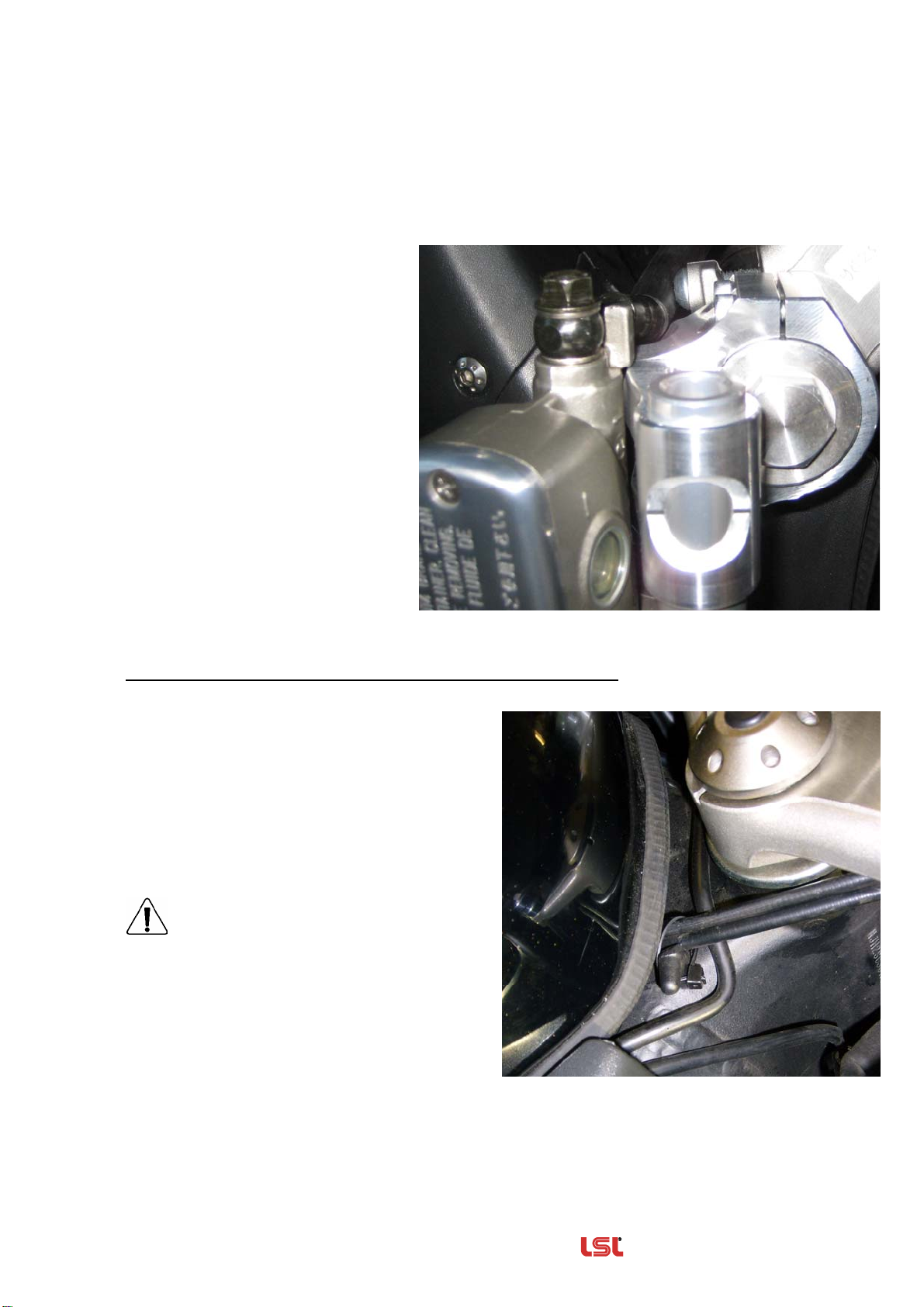

LSwap the top yoke's bolt that

clamps the left slider tube. Fix the

clutch cylinder assy as shown, with

the anti-twist device reaching over

the clamp.

Adjust clip ons by turning the Match

clamps on the slider tubes, then

tighten the bolts M6x25 with 10Nm

(7.31lbf ft). Now drill the bores for

the controls and fix them finally. The

left grip should be installed with glue.

Instruction for rerouting cables hoses and wiring harnesses:

Throttle cable: Routed as original but slightly

modified. Remove cables from the original

guidance at the tank and fix them with the

attached cable tie, as shown. Check throttle

cable for free movement on every steering

angle.

The other hoses and harnesses need no

modifications.

Make sure that no cable, hose or

harness is bended and stays tension-

free over the whole steering angle.

The Tour-Match kit is now completely mounted.

Always check local laws and your

manufacturer’s warranty conditions for using

aftermarket parts on your bike!

Ride safe and have fun!

———————————————— Accessories from — The Original ——

Date: 05/06/2008 Page 2 of 2
