separate probe, RS-232
SOUND LEVEL METER
Model : SL-4013
Your purchase of this
SOUND LEVEL METER
marks a step forward for
you into the field of
precision measurement.
Although this SOUND
LEVEL METER is a complex
and delicate instrument,
its durable structure will
allow many years of use if
proper operating
techniques are developed.
Please read the following
instructions carefully and
always keep this manual
within easy reach.
OPERATION MANUAL
TABLE
OF
CONTENTS
1. FEATURES...............................................................1
2. SPECIFICATIONS.....................................................1
3. FRONT PANEL DESCRIPTION....................................4
3-1 Microphone......................................................
.
4
3-2 Display.............................................................4
3-3 Power On/Off Button.........................................4
3-4 Hold Button......................................................4
3-5 REC./Max. Min. Button......................................
.
4
3-6 Max. Hold Button..............................................4
3-7 A/C Wei
g
htin
g
Button........................................4
3-8 Time Wei
g
htin
g
( Fast / Slow ) Button................
.
4
3-9 Ran
g
e Button...................................................
.
4
3-10 AC Output Socket............................................4
3-11 Calibration VR.................................................4
3-12 RS232 Computer Interface Socket....................
.
4
3-13 Battery compartment / Cover........................... 4
3-14 Stand.............................................................4
3-15 BNC socket......................................................4
3-16 BNC Plu
g
.........................................................4
3-17 Probe handle...................................................
.
4
3-18 Probe holder....................................................4
4. MEASURING PROCEDURES.......................................5
5. AUTO POWER DISABLE............................................8
6. MEASURING CONSIDERATION..................................8
7. SIGNAL OUTPUT......................................................8
7-1 AC output..........................................................8
7-2 RS232 computer interface ........................................
.
9
8. REPLACEMENT of BATTERY......................................10
9. CALIBRATION ........................................................
.
10
10. FREQUENCY WEIGHTING CHARACTERISTICS
OF A & C NETWORKS............................................11
11. TIME WEIGHTING (FAST & SLOW)
CHARACTERISTICS...............................................
.
11
1. FEATURES
* Separate sound probe, easy operation.
* A & C weighting networks meet IEC 61672 class 2.
* 0.5" standard microphone head.
* Time weighting (Fast & Slow) dynamic characteristic
modes.
* AC output for system expansion.
* RS232/USB computer interface.
* Auto range & Manual range selection.
* Available for external calibration adjustment.
* Condenser microphone for high accuracy & long-term
stability.
* Memory function to store the Max. & Min. value.
* Hold and MAX. Hold functions.
* Operation key used push button.
* Large LCD display for low power consumption & clear
read-out even in bright ambient light condition.
* Using the durable, long-lasting components, including a
strong, light weight ABS-plastic housing case.
* Small and light weight design allow one hand operation.
2. SPECIFICATIONS
Display 52 mm x 32 mm LCD (Liquid crystal
display), 5 digits with indicator.
Function dB ( A & C frequency weighting ), Time
weighting(Fast, Slow), Hold, Memory
( Max. & Min. ), Max. hold, AC output,
RS232 output.
1
Measurement 30 - 130 dB.
Range
Resolution 0.1 dB.
Range selector
Auto range :
30 to 130 dB.
Manual range :
3 range, 30 to 80 dB, 50 to 100 dB,
80 to 130 dB, 50 dB on each step,
with over & under range indicating.
Accuracy * Meet IEC 61672 class 2, tested under
(
23± 5
)
℃
Input signal level on 94 dB
&
frequency range from 31.5 Hz to
8 k Hz, refer to page 11.
Frequency 31.5 to 8,000 Hz.
Microphone type Electric condenser microphone.
Microphone size Out size, 12.7 mm DIA. ( 0.5 inch).
Weighting Network Characteristics of A & C.
Range selector Manual range: 3 ranges ( 30 to 80 dB,
50 to 100 dB, 80 to 130 dB ).
Auto range: 30 - 130 dB.
Time weighting Fast - t= 200 ms, Slow - t = 500 ms,
( Fast & Slow ) * "Fast" range is simulated the
human ear response time.
* "Slow" range is easy to get the avg.
values of vibration sound level.
* The "Fast" & "Slow" response
range are designed to meet IEC 61672
class 2 requirement.
Calibrator B & K (Bruel & kjaer), MULTIFUCTION
ACOUSTIC CALIBRATOR 4226.
Output Signal
* AC output :
AC 0.5 Vrms corresponding to each
range step.
Out put impedance - 600 ohm.
* RS232 output.
2
Output terminal
Terminal 1 :
RS 232/USB PC serial interface.
* Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug.
Terminal 2 :
AC output terminal.
Terminal socket size :
3.5 mm dia. phone socket.
Calibration VR Build in external calibration VR, easy to
calibrate on 94 dB level by screw driver.
Operating Temp. 0 to 50 ( 32 to 122 ).℃℉
Operating Humidity Less than 80% RH.
Power Supply DC 9V battery, 006P, MN1604(PP3) or
equivalent.
*
Alkaline or heavy duty type.
Power Approx. DC 6 mA.
Consumption
Dimension
Main instrument :
207 x 68 x 29 mm ( 8.1x2.7x1.1 inch ).
Sound probe :
170.5 x 24.5 x 19 mm ( 6.7x1.0x0.7 inch )
Probe cable length :
200 cm ( 78.7 inch ) max.
Weight 422 g/0.93 LB ( including battery ).
Accessory Included Instruction manual ..................... 1 PC.
Separate sound probe................. 1 PC.
Probe holder............................... 1 PC.
Optional Hard carrying case, CA-06
Accessories Wind shield ball, SB-01
94 dB Sound Calibrator :
Model : SC-941. SC-942.
Sound wind shield ball
Model : SB-01
RS232 cable ( isolated RS232 cable ) :
Model : UPCB-02.
USB cable :
Model : USB-01
Application windows software :
Model : SW-U801-WIN.
3

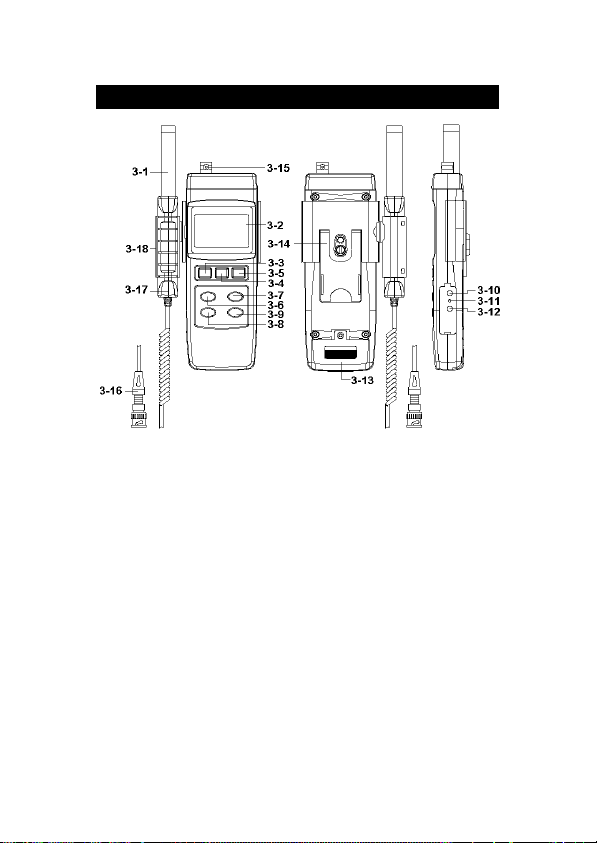

3. FRONT PANEL DESCRIPTION
Fig. 1
3-1 Microphone 3-10 AC Output Socket
3-2 Display 3-11 Calibration VR
3-3 Power On/Off Button 3-12 RS232 Computer Interface
3-4 Hold Button Socket
3-5 REC./Max. Min. Button 3-13 Battery compartment / Cover
3-6 Max. Hold Button 3-14 Stand
3-7 A/C Weighting Button 3-15 BNC socket
3-8 Time Weighting 3-16 BNC Plug
( Fast / Slow ) Button 3-17 Probe handle
3-9 Range Button 3-18 Probe holder
4
4. MEASURING PROCEDURE
1) * Connect the " BNC plug " ( 3-16, Fig. 1 ) into the " BNC
socket " ( 3-15, Fig. 1 )
* Insert the " Probe handle " ( 3-17, Fig. 1 ) into the "
Probe holder " ( 3-18, Fig. 1 ).
* Power on by pressing the " Power On/Off Button " ( 3-3,
Fig. 1 ) , the meter's default function is " Auto range ",
" A frequency weighting " & " Fast time weighting ". The
lower LCD display will show the unit " A. Fast Auto ".
2)Select " A " or " C " frequency weighting by pressing the
" A/C Button " ( 3-7, Fig. 1 ) .
Note :
a. The characteristic table of A, C weighting, please
ref. page 11.
b. The characteristic of A weighting is simulated as
the " Human Ear Listening " response.
Typically always select the A weighting when makes
environmental sound level measurement.
c. The C weighting characteristic is near the " FLAT "
response. Typically it is suitable for checking the
noise of machinery ( Q.C. check ) & knowing the
real sound level of the tested equipment.
3)Determine proper measuring range by pressing the
" Range Button " ( 3-9, Fig. 1 ).
After power on the default range is " Auto range ".
In the same time the lower right display will show the text
of " Auto ".
Under the auto range, press the " Range Button " once
will enter to the manual range 1, range 2, rang 3. There
are still 3 manual ranges for your choice :
5
*
Manual range 1 , 30 - 80 dB range :
Display will show the unit of " 30 - 80 ".
*
Manual range 2 , 50 - 100 dB range :
Display will show the unit of " 50 - 100 ".
*
Manual range 3 , 80 - 130 dB range :
Display will show the unit of " 80 - 130 ".
4) According to various measuring sound source, select the
Time Weighting ( Fast or Slow ) by pressing the " Time
Weighting Button " ( 3-8, Fig. 1 ).
Note :
a. If select the function of " Fast " time weighting, the
display will show the unit of " Fast ".
b. If select the function of " Slow " time weighting, the
display will show the unit of " Slow ".
5)Hold the instrument in hand and point the microphone at
measured noise source, the sound level value ( dB ) will be
displayed on LCD.
6)Max. Hold
If intend to maintain the maximum value, press
the " Max. Hold Button " ( 3-6, Fig. 1 ) and a " P.H "
symbol will show on the top LCD display. Press the
" Max. Hold Button again to exit the function.
Note :
a. When make the Max. Hold measurement under
slow varying noise environment, please select the
" Auto range "
b. When make the Max. Hold measurement under
pulse noise environment, it should select to the
convenient " manual range "
6
7)Data Hold
During the measurement, pushing the " Hold Button "
( 3-4, Fig. 1 ) will hold the measured value & the LCD
will indicate " HOLD " symbol.
* Push the " Hold Button " again to release the data hold
function.
8)Data Record ( Max., Min. reading )
* The data record function displays the maximum and
minimum readings. To start the DATA RECORD
function, press the " REC. Button " ( 3-5, Fig. 1) once.
" REC " symbol will appear on the LCD display.
* With the " REC " symbol on the display :
a)Push the " REC. Button " ( 3-5, Fig. 1 ) once, the
" REC Max " symbol along with the maximum value
will appear on the display.
If intend to delete the maximum value, just press
the " Hold Button " ( 3-4, Fig. 1 ) once a while, then
the display will show the " REC " symbol only &
execute the memory function continuously.
b)Push the " REC. Button " ( 3-5, Fig. 1 ) again, the
" REC Min " symbol along with the minimum value
will appear on the display.
If intend to delete the minimum value, just press
the " Hold Button " ( 3-4, Fig. 1 ) once a while, then
the display will show the " REC " symbol only &
execute the memory function continuously.
c) To exit the memory record function, push the
" REC " button at least 2 seconds continuously. The
display will revert back to the current reading.
7
5. AUTO POWER DISABLE
The instrument has built-in " Auto Power Shut-off "
in order to prolong battery life. The meter will switch
off automatically if none of the buttons are pressed
within approx. 10 min.
To de-activate this feature, Select the memory record
function during measurement, by pressing the
" REC. Button " ( 3-5, Fig. 1 ).
6. MEASURING CONSIDERATION
1)Please should select the proper time weighting ( A
weighting or C weighting ). Typically the A weighting
selector will be engaged.
2)Please don't keep or operate the instrument at high
temperature & humidity environment for a long period.
3)Keep microphone dry & avoid serious vibration.
7. SIGNAL OUTPUT
7-1 AC output
The instrument is provided an 3.5 mm dia. phone socket
( 3-10, Fig. 1 ) for AC output, it is used to connect with
analyzer, level recorder, tape recorder, controller...etc.
Note :
AC 0.5 Vrms corresponding to each range step.
Output impedance - 600 ohm.
8
Indice
Altri manuali Lutron Electronics Strumento di misura
Lutron Electronics
Lutron Electronics DT-2234BL Manuale utente
Lutron Electronics
Lutron Electronics EM-1910 Manuale utente
Lutron Electronics
Lutron Electronics PH-321M Manuale utente
Lutron Electronics
Lutron Electronics AM-4215SD Manuale utente
Lutron Electronics
Lutron Electronics SP-82AC Manuale utente
Lutron Electronics
Lutron Electronics EMF-831SD Manuale utente
Lutron Electronics
Lutron Electronics PCD-431 Manuale utente
Lutron Electronics
Lutron Electronics LX-1128SD Manuale utente
Lutron Electronics
Lutron Electronics HT-3007SD Manuale utente
Lutron Electronics
Lutron Electronics LM-81LX Manuale di installazione
Lutron Electronics
Lutron Electronics EMF-839 Manuale utente
Lutron Electronics
Lutron Electronics PH-222 Manuale utente
Lutron Electronics
Lutron Electronics vt-8204 Manuale utente
Lutron Electronics
Lutron Electronics DS-2013SD Manuale utente
Lutron Electronics
Lutron Electronics MS-7003 Manuale utente
Lutron Electronics
Lutron Electronics PCO-350 Manuale utente
Lutron Electronics
Lutron Electronics vt-8204 Manuale utente
Lutron Electronics
Lutron Electronics SL-4010 Manuale utente
Lutron Electronics
Lutron Electronics FORCE GAUGE FG-6005SD Manuale utente
Lutron Electronics
Lutron Electronics GCO-2008 Manuale utente
