INSTRUCTION MANUAL

DISCRETE INPUT MODULE

(Di 16 points; with external excitation supply) MODEL

R30XN16A

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Discrete input module.........................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■GENERAL PRECAUTIONS

• Before you remove the terminal block or mount it, turn off

input signals for safety.

■HOT SWAPPABLE MODULES

• It is possible to replace a module with the power supplied

provided that the module is replaced with one with the

same model number and installed in the same base slot.

• Turn off input signals before replacing the module for

safety. Note that replacing multiple modules at once may

greatly change line voltage levels. We highly recommend

to replace them one by one.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 10 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

• Be sure to attach the terminal cover for safety.

R30XN16A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9010 Rev.3 P. 2 / 4

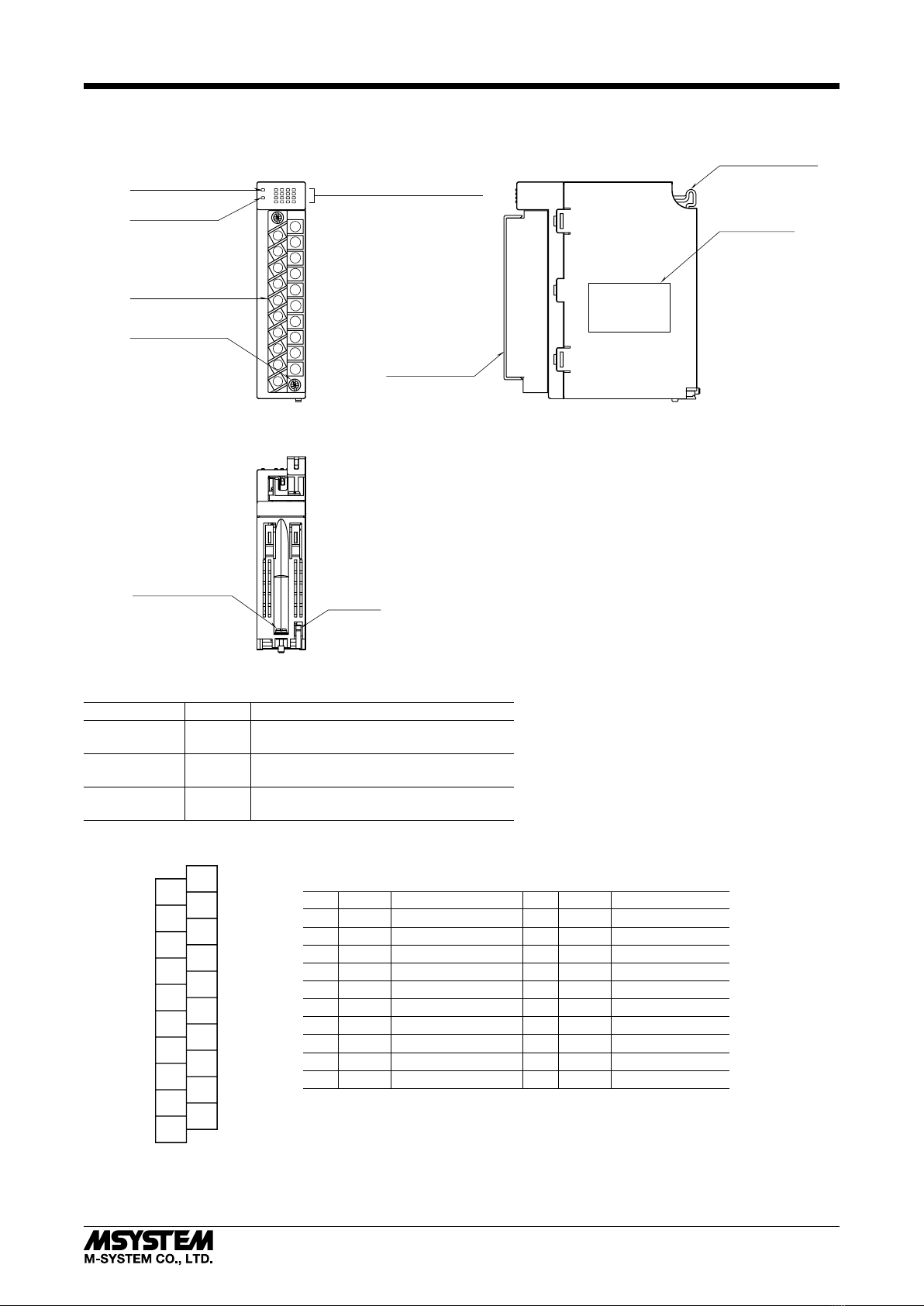

COMPONENT IDENTIFICATION

RUN

ERR

RUN LED

ERR LED

■FRONT VIEW

■BOTTOM VIEW

■SIDE VIEW

Lock Tab

Base Fixing Screw

Specifications

Positioning Guide

Terminal Cover

Discrete Input Indicator LEDs

Terminal Fixing

Screw

Input Terminal Block

■STATUS INDICATOR LED

ID COLOR FUNCTION

RUN Green ON in normal host communication

OFF in host communication error

ERR Red OFF when internal bus operates normally

ON when an internal bus error occurs

Discrete Input Green ON when discrete input is ON

OFF when discrete input is OFF

■TERMINAL ASSIGNMENTS

X10

X11

X12

X13

X14

X15

X16

NO. ID FUNCTION NO. ID FUNCTION

1 X1 Input 1 11 X9 Input 9

2 X2 Input 2 12 X10 Input 10

3 X3 Input 3 13 X11 Input 11

4 X4 Input 4 14 X12 Input 12

5 X5 Input 5 15 X13 Input 13

6 X6 Input 6 16 X14 Input 14

7 X7 Input 7 17 X15 Input 15

8 X8 Input 8 18 X16 Input 16

9 C1 Common 1 19 C1 Common 1

10 C2 Common 2 20 C2 Common 2

R30XN16A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9010 Rev.3 P. 3 / 4

INSTALLATION

■INSTALLATION TO THE BASE

Use the Installation Base (model: R30BS).

The I/O slots are numbered in the ascending order starting

from the one on the immediate right side of the network

module (slot 1, slot 2...).

A code indicating the I/O slot number is assigned to each

I/O slot and I/O data is allocated in the order of this codes.

When an I/O slot is vacant, blank data is sent or received to/

from the PLC, etc.

PWR COM I/O1 I/O n

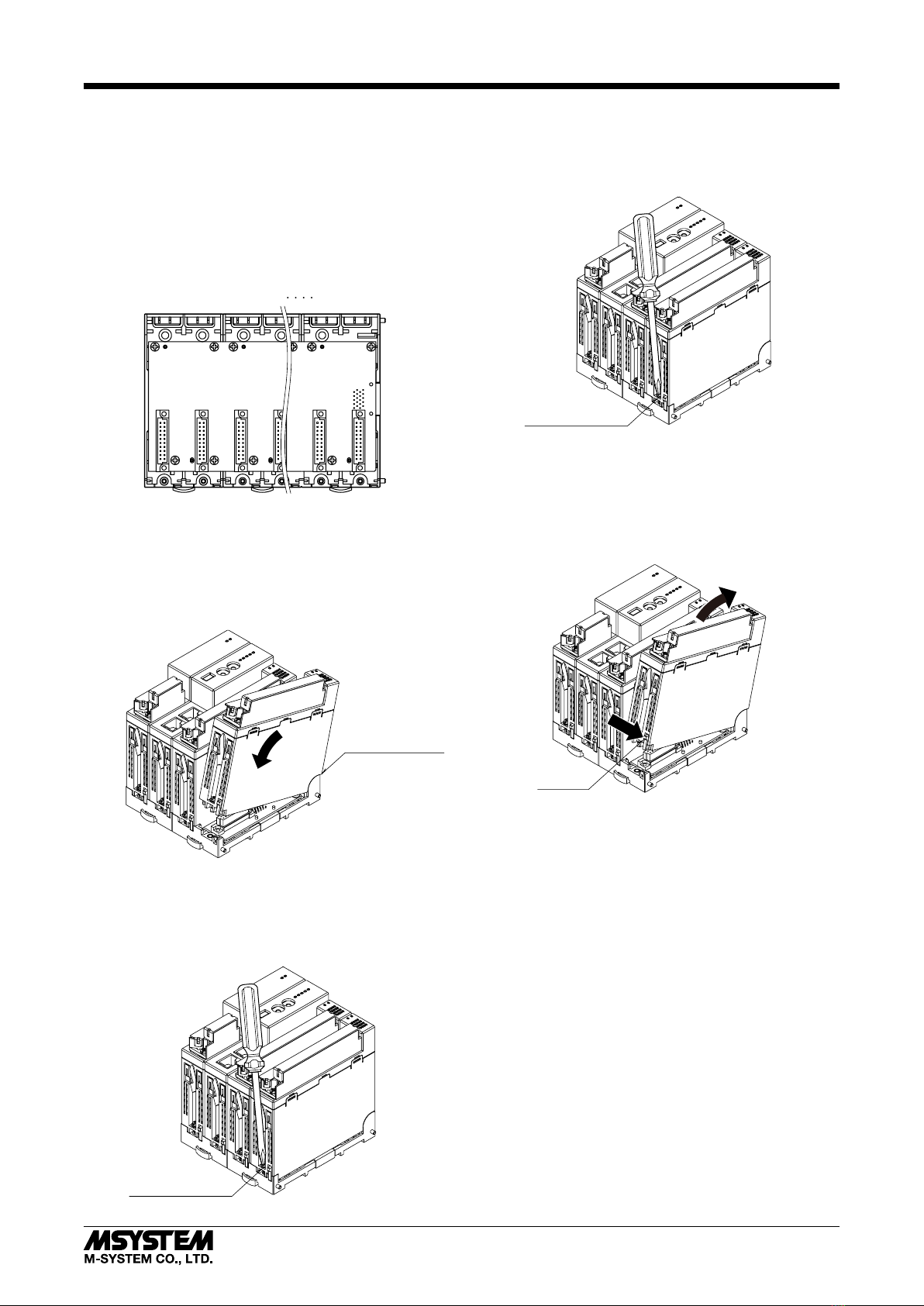

■HOW TO MOUNT THE MODULE

1) Engage the positioning guide of the module with the In-

stallation Base.

2) Pivot the module on the positioning guide and press it

down until the lock tab clicks into place.

Positioning Guide

3) Tighten the base ﬁxing screw using a screwdriver (stem

length: 70 mm/2.76” or more) (torque 0.5 N·m).

Base Fixing Screw

■HOW TO REMOVE THE MODULE

1) Loosen the base ﬁxing screw using a screwdriver (stem

length: 70 mm/2.76” or more).

Base Fixing Screw

2) While pressing the projection on the lock tab, push the

module upward.

3) Detach the positioning guide of the module from the In-

stallation Base.

Lock Tab

R30XN16A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9010 Rev.3 P. 4 / 4

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

①

②

③

④

⑪

⑫

⑬

⑭⑤

⑥

⑦

⑧

⑨

⑩

⑮

⑯

⑰

⑱

⑲

⑳

110 (4.33)

25 (.98) 98 (3.86)

20–M3

SCREW

(.24)

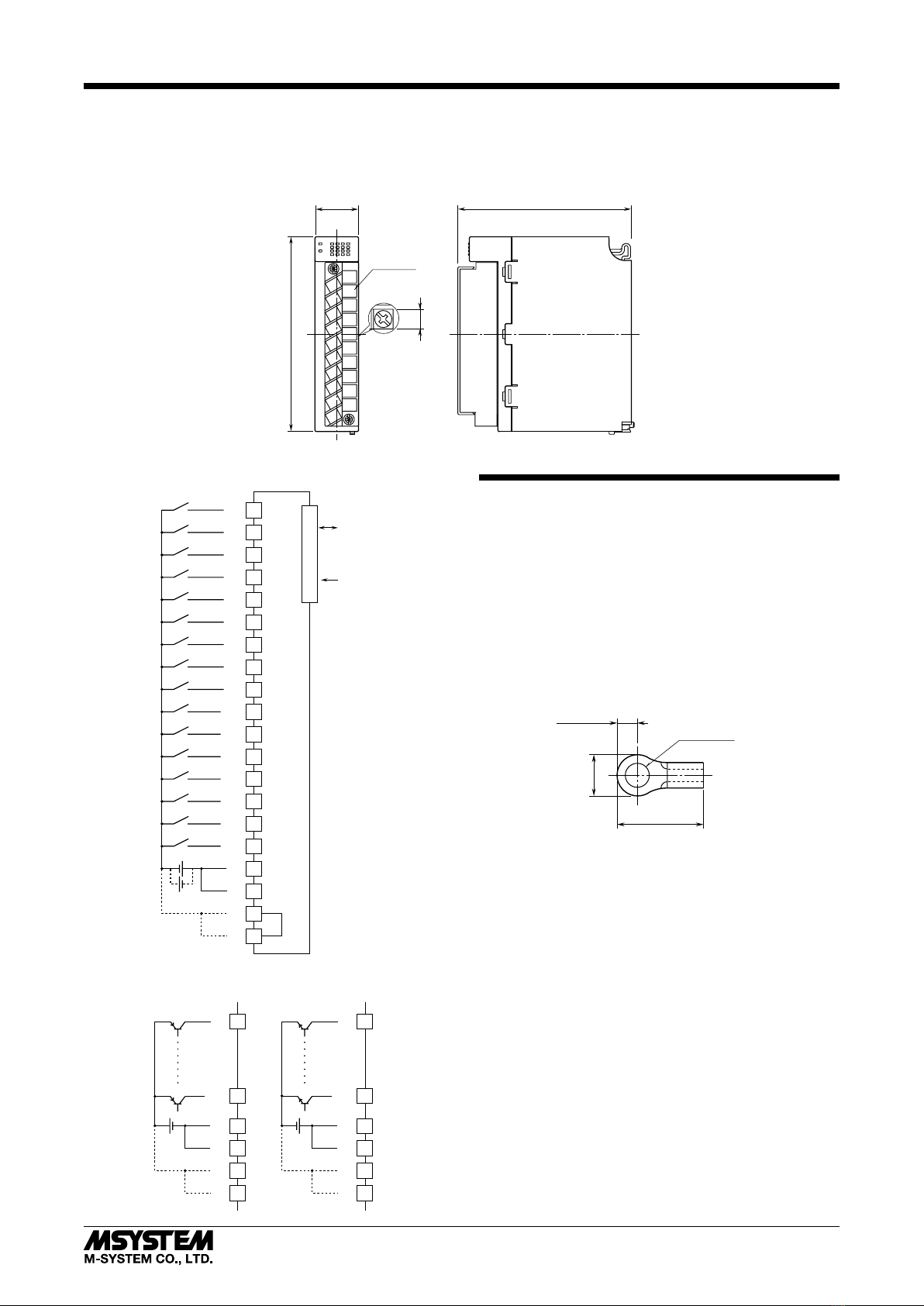

■CONNECTION DIAGRAM

BUS CONNECTOR

INTERNAL

POWER

INTERNAL

BUS

■Input Connection Examples

X16

PNP Connection NPN Connection

+–

X16

19 19

–+

X10

X11

X12

X13

X14

X15

X16

Note: Te rminals C2 can be used as necessary.

WIRING INSTRUCTIONS

■TIGHTENING TORQUE

Separable screw terminal wiring screw: 0.5 N·m

Separable screw terminal ﬁxing screw: 0.5 N·m

■SOLDERLESS TERMINAL unit: mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.25 to 0.75 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

3.2 (.13) dia.

12 (.47) max.

6 max.

(.24)

3 (.12) max.

■HOW TO REMOVE SEPARABLE SCREW TERMINAL

The terminal block is separable in two pieces. Evenly loos-

en two screws on top and bottom of the terminal block to

separate.
