M2 Antenna Systems FGSD-2.4DH Manuale utente

M2 ANTENNA SYSTEMS, INC. 4402 N. SELLAND AVE. FRESNO, CA 93722

TEL: (559) 432-8873 FAX: (559) 432-3059 WEB: WWW.M2INC.COM

REV A

M2 ANTENNA SYSTEMS, INC.

MODEL NO: 2 AXIS WITH S-BAND

FEED

LOCKHEED

M2 ANTENNA SYSTEMS, INC.

MODEL NO: FGSD-2.4DH AND

FGSD-2.4DH-YS

SATELLITE DISH, M2 BACK STRUCTURE

DH, 2.4 /8 FT 4 PIECES, W/ YAGI SUPPORT

SATELLITE DISH MOUNT ASSEMBLY

DISH MOUNT BASE

PLATE

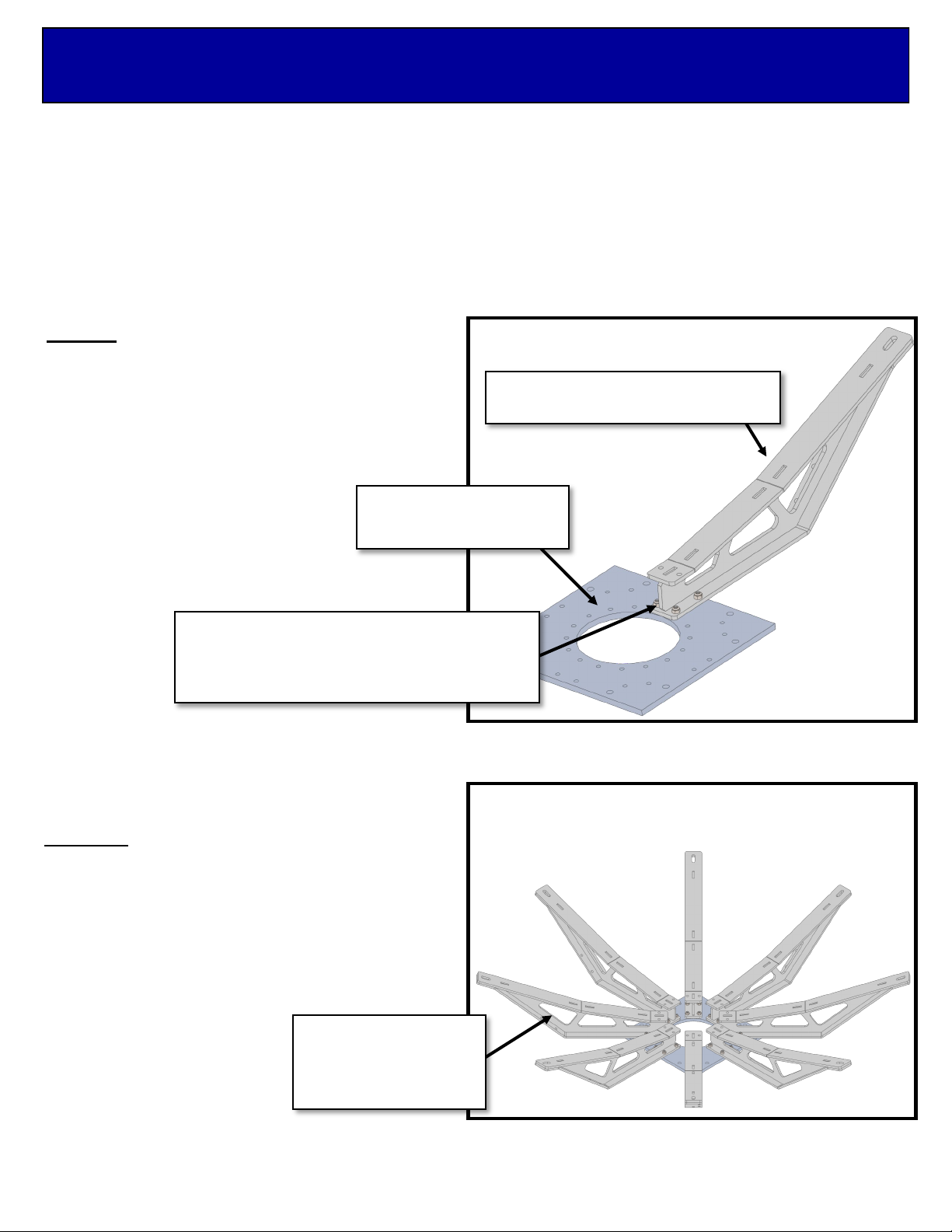

STEP 1:

Mount one SATELLITE DISH SUP-

PORT to DISH MOUNT BASE PLATE (See

FIG. 1). This support will need to align with the

holes in the SATELLITE DISH, therefore leave

the hardware loose to allow for some adjust-

ment during assembly.

FIG. 1

BOLT, 1/4-20 X 1”, FLAT ALLEN HEAD

LOCKNUT, 1/4-20

QTY (32)

SATELLITE DISH SUPPORT

FIG. 2

STEP 2A:

Install the DISH SUPPORTS for the

FGSD-2.4DH. Leave all the hardware finger

tight (See FIG. 2).

See STEP 2B for assembly FGSD-2.4DH-YS

SATELLITE DISH

SUPPORT

QTY (8)

BEFORE YOU BEGIN: Look over all the DRAWINGS to get familiar with the various parts

and assemblies in the system. Tools handy for assembly process: 11/32”, 7/16”, 1/2”, 9/16”

and 5/8” spin-tites, end wrenches and/or sockets.

NOTE:

All installations are unique in some way, which means it's OK to preassemble certain hardware, or re-

arrange the assembly process to meet specific site requirements. A quick review of the assembly

notes and drawings should help firm up the appropriate strategy. Please remember to double-check all

hardware for tightness BEFORE it becomes inaccessible.

FGSD-2.4DH

SATELLITE DISH MOUNT ASSEMBLY

STEP 3:

Mount the SATELLITE DISH MOUNT-

ING RING to the top of the SATELLITE DISH

SUPPORTS (See FIG. 4).

FIG. 4

BOLT, 1/4-20 X 1”

LOCKNUT, 1/4-20

QTY (16)

SATELLITE DISH

MOUNTING RING

FIG. 3

STEP 2B:

Install the DISH SUPPORTS for the

FGSD-2.4DH-YS. Make sure the two YAGI

SUPPORTS are adjacent to each other. Leave

all the hardware finger tight (See FIG. 3).

SATELLITE DISH

SUPPORT, YAGI

SUPPORT

QTY (2)

SATELLITE DISH

SUPPORT

QTY (6)

FGSD-2.4DH-YS

SATELLITE DISH MOUNT ASSEMBLY

SATELLITE DISH ASSEMBLY

STEP 4:

The SATELLITE DISH PANELS come with color coded

dots on the RIB to indicate which PANELS need to be mated

together for proper alignment. Each dot is labeled with SERIAL

NUMBERS and matching RIB NUMBERS (See FIG. 5).

STEP 5:

The method recommended for assem-

bling the SATELLITE DISH requires placing a

stand, which is provided, at the center of PAN-

ELS. It does not matter which PANELS you

start with as long as they both have the same

numbers labeled on the adjacent RIBS. Care-

fully place two PANELS with mating numbers

touching onto the STAND (See FIG. 6).

FIG. 5

FIG. 6

RIB IDENTIFICATION

(MATE WITH PANEL WITH SAME NUMBER)

SATELLITE DISH SERIAL NUMBER

(WILL BE DIFFERENT FOR YOUR DISH)

STEP 6:

Insert the FASTENERS provided into the

holes connecting the two PANELS together

(See FIG. 7). Leave the fasteners finger tight

until all PANELS are assembled. Continue add-

ing another PANEL with a corresponding RIB

NUMBER that matches one of the already as-

sembled PANELS. Insert the fasteners into the

third PANEL. Leave fasteners finger tight. Do

not add the FOURTH PANEL yet. You will

need to add the HUB ASSEMBLY and need to

access the center of the DISH for ease of as-

sembly.

FIG. 7

BOLT, 1/4-20 X 3/4”, SS

LOCK WASHER, 1/4”, SS

NUT, 1/4-20, SS

ASSEMBLY STAND

(PROVIDED)

STEP 7:

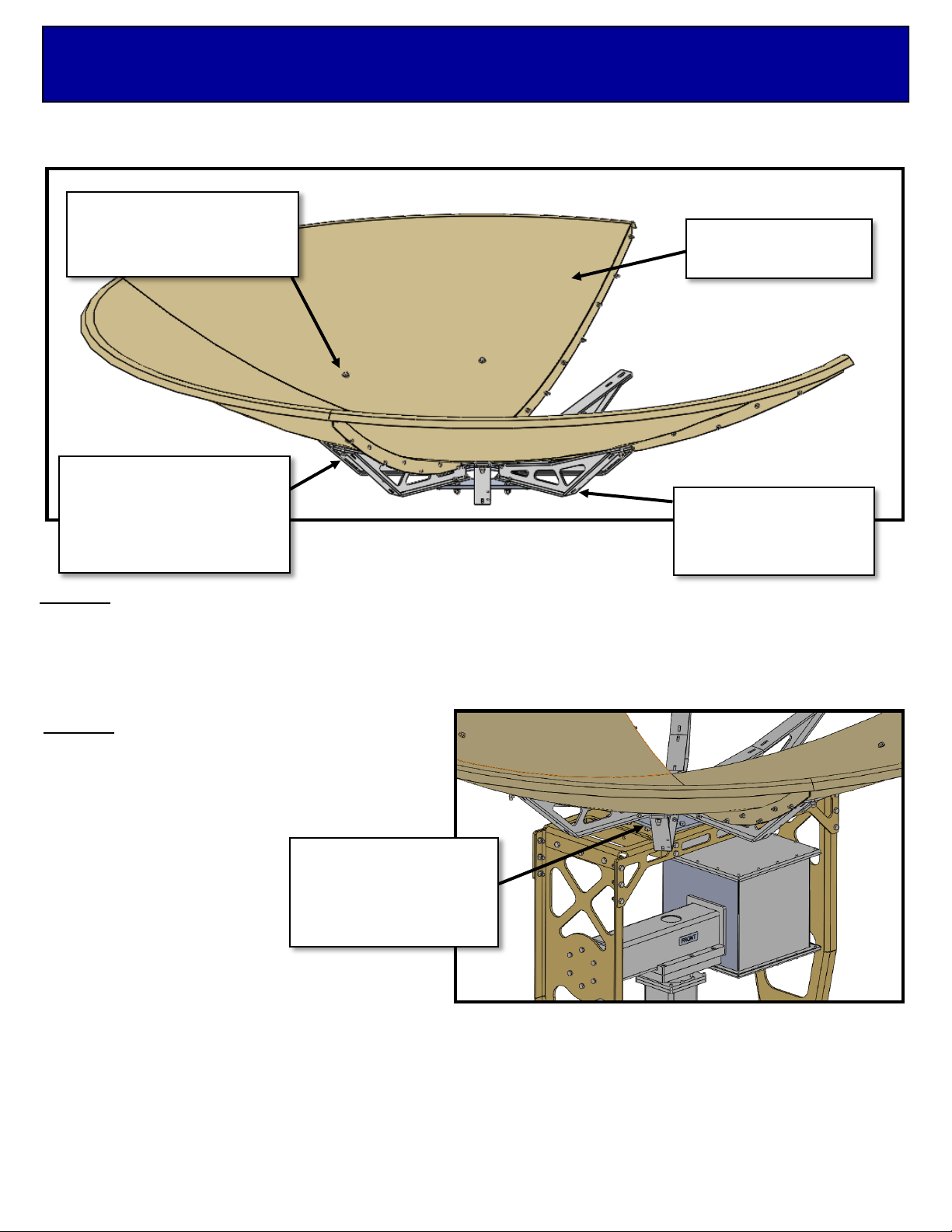

Attach the SATELLITE DISH to the SATELLITE DISH MOUNT ASSEMBLY (See FIG. 8).

SECTIONED SATELLITE DISH ASSEMBLY

FIG. 8

BOLT, 3/8-16 X 1-1/2”

FLAT WASHER, 3/8”

QTY (8)

FLAT WASHER, 3/8”

LOCK WASHER, 3/8”

NUT, 3/8-16

QTY (8)

SATELLITE DISH

MOUNT ASSEMBLY

STEP 8:

Attach the SATELLITE DISH MOUNT

and DISH to the ANTENNA POSITIONER (See

FIG. 9).

FIG. 9

BOLT, 3/8-16 X 1-1/4”

FLAT WASHER, 3/8”

LOCKNUT, 3/8-16”

QTY (8)

SECTIONED SATELLITE DISH ASSEMBLY

SATELLITE DISH

STEP 9:

Position the ANTENNA POSITIONER to 0 DEGREES. Attach the fourth SATELLITE DISH PAN-

EL (See FIG. 10).

THIS COMPLETES THE ASSEMBLY OF THE FGSD-2.4DH SYSTEM. CONTINUE THE NEXT PAGE

TO FINISH THE FGSD-2.4DH-YS ASSEMBLY.

FIG. 10

STEP 11:

Attach the YAGI SUPPORT BRACKET

to the EXTENDED SATELLITE DISH SUP-

PORT (See FIG 12).

FGSD-2.4DH-YS YAGI MOUNT

FIG. 11

STEP 10:

Install additional fasteners to the EX-

TENDED SATELLITE DISH SUPPORT and

the SATELLITE DISH (See FIG 11).

FIG. 12

BOLT, 5/16 X 1-1/4”

FLAT WASHER, 3/8”

LOCKNUT, 3/8-16”

QTY (8)

BOLT, 1/4-20 X 3/4”

FLAT WASHER, 1/4”

LOCK WASHER, 1/4”

NUT, 1/4-20

QTY (4)

YAGI SUPPORT

BRACKET

QTY (2)

EXTENDED

SATELLITE

DISH SUPPORT

QTY (2)

FGSD-2.4DH-YS YAGI MOUNT

FIG. 13

STEP 12:

Install the YAGI SUPPORT TUBE. Use the 2” CRADLES to mount the YAGI SUP-

PORT TUBE to the YAGI SUPPORT BRACKET (See FIG 13).

YAGI SUPPORT

TUBE

2” CRADLE

BOLT, 5/16-18 X 3-1/4”

LOCK NUT, 5/16-18

QTY (4)

THIS COMPLETES THE ASSEMBLY OF THE FGSD-2.4DH-YS SYSTEM.

FGSD-2.4DH PARTS & HARDWARE LIST

DESCRIPTION QTY

SATELLITE DISH PANEL, 2.4m (8’)............................................................................................ 4

SATELLITE DISH MOUNT BASE PLATE (M2ASD0028) ............................................................ 1

SATELLITE DISH MOUNTING RING, TOP (M2ASD0032) ......................................................... 1

SATELLITE DISH SUPPORT (SASD0004) ................................................................................. 8

SATELLITE DISH ASSY STAND, 4” X 15”, CARDBOARD (M2ASD0035).................................. 1

HARDWARE

BOLT, 3/8-16 X 1-1/2” HEX HEAD, S.S....................................................................................... 8

BOLT, 3/8-16 X 1-1/4”, HEX HEAD, S.S...................................................................................... 8

FLAT WASHER, 3/8”, S.S............................................................................................................ 24

LOCK WASHER, 3/8”, S.S........................................................................................................... 8

NUT, 3/8-16, S.S.......................................................................................................................... 8

LOCK NUT, 3/8-16, S.S. .............................................................................................................. 8

BOLT, 1/4-20 X 1”, FLAT ALLEN HEAD, S.S. ............................................................................. 32

BOLT, 1/4-20 X 1”, HEX HEAD, S.S. ........................................................................................... 16

BOLT, 1/4-20 X 3/4”, HEX HEAD, S.S. ........................................................................................ 36

LOCK WASHER, 1/4”, S.S........................................................................................................... 36

LOCK NUT, 1/4-20, S.S. .............................................................................................................. 48

NUT, 1/4-20, S.S.......................................................................................................................... 36

FGSD-2.4DH-YS PARTS & HARDWARE LIST

DESCRIPTION QTY

SATELLITE DISH PANEL, 2.4m (8’)............................................................................................ 4

SATELLITE DISH MOUNT BASE PLATE (M2ASD0028) ............................................................ 1

SATELLITE DISH MOUNTING RING, TOP (M2ASD0032) ......................................................... 1

SATELLITE DISH SUPPORT (SASD0004) ................................................................................. 6

SATELLITE DISH SUPPORT (SASD0051) ................................................................................. 2

YAGI SUPPORT BRACKET, RH (M2ASA0060).......................................................................... 1

YAGI SUPPORT BRACKET, LH (M2ASA0061) .......................................................................... 1

YAGI SUPPORT TUBE (M2ASD0063) ........................................................................................ 1

2” CRADLE (M2AMC0130) .......................................................................................................... 4

SATELLITE DISH ASSY STAND, 4” X 15”, CARDBOARD (M2ASD0035).................................. 1

HARDWARE

BOLT, 3/8-16 X 1-1/2” HEX HEAD, S.S....................................................................................... 8

BOLT, 3/8-16 X 1-1/4”, HEX HEAD, S.S...................................................................................... 8

FLAT WASHER, 3/8”, S.S............................................................................................................ 24

LOCK WASHER, 3/8”, S.S........................................................................................................... 8

NUT, 3/8-16, S.S.......................................................................................................................... 8

LOCK NUT, 3/8-16, S.S. .............................................................................................................. 8

BOLT, 5/16-18 X 3-1/4”, HEX HEAD, S.S.................................................................................... 4

BOLT, 5/16-18 X 1-1/4”, HEX HEAD, S.S.................................................................................... 8

LOCKNUT, 5/16-18, S.S. ............................................................................................................. 12

BOLT, 1/4-20 X 1”, FLAT ALLEN HEAD, S.S. ............................................................................. 32

BOLT, 1/4-20 X 1”, HEX HEAD, S.S. ........................................................................................... 16

LOCK NUT, 1/4-20, S.S. .............................................................................................................. 48

BOLT, 1/4-20 X 3/4”, HEX HEAD, S.S. ........................................................................................ 36

LOCK WASHER, 1/4”, S.S........................................................................................................... 36

FLAT WASHER, 1/4”, S.S............................................................................................................ 4

NUT, 1/4-20, S.S.......................................................................................................................... 36
