INSTALLATION INSTRUCTIONS FOR PART 99-3528

86-3528 Radio Removal Keys • Flat Blade Screwdriver • Phillips Screwdriver

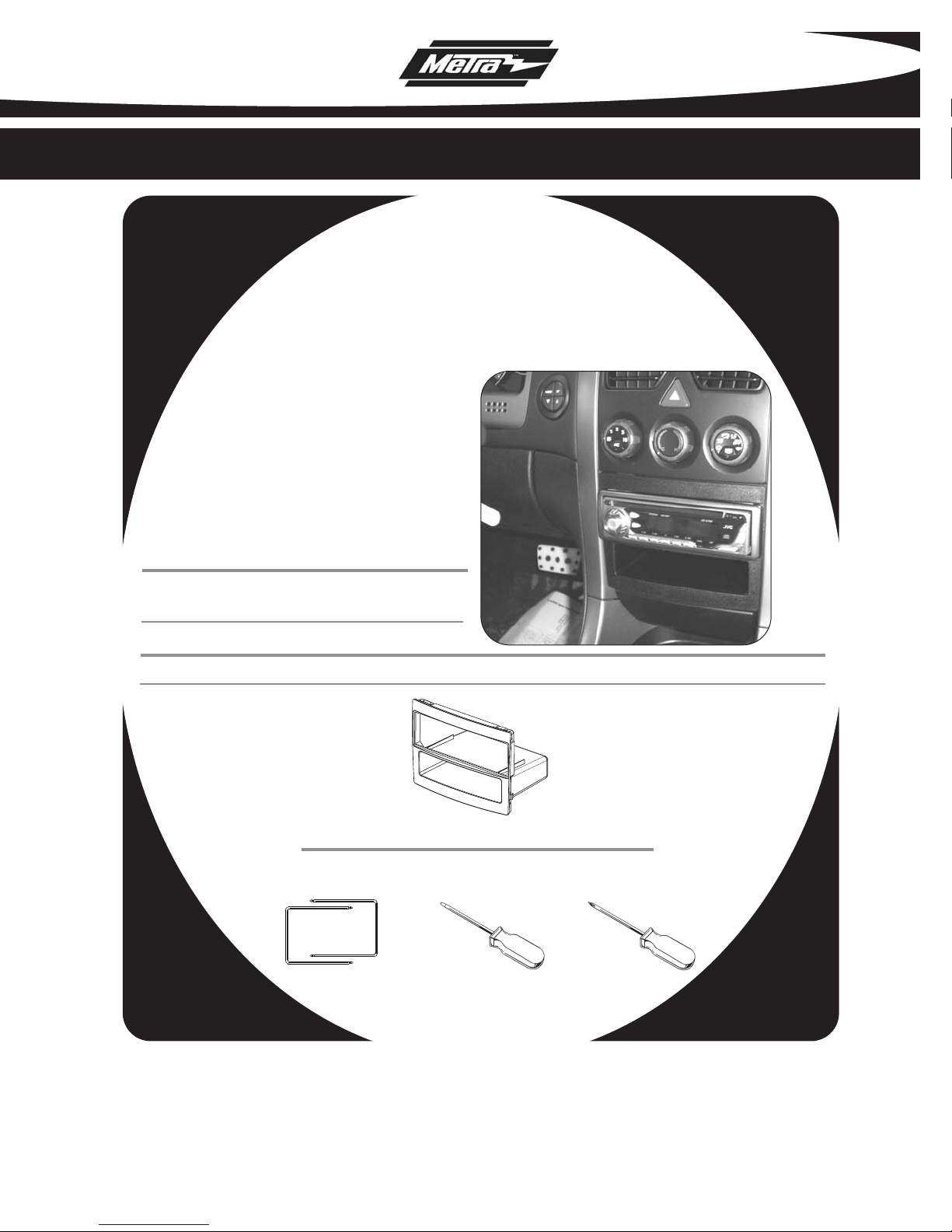

KIT FEATURES

•DIN Head Unit Provisions with Oversized Pocket

A) Radio Housing

KIT COMPONENTS

TOOLS REQUIRED:

99-3528

APPLICATIONS

2004-2006 Pontiac GTO

99-3528

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

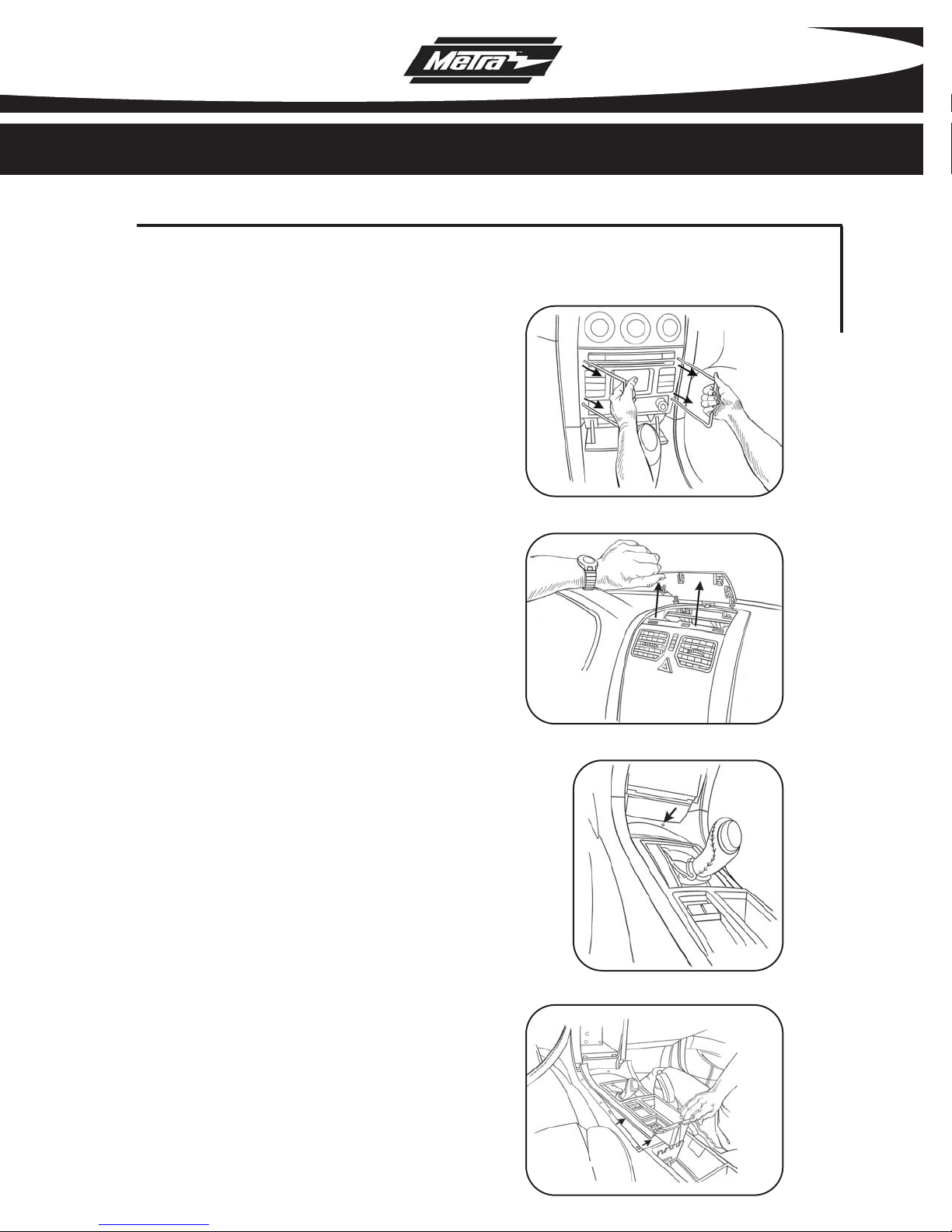

Using the radio removal keys, pull

the factory head unit from the dash

and disconnect the wiring.

(Figure A)

2004-2006 PONTIAC GTO

Unsnap and remove the trim panel at

the top center of the dash above the

A/C vents and remove (4) Phillips

screws.

(Figure B)

Remove (1) Phillips screw from

inside lower open storage area

where center console and dash

meet.

(Figure C)

Unsnap and remove center console

(open center armrest/ storage com-

partment and work forward).

(Figure D)

DASH DISASSEMBLY

99-3528

DASH DISASSEMBLY (cont’d)

2004-2006 PONTIAC GTO

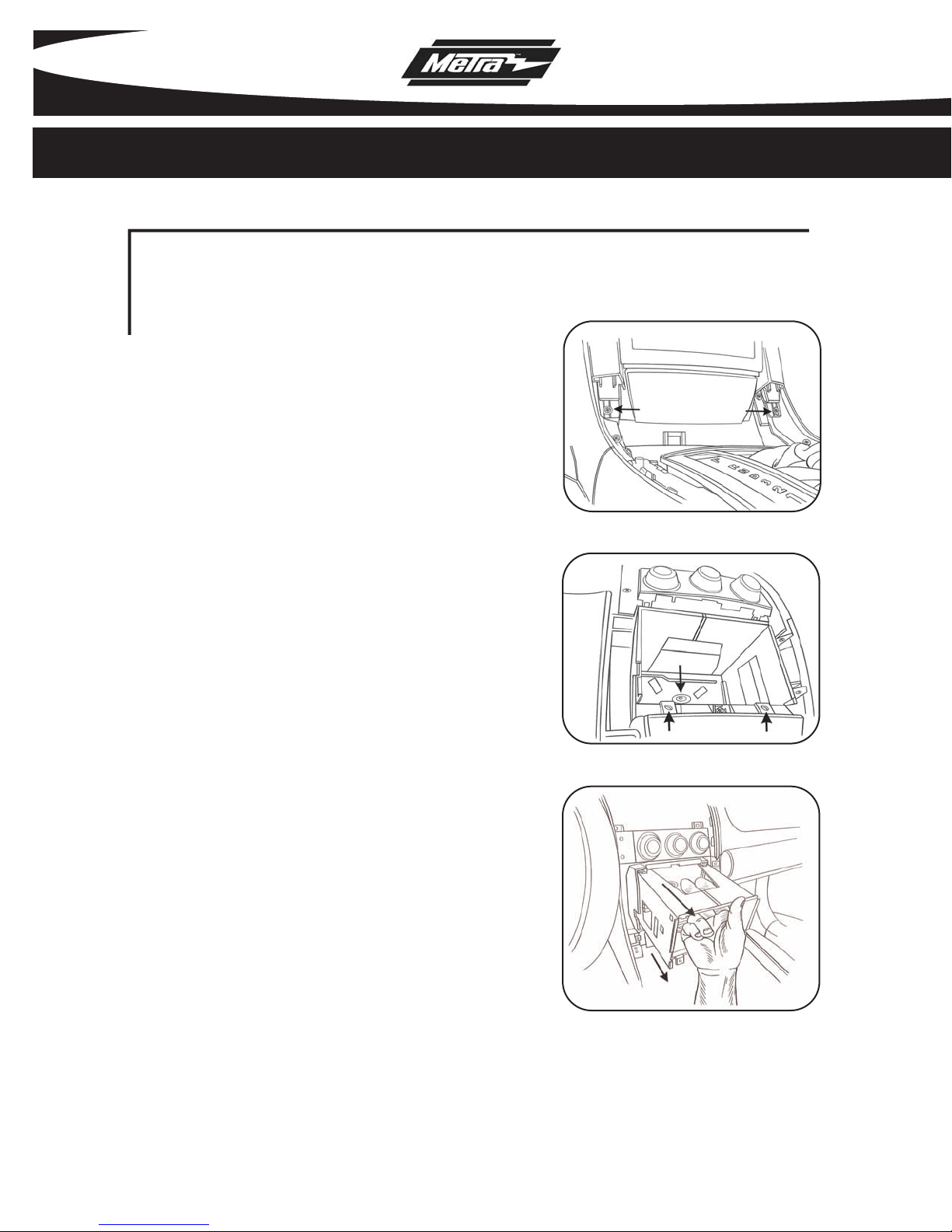

Remove (2) Phillips screws exposed

at the bottom of the center panel

surrounding radio and remove panel.

(Figure E)

Unclip and remove trim panel sur-

rounding radio and A/C controls.

Remove (3) Phillips screws holding

"cage" in radio opening.

(Figure F)

Pull down on the "cage" from the

opening inside on the top and

remove.

(Figure G)

99-3528

KIT ASSEMBLY

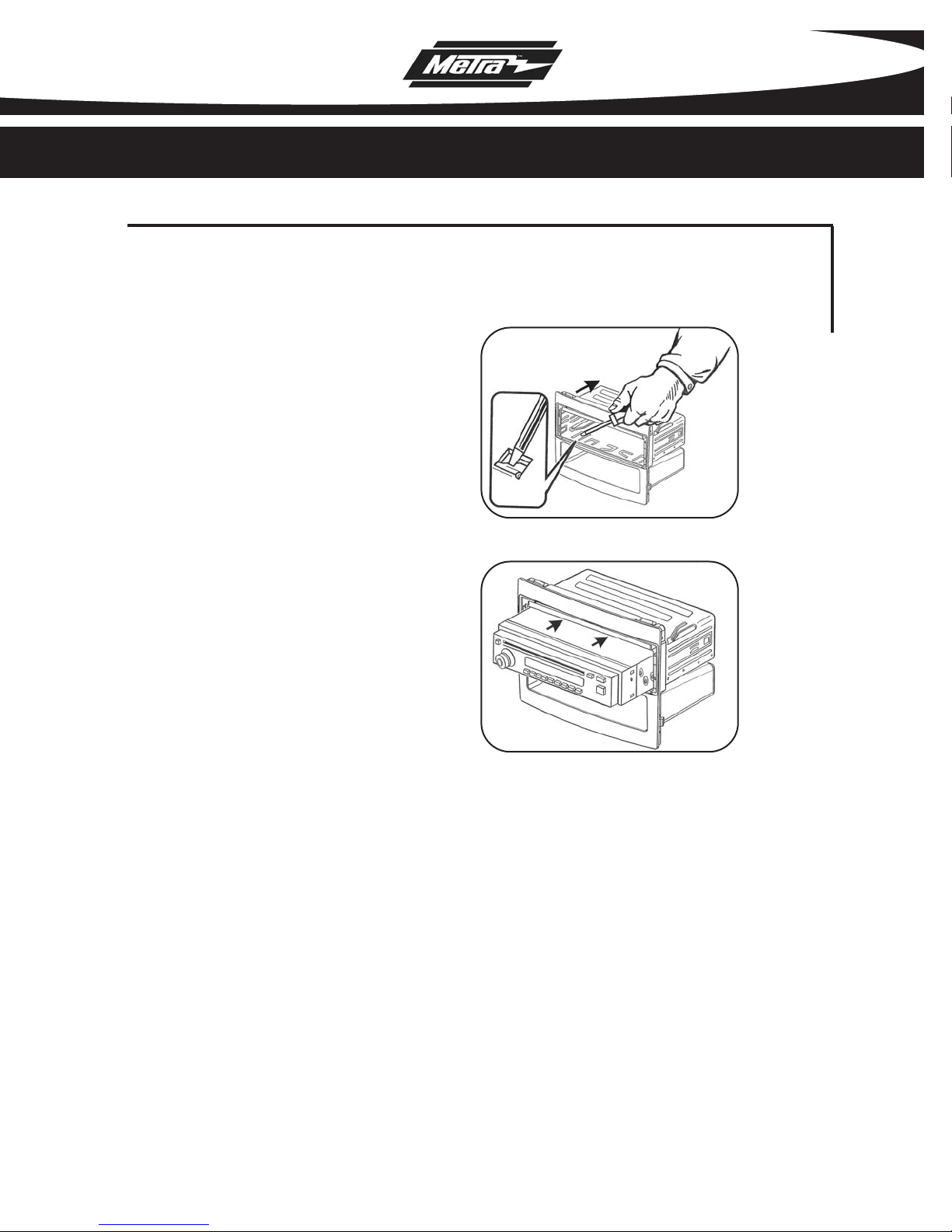

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage and secure.

(Figure B)

99-3528

FINAL ASSEMBLY

Locate the factorywiring harness

in the dash. Metra recommends

using the proper mating adapter

and making the connections as

shown. (Isolate and individually

tape off the ends of any unused

wires to prevent electrical short

circuit)

Re-connect the negative battery

terminal and test the unit for

proper operation.

Reassemble in reverse order of

disassembly leaving the cage

(removed in step 9 of dash disas-

sembly) out and snapping the 99-

3528 in place of the factoryradio.

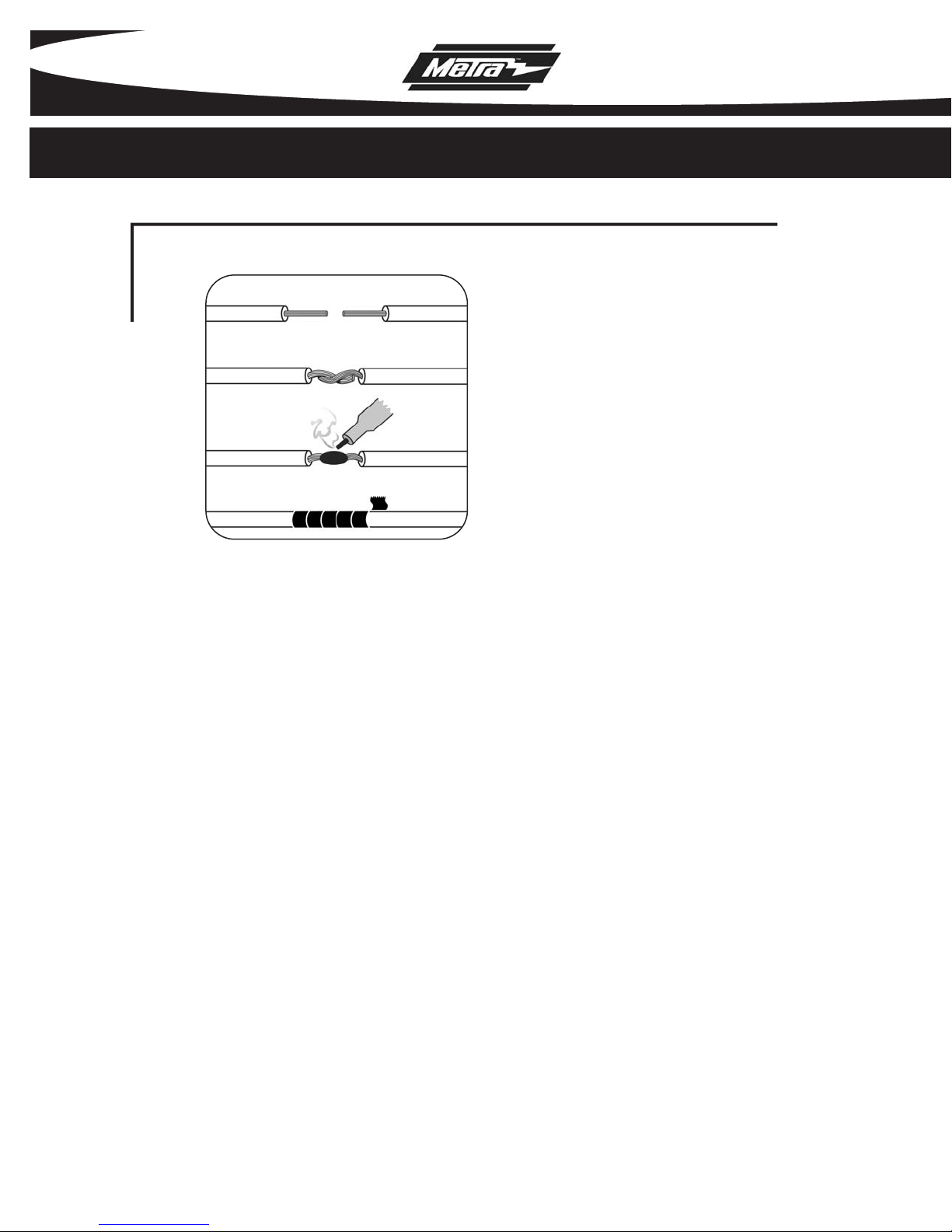

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

METRA ACCESSORIES STEREO DASH KITS
