Mini Gadgets DIY1080P Manuale utente

1 Version 1.3

Do-It-Yourself 1080P

Camera Kit

SKU: DIY1080P

2 Version 1.3

THANK YOU FOR PURCHASING THE DIY1080P

Please read this manual before operating the

camera and keep it handy.

Your purchase should include:

1 x DIY Kit

1 x Wall Charger

1 x 16GB MicroSD Card

1 x Micro USB Cable

1 x 3.5mm Power Cable

1 x A/V Cable

1 x Remote

1 x MicroSD Card Reader

1 x Manual

1 x 20 Hour Battery

3 Version 1.3

GET FAMILIAR WITH YOUR DIY1080P KIT

4 Version 1.3

5 Version 1.3

6 Version 1.3

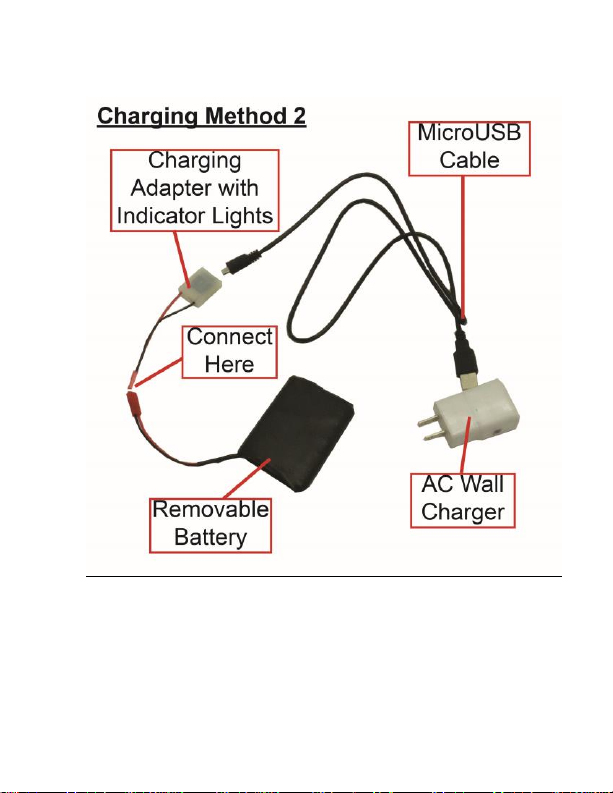

HOW TO CHARGE THE BATTERY

1. Disconnect the red, plastic battery

connector. See page 3 to locate the

battery connector.

2. Connect the supplied charging adapter

to the battery.

3. Connect the supplied MicroUSB cable to

the opposite end of the charging

adapter.

4. Connect the supplied wall adapter to the

MicroUSB cable and plug into an

electrical outlet. See page 5 for a visual

aid in connecting your battery.

a. While charging, there will be a

red indicator light. When fully

charged, the light will turn blue.

7 Version 1.3

OPERATING THE CAMERA

HOW TO TURN ON THE CAMERA

1. Your device can be powered on in one of

two ways:

a. Connect your device to an AC

outlet using the provided AC wall

charger.

b. Use the internal battery to power

the device.

2. If you plug the device into an electrical

outlet, the device will power on

automatically and enter into motion

detection mode. The Green light will

blink once and then the Red light will

blink 3 more times and turn off (if

motion is detected immediately). The

device is now in motion detection mode.

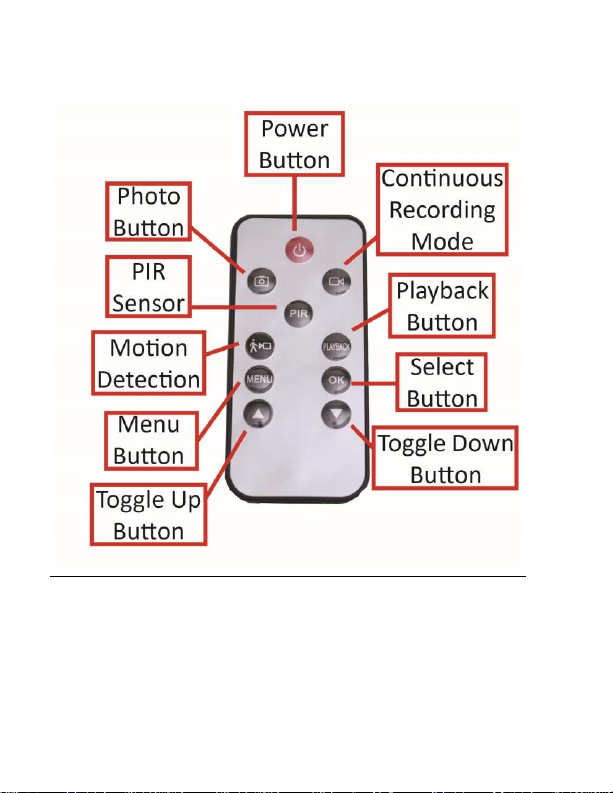

3. If you choose to use battery power, point

the remote at the device and press the

power button on the remote. The Green

8 Version 1.3

light will blink once and then the Red

light will blink 3 more times and turn off

(if motion is detected immediately). The

device is now in motion detection mode.

If the light doesn’t come on, try many different

angles when pressing the power button and

pointing it at the front/top of the unit. Do not

hold down the power button. Press and release

the button only.

4. To put the device into standby mode,

stop motion recording by pressing the

motion detection button one time. The

Green light will come on and the device

will be in standby mode.

9 Version 1.3

HOW TO RECORD VIDEO

1. When the camera is in Standby Mode,

press the “Video Button” (see page 4).

The Indicator LED will flash two times.

2. Once the Indicator LED turns off, the

camera is now recording video.

HOW TO STOP RECORDING VIDEO

1. While the camera is recording video,

press the “Video Button” once more.

(The Indicator LED will turn on.)

2. The camera has stopped recording and is

now in Standby Mode.

HOW TO TAKE PICTURES

1. When the camera is in Standby Mode,

press the “Photo Button” (see page 4).

The green light will turn red while the

photo is being taken.

2. Once the photo is taken, the light will

turn back to green and once again be in

standby mode.

10 Version 1.3

HOW TO RECORD MOTION DETECTION

1. When the camera is in Standby Mode

press, the “Motion Detection Button”

(see page 4).

2. If motion is detected, the Red light will

flash 2 times and turn off.

3. If there is no motion after 1 minute, the

device will return to detection standby

mode until motion is detected again.

While waiting, the Green light will be on.

NOTE: If you activate motion detection and there

is no motion currently in front of the camera,

there will be no indication you have entered into

motion mode. The green light will simply remain

on. If you wish to confirm that you have entered

into motion detection mode, wave your hand in

front of the camera lens and the unit will flash the

red light 2 times. The light will then turn off,

confirming that the device detected your motion

and is now recording video.
