Mini Gadgets OmniPlant Manuale utente
1 Version 1.0
OmniEye Plant With Hidden
Camera
SKU: OmniPlant
2 Version 1.0
THANK YOU FOR PURCHASING THE OMNIPLANT
HIDDEN CAMERA
Please read this manual before operating the camera
and keep it handy.
Your purchase should include:
1 x OmniPlant
1 x AC Wall Charger
1 x Manual
1 x A/V Cable
1 x 3.5mm to USB Cable
1 x Remote
1 x MicroUSB Cable
1 x Charging Adapter with Indicator
Lights
1 x MicroSD Card Reader
1 x 16GB MicroSD Card
3 Version 1.0

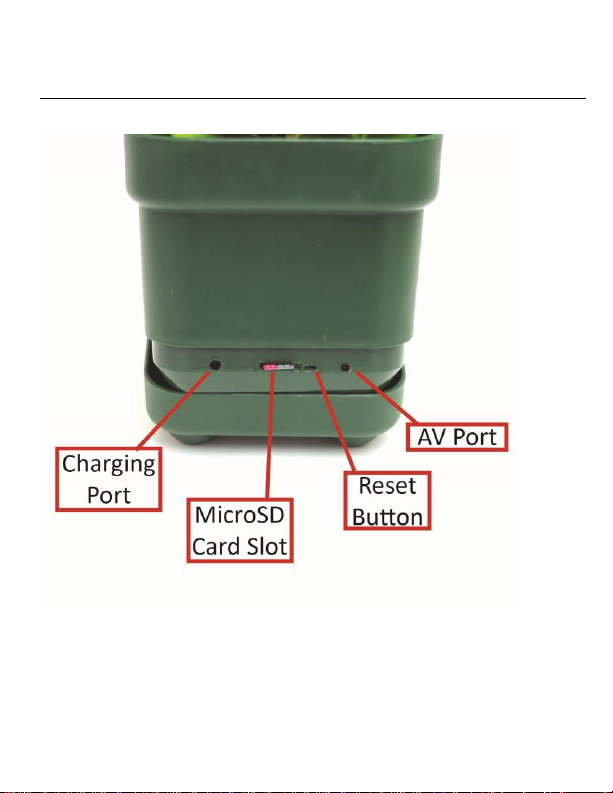

GET FAMILIAR WITH YOUR OMNIPLANT HIDDEN
CAMERA
4 Version 1.0
5 Version 1.0
HOW TO CHARGE THE CAMERA
Note: If you are not located in the US, or if you intend
to use this product anywhere other than the US, you
will need to purchase a converter in order to use the AC
wall plug in and avoid damaging the product. Because
different countries use different voltages in their
electrical wiring, you will need a converter that adapts
to the current in your particular country.
1. Connect the included AC wall adapter to the
included 3.5mm to USB cable.
2. Connect the other end of the charging adapter
to the charging port located on the bottom of
the device (see page 3).
a. The indicator light will be on as long as
the cable is connected.
3. We recommend charging for 4-6 hours to get a
full charge.
4. The device may also be ordered with a cutout
to operate on A/C power. If this is the case, you
may plug the provided charging cable into the
6 Version 1.0
charging port, and the device will immediately
turn on and enter motion detection mode.
OPERATING THE CAMERA
HOW TO TURN ON THE CAMERA
Note: When using the camera, point the remote at the
top of the plant. This is the best location for signal.
1. If operating on battery power, point the remote
at the plant, and press the power button on the

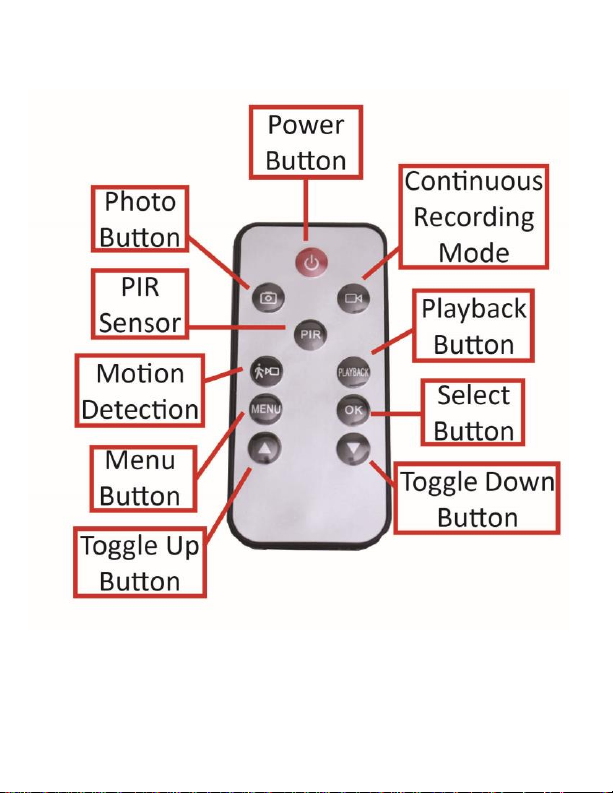

remote (see page 4). The Green light will blink
once, then the Red light will blink 3 more times
and turn off (if motion is detected
immediately). The device is now in motion
detection mode.
NOTE: If the light doesn’t come on, try many different
angles when pressing the power button. Do not hold
down the power button. Press and release the button
only.
7 Version 1.0
2. To put the device into standby mode, stop
motion recording by pressing the motion
detection button (see page 4) one time. The
Green light will come on and the device will be
in standby mode.
HOW TO RECORD VIDEO
1. When the camera is in Standby Mode, press the
“Continuous Recording Mode” button (see
page 4). The Indicator LED will flash two times.
2. Once the Indicator LED turns off, the camera is
now recording video.
HOW TO STOP RECORDING VIDEO
1. While the camera is recording video, press the
“Continuous Recording Mode”button once
more. (The Indicator LED will turn on.)
2. The camera has now stopped recording and is
now in Standby Mode.
HOW TO TAKE PICTURES
8 Version 1.0
1. When the camera is in Standby Mode, press the
“Photo Button” (see page 4). The green light
will turn red while the photo is being taken.
2. Once the photo is taken, the light will turn back
to green and once again be in standby mode.
HOW TO RECORD MOTION DETECTION
1. When the camera is in Standby Mode, press the
“Motion Detection” button (see page 4).
2. If motion is detected, the Red light will flash 2
times and turn off.
3. If there is no motion after 1 minute, the device
will return to detection standby mode until
motion is detected again. While waiting, the
Green light will be on.
NOTE: If you activate motion detection and there is no
motion currently in front of the camera, there will be no
indication you have entered into motion mode. The green
light will simply remain on. If you wish to confirm that
you have entered into motion detection mode, wave your
hand in front of the camera lens. The unit will flash the
9 Version 1.0
red light 2 times, then the light will turn off confirming
that the device detected your motion and is now
recording video.
HOW TO STOP RECORDING MOTION DETECTION
1. While the camera is recording motion
detection, press the “Motion Detection” button
once more. (The Indicator LED will turn on.)
2. The camera has stopped recording motion
detection and is now in Standby Mode.
HOW TO USE PIR SENSOR (if applicable)
Note: The “Motion Detection” mode and “PIR” mode
work similarly in that they detect motion. The “Motion
Detection” mode relies on the camera itself to detect
motion, while the “PIR” mode relies on the PIR sensors
to detect motion. “PIR” represents “passive infrared
sensor”, which relies on measures of infrared light to
detect motion.
Note: Only OmniX products come with a PIR sensor
installed. OmniEye products do not have such a
feature.
10 Version 1.0
1. While the camera is in Standby Mode, press the
“PIR Sensor” button (see page 4).
2. If motion is detected, the indicator light will
flash, then turn off.
3. The device is now in PIR sensor mode.
4. If you wish to turn it off PIR sensor mode, press
the “PIR Sensor” button once more. The
indicator light will flash, and the camera is now
in standby mode.
CHANGING YOUR DEVICE SETTINGS (INCLUDING THE
DATE/TIME STAMP)
Your OmniPlant comes with an A/V cable that is used
to connect the device to a monitor/TV so that you can
adjust various settings. See page 3 to locate the AV
port on your device.
1. Connect your device to a monitor/TV using the
provided A/V Cable.
2. Power on the device.
3. Press the motion detection button to stop
recording.
4. Press the “MENU” button on the remote.
