Mini Gadgets LMBCPendant Manuale utente

CM-NL 10 Necklace Design

Camera

SKU: LMBCPendant

THANK YOU FOR PURCHASING THE LMBCPendant

Please read this manual before operating the MCCWIFI and keep it

handy.

The LMBCPendant offers a discreet way to take video recordings of

people behaving inappropriately towards or around you. Stylish and

designed to be body-worn, it will record anything within view of the

tiny camera cleverly blended into the beautiful design of the

necklace.

Features include:

A stylish, intricately designed pendant (with Spanish writing)

A 2.55 mm camera with an inconspicuous lens carefully

embedded right above the pendant

An AV jack for easy connection to a mini portable DVR (not

included)

Accompanying AV Out cable and 9V battery pack, which

enable you to connect the camera to a non-portable DVR or to

other RCA connections

A tiny microphone

NTSC/PAL 640x480

480TVL

Compatibility with LMDVR1000 and PocketDVRLITETouch

Your purchase should include:

1 x LMBCPendant

1 x 9V Battery Box (battery not included)

1 x RCA adapter cable set

1 x Microphone

*Please be advised that no replacement microphones are available

in the US market.

You will need to provide:

1 x Compatible and (Preferably) Portable DVR

*The product will not function without the DVR.

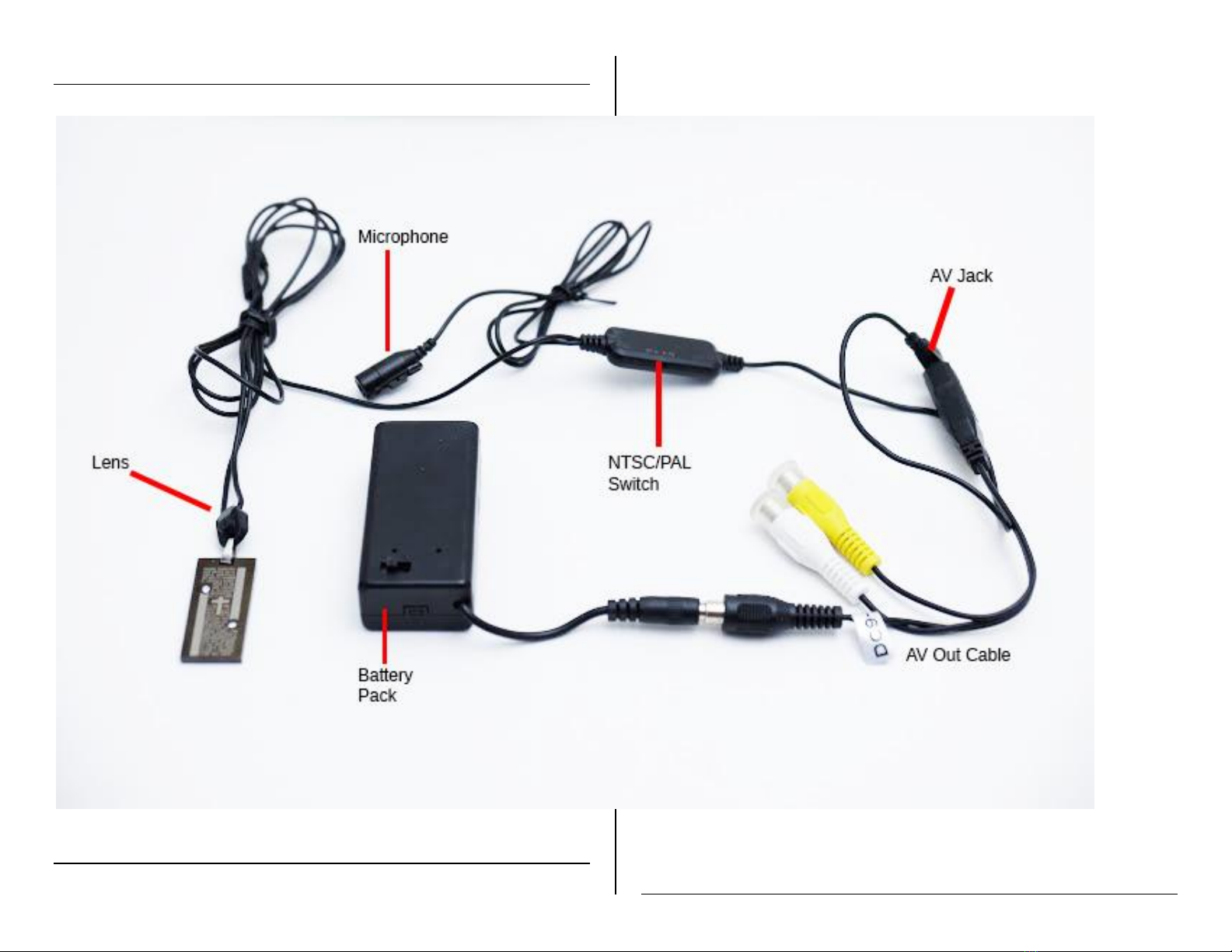

GET FAMILIAR WITH YOUR CM-NL 10 NECKLACE DESIGN CAMERA

OPERATING THE CM-NL 10 NECKLACE DESIGN CAMERA

HOW TO SELECT A VIDEO SYSTEM

1. Locate the NTSC/PAL switch.

2. Turn the switch to N if you need the NTSC system.

3. Turn the switch to P if you need the PAL system.

HOW TO SET THE CAMERA UP WITH YOUR PERSONAL DVR

LawMate portable DVR recommended but not included with purchase

1. Select either NTSC or PAL (see above).

2. Plug the camera into the CAM IN socket on the DVR.

3. Turn the DVR on and press the REC button to start recording.

HOW TO CONNECT THE DEVICE TO A DVR USING THE AV OUT CABLE

1. Use the AV Out cable if you do not own a compatible portable

DVR and would like to instead connect the device to your own

DVR or other display device.

2. Insert the AV Jack into the AV Out cable.

3. Connect the yellow and white cables to your DVR or

TV/monitor.

4. Connect the black cable to the 9V battery or to a different

power supply.

The 9V battery box takes a PP3 (9V) battery.

Be sure to switch the battery box to the ON position

when in use.

5. Captured images are automatically shown on the connected

DVR or TV/monitor.

HOW TO CONNECT THE DEVICE TO LAWMATE WIRELESS EQUIPMENT

1. The camera can also be connected with RF wireless

equipment.

2. Connect the AV jack to a portable transmitter.

3. Connect the portable receiver to a DVR or any recording

device.

4. Set the transmitter and the receiver to the same frequency.

5. Turn the receiver on.

6. Captured images will be shown on the receiver side, but you

must connect the receiver to a monitor or TV in order to view

the transmitted images.

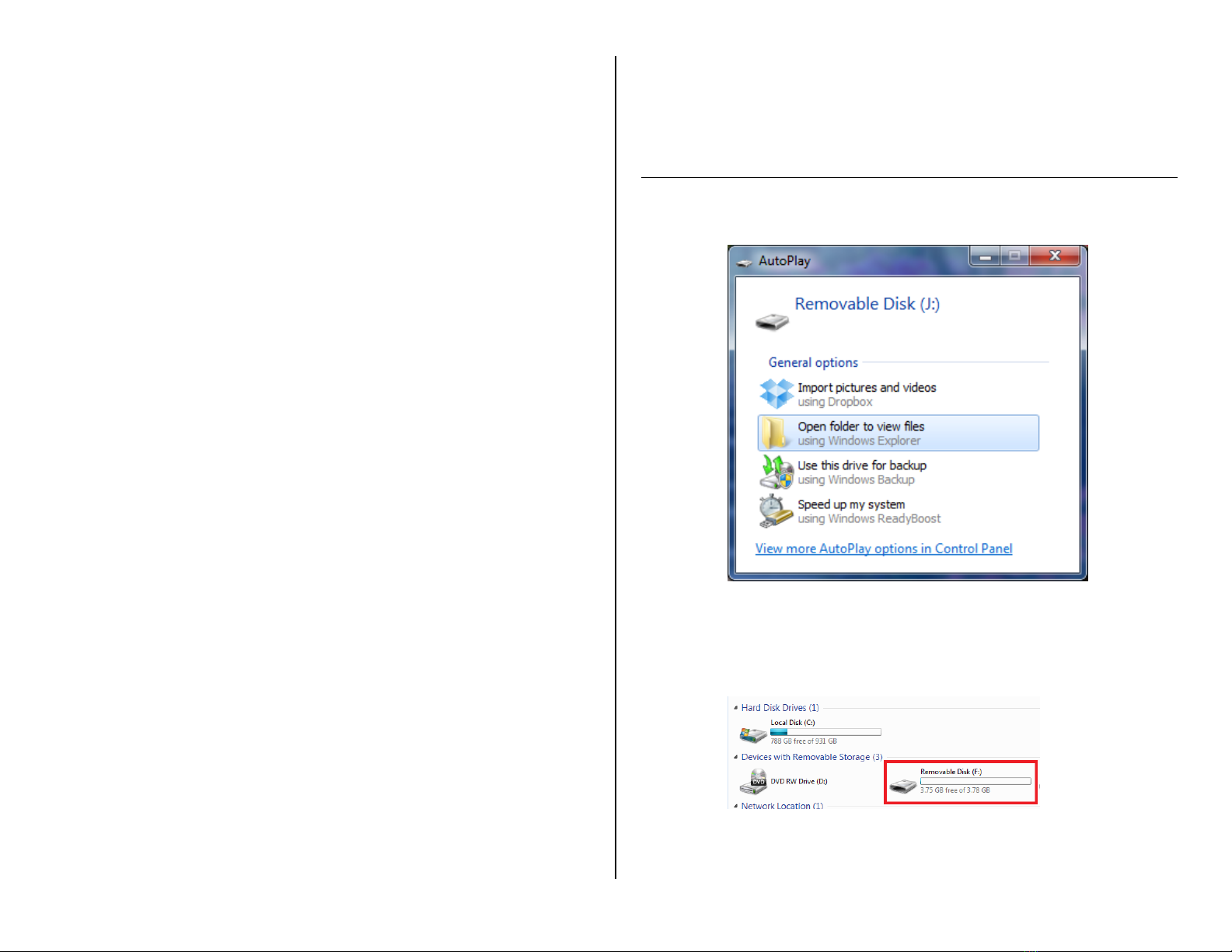

RETRIEVE THE FILES TO YOUR PC

1. Plug the device into your PC using the USB cable

2. Locate “Removable Disk” inside the (My) Computer folder

Or…

Go to Start > Computer > Removable Disk

3. Open the Removable Disk drive

4. Open the [folder name] folder

5. Double click the file you want to view

VLC Player is recommended for watching videos

TROUBLESHOOTING

FOR HELP WITH ANY PROBLEMS

Call our technical support at 770–694–6923

SPECIFICATIONS

Resolution

Up to 640x480, 480TVL

Viewing Angle

60°

Light intensity

4V (lux*sec)

F-number

2.8

DOF

1m - 10m

Cord length

38 inches

Weight

12 g
