Mini Gadgets MCC1080Wifi Manuale utente

Updated 04/11/2018 1 Version 1.3

Full HD Wi-Fi MiniClock Camera

SKU: MCC1080WIFI

THANK YOU FOR PURCHASING THE MCC1080WIFI

Updated 04/11/2018 2 Version 1.3

Please read this manual before operating the camera and keep it

handy.

The MCC1080Wifi is a great addition not only to our line of

miniclock cameras, but to our Wi-Fi cameras as well. With the

high-resolution full HD video capture and remote viewing via

smartphone, this clock allows you to easily check in at any time.

The Wi-Fi functionality allows you to view the live video anytime

and anywhere. With a microSD card installed, you can easily

record without the need for an always-on computer connection.

It's easy to view the recorded footage using your computer, iOS,

or Android device.

Your purchase should include:

1 x MCC1080WiFi

1 x Manual

1 x AC Wall Adapter

1 x USB Cord

Updated 04/11/2018 3 Version 1.3

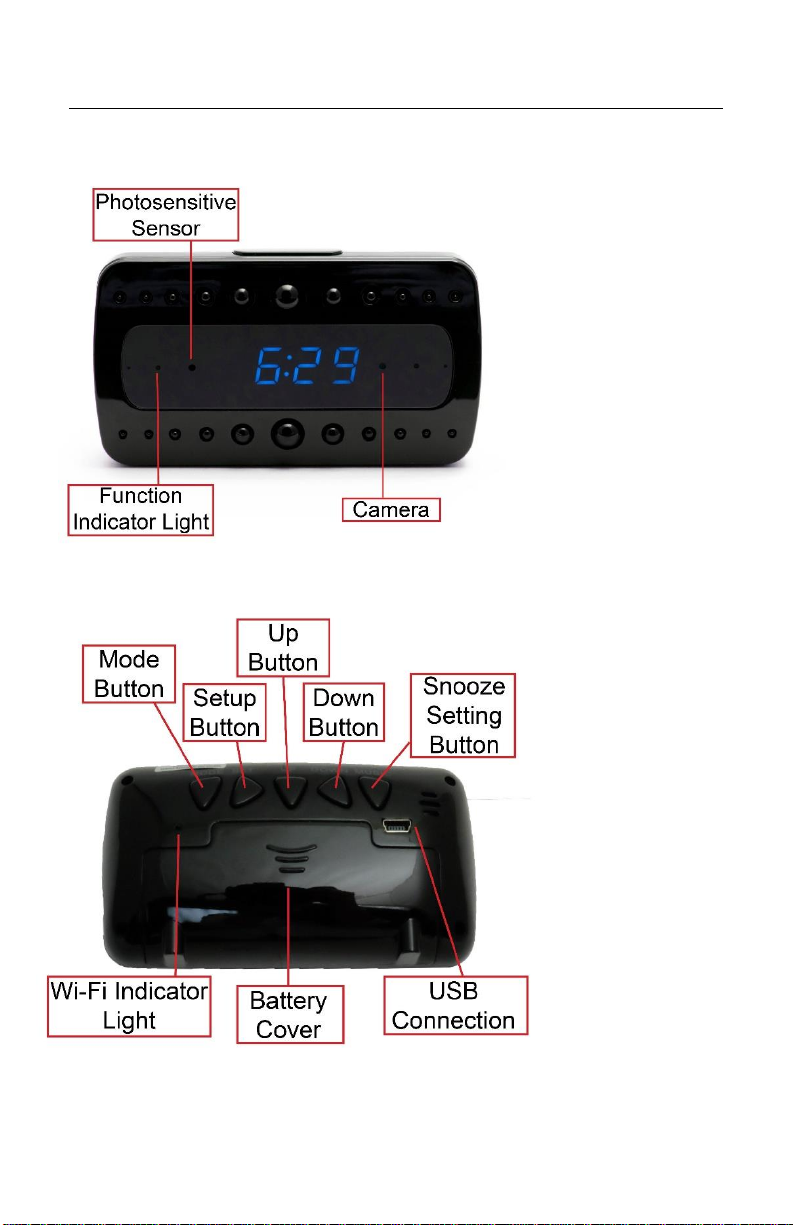

GET FAMILIAR WITH YOUR MCC1080WIFI

Updated 04/11/2018 4 Version 1.3

OPERATING THE CAMERA

BEFORE YOU START

1. You must download and install the “BVCAM” app for your

smartphone. It is available in the Google Play store and the

iPhone app store.

CONNECTING YOUR DEVICE TO YOUR SMARTPHONE

Method One:

1. Turn on your phone’s Wi-Fi settings and connect to your

Wi-Fi.

2. Power on the MCC1080WIFI. The blue light will appear and

blink. When the red light beings to flicker, it means the

device is working.

3. Open the App on your phone.

4. Click the “+” button in the top right corner. Then press

“setup camera Wi-Fi connection”.

5. Input the UID number on the silver sticker of the device,

then enter your Wi-Fi’s password and click “okay”.

6. When it says “WiFi setting completed”, click “add network

camera”. Wait about 10 seconds and the app should

return to the main menu.

7. Your device has been connected successfully, and the red

indicator light on the back will stay on.

a. Note: If your device’s red indicator light is not on,

the attempt to connect to Wi-Fi has failed. Either

retry steps 1-6, or try the second method.

Method Two:

Updated 04/11/2018 5 Version 1.3

1. If the device fails to connect to Wi-Fi by using the first

connection method, the device will automatically restart

after 2 minutes, and enter the second connection.

2. The red indicator light will start to blink. Use your phone’s

Wi-Fi to search for the Wi-Fi signal given off by the device,

and connect to it. This may take up to 3 minutes.

3. After connecting to the device’s Wi-Fi, return to the app

on your phone, and repeat steps 4-6 from Method One.

4. Wait about 30 seconds for the app to return to the main

menu. Your device will show as online, and the Wi-Fi has

been successfully connected.

a. Note: If your device does not show as online, or the

red indicator light does not stay on, then the

attempt to connect has failed. Repeat Method One

or Method Two, and be sure to pay careful

attention to the Wi-Fi network and password you

are connecting to.

HOW TO USE THE CAMERA

1. In order to continue setting up your camera’s settings,

open the mobile app, and in the main menu, press and

hold your camera to open the camera settings.

2. Under “Advanced Configuration”, you can change the

following settings:

a. Alarm Config –You can set it to retrieve motion

detection alerts to your phone or email, and adjust

the motion detection sensitivity to your liking.

b. Wi-Fi Config –You can change the network you

wish to connect to, or use this setting to connect

your camera initially.

Updated 04/11/2018 6 Version 1.3

c. SD Card Recording Config –You can set up the

settings of recording to a MicroSD card. You must

have a MicroSD card inserted into the device.

d. Change P2P password –You can change the

password of your camera. (If you choose to do so,

make sure you keep the password in a safe place.)

e. Camera Reboot –You can reboot your camera

remotely.

3. You can use the smartphone app to adjust the settings and

mode of your camera.

a. At the top of the screen, adjust the video

resolution of your stream by selecting from the

three options (“1080P”, “720P”, “480P”).

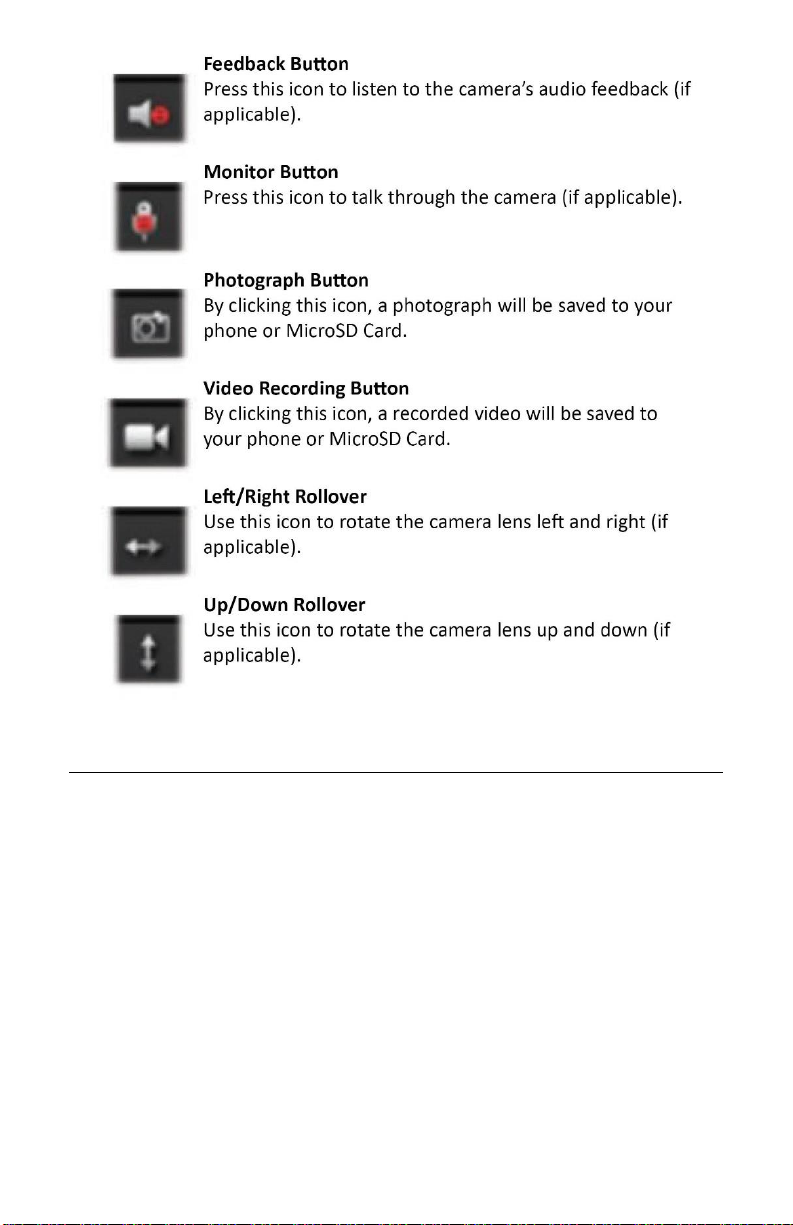

b. The icons at the bottom are the other controls, as

follows:

Updated 04/11/2018 7 Version 1.3

RETRIEVE THE FILES TO YOUR PC

1. Remove the MicroSD Card from the device and plug it into

your computer using a MicroSD Card reader (not

provided).

2. Locate “Removable Disk” inside the (My) Computer folder.

AutoPlay Removable Disk > Open folder to view

files.

Updated 04/11/2018 8 Version 1.3

Or…

Go to Start > Computer > Removable Disk.

3. Open the Removable Disk drive.

4. Open the [folder name] folder.

5. Double click the file you want to view.

VLC Player is recommended for watching videos.

Updated 04/11/2018 9 Version 1.3

TROUBLESHOOTING

THE DEVICE WON’T TURN ON

Make sure the power cable is securely plugged into a

functioning electrical outlet or the battery is charged.

THE DEVICE HAS CRASHED

Reboot the device.

OTHER PROBLEMS

Call our technical support at 770–694–6923

SPECIFICATIONS

Video Resolution

1920x1080

Video Format

.AVI

Frames per Second

Up to 25FPS

Vision Angle

90°

Battery Life

Up to 24 Hours (battery usage)

Can also be powered by AC plug-in

Motion Detection

6 meters for straight-line distance

Type of Memory

External MicroSD

Memory Capacity

Up to 32GB

Recording Usage

1GB ≈ 50 Minutes

USB Interface

2.0 USB

Player Software

VLC recommended

Video Compression

H.264
