Mini Gadgets OmniCoffeeLid Manuale utente
1 Version 1.3
OmniEye Coffee Lid Hidden
Camera
SKU: OmniCoffeeLid
2 Version 1.3
THANK YOU FOR PURCHASING THE
OMNICOFFEELID HIDDEN CAMERA
Please read this manual before operating the
camera and keep it handy.
Your purchase should include:
1 x OmniCoffeeLid
1 x AC Wall Charger
1 x Manual
1 x A/V Cable
1 x MicroUSB Cable
1 x 3.5mm to USB Cable
1 x Remote
1 x 16GB MicroSD Card
1 x MicroSD Card Reader
1 x Charging Adapter with Indicator
Lights
3 Version 1.3

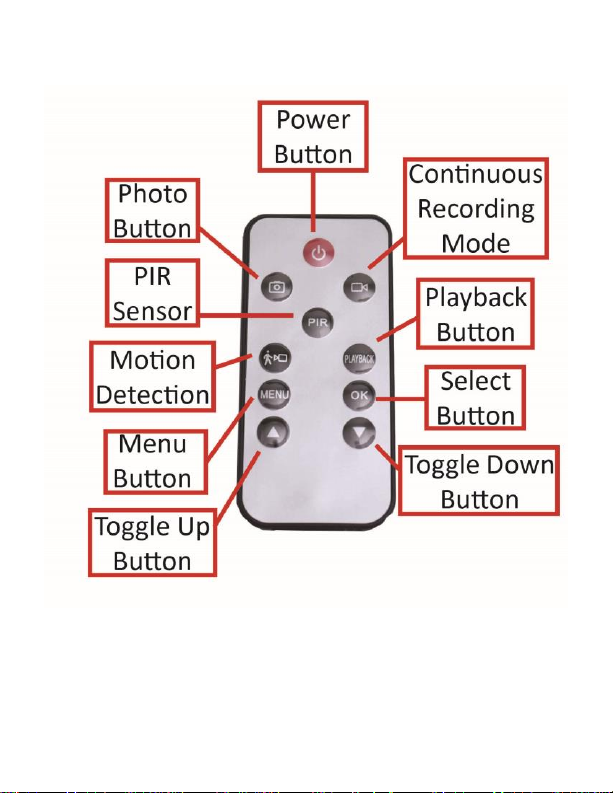

GET FAMILIAR WITH YOUR OMNICOFFEELID HIDDEN
CAMERA
4 Version 1.3
5 Version 1.3
6 Version 1.3
IMPORTANT WARRANY INFORMATION: If the
warranty sticker on your device has been removed or
tampered with, your lifetime warranty will be voided.
You may be charged fees or denied a return should this
happen.
HOW TO CHARGE THE BATTERY
Note: If you are not located in the US, or if you intend
to use this product anywhere other than the US, you
will need to purchase a converter in order to use the AC
wall plug in and avoid damaging the product. Because
different countries use different voltages in their
electrical wiring, you will need a converter that adapts
to the current in your particular country.
1. Disconnect the battery connector (see page 5).
2. Connect the supplied charging adapter to the
battery.
3. Connect the supplied USB cable to the opposite
end of the charging adapter.
4. Connect the supplied wall adapter to the USB
cable and plug into an electrical outlet. While
7 Version 1.3
charging, there will be a red indicator light.
When fully charged, the light will turn blue.
OPERATING THE CAMERA
HOW TO TURN ON THE CAMERA
1. Your device can be powered on in one of two
ways.
a. Connect your device to an AC outlet
using the provided AC wall charger.
b. Use the internal battery to power the
device.
2. If you plug the device into an electrical outlet,
the device will power on automatically and
enter into motion detection mode. The Green
light will blink once and then the Red light will
blink 3 more times and turn off (if motion is
detected immediately). The device is now in
motion detection mode.
3. If you choose to use battery power, point the
remote at the device and press the power
button on the remote. The Green light will blink
8 Version 1.3
once, then the Red light will blink 3 more times
and turn off (if motion is detected
immediately). The device is now in motion
detection mode.
NOTE: If the light doesn’t come on, try many different
angles when pressing the power button and pointing it
at the front/top of the unit. Do not hold down the power
button. Press and release the button only.
4. To put the device into standby mode, stop
motion recording by pressing the motion
detection button one time (see page 4). The
Green light will come on and the device will be
in standby mode.
HOW TO RECORD VIDEO
1. When the camera is in Standby Mode, press the
“Continuous Recording Mode” button (see
page 4). The Indicator LED will flash two times.
2. Once the Indicator LED turns off, the camera is
now recording video.
9 Version 1.3
HOW TO STOP RECORDING VIDEO
1. While the camera is recording video, press the
“Continuous Recording Mode” button once
more. (The Indicator LED will turn on.)
2. The camera has now stopped recording and is
now in Standby Mode.
HOW TO TAKE PICTURES
1. When the camera is in Standby Mode, press the
“Photo Button” (see page 4). The green light
will turn red while the photo is being taken.
2. Once the photo is taken, the light will turn back
to green, and the device will once again be in
standby mode.
HOW TO RECORD MOTION DETECTION
1. When the camera is in Standby Mode, press the
“Motion Detection” button (see page 4).
2. If motion is detected, the Red light will flash 2
times and turn off.
10 Version 1.3
3. If there is no motion after 1 minute, the device
will return to detection standby mode until
motion is detected again. While waiting, the
Green light will be on.
NOTE: If you activate motion detection and there is no
motion currently in front of the camera, there will be no
indication you have entered into motion mode. The green
light will simply remain on. If you wish to confirm that
you have entered into motion detection mode, wave your
hand in front of the camera lens. The unit will flash the
red light 2 times, then the light will turn off confirming
that the device detected your motion and is now
recording video.
HOW TO USE PIR SENSOR (if applicable)
Note: The “Motion Detection” mode and “PIR” mode
work similarly in that they detect motion. The “Motion
Detection” mode relies on the camera itself to detect
motion, while the “PIR” mode relies on the PIR sensors
to detect motion. “PIR” represents “passive infrared
Indice
