Mini Gadgets BBSDVDCover Manuale utente

1 Version 2.0

Bush Baby Stealth DVD Cover

Hidden Camera Manual

SKU: BBSDVDCover

2 Version 2.0

THANK YOU FOR PURCHASING THE BBSDVDCOVER

Please review this manual before using your

BBSDVDCover, and keep it handy.

Your purchase should include:

1 x BBSDVDCover

1 x Remote Control

1 x Removable Battery

1 x MicroUSB Cable

1 x AC Adapter

1 x 16GB MicroSD Card

1 x MicroSD Card Reader

1 x Instruction Booklet

3 Version 2.0

GET FAMILIAR WITH THE BBSDVDCOVER

4 Version 2.0

5 Version 2.0

6 Version 2.0

BEFORE YOU START

To preserve battery power, your device will come with

the battery connector disconnected. Before

attempting to use the device, be sure to connect the

battery’s connector to the circuit board power lead.

Note: If you are not located in the US, or if you intend

to use this product anywhere other than the US, you

will need to purchase a converter in order to use the AC

wall plug in and avoid damaging the product. Because

different countries use different voltages in their

electrical wiring, you will need a converter that adapts

to the current in your particular country.

IMPORTANT WARRANY INFORMATION: If the

warranty sticker on your device has been removed or

tampered with, your lifetime warranty will be voided.

You may be charged fees or denied a return should this

happen.

OPERATING THE BUSH BABY STEALTH DVD COVER

7 Version 2.0

IMPORTANT NOTICE: Allow the device to charge 6 –8

hours before using.

REMOVING AND CHARGING THE BATTERY

1. Remove battery from the inside of the DVD

cover.

2. Disconnect the battery connector that is

connecting the battery to the circuit board (the

red plastic piece connected to red and black

wires). Note: be careful not to pull on the wires

as that could damage them –pull gently on the

plastic pieces instead.

3. Connect the connector on the battery to the

connector on the charging adapter (see page

5).

4. Plug the provided USB cable into the other end

of the charging adapter.

5. Plug the other end of the USB cable into the

wall AC adapter and plug it into the wall.

6. Wait 6 to 8 hours.

8 Version 2.0

a. The larger the battery capacity, the

longer it takes to charge.

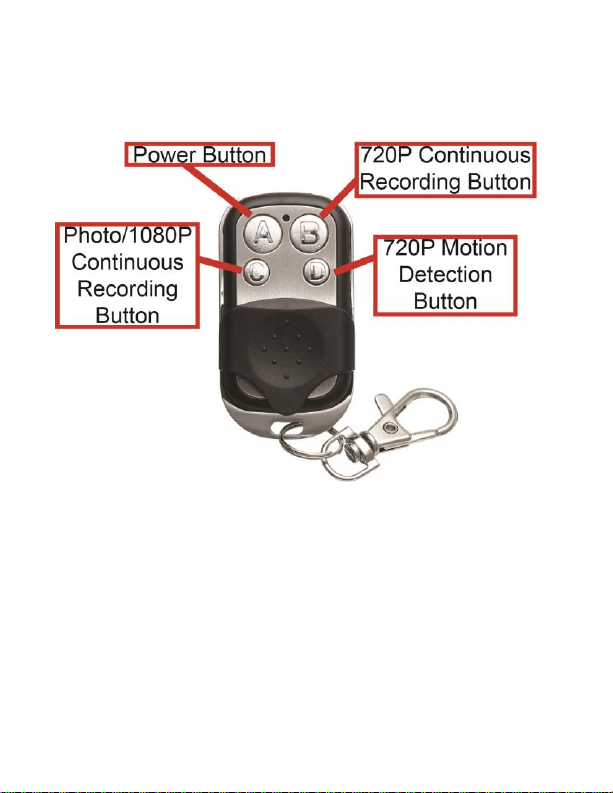

HOW TO TURN ON THE CAMERA

1. Press the Power Button on the remote control

one time (see page 4). The device will

automatically be in standby mode.

HOW TO RECORD CONTINUOUS VIDEO (720P)

1. When the camera is in Standby Mode, press the

“B” button once quickly (see page 4). The unit

will vibrate twice.

2. Once the device quits vibrating, the camera will

start recording video.

3. To stop the recording, press the B button again,

and wait three seconds. The device will

automatically be back in standby mode.

HOW TO RECORD CONTINUOUS VIDEO (1080P)

1. While the camera is in standby mode, hold the

“C” button for 3 seconds.

9 Version 2.0

2. The unit will vibrate three times. The camera is

now recording 1080P video.

3. To save video and return to standby mode,

quickly press the “C”button, and wait three

seconds.

HOW TO RECORD MOTION DETECTION

1. In Standby mode, press the “D” button one

time (see page 4). The unit will vibrate three

times.

2. The unit is now in motion detection mode and

will begin recording video once motion is

detected. Note: there will be no indication

when the device detects motion –it will simply

start recording.

3. To return to standby mode and stop motion

detection, press the “D” button again. The unit

will vibrate.

HOW TO TAKE PICTURES

10 Version 2.0

1. When the camera is in Standby Mode, press the

“C” button (see page 4). The unit will vibrate,

and then take a picture. It then returns to

standby mode.

MICROSD CARD SLOT

To access the MicroSD Card Slot, you must open the

DVD case.

1. Gently push the MicroSD Card into the slot. The

gold contacts on the card will be inserted first,

and they should face the main circuit board.

You will feel some spring resistance before the

card clicks in to place.

2. Never force the card into the Card Slot under

any circumstances. Otherwise, the DVD cover

unit or the MicroSD card itself will be damaged.

3. To remove the SD card, gently push the card in

so that it clicks.

4. The internal spring tension will eject the card.
