CITY MULTI Control System

Smart ME Controller PAR-U02MEDA

Simple Operation Manual

Prior to use, thoroughly read the instructions in this manual to use the product correctly.

Retain this manual for future reference.

Make sure that the CD-ROM, this manual, and Installation Manual are passed on to any

future users.

To ensure safety and proper operation of the remote controller, the remote controller should

only be installed by qualified personnel.

English

Türkçe

Italiano

Română

Français

Slovenščina

Português

Español

Hrvatski

Ελληνικά

Contents

Safety precautions..................................................4

Names and functions of controller components......7

Controller interface..................................................................7

Screen configuration ...............................................................8

Display...................................................................................10

Basic operations...................................................12

Troubleshooting....................................................15

Timer, Schedule, and Auto return .........................16

Maintenance.........................................................17

Product features ...................................................18

Safety precautions

• Thoroughly read the following safety precautions before using the unit.

• Observe these precautions carefully to ensure safety.

WARNING Indicates a risk of death or serious injury.

CAUTION Indicates a risk of serious injury or structural damage.

• After reading this manual, pass it on to the end user to retain for future reference.

• Keep this manual for future reference and refer to it as necessary. This manual should be made available

to those who repair or relocate the controller. Make sure that the manual is passed on to any future users.

• For information not contained in this booklet, please refer to the Instruction Book on the CD-ROM that is

supplied with the Remote Controller.

General precautions

WARNING

Do not install the unit in a place where large

amounts of oil, steam, organic solvents, or

corrosive gases, such as sulfuric gas, are present

or where acidic/alkaline solutions or sprays

are used frequently. These substances can

compromise the performance of the unit or cause

certain components of the unit to corrode, which

can result in electric shock, malfunctions, smoke,

or fire.

To reduce the risk of shorting, current leakage,

electric shock, malfunctions, smoke, or fire, do

not wash the controller with water or any other

liquid.

To reduce the risk of electric shock, malfunctions,

smoke or fire, do not operate the touch panel or

touch other electrical parts with wet hands.

When disinfecting the unit using alcohol, ventilate

the room adequately. The fumes of the alcohol

around the unit may cause a fire or explosion

when the unit is turned on.

To reduce the risk of injury or electric shock,

before spraying a chemical around the controller,

stop the operation and cover the controller.

To reduce the risk of injury or electric shock, stop

the operation and switch off the power supply

before cleaning, maintaining, or inspecting the

controller.

If any abnormality (e.g., burning smell) is noticed,

stop the operation, turn off the power switch, and

consult your dealer. Continued use of the product

may result in electric shock, malfunctions, or fire.

Properly install all required covers to keep

moisture and dust out of the controller. Dust

accumulation and water can cause electric shock,

smoke, or fire.

CAUTION

To reduce the risk of fire or explosion, do not

place flammable materials or use flammable

sprays around the controller.

To reduce the risk of damage to the controller, do

not directly spray insecticide or other flammable

sprays on the controller.

To reduce the risk of environmental pollution,

consult an authorized agency for proper disposal

of remote controller.

To reduce the risk of electric shock or

malfunctions, do not touch the touch panel with a

pointy or sharp object.

To reduce the risk of injury and electric shock,

avoid contact with sharp edges of certain parts.

To avoid injury from broken glass, do not apply

excessive force on the glass parts.

To reduce the risk of injury, wear protective gear

when working on the controller.

Relocation and repairs

WARNING CAUTION

The controller should be repaired or moved only

by qualified personnel. Do not disassemble or

modify the controller.

Improper installation or repair may cause injury,

electric shock, or fire.

To reduce the risk of shorting, electric shock, fire,

or malfunction, do not touch the circuit board with

tools or with your hands, and do not allow dust to

accumulate on the circuit board.

Additional precautions

To avoid damage to the controller, use

appropriate tools to install, inspect, or repair the

controller.

This controller is designed for exclusive use with

the Building Management System by Mitsubishi

Electric. The use of this controller for with other

systems or for other purposes may cause

malfunctions.

To avoid discoloration, do not use benzene,

thinner, or chemical rag to clean the controller.

To clean the controller, wipe with a soft cloth

soaked in water with mild detergent, wipe off the

detergent with a wet cloth, and wipe off water with

a dry cloth.

To avoid damage to the controller, provide

protection against static electricity.

Properly dispose of the packing materials. Plastic

bags pose suffocation hazard to children.

To avoid damage to the controller, do not

overtighten the screws.

Safety precautions

The CD-ROM that is supplied with Smart ME Controller

WARNING The CD-ROM can only be played on a CD-drive or a DVD-drive. Do not attempt

to play the CD-ROM on an audio CD player as this may damage your ears and/

or speakers.

The CD-ROM that is supplied with the Smart ME Controller contains an Installation Manual and Instruction

Book.

Each document is in PDF format.

Viewing documents requires a computer with Adobe®Reader®or Adobe®Acrobat®installed.

“Adobe®Reader®” and “Adobe®Acrobat®” are registered trademarks of Adobe Systems Incorporated.

Safety precautions

Names and functions of controller components

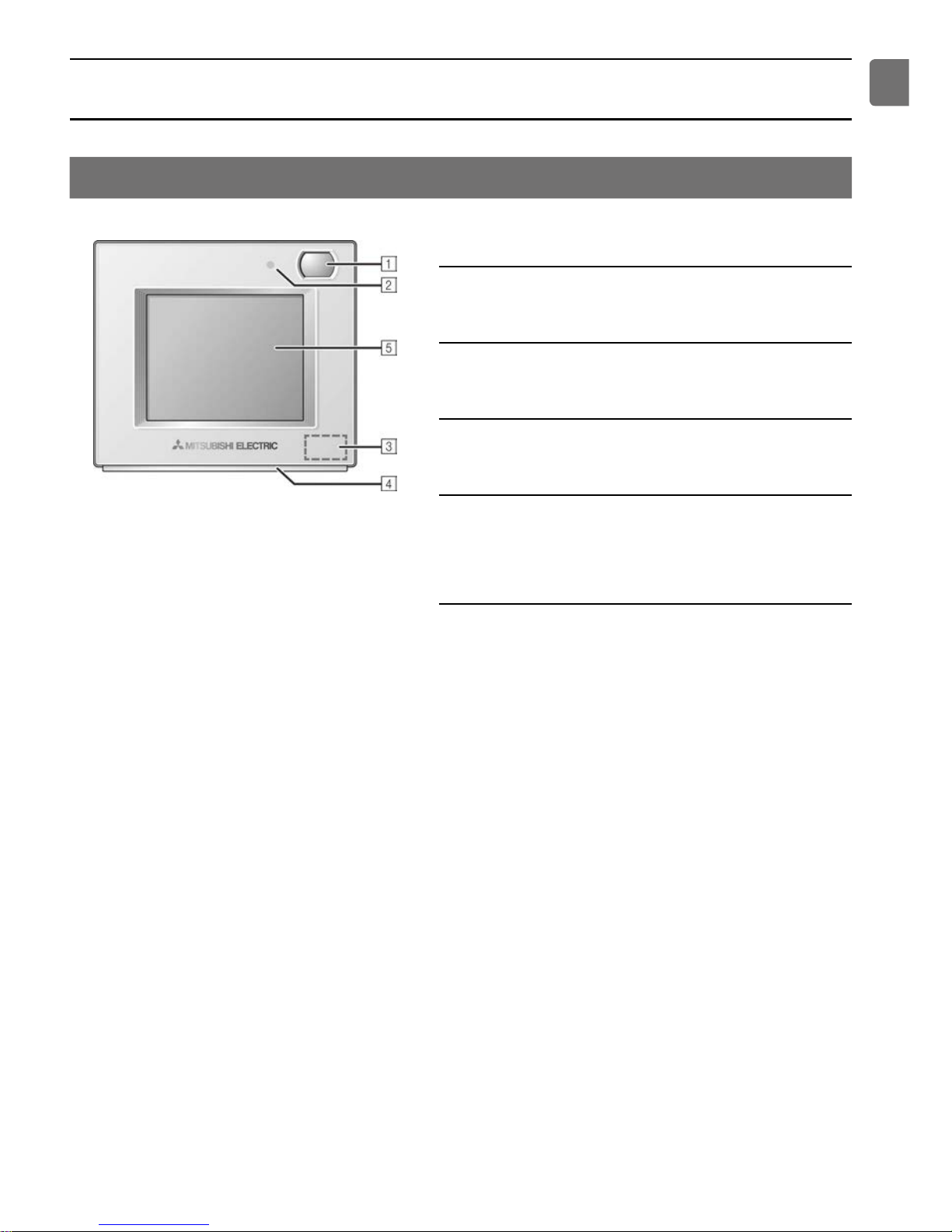

Controller interface

▌

1Occupancy Sensor

The occupancy sensor detects vacancy for energy-save

control.

▌

2Brightness Sensor

The brightness sensor detects the brightness of the room for

energy-save control.

▌

3Temperature & Humidity Sensor

The sensor detects the room temperature and the relative

humidity.

▌

4LED Indicator

The LED indicator indicates the operation status in different

colors.

The LED indicator lights up during normal operation, lights off

when units are stopped, and blinks when an error occurs.

▌

5Touch panel & Backlit LCD

The touch panel shows the operation settings screen.

When the backlight is off, touching the panel turns the

backlight on, and it will stay lit for a predetermined period of

time.

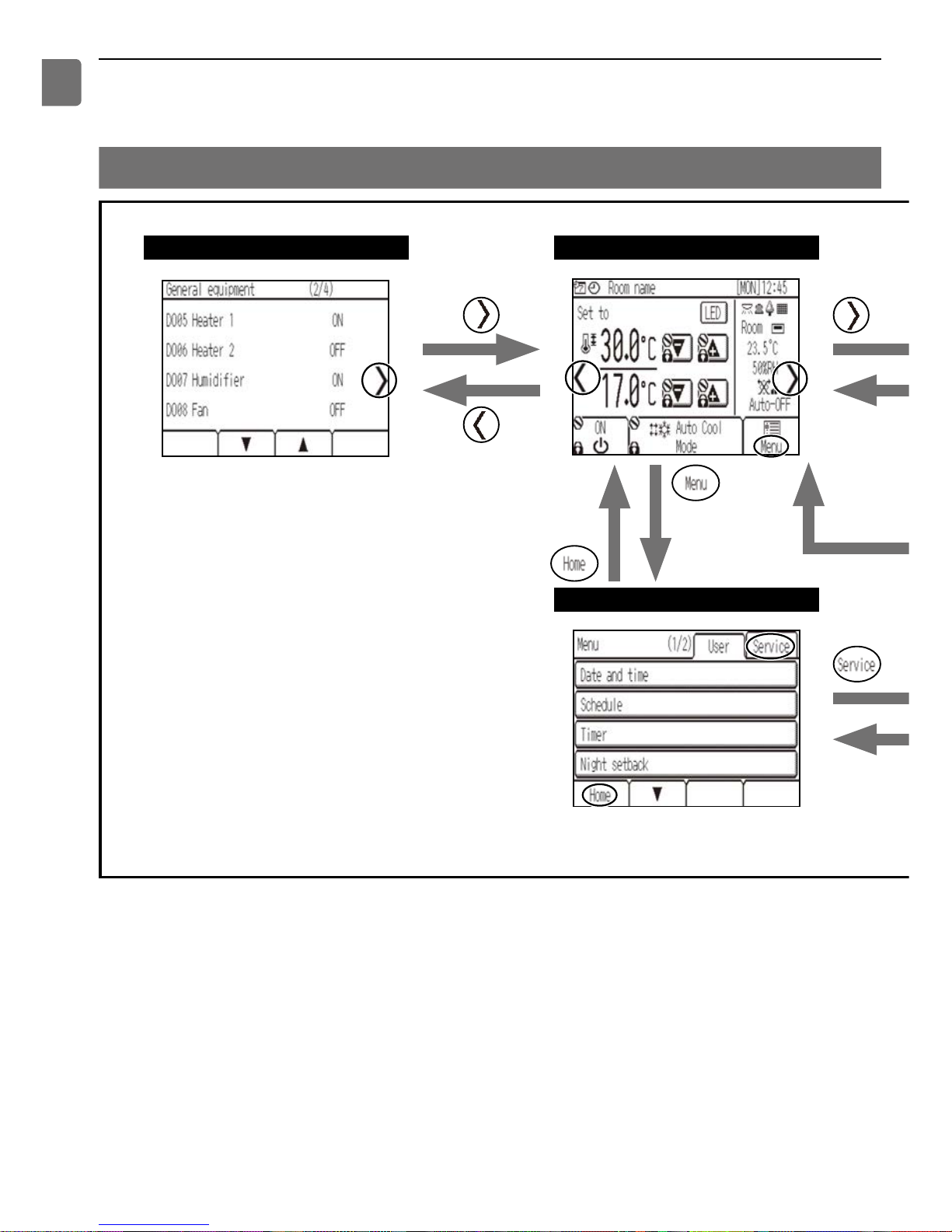

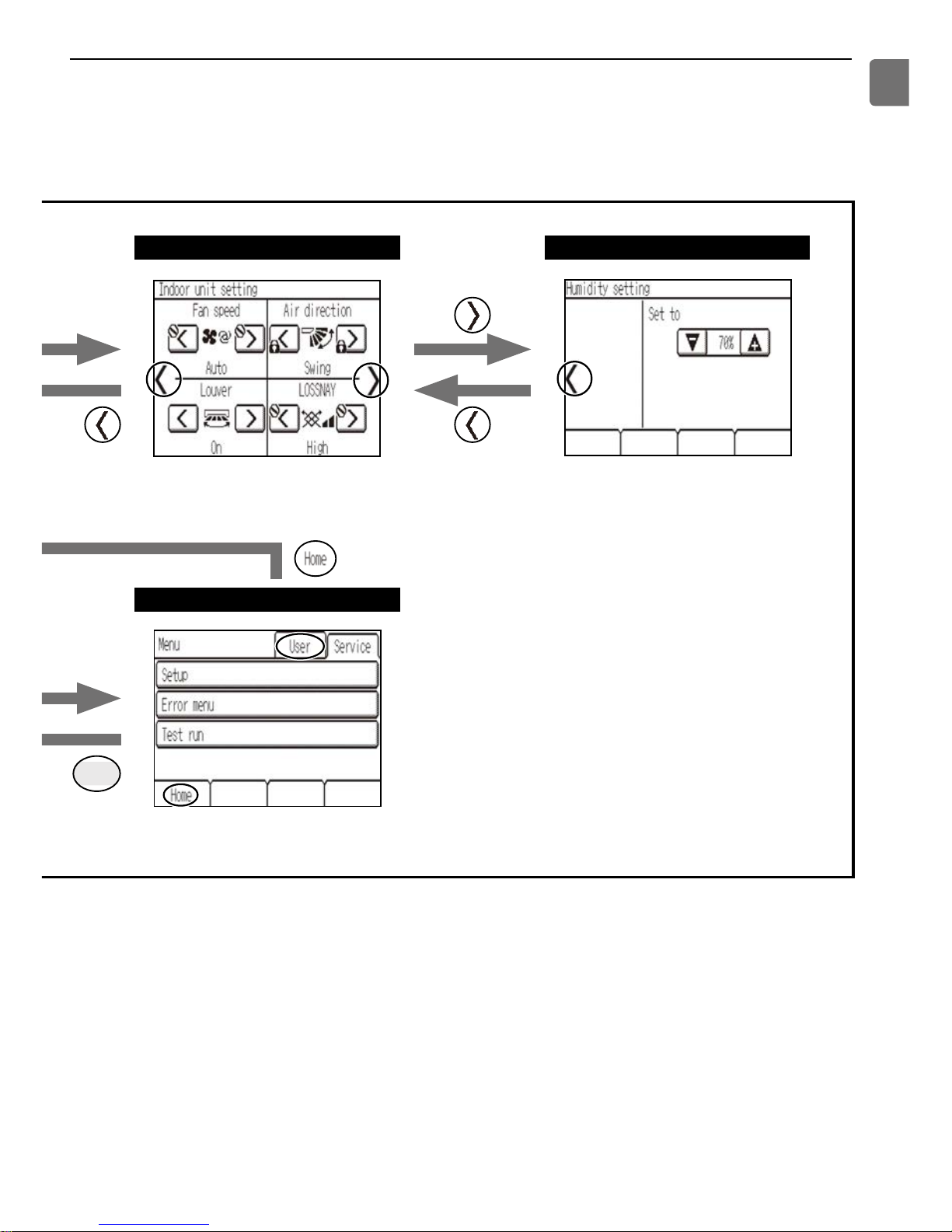

Screen configuration

General equipment screen Home screen Indoor unit setting screen Humidity setting screen

This screen will not appear if no

Advanced HVAC CONTROLLERs

(AHC) are connected.

The setting items that are not available

for the connected indoor unit will not

appear on the display.

This screen will not appear if no

Advanced HVAC CONTROLLERs

(AHC) are connected.

Menu (User) screen Menu (Service) screen

A password is required to access the

Menu (Service) screen.

Names and functions of controller components

Screen configuration

General equipment screen Home screen Indoor unit setting screen Humidity setting screen

This screen will not appear if no

Advanced HVAC CONTROLLERs

(AHC) are connected.

The setting items that are not available

for the connected indoor unit will not

appear on the display.

This screen will not appear if no

Advanced HVAC CONTROLLERs

(AHC) are connected.

Menu (User) screen Menu (Service) screen

A password is required to access the

Menu (Service) screen.

Names and functions of controller components

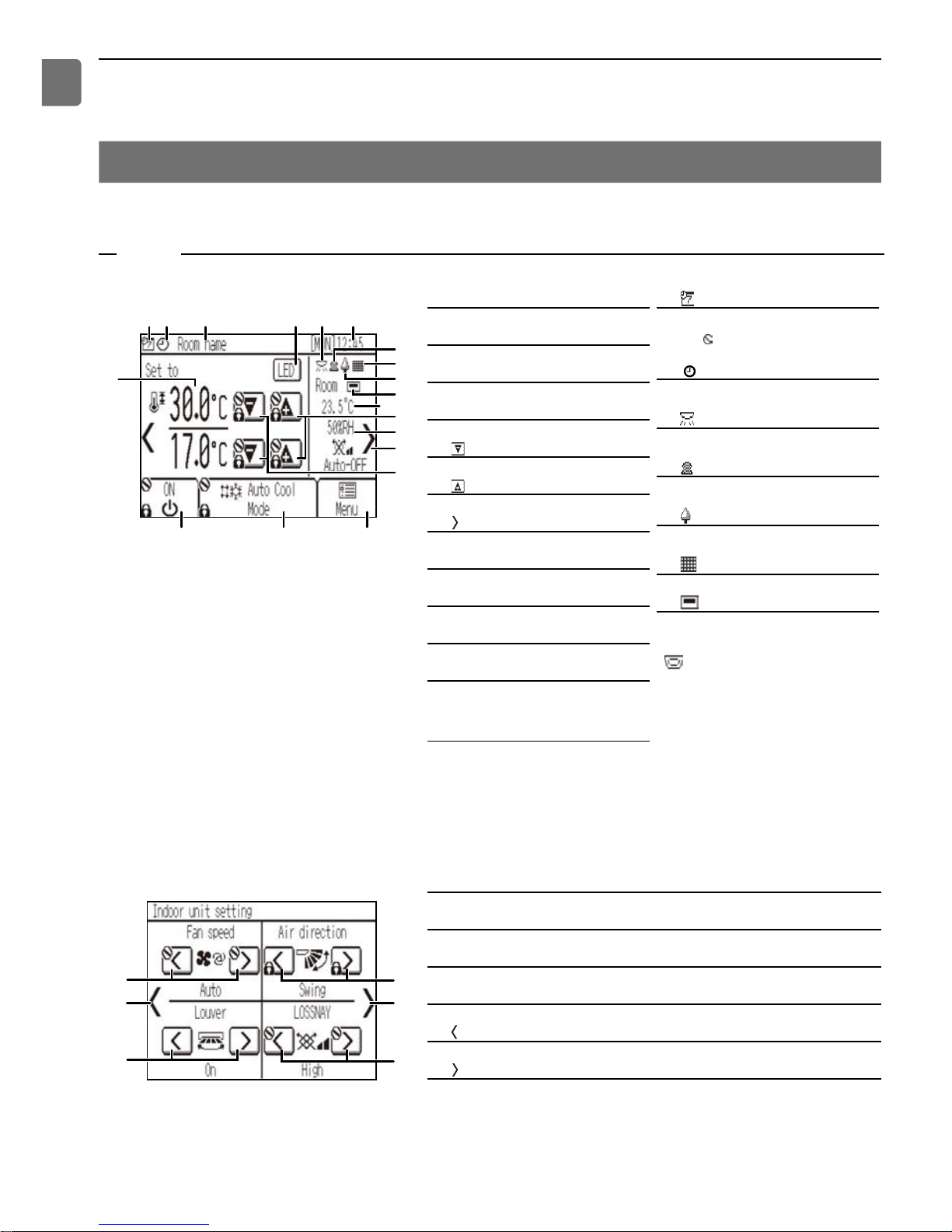

Display

▌

Home screen

Basic

* All icons are displayed for explanation.

8 e b4cd

2 3

▌

1[ON/OFF] button

Touch to turn ON/OFF the indoor unit.

▌

2[Operation mode] button

Touch to change the operation mode.

▌

3[Menu] button

Touch to bring up the Menu screen.

▌

4LED Indicator ON/OFF button

Touch to turn ON/OFF the LED indicator.

▌

Touch to decrease the set temperature.

▌

Touch to increase the set temperature.

▌

Touch to go to the Indoor unit setting screen.

▌

8Room name

Room name appears here.

▌

9Room temperature

Current room temperature appears here.

▌

0Humidity

Current room humidity appears here.

▌

aSet temperature

The set temperature appears here.

The display varies with the selected operation

mode.

▌

bDay and time

Current day and time appear here.

▌

Appears when the scheduled operation is being

performed.

The icon appears when the timer operation is

prohibited.

▌

Appears when the ON/OFF timer is activated or

when the Night setback function is enabled.

▌

Appears when the brightness sensor detects light

brighter than a predetermined level.

▌

Appears when the occupancy sensor senses an

occupant.

▌

Appears during the energy-save control (depending

on the indoor unit model).

▌

Appears when the filter needs maintenance.

▌

Appears when the built-in thermistor on the

remote controller is activated to monitor the room

temperature.

appears when the thermistor on the indoor unit

is activated to monitor the room temperature.

▌

Indoor unit setting screen

* All icons are displayed for explanation.

▌

pFan speed

Touch to change the fan speed.

▌

qLouver

Touch to turn ON/OFF the louver.

▌

rAir direction

Touch to change the air direction.

▌

sLOSSNAY

Touch to change the fan speed of the LOSSNAY unit.

▌

Touch to return to the Home screen.

▌

Touch to go to the Humidity setting screen.

Names and functions of controller components

Altri manuali per par-u02meda

Indice

Altri manuali Mitsubishi Electric Sistema di controllo

Mitsubishi Electric

Mitsubishi Electric M800W Series Guida all'installazione

Mitsubishi Electric

Mitsubishi Electric MELDAS C6 Manuale del proprietario

Mitsubishi Electric

Mitsubishi Electric AG-150A-A Manuale utente

Mitsubishi Electric

Mitsubishi Electric C70 Guida utente

Mitsubishi Electric

Mitsubishi Electric LMAP02-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric GB-24A Manuale utente

Mitsubishi Electric

Mitsubishi Electric C80 Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELDAS 60 Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-CT01MAA-SB Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-YT34STA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-33MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MJ-310E Manuale utente

Mitsubishi Electric

Mitsubishi Electric MCC-50A Guida rapida

Mitsubishi Electric

Mitsubishi Electric MEHITS MANAGER 3000+ Manuale utente

Mitsubishi Electric

Mitsubishi Electric Trane TE-50A Manuale utente

Mitsubishi Electric

Mitsubishi Electric M800VW Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric M800VW Series Manuale del proprietario

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-WHS01WF-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELDAS FCU6-DX561 Manuale utente

Mitsubishi Electric

Mitsubishi Electric M70V Series Manuale di istruzioni

Mitsubishi Electric

Mitsubishi Electric AE-200A/AE-50A Manuale utente

Manuali Sistema di controllo popolari di altre marche

Pentair Pool Products

Pentair Pool Products Compool Manuale utente

ComfortNET

ComfortNET CTK04 Manuale utente

Fireye

Fireye InSight II 95DSS3 Manuale utente

CAME

CAME G3000 Manuale utente

Idemia

Idemia MorphoAccess VP MD Manuale utente

Axis

Axis P1445-LE-3 Manuale utente

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuale utente

CNC-Step

CNC-Step High-Z T-Series Manuale utente

Doosan

Doosan DVF Series Manuale utente

Honeywell

Honeywell KAP 140 Manuale utente

Honeywell

Honeywell vk41 series Manuale utente

AirBench

AirBench FPW Guida all'installazione

Cypress

Cypress HHR-3160 Manuale utente

CAME

CAME GLT40AOS Manuale utente

Zonex

Zonex GEN II -VVT Guida utente

Altronics

Altronics K 9650 Manuale utente

micro-trak

micro-trak RoadMaster Manuale utente

micro-trak

micro-trak Calc-An-Acre II Manuale utente

Mitsubishi Electric par-u02meda Manuale utente

Manuali Sistema di controllo popolari di altre marche
