Monitor Audio M1 Manuale utente

Monitor series.

Monitor Audio builds high performance loudspeakers

to suit every budget and system requirement, be it

two-channel Hi-Fi, multi-channel AV or fully integrated.

Drawing directly on Monitor Audio’s 37 years at the

leading edge of metal drive unit technology, the

models in the Monitor Series have been designed to

deliver nothing less than benchmark shattering

performance, aesthetic appeal and finish.

The budget speaker is dead. Welcome to the

Monitor Series.

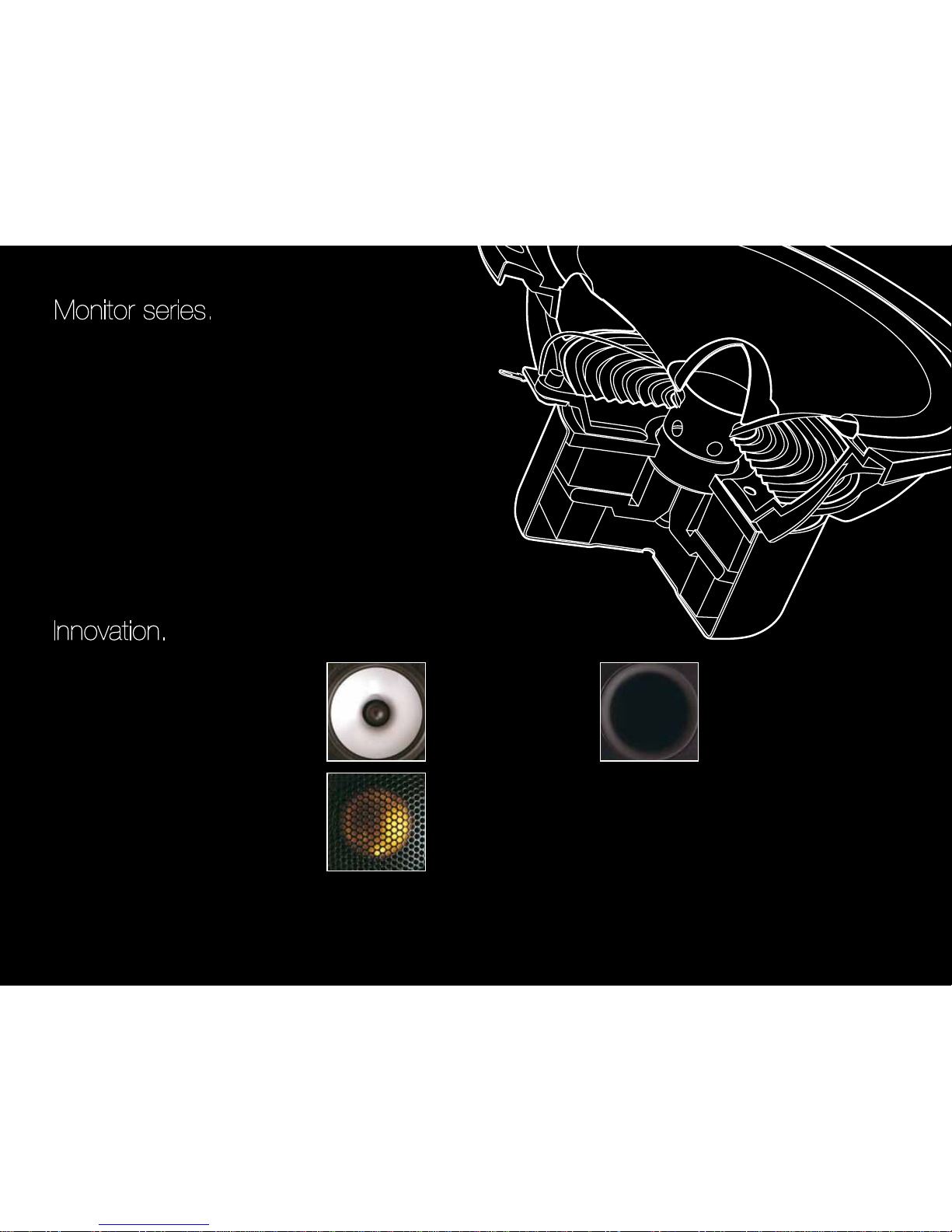

The Monitor series bass-mid drive unit, with its

professional-grade 8-point cap-head bolt fixings,

utilises MMP®II technology. An advance in driver

technology developed from Monitor Audio’s original

MMP® (Metal Matrix Polymer) cone material and uses

a high-pressure injection moulding process to achieve

different thickness at critical points of the cone

geometry. MMP®II provides better stiffness and

consistency and tighter production tolerances

resulting in superior sonic performance.

The bass-mid chassis design has a vented rear

section that reduces thermal power compression to

deliver increased dynamic range and higher sound

pressure levels. This venting also lowers distortion by

balancing the pressure within

the motor system. It means

clean, crisp bass and an even

clearer mid-range.

High frequency performance has

been improved in line. Further

development of the C-CAM®

tweeter - in particular the profiling

of its surround and front plate

design - has resulted in a still

smoother response and better

dispersion.

The emphasis on sound quality and engineering follows

through to the crossover which uses high grade

capacitors, a low distortion-

laminated core and air core

inductors. And to the reflex port

design. The inside of the tube has

a smooth, soft matt coating which

greatly reduces air turbulence and

unwanted noise. Faster transfer of

air results in tighter, more precise bass performance.

Innovation.

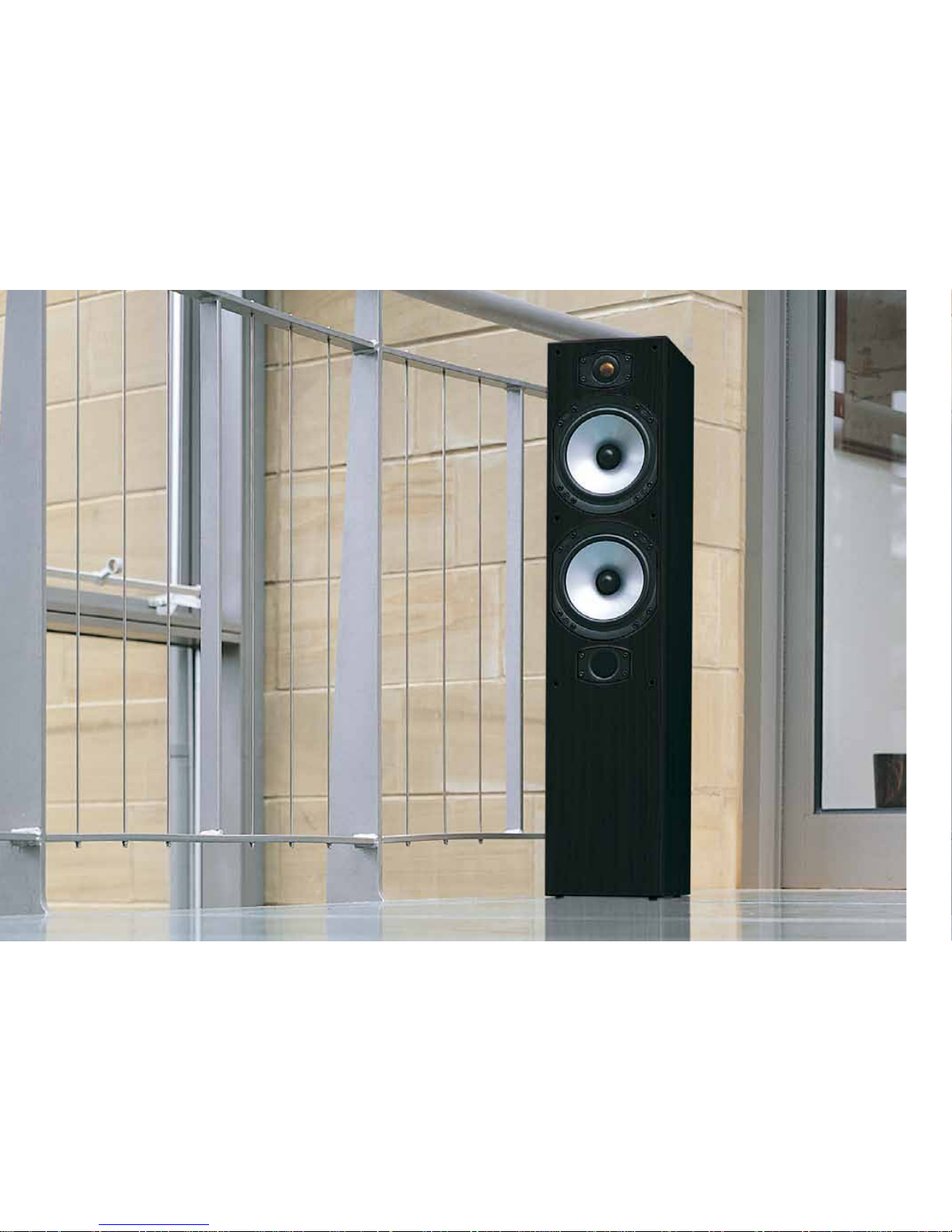

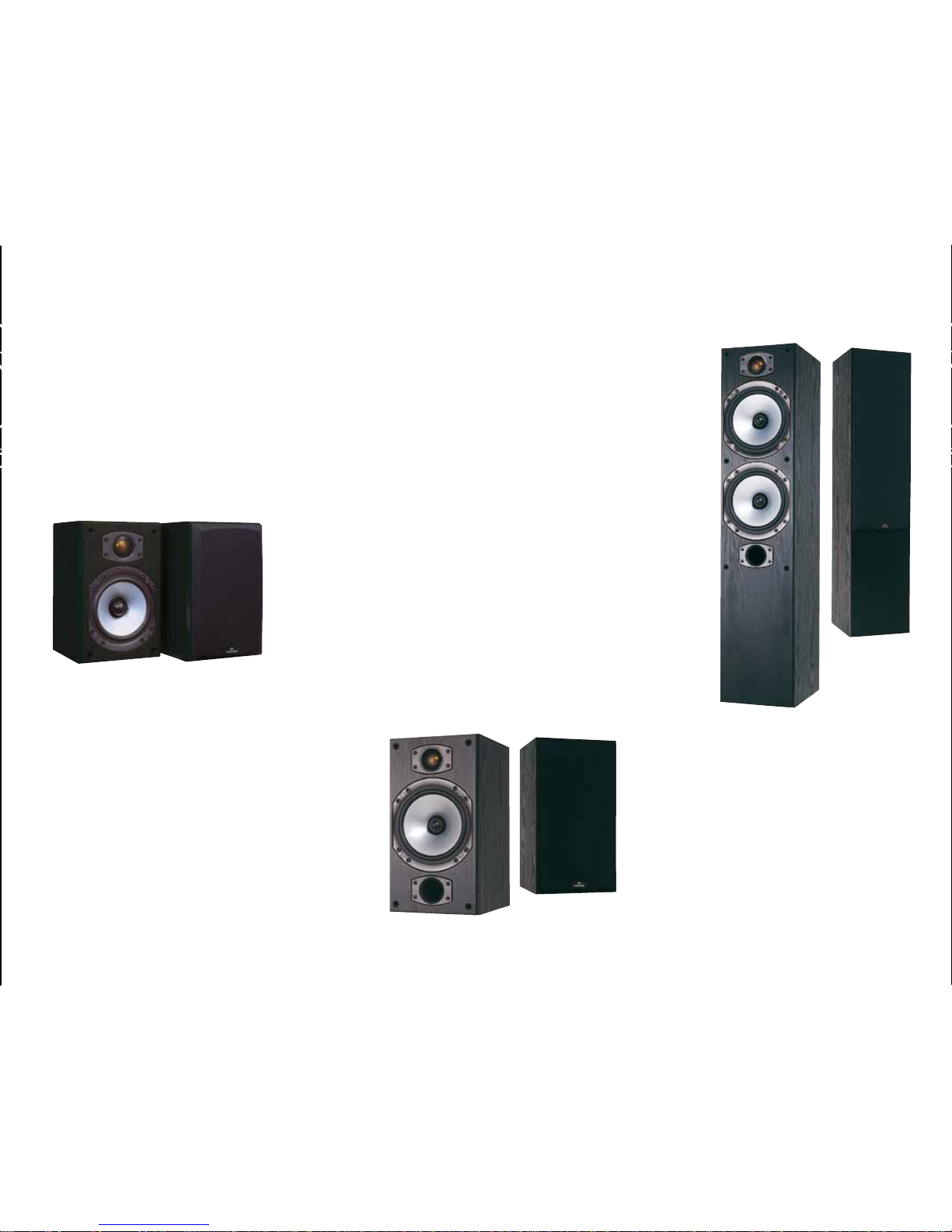

A svelte 2 1/2-way floorstander, the new M4 builds on the

considerable musical strengths of the M2 by providing greater

bass extension and weight. Rigid construction is again key to

achieving the clean, un-boxy sound.

The M4 employs multiple bracing positioned at critical resonance

nodes. The two 6.5-inch MMP®II drivers have been designed

specifically for the M4. The lower unit handles bass only, the other

provides punchy upper bass and a clear, natural mid-band right

up to the crossover point with the tweeter at 2.6 KHz. Unlike the

M2, the Monitor M4 has a reflex port at the rear as well as the

front. This is to provide maximum airflow at low frequencies and

reduces air pressure that can lead to bass compression effects.

For medium to large rooms or systems dedicated to home

cinema, the rear port can be blocked with a foam bung to tailor

the bass response. This allows greater placement flexibility in

smaller rooms. The effects are lower bass extension at the

expense of bass impact. High quality machined cone floor spikes

provide a stable platform and excellent isolation.

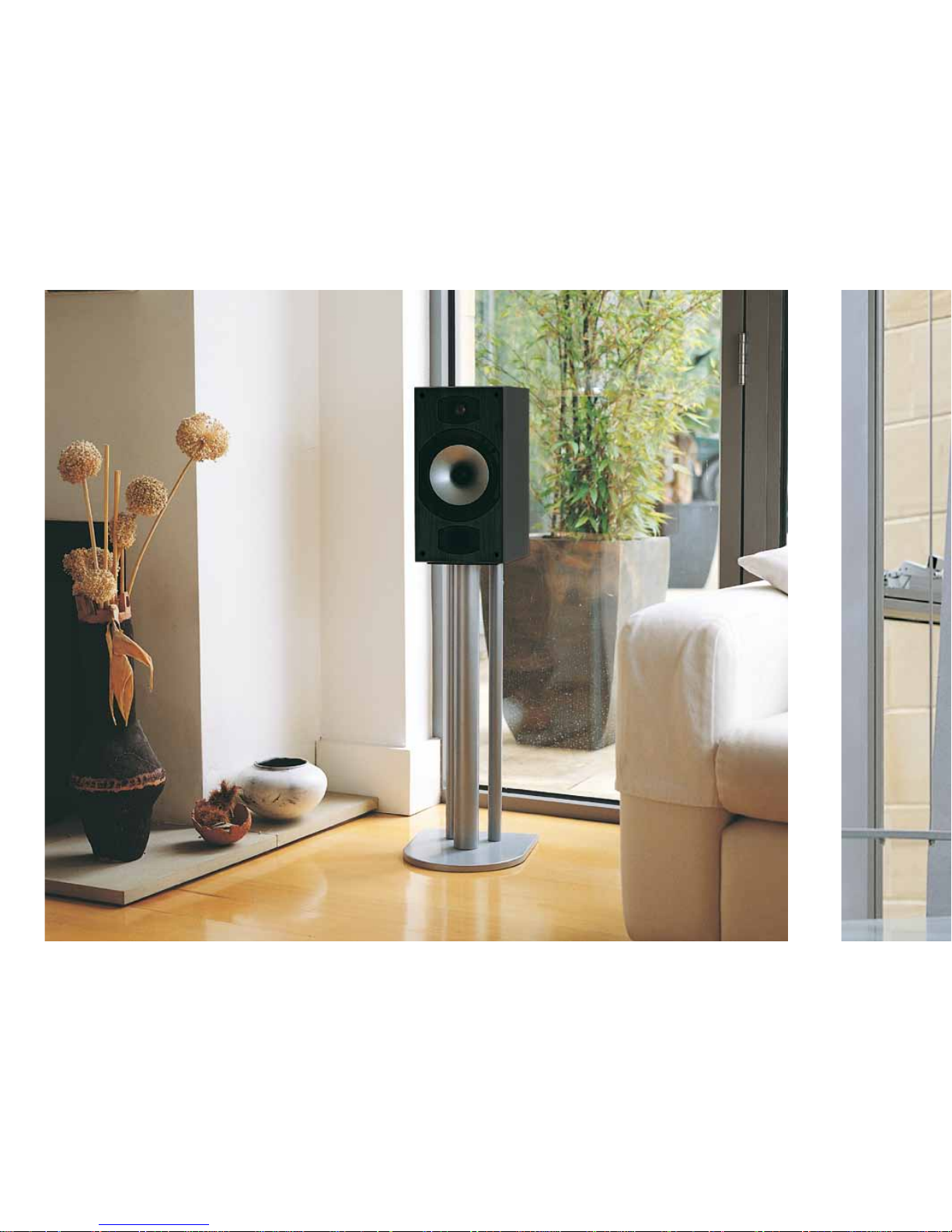

The M2, is 2-way design intended for stand or shelf mounting. Its

6.5-inch MMP®II bass-mid driver is unique to it and designed to

deliver punchy, powerful bass and transparent mid-range right up

to the cross-over point with the tweeter at 2.8KHz. Special ‘figure

eight’ internal bracing gives very rigid construction, helping the

M2 to achieve a clean, un-boxy sound reminiscent of high end

speakers using very heavy or high-tech construction techniques.

The front-ported design makes siting less critical than with many

rivals speakers.

The Monitor M2 can be placed close to a rear wall without the

bass becoming boomy - a big advantage in smaller rooms.

Don’t be fooled by the size. The baby of the Monitor series

delivers a sound that’s anything but small, rivalling far more costly

‘compact monitors’ for bass extension, mid-range resolution and

precise imaging within a stunningly open soundstage.

Rigid, low diffraction cabinet design and the superbly effective

combination of Monitor Audio’s 5.5-inch MMP®II bass-mid driver

and C-CAM® tweeter are the keys to the M1’s exceptional

performance and versatility in both stereo and multi-channel

applications.

MSW-10

The MSW-10 is an ultra-compact but awesomely

powerful subwoofer equipped with a potent integral

100 Watt class A-B amplier. The MSW’s rigid,

curved and cubic MDF cabinet houses a long-

throw 10” driver, which is forward-ring to make

the process of positioning the MSW-10 as simple

and fuss-free as possible. Although designed

to underpin the Monitor series standmount and

oorstanding speakers with deep controlled bass

frequencies, the MSW-10 will integrate beautifully and

easily with any compact, high performance home

theatre system by adjusting its variable volume control,

its wide range of crossover adjustment between 45Hz

and 150Hz, and its phase switch.

Stereo line and LFE inputs allow the MSW-10 to

contribute a seismic dimension to both music and

multichannel movie systems. For added convenience,

the MSW-10s signal sensing feature automatically

turns it on and off at either end of a performance.

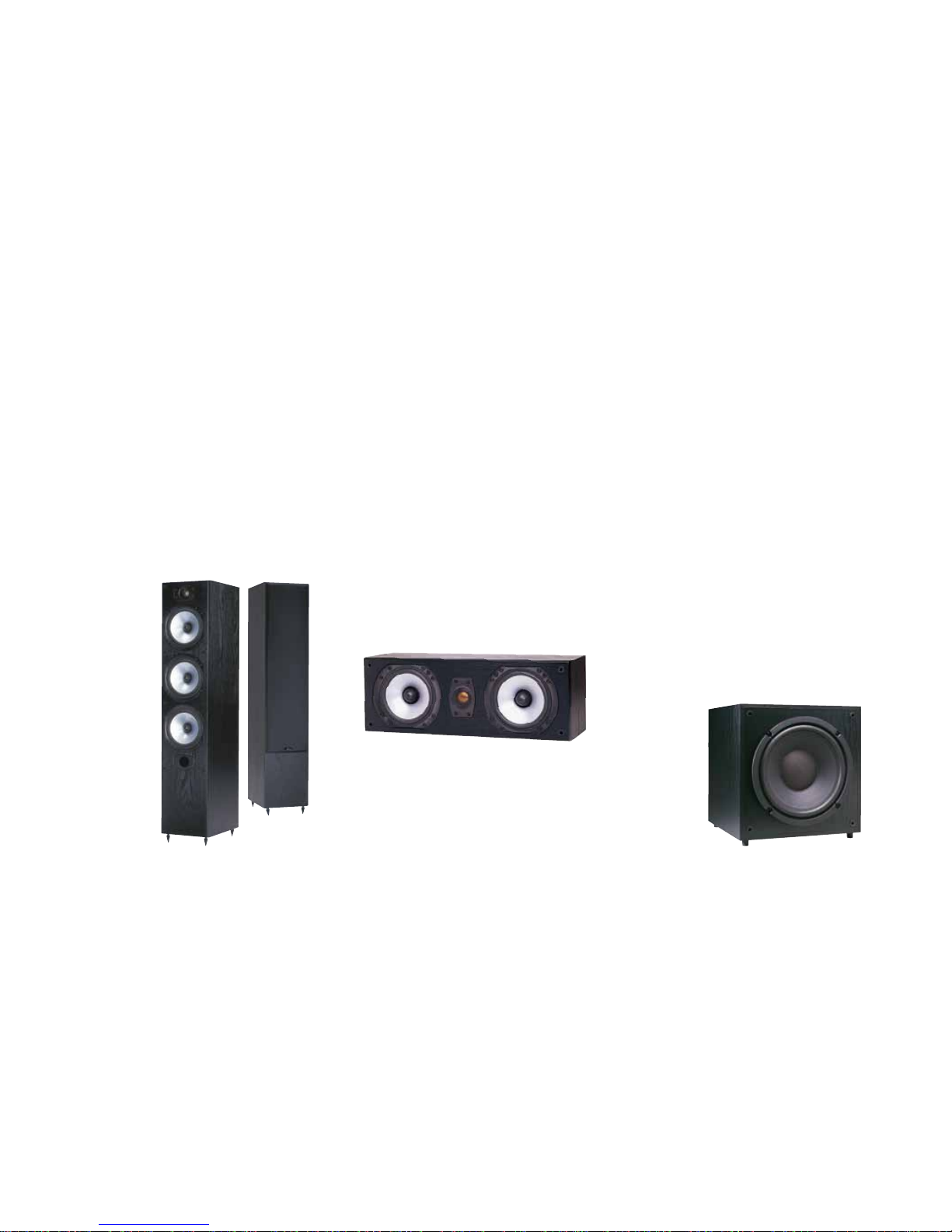

The Monitor 6 extends the musical reach of the

marque by providing a still wider bandwidth, high

power handling, greater efficiency and more effortlessly

realised dynamics. No fewer than three MMP®II

drivers share the frequencies right up to the crossover

with the C-CAM® tweeter. The lower unit handles

deep bass, the other pair provide punchy upper bass

and the signature Monitor Audio mid-band response.

A beautifullly crafted rigid cabinet, 3-D contoured

grilles and reflex port technology complete a

worldclass speaker design, which delivers

unprecedented effortlessness, bass weight and

extension.

Mcentre

The M centre is the vital aesthetic and sonic link in any

Monitor series-based home cinema or multi-channel

music system. Bringing extra solidity, depth and

realism to the front soundstage, especially with

dialogue. Recognising that the centre is often the

hardest working speaker in an A/V system, the new M

centre has been designed with two 5.5-inch MMP®II

bass-mid drivers that hand over to the C-CAM®

tweeter at 2.6KHz. A special crossover network

ensures the M centre has excellent vertical and

horizontal off axis frequency response, eliminating the

need for a ‘hot seat’ listening position and integrating

smoothly with the Monitor M2, M4 or M6 in a home

theatre set-up. An easy amplifier load, the M centre

will get the best from even lower powered A/V

amplifiers (receivers). It can be driven to respectable

levels with a modest 20 Watts.

MSW-10

Low Frequency Limit 28Hz

Upper Frequency Limit 45–150 Hz Variable

Amplier Output 100W (RMS)

Amplier Classication Class A-B amplier

Low Pass Filter Alignment 12dB / per octave lter

Cabinet Specication Bass Reex 18mm (3/4”)

M.D.F construction

Driver Complement 1 x 10” long throw

subwoofer driver

Input Impedance 20K ohms

Mains Input Voltage

(factory preset)

110 - 120 Vac / 220 - 240

Vac 50/60Hz

External Dimensions

(H X W X D) mm (Inches)

Inc. Feet

320 x 280 x 280

(12 5/8 x 11 x 11)

Weight (Each)

Kg (Ibs) 12.5 (27.5)

M1M2M4M6MCentre

Frequency Response 55Hz - 22kHz 42Hz - 22kHz 36Hz - 22kHz 34Hz - 25kHz 60Hz - 22kHz

Sensitivity (1W@1m) 88dB 90dB 91dB 91dB 91dB

Nominal Impedance 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms

Power Handling Single

(RMS) 70W 100W 150W 200W 120W

Bass Alignment Rear ported bass reex. Front ported bass reex. Front & rear ported bass

reex.

Front & rear ported bass

reex. Sealed cabinet.

Drive Unit Complement

1 x 140mm (5 1/2”)

MMP®II mid-bass driver

1 x 25mm (1”) C-CAM® gold

dome tweeter

1 x 165mm (6 1/2”)

MMP®II mid-bass driver

1 x 25mm (1”) C-CAM® gold

dome tweeter

1 x 165mm (6 1/2”)

MMP®II mid-bass driver

1 x 165mm (6 1/2”)

MMP®II bass driver

1 x 25mm (1”) C-CAM® gold

dome tweeter

2 x 165mm (6 1/2”)

MMP®II mid-bass driver

1 x 165mm (6 1/2”)

MMP®II bass driver

1 x 25mm (1”) C-CAM® gold

dome tweeter

2 x 140mm (5 1/2”)

MMP®II mid-bass driver

1 x 25mm (1”) C-CAM® gold

dome tweeter

External Dimensions

(H x W x D) mm (Inches)

260 x 165 x 180

(10 1/4 x 6 1/2 x 7 1/16)

350 x 185 x 255

(13 3/4 x 7 5/16 x

10 1/16)

850 x 185 x 255

(33 7/17 x 7 5/16 x

10 1/16)

970 x 200 x 300

(38 3/16 x 7 7/8 x

11 13/16)

165 x 460 x 165

(6 1/2 x 18 1/8 x 6 1/2)

Weight (each)

kg (Ibs) 3.5 (7.7 5.25 (11.6) 11.16 (24.6) 14.8 (32.6) 5.64 (12.4)

Monitor series specication.

Black vinyl

Vinyl nish:

Monitor Audio Ltd

24 Brook Road, Rayleigh

Essex, SS6 7XJ

England

Tel: + 44 (0)1268 740580

Fax: + 44 (0)1268 740589

Designed in the United Kingdom
