Monitor Audio PL IN-WALL II Manuale utente

Installation Guide

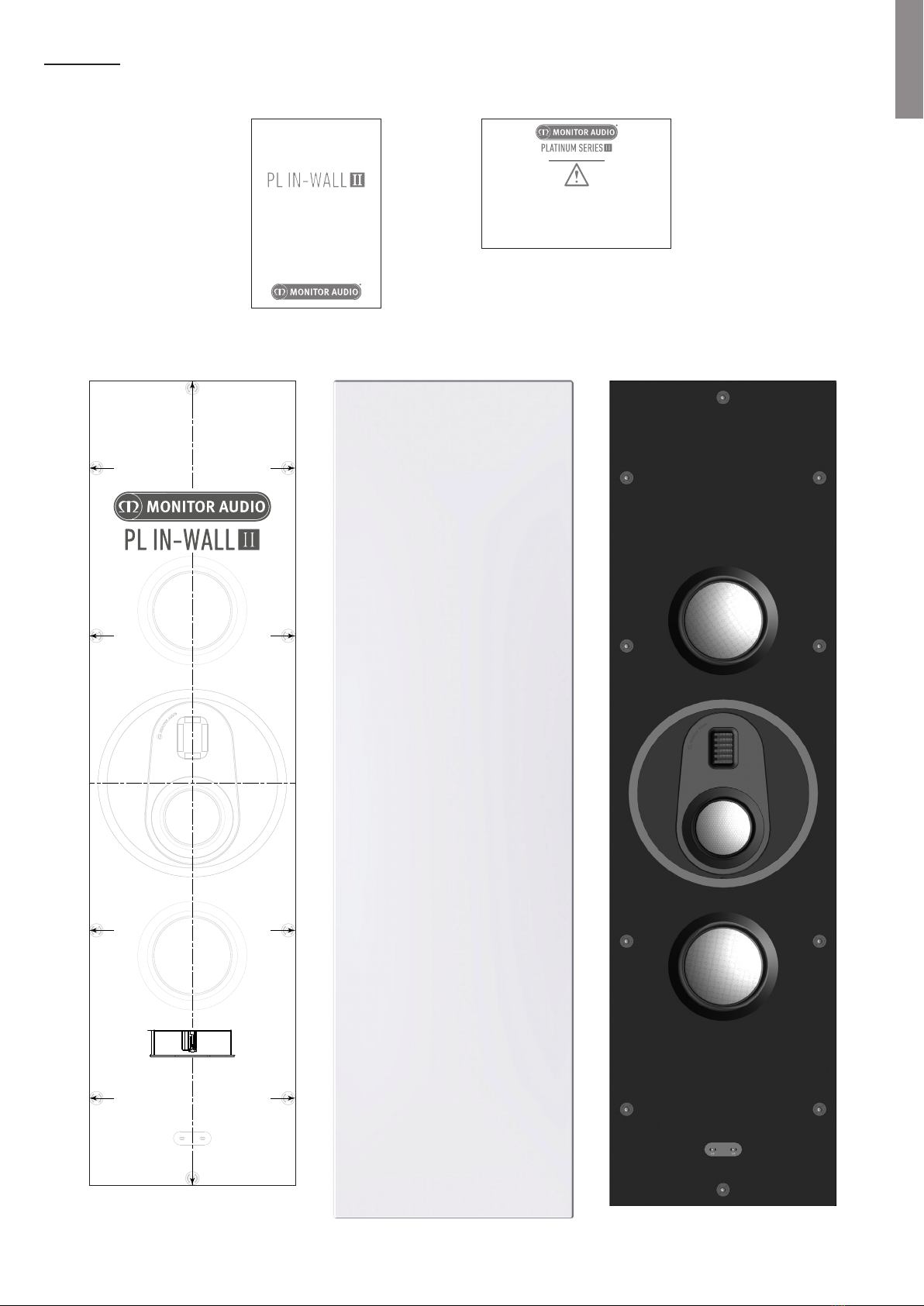

In the Box

ENGLISH

monitoraudio.com 1

Important Safety Instructions

Grille PL In-Wall IITemplate

Installation Guide

Important Safety Instructions

GB - Safety Instructions

FR - Consignes de sécurité

IT - Istruzioni per la sicurezza

DE - Sicherheitsanweisungen

ES - Instrucciones de seguridad

PT - Instruções de Segurança

NL - Veiligheidsinstructies

CH - 安全說明

BL - ВАЖНЫЯ ІНСТРУКЦЫІ ПА ТЭХНІЦЫ БЯСПЕКІ

KK - МАҢЫЗДЫ ҚАУІПСІЗДІК НҰСҚАУЛАРЫ

JA - 日本

 - AR

RU - инструкции по технике безопасности

RU - Условия гарантии

installation guide

98mm

7/8

”)

Tri-Grip x 10

= 5Kgf/cm; 4.34 lbf/inch;

0.5 NM

300mm (11

13/16

”)

1175mm (46

1/4

”)

PL IN-WALL II

1. Draw around template

The same template is used for vertical and horizontal orientation.

2. Cut around marked hole

98mm

7/8

”)

Tri-Grip x 10

= 5Kgf/cm; 4.34 lbf/inch;

0.5 NM

300mm (11

13/16

”)

1175mm (46

1/4

”)

monitoraudio.com 3

3. Optional tweeter orientation adjustment

Remove metal trim (Held in place magnetically).

There is a small tab directly below the mid-

range driver).

Remove 8 screws

(Circled below).

Rotate the whole mid and tweeter assembly

90 degrees anti-clockwise.

Ret screws and then metal trim (17 kgf/cm2).

ii iii

ENGLISH

4. Connect speaker cables

PL IN-WALL II

Max Tightening =

5Kgf/cm; 4.34 lbf/inch; 0.5 NM

5. Place into wall and tighten the dog leg screws

The grille can now be tted if you wish.

iii

monitoraudio.com 5

Specications

PL IN-WALL II

System Configuration 4 driver, 2-way

Frequency Response (-6db) 52Hz - 100kHz

Sensitivity (1W@1M) 90 dB

Impedance 4 Ohms Nominal (3.7 Ohms Minimum @ 2.8kHz)

Maximum S.P.L (per pair) 117 dBA

Power Handling (R.M.S) 200 W

Recommended amplifier

requirements 100-200 W

Bass Alignment Sealed Cabinet

Mid/ H.F Crossover

Frequency 4.1 kHz 3rd Order (18dB/Octave)

Bass/Midrange Crossover

Frequency 700 Hz 2nd Order (12dB/Octave)

Drive Unit Complement

2 x 6.5” long-throw RDT®II bass drivers

1 x 4” RDT®II mid-range driver

1 x MPD® high frequency transducer

Fixings 10 x Tri-gripTM Dog leg type fixing system

Cut Out Dimensions

(H x W x D)

1175 x 300 x 97.5mm

(46 1/4 x 11 13/16 x 3 13/16 inch)

Overall Dimensions

(H x W x D)

1205 x 330 x 102 mm

(47 7/16 x 13 x 4 inch)

External Dimensions

(inc grille) (H x W x D)

1205 x 330 x 116 mm

(47 7/16 x 13 x 4 9/16 inch)

Weight (each) 27kg (59.4 lb)

Monitor Audio reserves the right to alter specications without notice.

Guarantee

Both the craftsmanship and the performance of this product is guaranteed against manufacturing defects for a period of ve years for speakers from the

date of purchase (see conditions in the Important Safety Instructions booklet), provided that the product was supplied by an authorised Monitor Audio

retailer under the consumer sale agreement.

To verify your manufacturer’s warranty, please visit the online registration form at: www.monitoraudio.com

ENGLISH

6PL IN-WALL II

Guide d'installation

monitoraudio.com 7

FRANÇAIS

Dans la boîte

Instructions de sécurité importantes

Grilles PL intégré IIModèle

Guide d'installation

Important Safety Instructions

GB - Safety Instructions

FR - Consignes de sécurité

IT - Istruzioni per la sicurezza

DE - Sicherheitsanweisungen

ES - Instrucciones de seguridad

PT - Instruções de Segurança

NL - Veiligheidsinstructies

CH - 安全說明

BL - ВАЖНЫЯ ІНСТРУКЦЫІ ПА ТЭХНІЦЫ БЯСПЕКІ

KK - МАҢЫЗДЫ ҚАУІПСІЗДІК НҰСҚАУЛАРЫ

JA - 日本

 - AR

RU - инструкции по технике безопасности

RU - Условия гарантии

installation guide

98mm

7/8

”)

Tri-Grip x 10

= 5Kgf/cm; 4.34 lbf/inch;

0.5 NM

300mm (11

13/16

”)

1175mm (46

1/4

”)

8PL IN-WALL II

1. Dessinez autour du modèle

Le même modèle est utilisé en orientation verticale et horizontale.

2. Coupez autour du trou marqué

98mm

7/8

”)

Tri-Grip x 10

= 5Kgf/cm; 4.34 lbf/inch;

0.5 NM

300mm (11

13/16

”)

1175mm (46

1/4

”)
