Moxa Technologies NPort Server Lite DE-302 Manuale

NPort

NPortNPort

NPort

Server Lite

Server LiteServer Lite

Server Lite

Hardware Installation Guide

for DE-301/331 & DE-302/304/332/334

Second Edition, Dec 2002

Moxa Technologies Co., Ltd.

Tel: +866-2-8919-1230

Fax: +886-2-8919-1231

www.moxa.com

support@moxa.com.tw

NPort

NPortNPort

NPort

Server Lite

Server LiteServer Lite

Server Lite

Hardware Installation Guide for

DE-301/331&DE-302/304/332/334

The software described in this manual is furnished under a license agreement and

may be used only in accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of Moxa Technologies Co., Ltd.

All other trademarks or registered marks in this manual belong to their respective

manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not

represent a commitment on the part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either

expressed or implied, including, but not limited to, the particular purpose. Moxa

reserves the right to make improvements and/or changes to this manual or the

product(s) and/or program(s) described herein at any time.

Information provided in this manual is intended to be accurate and reliable.

However, Moxa Technologies assumes no responsibility for its use, or for any

infringements on the rights of fourth parties which may result from its use.

This product could include technical or typographical errors. Changes are

periodically made to the information herein, and these changes may be

incorporated in new editions of the publication.

MOXA Internet Servi

MOXA Internet ServiMOXA Internet Servi

MOXA Internet Services

cesces

ces

Customer satisfaction is our number one concern. To ensure that customers

receive the full benefit of our products, Moxa Internet Services has been set up to

provide technical support, driver updates, product information, and user’s

manual updates.

The following services are provided:

E-mail for technical support:

address: support@moxa.com.tw

Latest drivers and documents:

address: http://www.moxa.com

or http://www.moxa.com.tw

World Wide Web (WWW) site for product information:

address: http://www.moxa.com

or http://www.moxa.com.tw

Table of Contents

Table of ContentsTable of Contents

Table of Contents

1. Introduction.......................................................................1-1

Features...................................................................................... 1-2

Product Specifications ................................................................ 1-2

Package Checklist ...................................................................... 1-3

Front/Top/Rear/Bottom/Right Panel Views................................. 1-4

2. Connecting the Hardware ................................................2-1

Choosing a Location................................................................... 2-1

Desktop ................................................................................. 2-1

Wall or Cabinet...................................................................... 2-2

DIN Rail ................................................................................. 2-3

Network Connection ................................................................... 2-5

Power Connection ...................................................................... 2-6

Serial Connection ....................................................................... 2-6

3. Using the Built-In LCD Panel to Configure

NPort Server Lite ..............................................................3-1

4. Troubleshooting ...............................................................4-1

Installation and Configuration Troubleshooting .......................... 4-1

Programming Problems.............................................................. 4-5

A. Cable Pinouts .................................................................. A-1

B. Declaration of Conformity .............................................. B-1

1-1

1 Introduction

Welcome to Moxa NPort Server Lite, an Industrial Serial Device Server that

greatly enhances the ability of a Windows 95/98/Me/NT/2000/XP host to control

multiple serial devices over a TCP/IP based Ethernet network.

This chapter is an introduction to NPort Server Lite and includes the following:

❑ Features

❑ Product Specifications

❑ Package Checklist

❑ Front/Top/Rear/Bottom/Right Panel Views

NPort Server Lite provides a data communications solution for connecting

Windows hosts to multiple asynchronous RS-232 (models DE-301/302/304) or

RS-422/485 (models DE-331/332/334) serial ports through a TCP/IP network.

Each model has one (DE-301/331), two (DE-302/332), or four (DE-304/334)

asynchronous serial port connections on one side, and one 10/100 Mbps Ethernet

connection on the other, allowing any device that supports the asynchronous

communications protocol to attach to a network. NPort Server Lite works like an

add-on multiport serial board to the Windows host, but with one major

advantage—the TCP/IP network. Since the Windows host communicates with

the COM ports on NPort Server Lite over a TCP/IP network, you are able to

control asynchronous serial devices from virtually anywhere in the world.

Although it connects through the virtual link of the Ethernet, the ports on NPort

Server Lite are recognized as Real COM ports by the Windows operating system.

NPort Server Lite provides both the basic transmit/receive data functions, as well

as RTS, CTS, DTR, DSR, and DCD control signals.

NPort Server Lite can be used with your existing applications that support serial

communication. It also comes with a utility program providing a simple

step-by-step installation procedure, and a maintenance wizard that gives you

easy access to your asynchronous devices.

1-2

Features

❑ Auto-detecting 10/100 Mbps Ethernet

❑ 1/2/4 port RS-232/422/485 serial interface

❑ LCD IP address display and configuration

❑ Built-in Ethernet and TCP/IP protocol

❑ Supports Driver, TCP Server, TCP Client, UDP Server/Client, and Pair

Connection (only for DE-301/331) operation modes

❑ Ports on multiport units can be individually configured with different

operation modes

❑ Supports Windows Real COM drivers and Linux real tty drivers

❑ Automatic network connection recovery

❑ Suitable for both desktop and DIN-Rail installation

Product Specifications

Hardware

Processor 16 bit CPU

I/O controller:

DE-301/331

DE-302/332

DE-304/334

16C550C or compatible × 1

16C550C or compatible × 2

16C550C or compatible × 4

Memory 512 KB

Connector type Male DB9

Interface

LAN Auto-detecting 100Base-TX (10/100 Mbps)

Serial RS-232 or RS-422/485

No. of ports 1/2/4

Signals:

RS-232

RS-422

RS-485

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND

Data+/-, GND

Performance

Speed 50 bps – 230.4 Kbps

Max. No. of ports 256 (per Windows NT/2000/XP host)

128 (per Windows 95/98 host)

1-3

Configuration

Parity None, even, odd, space, mark

Data bits 5, 6, 7, 8

Stop bits 1, 1.5, 2

OS Support

Windows XP, Windows 2000, Windows NT, Windows 95/98/Me, UnixWare

SVR4.2, UnixWare7 SVR5, SCO Open Server, SCO UNIX, Linux real tty for

2.0.36 and above, 2.2.x, 2.4.x (Intel x86 running TCP/IP)

Power and Environment

Power Requirements 9 – 30 VDC, 1.05A/9V

Operating Temp. 0 – 55℃

Operating Humidity 5 – 95% RH

Storage Temp. -20 – 85℃

Dimensions 155 × 105 × 33 mm (W × D × H)

Surge Protection 15 KV ESD for serial ports

Magnetic Isolation 1.5 KV for Ethernet

Regulatory Approvals FCC, CE, UL, CUL, TÜV

Note: If you need a product with optical isolation, MOXA Transio A53, a smart

RS-232 to RS-422/485 bi-directional converter, can be used with NPort

Server Lite to provide up to 2 KV of optical isolation.

Package Checklist

❑ One NPort Server Lite

❑ NPort Server Lite Hardware Installation Guide

❑ NPort Family Software Installation Guide

❑ Cross-over 10/100 Mbps Ethernet cable

❑ Power Adaptor (110V or 230V)

❑ Windows 95/98/Me/NT/2000/XP drivers (on CD)

Optional Accessories

❑ A52: Smart RS-232 to RS-422/485 Bi-Directional Converter

❑ A53: Smart RS-232 to RS-422/485 Bi-Directional Converter;

supports optical isolation protection (2 KV)

❑ Metal attachment plates and screws

1-4

Front/Top/Rear/Bottom/Right Panel Views

1. Male DB9 serial ports

Note: Models DE-301/331 have

only one port, and models

DE-302/332 have only two ports.

2. PWR LED

3. LINK LED

4. TRAFFIC LED

5. LCD display panel

Note: Before retrieving an IP

address from the

DHCP/BOOTP server, NPort

will display “DHCP/BOOTP fail”

every 1 second.

6. Input buttons for LCD display

panel configuration

7. Reset button—press

continuously for

a. 3 sec to erase password

After 3 sec, release the

reset button at this time to

erase password.

8. 100BaseTx Ethernet port

9. Power input

10. Rubber base pads

11. Attachment plate screw holes

12. Heat dissipation orifices

2-1

2 Connecting the Hardware

Now that you have been introduced to NPort Server Lite's features and

specifications, it’s time to set up the hardware. We cover the following topics in

this chapter:

❑ Choosing a Location

•Desktop

•Wall or Cabinet

•DIN Rail

❑ Network Connection

❑ Power Connection

❑ Serial Connection

Choosing a Location

There are three placement options available. NPort Server Lite can be:

•placed on a desktop,

•fixed to a wall or inside a cabinet, or

•fixed to a 35-mm DIN Rail.

Desktop

One option is to place NPort Server Lite on a clean, flat, well-ventilated desktop.

There are four rubber pads attached to the bottom of the server, and we

recommend leaving sufficient room between NPort Server Lite and neighboring

equipment to create enough clearance for air to circulate.

You should also remember not to put anything on top of NPort Server Lite, since

this could damage the internal components and obscure the server’s LCD panel.

2-2

Wall or Cabinet

The two metal brackets included with NPort Server Lite can be used to attach the

server to a wall, or the inside of a cabinet. Using three screws per bracket, first

attach the brackets to the bottom of the server (Fig. 2-1a). Next, use two screws

per bracket to attach the server to a wall or cabinet (Fig. 2-1b).

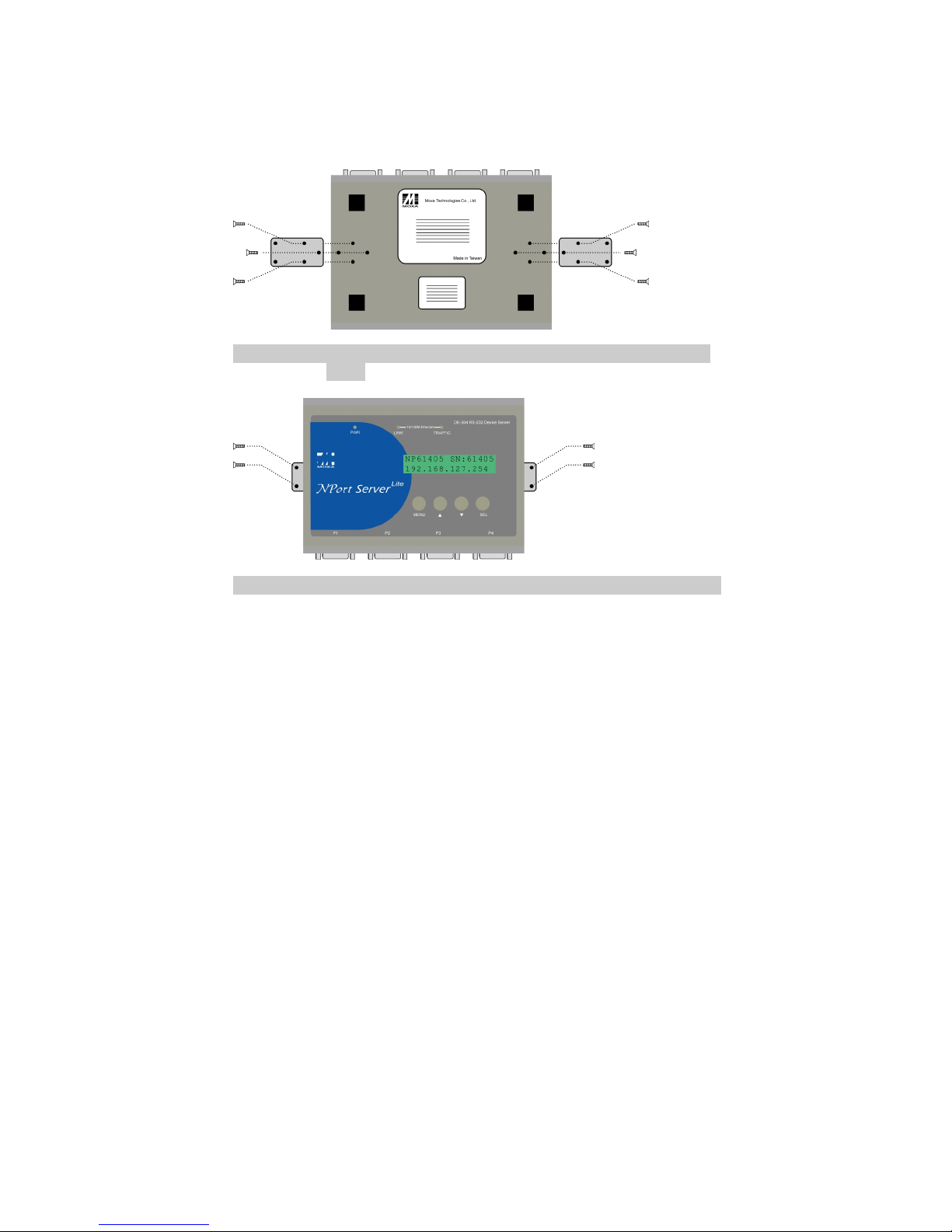

Figure 2-1a. NPort Server Lite—Wall Mounting Brackets (bottom

view)

Figure 2-1b. NPort Server Lite—Wall Mounting Brackets (top view)

Altri manuali per NPort Server Lite DE-302

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Server

Moxa Technologies

Moxa Technologies NPort 5600 Series Manuale utente

Moxa Technologies

Moxa Technologies CN2600 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5250AI-M12 Manuale utente

Moxa Technologies

Moxa Technologies ioLogik W5300 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 6450 Series Manuale utente

Moxa Technologies

Moxa Technologies ioLogik 4000 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manuale utente

Moxa Technologies

Moxa Technologies NPort 5100A Series Manuale utente

Moxa Technologies

Moxa Technologies CN2510 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5150 series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5200 Serie Manuale utente

Moxa Technologies

Moxa Technologies NPort 6150 Series Manuale utente

Moxa Technologies

Moxa Technologies CN2600 Series Manuale utente

Moxa Technologies

Moxa Technologies MiiNePort E1-SDK Manuale utente

Moxa Technologies

Moxa Technologies NPort W2150Plus Series Manuale utente

Moxa Technologies

Moxa Technologies MIINEPORT E1 Manuale utente

Moxa Technologies

Moxa Technologies NPort 5230 Manuale utente

Moxa Technologies

Moxa Technologies NPort W2150 Plus Manuale utente

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5000A Series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5250I/5250I-T Series Manuale utente

Moxa Technologies

Moxa Technologies CN2610 series Manuale utente

Moxa Technologies

Moxa Technologies NPort P5250A Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5610-16/8 Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
