Moxa Technologies PT-7710 Series Manuale

Moxa PowerTrans Switch

PT-7710 Series

Hardware Installation Guide

Third Edition, July 2010

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802077100012

- 2 -

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer service

representative for assistance.

y1 Moxa PowerTrans Switch

yHardware Installation Guide

yCD-ROM with User’s Manual and SNMP MIB file

yMoxa Product Warranty Statement

yRJ45 to DB9 console port cable

yProtective caps for unused ports

y2 rack-mount ears or wall-mount ears

Panel Layout

CONSOLE

PT-7710

4Front View (Front Cabling)

Rear View (Front Cabling)

Top View (Down Cabling)

MODE

LNK/ACT SPEED FDX/HDX

FAULT MASTER COUPLER

STAT PWR1 PWR2

RING PORT COUPLER

PORT

2 6

1 5 M1

PT-7710

M2M1

MODE

LNK/ACT SPEED FDX/HDX

FAULT MASTER COUPLER

STAT PWR1 PWR2

RINGPORT COUPLER

PORT

2 6

1 5

57631 10

1. System status LEDs

2. Interface Module mode LEDs

3. Interface Module port LEDs

4. Push-button switch to select mode for Interface Module

5. Model Name

6. Fast Ethernet Interface Modules

7. Gigabit Ethernet Interface Modules

8. Serial Console port

9. 10-pin terminal block for power inputs, and relay output

10. Rack Mounting Kit

11. Wall Mounting Kit

- 3 -

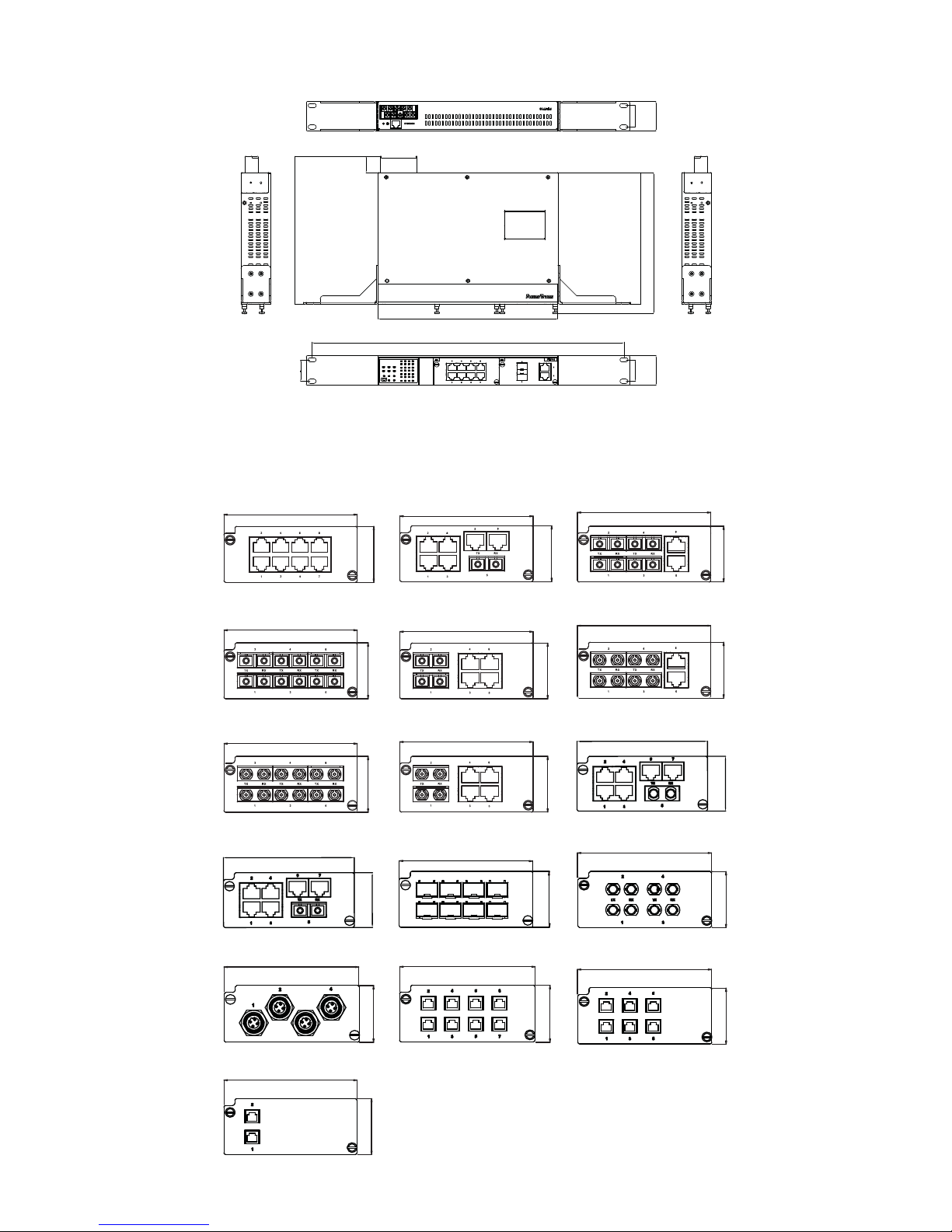

Dimensions (unit = mm)

31.8

462.5

266.5

Rear View

Top View

Side View Side View

Front View

219.3

31.8

195

209.4

31.8

24.3

Fast Ethernet Interface Modules

(for slot 1)

40.7

96.8

PM-7200-8TX

96.8

40.7

PM-7200-1LSC6TX

40.7

96.8

PM-7200-4MSC2TX/PM-7200-4SSC2TX

96.8

40.7

PM-7200-6MSC/PM-7200-6SSC

96.8

40.7

PM-7200-2MSC4TX/PM-7200-2SSC4TX PM-7200-4MST2TX

40.7

96.8

PM-7200-6MST

96.8

40.7

PM-7200-2MST4TX

96.8

40.7

96.8

40.7

PM-7200 1MST6TX

PM-7200-8SFP

96.8

40.7

96.8

PM-7200 1SSC6TX/1MSC6TX

40.7

96.8

PM-7200-4M12

40.7

96.8

PM-7200 4MST-FL

40.7

96.8

PM-7200 8MTRJ

40.7

96.8

PM-7200 6MTRJ

40.7

96.8

PM-7200 2MTRJ

- 4 -

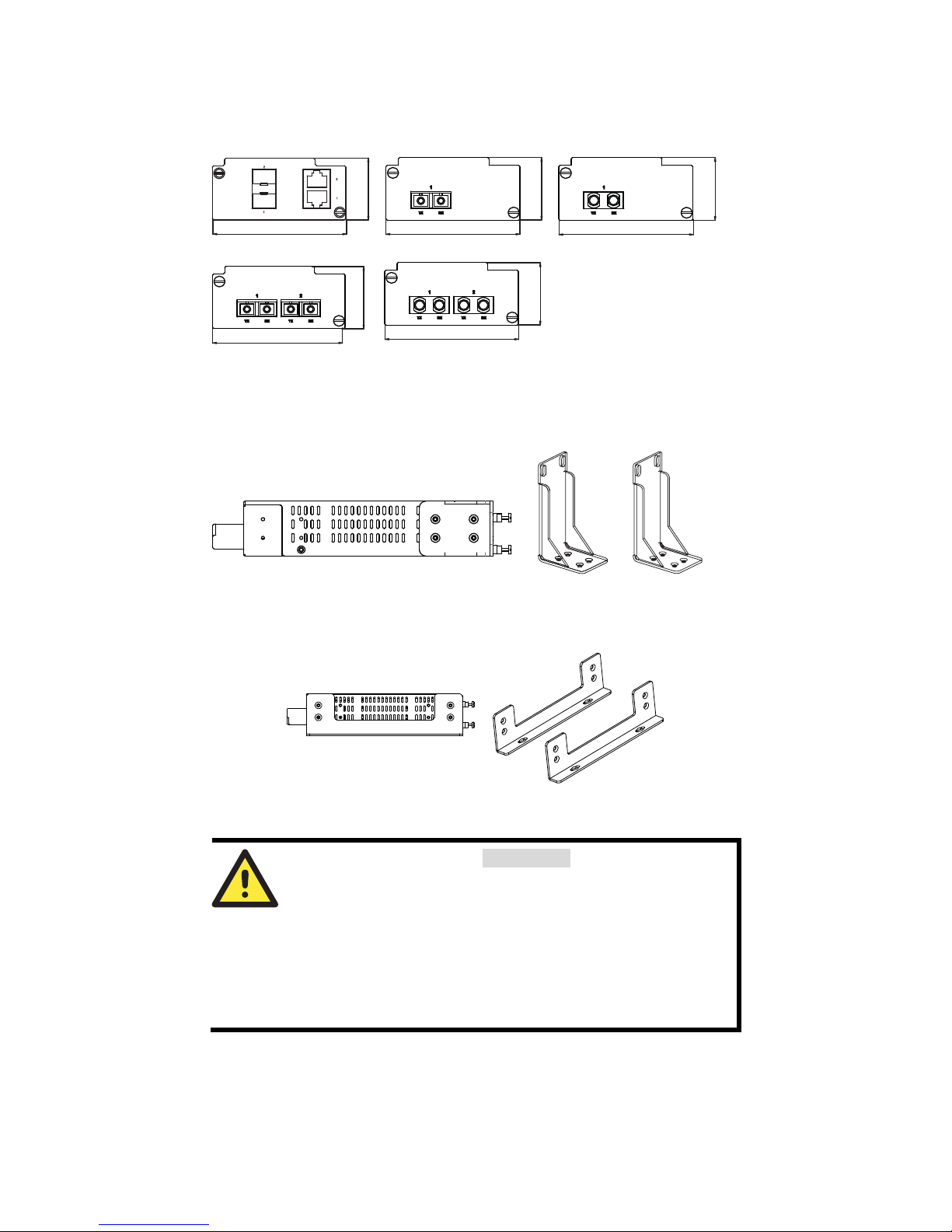

Gigabit/Fast Ethernet Interface

Modules (for slot 2)

40.7

86.6

PM-7200-2GTXSFP

40.7

86.6

PM-7200 1MSC/1SSC

40.7

86.6

PM-7200 1MST

PM-7200 2MSC/2SSC

40.7

86.6

PM-7200 2MST

40.7

86.6

Rack Mounting

Use four screws to attach the PT switch to a standard rack.

Use four screws to attach the PT switch to a

standard rack.

Wall Mounting

Use four screws to attach the PT switch to a Moxa wall mounting kit.

Wiring Requirements

WARNING Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Grounding Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

- 5 -

Wiring the Power Inputs

The PT series of switches supports dual redundant power supplies (DC power

only): VDC “Power Supply 1 (PWR1)” and “Power Supply 2 (PWR2)”, or

VAC “Power Supply (PWR1)”. The connections for PWR1, PWR2 and the

RELAY are located on the terminal block. The front view of the terminal block

connectors are shown below.

Wiring the Relay Contact

Each PT switch has one relay output. Refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector, and

how to attach the terminal block connector to the terminal block receptor.

FAULT: The relay contact of the 10-pin terminal block connector are used to

detect user-configured events. The two wires attached to the RELAY contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the RELAY circuit will be closed.

Wiring the Redundant Power Inputs

Each PT switch has two sets of power inputs: power input 1 and power input 2.

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and PWR2

terminals (+ →pins 1, 9, - →pins 2, 10). Or insert the L/N AC wires into

the PWR1 terminals (L →pin 1, N →pin 2).

STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws on the front of the terminal block connector.

- 6 -

LED Indicators

The front panel of the PT switch contains several LED

indicators. The function of each LED is described in the table

below.

LED Color State Description

System LEDs

STAT

GREEN

On System has passed self-diagnosis test

on boot-up and is ready to run.

Blinking System is undergoing the

self-diagnosis test.

RED On

System failed self-diagnosis on

boot-up.

PWR1 AMBER

On Power is being supplied to the main

module’s power input PWR1.

Off Power is not being supplied to the

main module’s power input PWR1.

PWR2 AMBER

On Power is being supplied to the main

module’s power input PWR2.

Off Power is not being supplied to the

main module’s power input PWR2.

FAULT RED

The corresponding PORT alarm is

enabled and a user-configured event

has been triggered.

Off

The corresponding PORT alarm is

enabled and a user-configured event

has not been triggered, or the

corresponding PORT alarm is

disabled.

MSTR/HEAD GREEN

This PT switch is set as the Master

of the Turbo Ring, or as the Head of

the Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the

Head of the Turbo Chain, after the

Turbo Ring or the Turbo Chain went

down.

Off

The PT switch is not the Master of

this Turbo Ring or is set as a

Member of the Turbo Chain.

CPLR/TAIL GREEN

When this PT switch is enabled to

form a back-up path, or it is set as

the Tail of the Turbo Chain.

Blinking Turbo Chain is down.

Off

This PT switch disabled the coupling

function, or is set as a Member of the

Turbo Chain.

Mode LEDs

LNK/ACT GREEN On

The corresponding module

- 7 -

port’s link is active.

Blinking

The corresponding module

port’s data is being

transmitted.

Off The corresponding module

port’s link is inactive.

SPEED GREEN

Off The corresponding module port’s

data is bein

transmitted at 10 Mb

The corresponding module port’s

data is being transmitted at 100

Blinking

The corresponding module port’s

data is being transmitted at

1000 Mb

FDX/HDX GREEN

The corresponding module port’s

data is being transmitted in full

lex mode.

Off

The corresponding module port’s

data is being transmitted in half

lex mode.

RING/CHAIN

PORT GREEN

The corresponding module’s port is

the ring or chain port of this PT

switch.

Off

The corresponding module’s port is

not the ring or chain port of this PT

switch.

COUPLER

PORT GREEN

On The corresponding module’s port is

the cou

ler

ort of this PT switch.

Off

The corresponding module’s port is

not the coupler port of this PT

switch.

* Slot 2 (M2) is mainly used for Gigabit modules. If

100BaseFX modules are used in Slot 2 (M2), the modules will

not support “Far End Fault”. The Link/ACT LED indicator will

stay at “Green (ON)” status when Fiber TX cable is unplugged.

Specifications

Technology

Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D,

802.1W, 802.1Q, 802.1p, 802.1X, 802.3ad

Flow control IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet Slot 1 (M1) for any combination of 4-,6-, 7-, or 8-port

PM-7200 fast Ethernet modules with 10/100BaseT(X)

(TP/M12 interface) or 100BaseFX (SC/ST connector),

or 100BaseSFP; Slot 2 (M2) for a 1- or 2-port interface

modules with 100BaseFX (SC/ST connector)

Gigabit Ethernet Slot 2 (M2) for 2-port PM-7200 Gigabit Ethernet

combo module with 100/1000BaseT(X) or

1000BaseSFP slots (Slot 2 does not support 10M

FDX/HDX)

Console RS-232 (RJ45)

System LED STAT, PWR1, PWR2, FAULT, MSTR/HEAD,

- 8 -

Indicators CPLR/TAIL

Mode LED

Indicators LNK/ACT, FDX/HDX, RING/CHAIN PORT,

COUPLER PORT, SPEED

Alarm Contact One relay output with current carrying capacity of 3A

@ 30 VDC or 3A @ 240 VAC

Optical Fiber (100BaseFX)

Distance Multi-mode

0 to 5 km, 1300 nm (50/125μm, 800 MHz*km)

0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km)

Single-mode

0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

Min. TX Output M

: -

-2

0 d

; s

: -

-5

5 d

Max. TX Output M

: -

-1

0 d

; s

: 0

0 d

RX Sensitivity M

: -

-3

2 d

; s

: -

-3

4 d

Power

Input Voltage 24/48 VDC (9 to 60 V), or 110/220 VDC/VAC (88 to

300 VDC and 85 to 264 VAC)

Input Current Max. 0.81A @ 24 VDC

Max. 0.42A @ 48 VDC

Max. 0.17/0.10 @ 110/220 VDC

Max. 0.20/0.12 @ 110/220 VAC

Physical Characteristics

Housing IP 30 protection, metal case

Dimensions

(W x H x D) 266.7 x 44 x 195 mm (10.5 x 1.73 x 7.68 in.)

Weight 2200g

Regulatory Approvals

Operating Temp. -40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40°C

Storage Temp. -40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity. 5 to 95% (non-condensing)

Regulatory Approvals

Safety EN60950-1

Power Automation IEC 61850-3, IEEE 1613

Road Traffic NEMA TS2

Rail Traffic EN50121-4

EMI FCC Part 15, CISPR (EN55022) class A

Warranty 5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-10-5258-5505

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Altri manuali per PT-7710 Series

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EDS-316 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manuale

Moxa Technologies

Moxa Technologies TN-5510A Series Manuale utente

Moxa Technologies

Moxa Technologies ICS-G7828A-T Series Manuale utente

Moxa Technologies

Moxa Technologies ICS-G7748A Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 1220 Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manuale utente

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manuale utente

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8/16-LX Manuale utente

Moxa Technologies

Moxa Technologies PT-G503-PHR-PTP Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale

Moxa Technologies

Moxa Technologies ICS-G7526A Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7324 Series Manuale utente

Moxa Technologies

Moxa Technologies NSwitch Outdoors Manuale utente

Moxa Technologies

Moxa Technologies TN-G6512 Serie Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
