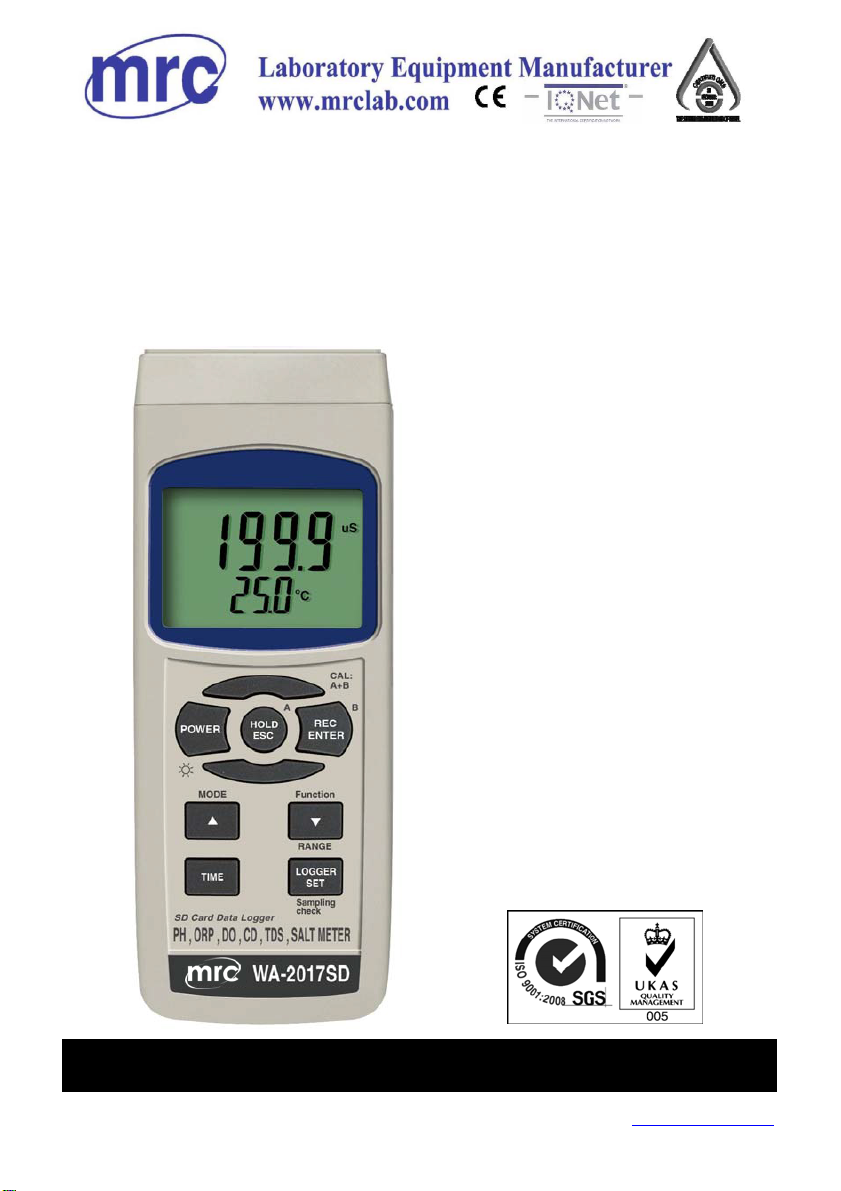

MRC WA-2017SD Manuale utente

Your purchase of this

pH, ORP, CD, TDS, DO,

SALT METER with SD

CARD DATALOGGER

marks a step forward for

you into the field of

precision measurement.

Although this

DATALOGGER is a

complex and delicate

instrument, its durable

structure will allow

many years of use if

proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

SD card real time datalogger

pH, ORP, CD, TDS, DO, SALT

METER

Model : WA-2017SD

3, Hagavish st. Israel 58817 Tel: 972 35595252, Fax: 972 3 5594529 [email protected]

MRC.3.21

TABLE OF CONTENTS

1. FEATURES....................................................................1

2. SPECIFICATIONS..........................................................3

2-1 General Specifications..............................................3

2-2 Electrical Specifications......................................... 5

3. FRONT PANEL DESCRIPTION........................................

4. MODE SELECTION....................................................... 12

5. PH/mV MEASURING and CALIBRATION

PROCEDURE................................................................

6. CONDUCTIVITY/TDS MEASURING and

CALIBRATION PROCEDURE...........................................19

7. SALT MEASURING and calibration PROCEDURE..............

8. DO ( Dissolved Oxygen ) MEASURING

and CALIBRATION PROCEDURE....................................

9. OTHER FUNCTION........................................................31

9-1 Data Hold...............................................................

9-2 Record ( Max./ Min. reading )..................................

9-3 LCD Backlight ON/OFF.............................................32

10. DATALOGGER.............................................................32

10-1 Preparation before execute datalo

er function....................32

10-2 Auto Datalo

er ( Set samplin

time 1 second )..............≧33

10-3 Manual Datalo

er ( Set samplin

time = 0 second )...........

10-4 Check time information.......................................................35

10-5 Check samplin

time information.........................................35

10-6 SD Card Data structure.......................................................35

11. Saving data from the SD card to the computer.............

12. ADVANCED SETTING..................................................

13. POWER SUPPLY from DC ADAPTER..............................47

14. BATTERY REPLACEMENT.............................................47

15. SYSTEM RESET...........................................................47

16. RS232 PC SERIAL INTERFACE.....................................

17. OPTIONAL ACCESSORIES............................................49

18. PATENT......................................................................51

1. FEATURES

* One meter for multi purpose operation :

PH/ORP, CD/TDS, Dissolved Oxygen, Salt measurement.

*pH : 0 to 14.00 pH, ORP : ± 1999 mV.

* Conductivity : 200 uS/2 mS/20 mS/200 mS.

* Dissolved oxygen : 0 to 20.0 mg/L.

* Salt : 0 to 12 % salt ( % weight ).

* Optional PH, ORP, CD/TDS/Salt, Dissolved Oxygen and

ATC probe.

*DC 1.5V ( UM-3, AA ) x 6 PCs or DC 9V adapter in.

* PH meter function can select PH or ORP.

* PH measurement can select ATC or manual temperature

adjustment.

* PH measurement can make the auto calibration for

pH 7, pH 4 and pH 10 or other value.

*Conductivity measurement can select uS/mS or TDS

*Conductivity measurement can select Temp. Coefficient

of measurement solution.

*ATC for the conductivity measurement.

* Dissolved oxygen meter use the polar graphic type

oxygen probe with temperature sensor, high precision

measurement for Dissolved Oxygen ( DO ) and

temperature measurement.

* Heavy duty dissolved oxygen probe, probe head can

connect with BOD bottle.

* DO use the automatic Temp. compensation.

* DO meter build in " % SALT " & " Mountain Height "

compensation value adjustment.

* Separate probe, easy for operation of different

measurement environment.

* Wide applications: water conditioning, aquariums,

beverage, fish hatcheries, food processing,

photography, laboratory, paper industry, plating

industry, quality control, school & college, water

conditioning.

* Real time SD memory card Datalogger, it Built-in Clock

and Calendar, real time data recorder , sampling time set

from 1 sec to 8 hour 59 min. 59 sec.

* Manual datalogger is available ( set the sampling

time to 0 ), during execute the manual datalogger

function, it can set the different position ( location ) No.

( position 1 to position 99 ).

* Innovation and easy operation, computer is not

need to setup extra software, after execute

datalogger, just take away the SD card from the

meter and plug in the SD card into the computer,

it can down load the all the measured value with

the time information ( year/month/date/

hour/minute/second ) to the Excel directly, then

user can make the further data or graphic

analysis by themselves.

* SD card capacity : 1 GB to 16 GB.

* LCD with green light backlight, easy reading.

* Can default auto power off or manual power off.

* Data hold, record max. and min. reading.

* Microcomputer circuit, high accuracy.

* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

* RS232/USB PC COMPUTER interface.

2. SPECIFICATIONS

2-1 General Specifications

Circuit Custom one-chip of microprocessor LSI

circuit.

Display LCD size : 52 mm x 38 mm

LCD with green backlight ( ON/OFF ).

Measurement PH/ORP

Function Conductivity/TDS(Total Dissolved Solids)

Dissolved Oxygen

Salt

Datalogger Auto 1 sec to 8 hour 59 min. 59 sec.

Sampling Time

@ Sampling time can set to 1 second,

Setting range

but memory data may loss.

Manual Push the data logger button

once will save data one time.

@ Set the sampling time to

0 second.

@ Manual mode, can also select the

1 to 99 position ( Location ) no.

Memory Card SD memory card. 1 GB to 16 GB.

Advanced * SD memory card Format

setting * Set clock time ( Year/Month/Date,

Hour/Minute/ Second )

*Set sampling time

*Auto power OFF management

*Set beep Sound ON/OFF

*Decimal point of SD card setting

*Set temperature unit to or℃℉

*Set DO salt% compensation value

*Set DO height ( meter ) compensation value

*Set DO height ( feet ) compensation value

*Set CD temperature compensation factor

* Set CD to TDS or TDS to CD, CD only

*Set pH manual Temp. compensation value

Data Hold Freeze the display reading.

Memory Recall Maximum & Minimum value.

Sampling Time Approx. 1 second.

of Display

Data Output RS 232/USB PC computer interface.

* Connect the optional RS232 cable

UPCB-02 will get the RS232 plug.

* Connect the optional USB cable

USB-01 will get the USB plug.

Operating 0 to 50 .℃

Temperature

Operating Less than 85% R.H.

Humidity

Power Supply

Alkaline or heavy duty DC 1.5 V battery

( UM3, AA ) x 6 PCs, or equivalent.

DC 9V adapter input. ( AC/DC power

adapter is optional ).

Power Current Normal operation ( w/o SD card save

data and LCD Backlight is OFF) :

Approx. DC 14 mA.

When SD card save the data and LCD

Backlight is OFF) :

Approx. DC 37 mA.

If LCD backlight on, the power

consumption will increase approx.

12 mA.

Weight 489 g/1.08 LB.

Dimension 177 x 68 x 45 mm

(7.0 x 2.7x 1.9 inch)

Accessories * Instruction manual.........................1 PC

Included * Hard carrying case ( CA-06 )...........1 PC

Optional * PH electrode.......................

Accessories PE-03, PE-11, PE-01, PE06HD

PE-04HD, PE-05T, PE-03K7

* ATC ( Automatic Temperature

Probe )...................................TP-07

* pH 7 buffer solution............. PH-07

* pH 4 buffer solution............. PH-04

* Conductivity/TDS probe,

Salt probe............................ CDPB-03

* 1.413 mS Conductivity Standard

Solution................................ CD-14

* Oxygen probe.........................

OXPB-11

* Spare Probe head with Diaphragm set

..............................................OXHD-04

* Probe-filling Electrolyte............OXEL-03

* ORP Electrode.........................ORP-14

SD memory card ( 1 GB )

SD memory card ( 2 GB )

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software,SW-U801-WIN.

2-2 Electrical Specifications (23±5 )℃

A. PH/mV

PH Optional,

Electrode Any PH electrode with BNC connector.

Measurement PH 0 to 14 PH

mV -1999 mV to 1999 mV

Input 10^12 ohm

Impedance

Temperature Manual 0 to 100 , be adjusted by℃

Compensation push button on front panel.

for pH Automatic With the optional temperature

measurement ( ATC ) probe ( TP-07 )

0 to 65 .℃

pH PH7, PH4, and PH10, 3 points calibration

Calibration ensure the best linearity and accuracy.

Optional * PH electrode..............

PE-03, PE-11, PE-01, PE06HD

probe and PE-04HD, PE-05T, PE-03K7

accessories * ATC ( automatic temperature

probe )....................................... TP-07

* pH 7 buffer solution..................... PH-07

* pH 4 buffer solution...................... PH-04

* ORP electrode.............................. ORP-14

Measurement Range Resolution Accuracy

PH 0 to 14 PH 0.01 PH ± (0.02 PH + 2 d)

mV 0 to 1999 mV 1 mV ± (0.5% + 2 d)

* PH accuracy is based on calibrated meter only.

B. Conductivity

Conductivity probeOptional, Carbon rod electrode for long life.

Function * Conductivity ( uS, mS )

* TDS ( Total Dissolved Solids, PPM )

* Temperature ( , )℃℉

Temperature Automatic from 0 to 60 (32 - 140 ),℃℉

Compensation with temperature compensation factor

variable between 0 to 5.0% per C.

Probe 0 to 60 .℃

Operating Temp.

Probe Dimension Round, 22 mm Dia. x 120 mm length.

Optional * Conductivity probe..........................CDPB-03

probe and * 1.413 mS Conductivity Standard

accessories Solution.........................................CD-14

1. Conductivity ( uS, mS )

Range Measurement Resolution Accuracy

200 uS 0 to 200.0 uS 0.1 uS

2 mS 0.2 to 2.000 mS 0.001 mS ± (2% F.S.+1d)

20 mS 2 to 20.00 mS 0.01 mS * F.S. -

200 mS 20 to 200.0 mS 0.1 mS full scale

* Temperature Compensation :

Automatic from 0 to 60 ( 32 - 140 ), with temperature℃℉

compensation factor variable between 0 to 5.0% per C.

* The accuracy is specified under measurement value 100 mS.≦

* mS - milli Simens * @ 23± 5℃

2. TDS ( Total Dissolved Solids )

Range Measurement Resolution Accuracy

200 PPM 0 to 132 PPM 0.1 PPM

2,000 PPM 132 to 1,320 PPM 1 PPM ± (2% F.S.+1d)

20,000 PPM 1,320 to 13,200 PPM 10 PPM * F.S. -

200,000 PPM 13,200 to 132,000 PPM 100 PPM full scale

* Temperature Compensation :

Automatic from 0 to 60 ( 32 - 140 ), with temperature℃℉

compensation factor variable between 0 to 5.0% per .℃

* The accuracy is specified under measurement value 66,000 PPM.≦

* PPM - parts per million * @ 23± 5℃

3. Temperature

Function Measuring Range Resolution Accuracy

℃0 to 60℃℃ 0.1 ℃±0.8℃

℉32 to 140℉℉ 0.1 ℉±1.5℉

* @ 23± 5℃

C. Salt

Conductivity Optional,

probe Carbon rod electrode for long life.

Measurement 0 to 12 % salt ( % weight ).

Range

Resolution 0.01 % salt.

Accuracy 0.5 % salt value

* F.S. : full scale.

Temperature Automatic from 0 to 60 (32 - 140 ),℃℉

Compensation with temperature compensation factor

variable between 0 to 5.0% per C.

Probe 0 to 60 .℃

Operating

Temperature

Probe Round, 22 mm Dia. x 120 mm length.

Dimension

Optional * Salt probe ( Conductivity probe ).....

CDPB-03

probe and

accessories

Indice

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
