MRC YK-23RP Manuale utente

ORP METER

Model : YK-23RP

Your purchase of this

ORP METER marks a

step forward for you

into the field of

precision measurement.

Although this ORP

METER is a complex and

delicate instrument, its

durable structure will

allow many years of use

if proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

PLEASE READ THIS MANUAL CAREFULLYBEFORE OPERATION

Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 [email protected]

MRC.2.22

TABLE OF CONTENTS

1. FEATURES..........................................................................................................

2. SPECIFICATIONS................................................................................................................

3. FRONT PANEL DESCRIPTIONS.............................................................................

3-1 Display................................................................................................................

3-2 Power ON Button............................................................................................................

3-3 Power OFF Button............................................................................................................

3-4 Hold Button............................................................................................................

3-5 BNC Socket for ORP electrode ......................................................................

3-6 Calibration VR ............................................................................................................

3-7 Battery compartment/Cover.........................................................................................................................................

3-8 Stand...............................................................................................................

3-9 ORP Electrode, optional........................................................................................

3-10 BNC Plug of ORP Electrode ( optional ).......................................................

4. MEASURING PROCEDURE.....................................................................

5. REPLACEMENT OF BATTERY...............................................................................

6. OPTIONAL ORP ELECTRODE, CARRYING CASE............................................................

1. FEATURES

* Use for ORP ( Oxidation Reduction Potential )

measurement in plating baths, waste water monitoring

and other applications such as Aquarium, Beverage,

Fish hatcheries, Food processing, Photography,

Laboratory, Quality control, School & Colleges,

Swimming Pools....

* Large LCD display with high accuracy.

* Compact size with the separate electrode.

* Wide measuring range, max. range up to 1,999 mV.

* Water resistance on the front panel.

* All function keys are used the rubber button.

2. SPECIFICATIONS

Display LCD, 21.5 mm ( 0.7" ) digit height.

Measurement ORP ( Oxidation Reduction Potential )

Range -1,999 mV to +1,999 mV.

Resolution 1 mV.

Accuracy ± ( 0.8 % + 1 d )

* Main instrument only.

* 23±5

℃

, after calibration.

Input 10^12 ohms.

Impedance

Dala Hold To freeze the measured ORP value on

the display.

Sampling Approx. 0.4 second.

Time

Operating 0°C to 50°C ( 32°F to 122°F )

Temperature

Operating Less than 80% RH.

Humidity

Power Supply DC 9V battery. 006P, MN1604 ( PP3 )

or equivalent.

Power Approx. DC 1.0 mA.

Consumption

Dimension 205 x 68 x 30 mm

( 8.1 x 2.7 x 1.2 inch ).

Weight 200 g/0.44 LB.

Electrode BNC

Input Socket

ORP Electrode Any connector pH Electrode with

(Optional) BNC connector.

Standard Instruction Manual...................1 PC.

Accessories

Optional ORP electrode ( ORP-14 ),

Accessories Carrying case ( CA-06, CA-05A )

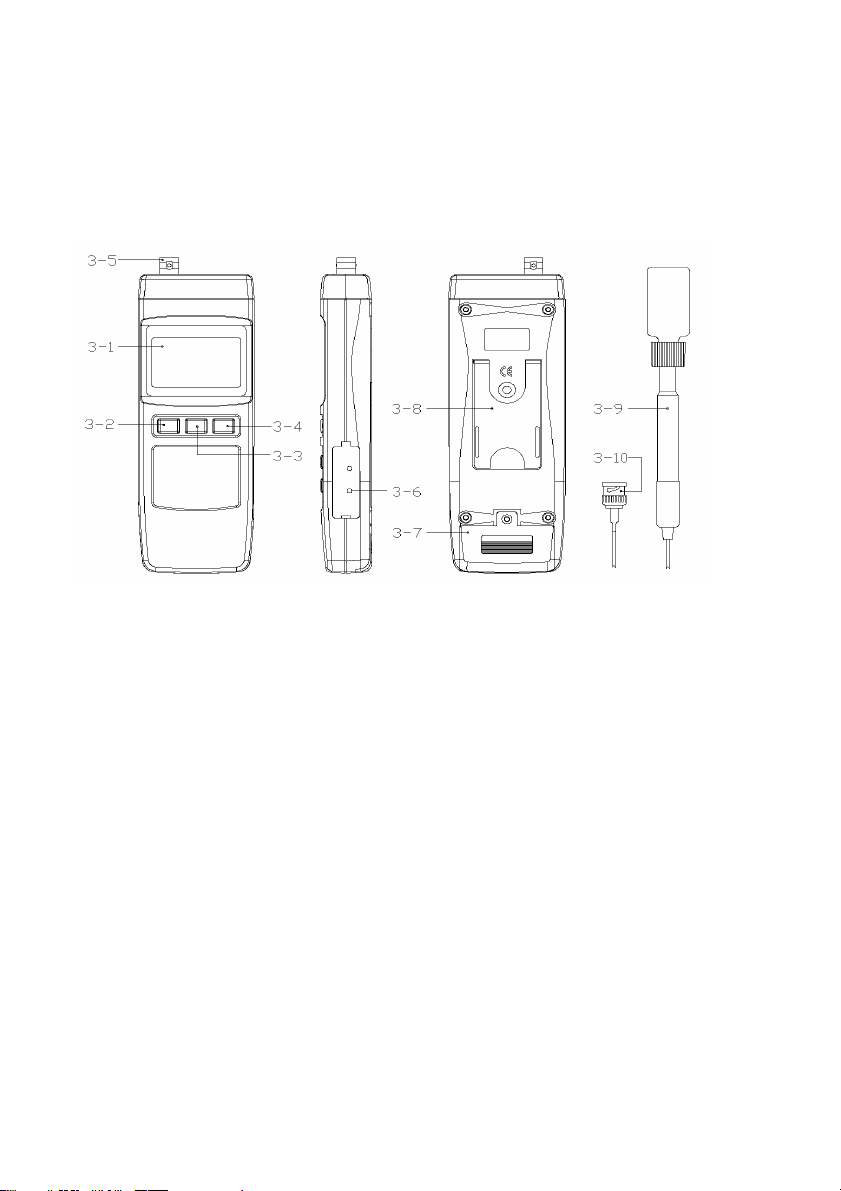

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display

3-2 Power ON Button

3-3 Power OFF Button

3-4 Hold Button

3-5 BNC Socket for ORP electrode

3-6 Calibration VR

3-7 Battery compartment/Cover

3-8 Stand

3-9 ORP Electrode ( optional )

3-10 BNC Plug of ORP Electrode ( optional )

4. MEASURING PROCEDURE

1) Connect the ORP Electrode ( optional ) to the " BNC

socket " ( 3-5, Fig. 1 ).

2) Power on the instrument by pressing the " Power ON

Button " ( 3-2, Fig. 1 ).

3) Plug in the " BNC Plug of ORP Electrode ( optional ) "

( 3-10, Fig. 1 ) into the " BNC Socket " ( 3-5, Fig. 1 )

4) Place the ORP electrode ( optional ) into the measured

solution, the LCD Display ( 3-1, Fig. 1 ) will show the

ORP value in " mV " unit.

5) During the measurement, pressing the " Hold Button "

( 3-4, Fig. 1 ) will freeze the display value, at the same time

the LCD will show the " HOLD " indicator.

To release the Data Hold function, just pressing

the " Hold Button " again, then the " HOLD " indicator

will be disappeared and cancel the Data Hold function.

6) Power off the instrument by pressing the " Power OFF

Button " ( 3-3, Fig. 1 ).

Remark :

a. After make the measurement, please rinse the

electrode in distilled water.

3-6 Calibration VR

b. The meter build in one " Calibration VR "

( 3-6, Fig. 1 ) on the side case. However, the

complete calibration procedure was already

done when meter was produced. New

calibration procedure is not necessary except it

will be executed by the qualify technician people.

5. REPLACEMENT OF BATTERY

1) When the left corner of LCD display show " " ,

it is necessary to replace the battery. However, in-spec

measurement may still be made for several hours after

" Low Battery Indicator " appears before the

instrument become inaccurate.

2) To replace the battery, remove the " Battery Cover "

( 3-7, Fig. 1 ) on the rear cabinet.

3) Take out the battery, install a new one ( 006P DC 9V ) and

reinstall the battery cover again.

6. OPTIONAL ORP ELECTRODE, CARRYING

CASE

ORP ELECTRODE, Model : ORP-14

Electrode Structure Platinum-band electrodes.

Measuring Temp.

0°C to 100

C ( 32°F to 212

F )

Body Material Epoxy.

Connector BNC.

Mechanical With protection bottle on the

Protection electrode head.

Dimensions Body length - 150 mm.

Body Dia. - 12.5 mm.

Cable length - 3000 mm.

CARRYING CASE

Model : CA-06

Hard carrying case.

280 x 195 x 65 mm ( 11.0 x 7.7 x 2.6 inch ).

CARRYING CASE

Model : CA-05A

Soft carrying case with sash.

260 x 110 x 55 mm ( 10.2 x 4.3 x 2.2 inch )
