MSI MS-5187 Manuale utente
CHAPTER 1 INTRODUCTION
1-1
The MICRO ATX VI16 mainboard is a high-performance all-in-one system
mainboard. This mainboard supports Intel® Pentium® processor/Pentium®
processorwithMMXTM technology,Cyrix®/IBM®6x86/6x86L/6x86MX/MII,
and AMD®K6/K6-2/K6-III processors.
The mainboard uses the highly integrated Apollo MVP4. The Apollo MVP4
is a PC Socket-7 system logic North Bridge with integrated 2D/3D Graphics
Accelerator. The core logic portion of the chip is based on the popular
100MHz VIA Apollo MVP3 chipset with enhanced features and graphics
accelerator based on the Cyber9398DVD from Trident Microsystems. The
VT82C686ASuperI/O PCI integrated Peripheral Controller (PSIPC) is ahigh
integration, high performance, power efficient and high compatibility device
that supports Intel and non-Intel based processors plus PCI bus bridge
functionality to make a complete Microsoft PC98-compliant PCI/ISA system.
The VT82C686A supports PCI-to-ISA bus controller, four USB ports, dual
bus-masterIDE with Ultra DMA33/66, AC97Basic Audio, System Hardware
Monitoring, and integrated “Super I/O functionality”.
This Mainboard with Apollo MVP4 coupled with VT82C686A is a ideal
performance energy efficient, and highly integrated computer systems.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSocket 7 supports Intel®Pentium®processor with MMXTM technology.
lTheCyrix®6x86/6x86L/6x86MX/MIIandAMD®K6/K6-2/K6-III proces-
sors are also supported.
Chipset
lVIA®VT82C501(MVP4)chipset. (Northbridge)
-support66/100MHzFSB
- integrated AGP 2D/3D Graphics Accelerator
-supportPC66/PC100SDRAMmemorymodule
-493BGApackage
lVIA®VT82C686Achipset.(Southbridge)
- PCI Super I/O Integrated
- integrated SoundBlaster/Direct Sound AC97 Audio
-UltraDMA-33/66
-352BGApackage
FSB(FrontSideBus)
l66/75/83.3/95/100MHzclocksaresupported.
MainMemory
lSupportsamaximum memory size of 512MB.
lSupports four memory banks using two 168-pin DIMM sockets.
lSupports 3.3v SDRAM.
Slots
lOne AMR (Audio Modem riser) slot and one PTI (PanelLink TV-Out
Interface) slot.
lThree 32-bit Master PCI Bus slots and one 16-bit ISA bus slot. (wherein
one PCI/ISA is shared)
lSupports 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller provides IDE HDD/CD-ROM with PIO, Bus Master and
UltraDMA-33/66operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88Mbytes.
- 1 serial ports (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.
-1 AMR
-1 VGA Port
-1PTI
Video
lMVP4 chip integrated
lAGP2D/3D Graphics
Audio
lchip integrated
lDirectSound AC97 Audio
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMICROATX Form Factor: 24cm(L)x19.2cm(W)x 4layersPCB
CHAPTER 1 INTRODUCTION
1-4
Mounting
l6 mounting holes.
System Hardware Monitor (optional)
lCPU Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
Other Features
lLANWake-Up
lInternal/ExternalModemWake-Up
CHAPTER 1 INTRODUCTION
1-5
1.2 Mainboard Layout
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ISA SLOT 1
ATX
Power Supply
VIA
Apollo
MVP4
Socket 7
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 1
IDE2
Bottom:
Port2
IDE1 FDD
VT82C686A
JMDM1
IR1
SFAN1
JFP1
JGS1
BIOS
JWOL1
JCD1
JAUX1
CFAN1
BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MS-5187 MICRO ATX VI16 Mainboard
MODEM1
JV1
AMR PTI
JBTCK1
JGL1
JSDIN1
JRMS1
SW1
JBAT1
1
5
JPL1+
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
Hardware Installation
2.1 Central Processing Unit: CPU
The MicroATX VI16 mainboardoperates with Intel®Pentium®processor/
Pentium® processorw/MMXTM technology, Cyrix®/IBM6x86/6x86L/
6x86MX/MII,andAMD®K6/K6-2/K6-III processors. Itcouldoperatewith
2.2V to 3.2V processors. The mainboard provides a 321-pin ZIF Socket 7 for
easy CPU installation. The CPU should always have a cooling fan attached
to prevent overheating.
CPU
CPU
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then raise
the lever up to a 90-degree
angle.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
2.1-1 CPU Installation Procedures
CHAPTER 2 HARDWARE INSTALLATION
2-2
2.1-2 CPU Core Speed Derivation Procedure
1. The DIP Switch SW1 (1, 2, and 3) are used to set the Core/Bus
(Fraction) ratio of the CPU. The actual core speed of the CPU is
the Host Clock Frequency multiplied by the Core/Bus ratio. For
example:
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Busratio
= 66MHzx3.5
= 233MHz
1 2 3 Core/Bus Ratio
ON OFF OFF 2
ON ON OFF 2.5
OFF ON OFF 3
OFF OFF OFF 3.5
ON OFF ON 4
ON ON ON 4.5
OFF ON ON 5
OFF OFF ON 5.5
SW1 CPU
2. The DIP Switch SW1 (5, 6, 7, and 8) are used to adjust the CPU
clock frequency.
5 6 7 8 CPU
OFF OFF OFF ON 66
ON OFF OFF OFF 75
OFF ON OFF ON 83.3
OFF ON ON OFF 95
OFF ON ON ON 100
SW1 Clock
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-3 Processor Voltage Setting
The jumper Switch JV1 (1-5) is used to set the processor Vcore
voltage setting.
1
5
3
2
4
1 2 3 4 5 Vcore
OPEN SHORT OPEN OPEN OPEN 2.2
SHORT SHORT OPEN OPEN OPEN 2.3
OPEN OPEN SHORT OPEN OPEN 2.4
OPEN OPEN OPEN SHORT OPEN 2.8
SHORT OPEN OPEN SHORT OPEN 2.9
OPEN OPEN SHORT SHORT OPEN 3.2
JV1
Note: Always consult vendor for proper CPU specification, before
setting the processor voltage (Vcore/Vio). Improper setting
may damage the processor and other components.
CHAPTER 2 HARDWARE INSTALLATION
2-4
2.1-4 Fan Power Connectors: CFAN1/SFAN1
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CFAN1
CFAN1: Processor Fan
SFAN1:SystemFan
+12V SENSOR
GND
SFAN1
+12V SENSOR
GND
CHAPTER 2 HARDWARE INSTALLATION
2-5
To adjust the speed and voltage of the CPU, you must know the
specifications of your CPU (always ask the vendor for CPU specifi-
cations). Then refer toTable 2.1 (Intel®processors),Table2.2
(Cyrix®processors)and Table 2.3 (AMD®processors) forproper
setting.

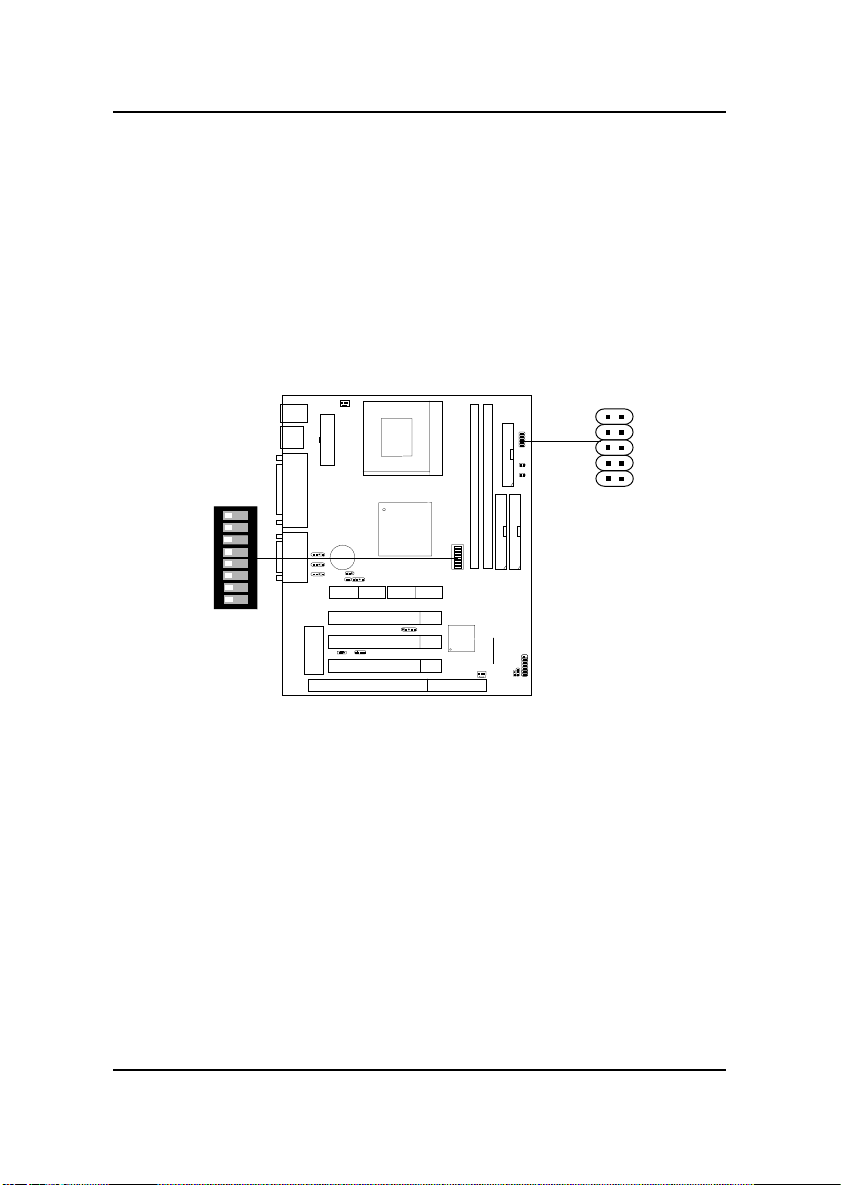

2.1-5 CPU Speed and Voltage Setting: SW1, JV1
SW1
ON
1 2 3 4 5 6 7 8
ECE
JV1
2
5
3
1
4
