MSI MS-6182 Manuale utente
CHAPTER 1 INTRODUCTION
1-1
The MS-6182 ATX WH8 mainboard is a high-performance
computer mainboard based on Intel®810 chipset. The MS-6182 is designed
for the Intel®Pentium®II/III or CeleronTM processor for inexpensive
business/personal desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics
chipset for the Intel®Pentium®II/III CeleronTM processor. The graphics
accelerator architecture consists of dedicated multi-media engines executing
in parallel to deliver high performance 3D, 2D, and motion compensation
video capabilities. An integrated centralized memory arbiter allocates
memory bandwidth to multiple system agents to optimize system memory
utilization. A new chipset component interconnect, the hub interface, is
designed into the Intel®810 chipset to provide an efficient communication
channel between the memory controller hub and I/O hub controller.
The Intel®810 chipset contains three core components: the
GraphicsandMemoryControllerHub(GMCH),theI/OControllerHub
(ICHO/ICH)andtheFirmwareHub(FWH). TheGMCHintegratesa 66/
100MHz,P6familysystembuscontroller,2D/3Dgraphicsaccelerator,
100MHz SDRAM controller and high-speed hub interface for communication
withtheICHO/ICH. TheICHO/ICHintegratesanUltraATA/33(ICHO)or
UltraATA/66(ICH)controller,USBhostcontroller, LPC interface controller,
FWHinterfaceconroller, PCI interface controller,AC’97digitalcontrollerand
a hub interface for communication with the GMCH.
The Intel®82802 Firmware Hub (FWH) component is part of the
Intel®810 chipset. The FWH is key to enabling future security and
manageability infrastructure for the PC platform.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSlot 1 for Intel®Pentium®II/Pentium®III/CeleronTM processor.
lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,
450MHz,500MHz and faster processor.
Chipset
lIntel®810(GMCH) chipset.(421BGA)
- Integrated Graphics Controller
- Intel DDM Architecture
- SDRAM memory Independent of System Bus
lIntel®ICH/ICH0chipset.(241BGA)
-AC’97ControllerIntegrated
- 2 full IDE channels, up to ATA66
- 2 full IDE channels, up to ATA33 (ICH0 only)
- Low pin count interface for SIO
FrontSide Bus(FSB)
l66/100MHz clocks are supported.
MainMemory
lSupport three 168-pin DIMM sockets.
lSupportamaximummemory sizeof256MB(64-bit)or 512MB(128-bit)
SDRAM.
Slots
lOne AMR(Audio Modem Riser) and one PTI(PanelLink TV-Out Interface)
lSix 32-bit PCI Bus slots and one 16-bit ISA slot (wherein one PCI/ISA slot
is shared).
lSupport 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripheralsinclude:
-1floppyportsupports2FDDwith360K,720K,1.2M,1.44Mand
2.88Mbytes.
-2 serial port (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports and 2 USB connectors
- 1 IrDA connector for SIR.
-1 VGAport
Video
lGMCH chip integrated
l2D/3DGraphics
lOnboard 4MB Display Cache (optional)
Audio
lICH/ICH0 chip integrated
lCreative®ES1373(optional)
-Running on PCI BUS.
- Support Direct Sound and Direct Sound 3D
-AC97’Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
lAdjustable FSB CPU core voltage.
CHAPTER 1 INTRODUCTION
1-4
Dimension
lATXFormFactor:30.5(L)x19.2(W)x4layersPCB
Mounting
l8 mounting holes.
SystemHardwareMonitor
lCPU/Power Supply/Chassis Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
OtherFeatures
lKeyboard Password Wake-Up (reserved)
lLANWake-Up
lInternal/ExternalModem Wake-Up
lSuspend to RAM (STR)
CHAPTER 1 INTRODUCTION
1-5

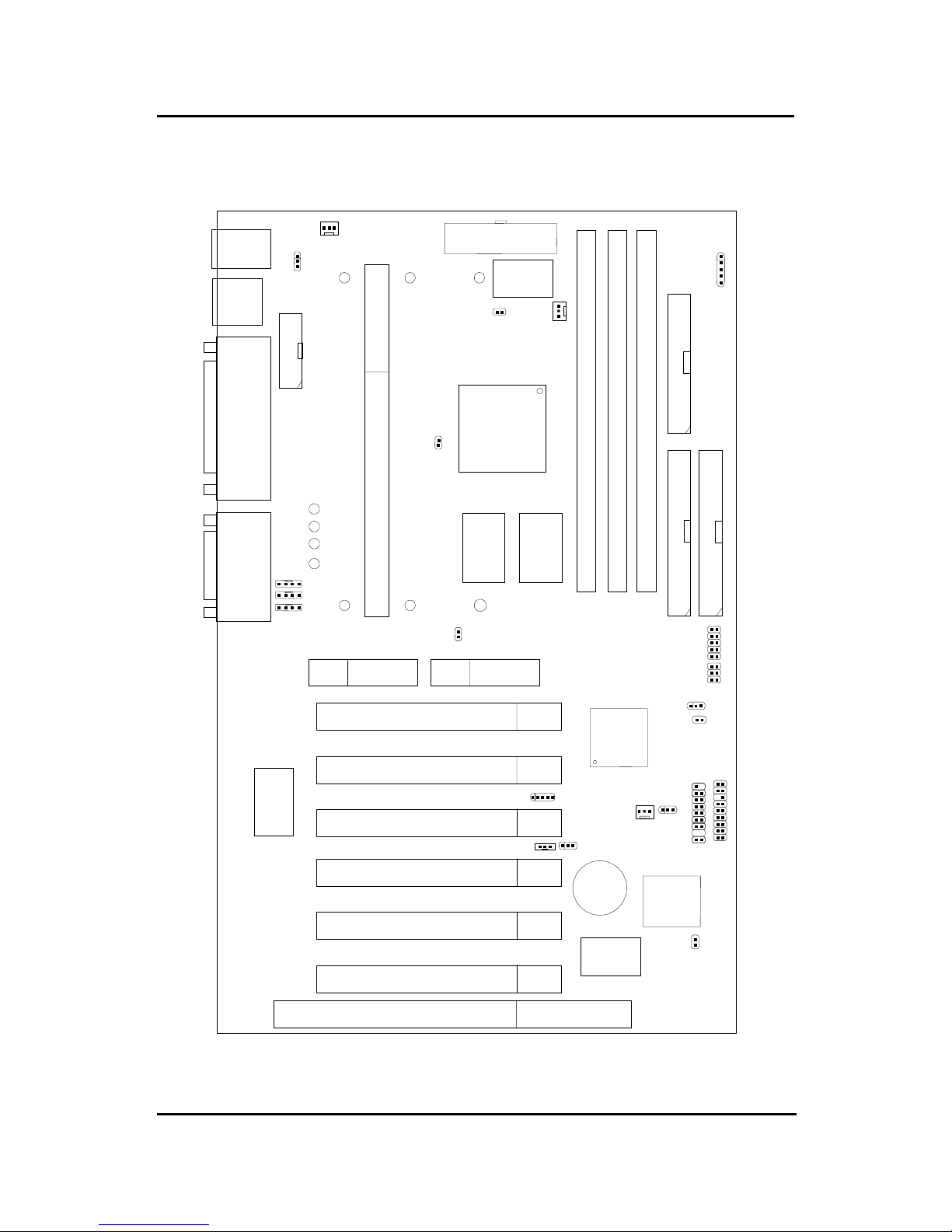

1.2 Mainboard Layout
MS-6182ATXWH8Mainboard
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel®
810
Chipset
(GMCH)
SLOT 1
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 3
IDE2
Bottom:
Port2
IDE1
FDD
Intel®
ICH0/ICH
JMDM1
Creative
ES1373
JFP1
JGS1
JGL1
JBAT1
JWOL1
Diagnostic LED
MDM_IN
AUX_IN
COM B
CPUFAN
BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
CD_IN
SDRAM SDRAM
J2
J16
SYSFAN
J15
PCI SLOT 4
PCI SLOT 5
PCI SLOT 6
J17
USB2
AMR PTI
IR
JKBV1
DIMM 1
FWH
JP3
ISA SLOT
J10
J3
PSFAN
W83627HF-AW
W83628F
