Operation Manual
LRB 6000CI
LASER RANGE FINDER
BINOCULARS
105 Sparks Ave., Toronto, ON M2H 2S5, Canada
ii
iii
IMPORTANT INFORMATION
Read prior to activation
You have just purchased a sophisticated electro-optical device that emits
invisible laser radiation. To operate it properly, please read this manual
carefully.
•NEVER direct laser beam at the eyes of people or animals
•NEVER aim the unit at the Sun or bright sources of light
•NEVER subject the unit to impacts
•NEVER transport the unit without its case
•NEVER disassemble the unit. This may be hazardous for you due to
high voltage currents in the system
•ALWAYS keep the unit out of children’s reach
•ALWAYS remove the battery when the device is not in use for a
long period
•ALWAYS store in a dry place
•Caution - use of controls or adjustments, or performance of
procedures other than those specified herein may result in hazardous
radiation exposure
•Caution - use of optical instruments such as binoculars, loupes,
mirrors, lenses, etc. with this product increases eye hazard
•Note: Avoid eye exposure to direct laser beam or its close reflection
•Prevent bright light from focusing through the eyepieces
TABLE OF CONTENTS
1. BRIEF DESCRIPTION............................................ 2
2. DEVICE APPEARANCE ........................................ 3
3. DELIVERY SET...................................................... 4
4. SPECIFICATIONS .................................................. 5
5. OPERATION INSTRUCTIONS ............................. 6
Installing the battery................................................. 6
Using the Device ...................................................... 7
Factors affecting measuring distance .......................7
Target selection logic ............................................... 8
Operation and service modes ................................... 8
Compass calibration ................................................. 9
Setting interface format.......................................... 10
Gating mode ........................................................... 10
Data Recall mode ................................................... 11
Computer interconnectivity.................................... 11
GPS interconnectivity ............................................ 12
Short mode switching scheme................................ 12
6. BEST MEASURING TECHNIQUE...................... 13
7. STORAGE AND MAINTENANCE...................... 13
8. TROUBLESHOOTING ......................................... 14
9. WARRANTY......................................................... 14
10. CUSTOMER SUPPORT........................................ 15
11. QUALITY CERTIFICATE.................................... 16
2
CAREFULLY READ ALL THE INSTRUCTIONS PRIOR TO
USE!
FAILURE TO OBEY THE INSTRUCTIONS WILL VOID THE
WARRANTY AND MAY CAUSE INJURY!
1. BRIEF DESCRIPTION
LRB 6000CI Laser Rangefinder Binoculars (System) is an advanced
laser range finder system that enables instant distance, speed, vertical and
horizontal angular measurements. An outstanding optics provides a
sharp, clear image under any observation conditions.
The unit utilises time-of-flight method of distance and speed
measurement. The System sends invisible, eye safe laser pulses to the
target. The returned pulses are captured by the digital circuitry. The
time difference is used to calculate the distance to the target. A built-
in digital compass measures an angle between the optical axis and
direction to the magnetic North Pole.
The unit complies with CFR 21, Part 1040.10 and Part 1040.11.
A built-in inclinometer allows elevation angle measurements and
height (depth) calculations.
Key Features of the LRB 6000CI Laser Rangefinder Binoculars
•Modern digital circuitry allows targeting through most types of glass
•First, last or the most reflective target acquisition
•Meters/Yards/Mils/Degrees/KMH/MPH display
•Last 10 measurements recall
•Selectable reticle shape (+ or )
•Gating capability
•Speed detector
•Accurate digital compass
•Accurate digital inclinometer
•RS-232 bidirectional communication
•GPS interoperability (PLGR/DAGR protocol)
3
2. DEVICE APPEARANCE
1 – Eyepieces 2 – Objective / receiving lens
3 – Objective / emitting lens 4 – Dioptric adjustment rings
5 – Mode button 6 – Action button
7 – Body of the device 8 – Rubber grip
1 – Eyepiece
9 – Interpupillary distance adjustment lever
10 – Model Identification label
11 – Identification and certification label (at the bottom):
2
3
4
5
6
7
1
8
10
9
1
11
Fig. 1. Front view
Fig. 2 Rear view
4

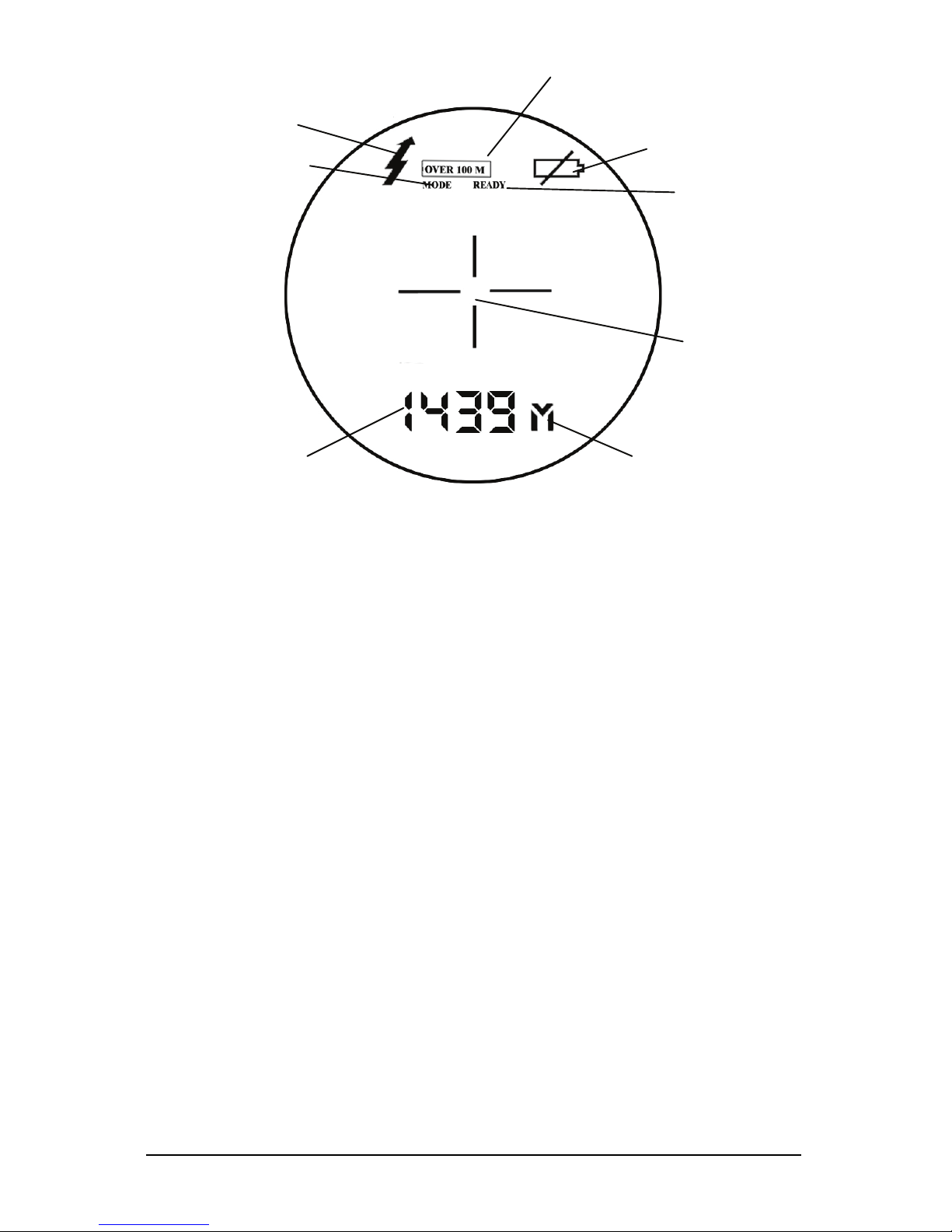

Fig. 3 Display
1 – Low battery indicator 2 – Reticle (either -¦- or )
3 – Units of measurement 4 – Measurement result
5 – Gating indicator 6 – Laser active indicator
7 – Ready mode indicator 8 – Setup mode indicator
3. DELIVERY SET
Standard delivery set for LRB 6000CI includes:
Qty
LRB 6000CI
Carrying case
Neck strap
User’s manual
Warranty card
Computer cable
CD with communication software
Hard case
9V non-magnetic Lithium battery
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
4
6
2
5
1
3
7
8
5
Optional items
Remote control module
GPS cable
Exact delivery set depends on details of a contract or purchase order.
4. SPECIFICATIONS
Optics
Magnification 7x
Objective lens diameter 50 mm
Exit pupil diameter 7.1 mm
Field of view 7°
Type of coating Fully multi-coated optics
Interpupillary distance 58-72 mm
Dioptre adjustment range ±4
Range Finder
Laser Class 1, eye safe, 905 nm
Measuring range 1 – 6,500 m
Accuracy and display resolution ±1 m
First, last and auto target selection Yes
Meters / Yards display Yes
Last 10 measurements recall Yes
Reticle -¦- or
Target quality indicator Yes
Gating capability 100 - 3,900 m; 100 m step
Speed Detection
Measured speed range 5-400 km/h or 3-250 mph
Accuracy ±1 km/h or mph
Compass
Measured azimuth range 6400 mils /360°
Accuracy ±1°
6
Inclinometer
Measured elevation range ±60°
Accuracy ±1°
Height measuring Yes (Meters or Yards)
Power
Battery 9V Lithium (non-magnetic)
Battery capacity Min 4,000 measurements
(Scanning regime)
'Low Battery' indicator Yes
Environmental
Operational temperature range -40…+55oC (-40…+131oF)
Storage temperature range -45…+65oC (-49…+149oF)
Mechanics
Tripod thread ¼” x 20 TPI
Weight without battery 1.3kg
Weight with hard case 3.5 kg
Dimensions 210x150x60 mm
5. OPERATION INSTRUCTIONS
Installing the battery
Open the battery compartment using a suitable tool, or a coin.
Insert a 9V Lithium non-magnetic battery provided with your device
Connect the battery to the battery snap
Refit the battery compartment and tighten the screw.
If the battery compartment cover does not close tightly and evenly, check
that the battery snap wires are neatly packed inside the battery
compartment and the cover is aligned over the edge of the battery
compartment.
Note: Battery in metal casing will diminish compass accuracy. Non-
magnetic batteries should be used for the utmost compass performance.
LRB 6000CI is equipped with battery monitoring sensor. If display
shows “LOW BATTERY” warning when battery voltage falls below
7
6.5V this indicates that the battery is used up. You can still get readings,
but the battery needs to be replaced soon.
Using the Device
The LRB 6000CI operational procedures are design to allow the user to
use most applicable options in the fastest time possible. To activate it,
press and hold Action button (6, Fig.1) for one second. At start the unit
comes into Ready to Measure mode indicated by the word ‘READY’ on
the display visible through the eyepiece.
Pressing Action button (6, Fig. 1) again will initiate measurement
procedure. The results of measurement are displayed in default form of
“Distance (M), Azimuth (mils) and Elevation (mils)” measurement
parameters also can be modified to user preference (see Setup Mode).
If results of measurement are unreliable four dashes (‘----‘) will be
displayed in the area (4, Fig. 3).
Pressing Mode button (5, Fig. 1) gives the user the options to change
settings from Factory default to specific modes required by user. For full
list of Mode options please refer to Operation and Service modes
If the target is located below the unit the result of vertical measurement
(elevation or height) will be preceded with minus (“-“) sign.
Factors affecting measuring distance
Target reflectivity depends on its color, surface finish, size, shape,
position in relation to the laser beam, etc. Bright target colors are more
reflective than darks. A polished surface is more reflective than a rough
one. Larger targets reflect better than small ones. Ranging a target
perpendicular to the laser beam provides better results than the one
positioned at a sharp angle to the beam.
Weather conditions that influence air transparency (rain, fog, snow, mist)
reduce maximum range. Bright sunny days will reduce performance as
well as IR sun radiation may cover reflected laser impulses.
While the unit will measure through many glass types, measuring
through glass may reduce accuracy.
Natural hand tremor decreases the accuracy of long distance ranging.
Using of a tripod is highly recommended.
Note: device may produce false readings when reticle is aimed at the sun
or in ± 20˚solid angle from the sun.
