Hotwire®8303/8304 IDSL Cards
Installation Instructions
Document Number 8303-A2-GZ40-10
August 2000
What is a Hotwire 8303/8304 IDSL Card?
A Hotwire®8303/8304 Integrated Services Digital Network Digital Subscriber Line
(IDSL) card is a circuit card assembly that contains 24 ports, an interface to the
Network Service Provider (NSP), and a processor.
When the 8303/8304 IDSL card is used in a Hotwire 8610/8810 Digital Subscriber
Line Access Multiplexer (DSLAM) or 8820 GranDSLAM chassis and connected to
a Hotwire 6301/6302 DSL Router, it provides high-speed Internet or intranet
access over traditional twisted-pair telephone wiring.
Product Documentation Online
Complete documentation for this product is available at www.paradyne.com.
Select
Library
→
Technical Manuals
→
Hotwire DSL & MVL Systems
.
Select the following documents:
8000-A2-GB22
Hotwire Management Communications Controller (MCC) Card, IP
Conservative, User’s Guide
8000-A2-GB26
Hotwire IP MVL, RADSL, IDSL, and SDSL
Cards, Models 8310/8312/8314,
8510/8373/8374, 8303/8304, and 8343/8344, User’s Guide
8021-A2-GB20
Hotwire Shelf Concentration Module (SCM) Card User’s Guide
To order a paper copy of a Paradyne document:
Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
Outside the U.S.A., call 1-727-530-8623
IDSL Card Chassis Type Uplink
Interface Type Endpoint Used
8303 8610/8810 DSLAM or
8820 GranDSLAM Ethernet 6301 or 6302 IDSL
Router
8304 8820 GranDSLAM ATM via SAR
childcard
2August 2000 8303-A2-GZ40-10
8303/8304 IDSL Card Installation Planning
Each Hotwire chassis is shipped with one of the following installation
documents:
Refer to one of the above installation documents to:
—Install and set up the Hotwire DSLAM or GranDSLAM
—Install the Hotwire 8303/8304 IDSL Card
—Connect cables
After the IDSL card is installed, there are configuration procedures that must
be performed before you can begin to use the IDSL cards for Internet or
intranet connectivity. Refer to either the
Hotwire IP MVL, RADSL, IDSL, and
SDSL Cards User’s Guide
or the
Hotwire Shelf Concentration Module (SCM)
Card User’s Guide
for detailed configuration procedures. Access these
documents using the instructions in
Product Documentation Online
on page 1.

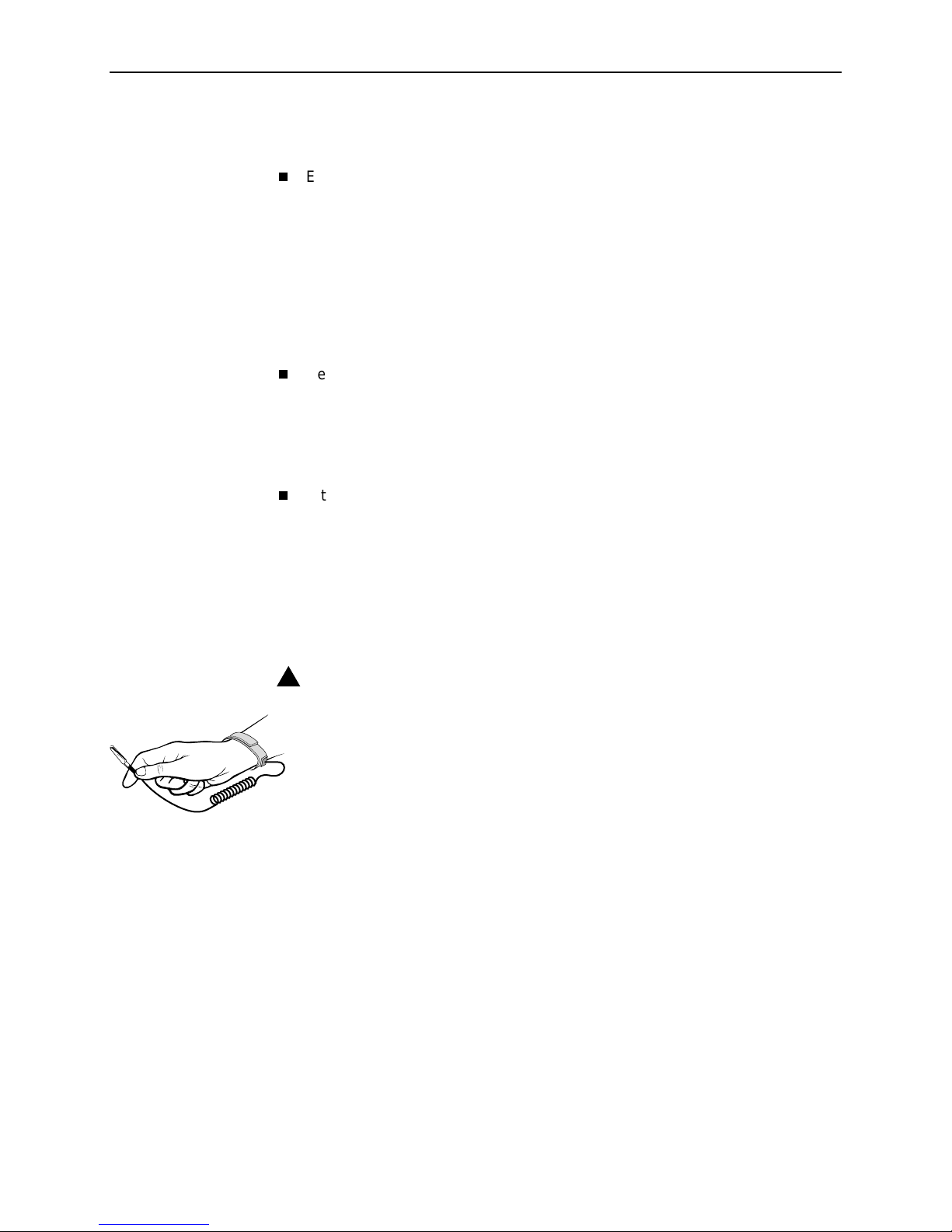

HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage
due to electrostatic discharge (ESD) during normal operation. When
performing installation procedures, however, take proper static control
precautions to prevent damage to equipment. If you are not sure of the
proper static control precautions, contact your nearest sales or service
representative.
Document Number Document Title
8610-A2-GN10
Hotwire 8610 DSLAM Installation Instructions
8810-A2-GN11
Hotwire 8810 DSLAM Installation Instructions
8820-A2-GN20
Hotwire 8820 GranDSLAM Installation Guide
!
8303-A2-GZ40-10 August 2000 3
Installing the IDSL Card
Procedure
To install the Hotwire 8303/8304 IDSL card in a Hotwire chassis:
1. If there is a filler plate covering the slot, remove it.
2. Insert the card into the card guides of the slot on the chassis. For the 8303
IDSL card in an 8610 DSLAM, ensure that the components are facing up.
3. Carefully slide the card into the slot. Gently, but firmly, push the card until it
engages its mating connectors on the backplane.
4. Verify that the OK SYSTEM indicator on the card’s faceplate is blinking
(green). If not, refer to the appropriate chassis installation document.
5. Secure the card by fastening the screws on each end of the faceplate. This is
required to maintain proper gasket pressure on the faceplate as well as proper
air flow.
6. Set the Alternate Bank Switch on the card’s faceplate to 13–24 to display the
status for Ports 13–24 on the LEDs, or to 1–12 to display the status for
Ports 1–12.
IDSL Card Technical Specifications
Specifications Criteria*
* Criteria of technical specifications are subject to change without notice.
Size Length: 10.4 inches (26.42 cm)
Height: 11.15 inches (28.32 cm)
Width: 0.8 inches (2.03 cm)
Weight Approximately 1.4 lbs. (0.64 kg)
Approvals
Safety Certifications Refer to the equipment’s label for approvals on product.
Power The IDSL card contains a DC-to-DC converter that requires
–48V power input. The –48V power is distributed through the
Hotwire chassis backplane.
Maximum Power Dissipation = 12 watts
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°to 122°F (0°to 50°C)
–4° F to 158°F (–20°C to 70°C)
5% to 95% (noncondensing)
Withstands normal shipping and handling.
4August 2000 8303-A2-GZ40-10
8303 IDSL Card LEDs
The following table describes the meaning and states of the LEDs on the Hotwire
8303 IDSL card faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green,
Winking
Green, On
Off
Card functioning normally. Winking describes a
recurring pulse when the LED is ON longer than
OFF at a ratio of approximately 10:1.
8303 IDSL card failure. System processing
functions have stopped.
No power to card.
Alrm Yellow, On
Off
Alarm is present on the Hotwire 8303 IDSL card.
Ethernet (ETH1) interface is not being detected.
Normal operation, no alarms.
Test Yellow, On
Off
Test in progress.
Normal operation, no tests.
ETHERNET TX Green,
Blinking
Off
Packets are being transmitted. LED blinks on
and off about five times per second.
Inactive. Link down.
RX Green,
Blinking
Off
Packets are being received. LED blinks on and
off about five times per second.
Inactive. Link down.
Coll Off
Yellow,
Blinking
Normal operation.
A collision hasbeen detected. LED blinks on and
off about five times per second.
DSL PORT 1/13,
2/14,
3/15,
4/16,
5/17,
6/18,
7/19,
8/20,
9/21,
10/22,
11/23,
12/24
Green, On
Off
Green,
Blinking
Green,
Reverse
Winking
DSL link is up.
Port is disabled or not initialized.
Port test or DSL handshaking is in progress. LED
blinks on and off about five times per second.
DSL link is down. Reverse winking describes a
recurring pulse when the LED is OFF longer than
ON at a ratio of approximately 10:1.
ALT
BANK Yellow, On
Off
One of the ports that is not currently being
displayed by the port status LEDs is either in a
Test Mode, a DSL handshake is in progress, the
DSL link is down, or there has been a card reset.
All ports not currently being displayed by the port
status LEDs are functioning normally or are
disabled.
00-16692
IDSL
10/100BT
8323
SYSTEM
OKAlrm
Test
TXRXColl
1/13
2/14
3/15
4/16
ETHERNET
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
00-16692
IDSL
10/100BT
8323
SYSTEM
OKAlrm
Test
TXRXColl
1/13
2/14
3/15
4/16
ETHERNET
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
00-16780
IP
IDSL
8303
SYSTEM
OKAlrm
Test
TXRXColl
1/13
2/14
3/15
4/16
ETHERNET
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
8303-A2-GZ40-10 August 2000 5
8304 IDSL Card LEDs
The following table describes the meaning and states of the LEDs on the Hotwire
8304 IDSL card faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green,
Winking
Green, On
Off
Card functioning normally. Winking describes a
recurring pulse when the LED is ON longer than
OFF at a ratio of approximately 10:1.
8304 IDSL card failure. System processing
functions have stopped.
No power to card.
Alrm Yellow, On
Off
Alarm is present on the 8304 IDSL card. ATM
interface is not being detected.
Normal operation, no alarms.
Test Yellow, On
Off
Test in progress.
Normal operation, no tests.
ATM BUS TX Green,
Blinking
Off
Packets are being transmitted. LED blinks on
and off about five times per second.
Inactive.
RX Green,
Blinking
Off
Packets are being received. LED blinks on and
off about five times per second.
Inactive, link down.
LOC Off
Yellow,
On
Normal operation.
ATM bus clock is not present.
DSL PORT 1/13,
2/14,
3/15,
4/16,
5/17,
6/18,
7/19,
8/20,
9/21,
10/22,
11/23,
12/24
Green, On
Off
Green,
Blinking
Green,
Reverse
Winking
DSL link is up.
Port disabled or not initialized.
Port test or DSL handshaking is in progress. LED
blinks on and off about five times per second.
DSL link is down. Reverse winking describes a
recurring pulse when the LED is OFF longer than
ON at a ratio of approximately 10:1.
ALT
BANK Yellow, On
Off
One of the ports not currently being displayed by
the port status LEDs is either in a Test Mode,
there is a DSL handshake in progress, the DSL
link is down, or there has been a card reset.
All ports not currently displayed by the port
status LEDs are either functioning normally or
are disabled.
00-16781
IP
IDSL
8304
SYSTEM
OKAlrm
Test
TXRXLOC
1/13
2/14
3/15
4/16
ATM BUS
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
6August 2000 8303-A2-GZ40-10
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor
directly for any help needed. For additional information concerning warranty, sales,
service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:
Internet: Visit the Paradyne World Wide Web site at www.paradyne.com.
(Be sure to register your warranty at www.paradyne.com/warranty.)
Telephone: Call our automated system to receive current information by fax or
to speak with a company representative.
—Within the U.S.A., call 1-800-870-2221
—Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail
them to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo,
FL 33773, or send e-mail to userdoc@paradyne.com. Include the number and
title of this document in your correspondence. Please include your name and
phone number if you are willing to provide additional clarification.
Trademarks
Hotwire is a registered trademark of Paradyne Corporation. MVL is a trademark of
Paradyne Corporation. All other products and services mentioned herein are the
trademarks, service marks, registered trademarks, or registered service marks of
their respective owners.
.
*8303-A2-GZ40-10*
Copyright ©2000 Paradyne Corporation. Printed in U.S.A.
Altri manuali per Hotwire 8303
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Paradyne Scheda di rete
Paradyne
Paradyne Hotwire 8373 Manuale utente
Paradyne
Paradyne FrameSaver 9620 Manuale utente
Paradyne
Paradyne UIM-10/100 Manuale utente
Paradyne
Paradyne BitStorm 2600 IP DSLAM Manuale utente
Paradyne
Paradyne Hotwire 8343 Manuale utente
Paradyne
Paradyne Hotwire 8510 Manuale utente
Paradyne
Paradyne Hotwire ATM Line Cards 8335 Manuale utente
Paradyne
Paradyne Hotwire 8335 Manuale utente
Paradyne
Paradyne Hotwire 8303 Manuale utente
Paradyne
Paradyne Hotwire 8310 Manuale utente
Paradyne
Paradyne 8968 Manuale operativo e di manutenzione
Paradyne
Paradyne 8955 Manuale utente
Paradyne
Paradyne HotWire 8546 Manuale utente
Paradyne
Paradyne 8975 Manuale operativo e di manutenzione
Paradyne
Paradyne 3162 Manuale utente
Paradyne
Paradyne HOTWIRE 5171 Manuale utente
Paradyne
Paradyne Adapter Bracket Manuale operativo e di manutenzione
Paradyne
Paradyne Hotwire 8323 Manuale utente
Paradyne
Paradyne HOTWIRE 8310 MVL Manuale utente
Paradyne
Paradyne 8411-A1-000 Manuale utente
