1
8323-A2-GZ40-00 March 2000
Hotwirer8323/8324 IDSL Cards
Installation Instructions
Document Number 8323-A2-GZ40-00
March 2000
What is a Hotwire 8323/8324 IDSL Card?
A Hotwirer8323/8324 Integrated Services Digital Network Digital Subscriber Line
(IDSL) card is a circuit card assembly that contains 24 ports, an interface to the
Network Service Provider (NSP), and a processor.
IDSL Card Chassis Type Uplink Interface
Type Endpoint Used
8323 8610/8810 DSLAM or
8820 GranDSLAM Ethernet 6321 or 6322 DSL
Router
8324 8820 GranDSLAM ATM via SAR
childcard
When the 8323/8324 IDSL card is used in a Hotwire 8610/8810 Digital Subscriber
Line Access Multiplexer (DSLAM) or 8820 GranDSLAM chassis and connected to
a Hotwire 6321/6322 DSL Router, it provides high-speed Internet or intranet
access over traditional twisted-pair telephone wiring.
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the
waste of surplus printing. It also helps us maintain competitive prices for our
products.
Complete documentation for this product is available at www.paradyne.com.
Select Library →Technical Manuals →Hotwire DSL & MVL Systems.
Select the following documents:
8000-A2-GB22
Hotwire Management Communications Controller (MCC) Card,
IP Conservative, User’s Guide
8000-A2-GB26
Hotwire MVL, RADSL, IDSL, and Packet SDSL Cards, Models
8310/8312/8314, 8510/8373/8374, 8323/8324, and 8343/8344, User’s Guide
8021-A2-GB20
Hotwire Shelf Concentration Module (SCM) Card User’s Guide
2 8323-A2-GZ40-00
March 2000
To order a paper copy of a Paradyne document:
HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
HOutside the U.S.A., call 1-727-530-8623
8323/8324 IDSL Card Installation Planning
HEach Hotwire chassis is shipped with one of the following installation
documents:
Document Number Document Title
8610-A2-GN10 Hotwire 8610 DSLAM Installation Instructions
8810-A2-GN11 Hotwire 8810 DSLAM Installation Instructions
8820-A2-GN20 Hotwire 8820 GranDSLAM Installation Guide
HRefer to one of the above installation documents to:
— Install and set up the Hotwire DSLAM or GranDSLAM
— Install the Hotwire 8323/8324 IDSL Card
— Connect cables
HAfter the IDSL card is installed, there are configuration procedures that must
be performed before you can begin to use the IDSL cards for Internet or
intranet connectivity. Refer to either the Hotwire MVL, RADSL, IDSL, and
Packet SDSL Cards User’s Guide or the Hotwire Shelf Concentration Module
(SCM) Card User’s Guide for detailed configuration procedures. Access
these documents using the instructions in Product Documentation on the
World Wide Web.
3
8323-A2-GZ40-00 March 2000
Installing the IDSL Card
"Procedure
To install the Hotwire 8323/8324 IDSL card in a Hotwire chassis:
1. If there is a filler plate covering the slot, remove it.
2. Insert the card into the card guides of the slot on the chassis. For the 8323
IDSL card in an 8610 DSLAM, ensure that the components are facing up.
3. Carefully slide the card into the slot. Gently, but firmly, push the card until it
engages its mating connectors on the backplane.
4. Verify that the OK SYSTEM indicator on the card’s faceplate is blinking
(green). If not, refer to the appropriate chassis installation document.
5. Secure the card by fastening the screws on each end of the faceplate. This is
required to maintain proper gasket pressure on the faceplate as well as
proper air flow.
IDSL Card Technical Specifications
Specifications Criteria*
Size Length: 10.4 inches (26.42 cm)
Height: 11.15 inches (28.32 cm)
Width: 0.8 inches (2.03 cm)
Weight Approximately 1.4 lbs. (0.64 kg)
Approvals
Safety Certifications Refer to the equipment’s label for approvals on product.
Power The IDSL card contains a dc-to-dc converter that requires
–48V power input. The –48V power is distributed through
the Hotwire chassis backplane.
Maximum Power Dissipation = 36 watts
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°to 122°F (0°to 50°C)
–4°F to 158°F (–20°C to 70°C)
5% to 85% (noncondensing)
Withstands normal shipping and handling.
* Criteria of technical specifications are subject to change without notice.
00-16692
IDSL
10/100BT
8323
SYSTEM
OKAlrm
Test
TXRXColl
1/13
2/14
3/15
4/16
ETHERNET
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
4 8323-A2-GZ40-00
March 2000

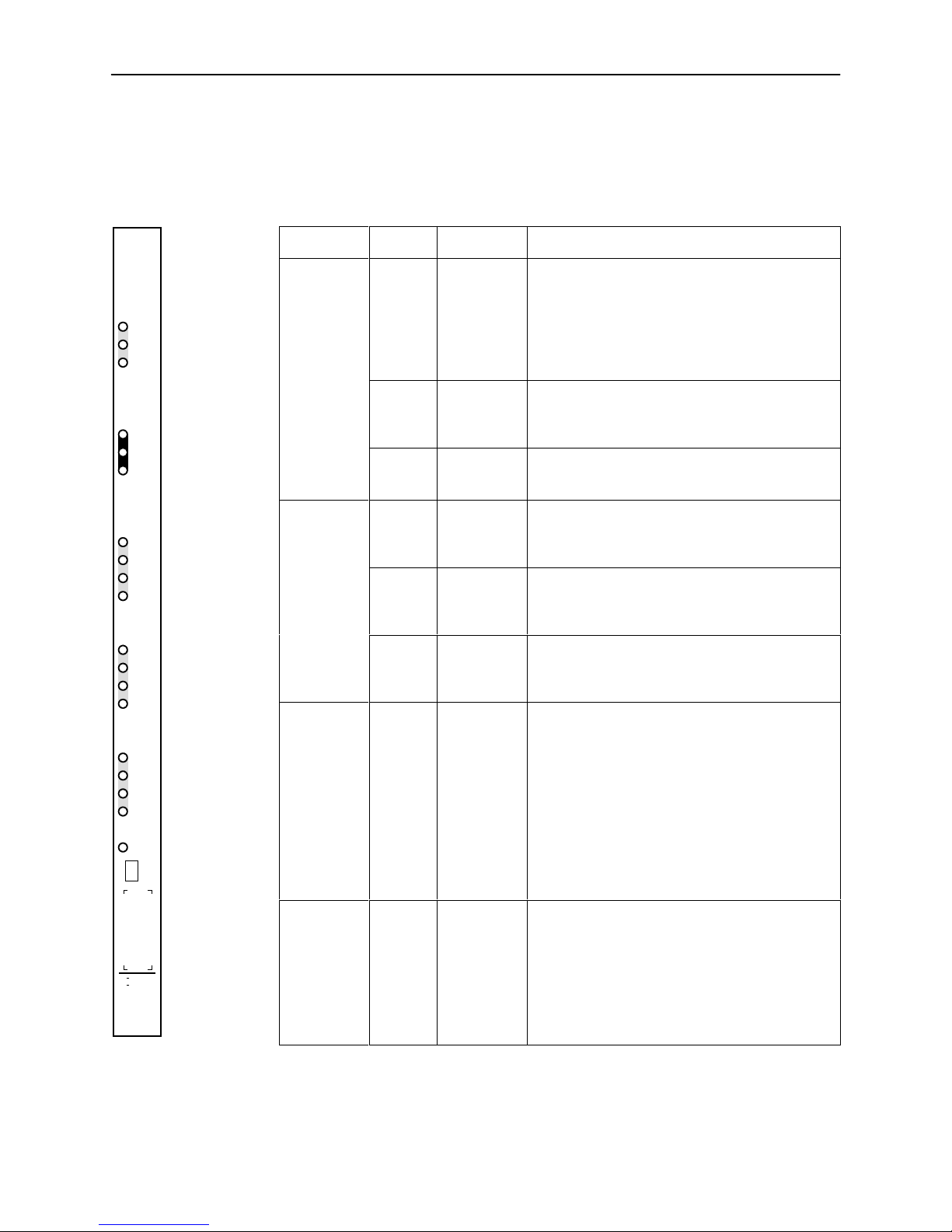

8323 IDSL Card LEDs
The following table describes the meaning and states of the LEDs on the Hotwire
8323 IDSL card faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green,
Winking
Green, On
Off
Card functioning normally. Winking describes a
recurring pulse when the LED is ON longer than
OFF at a ratio of approximately 10:1.
8323 IDSL card failure. System processing
functions have stopped.
No power to card.
Alrm Yellow, On
Off
Alarm is present on the 8323 IDSL card.
Ethernet (ETH1) interface is not being detected.
Normal operation, no alarms.
Test Yellow, On
Off
Test in progress.
Normal operation, no tests.
ETHERNET TX Green,
Blinking
Off
Packets are being transmitted. LED blinks on
and off about five times per second.
Inactive, link down.
RX Green,
Blinking
Off
Packets are being sent/received. LED blinks on
and off about five times per second.
Inactive.
Coll Off
Yellow,
Blinking
Normal operation.
A collision has been detected. LED blinks on
and off about five times per second.
DSL PORT 1/13,
2/14,
3/15,
4/16,
5/17,
6/18,
7/19,
8/20,
9/21,
10/22,
11/23,
12/24
Green, On
Off
Green,
Blinking
Green,
Reverse
Winking
DSL link is up.
DSL link is disabled.
Port test or DSL handshaking is in progress.
LED blinks on and off about five times per
second.
DSL link is down. Reverse winking describes a
recurring pulse when the LED is OFF longer
than ON at a ratio of approximately 10:1.
ALT BANK 13-24
1-12 Yellow, On
Off
One of the ports that is not currently being
displayed by the port status LEDs is either in a
Test Mode, a DSL handshake is in progress, the
DSL link is down, or there has been a card
reset.
The ports not currently being displayed by the
port status LEDs are functioning normally.
Status is OK.
00-16693
IDSL
10/100BT
8324
SYSTEM
OKAlrm
Test
TXRXLOC
1/13
2/14
3/15
4/16
ATM BUS
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
5
8323-A2-GZ40-00 March 2000

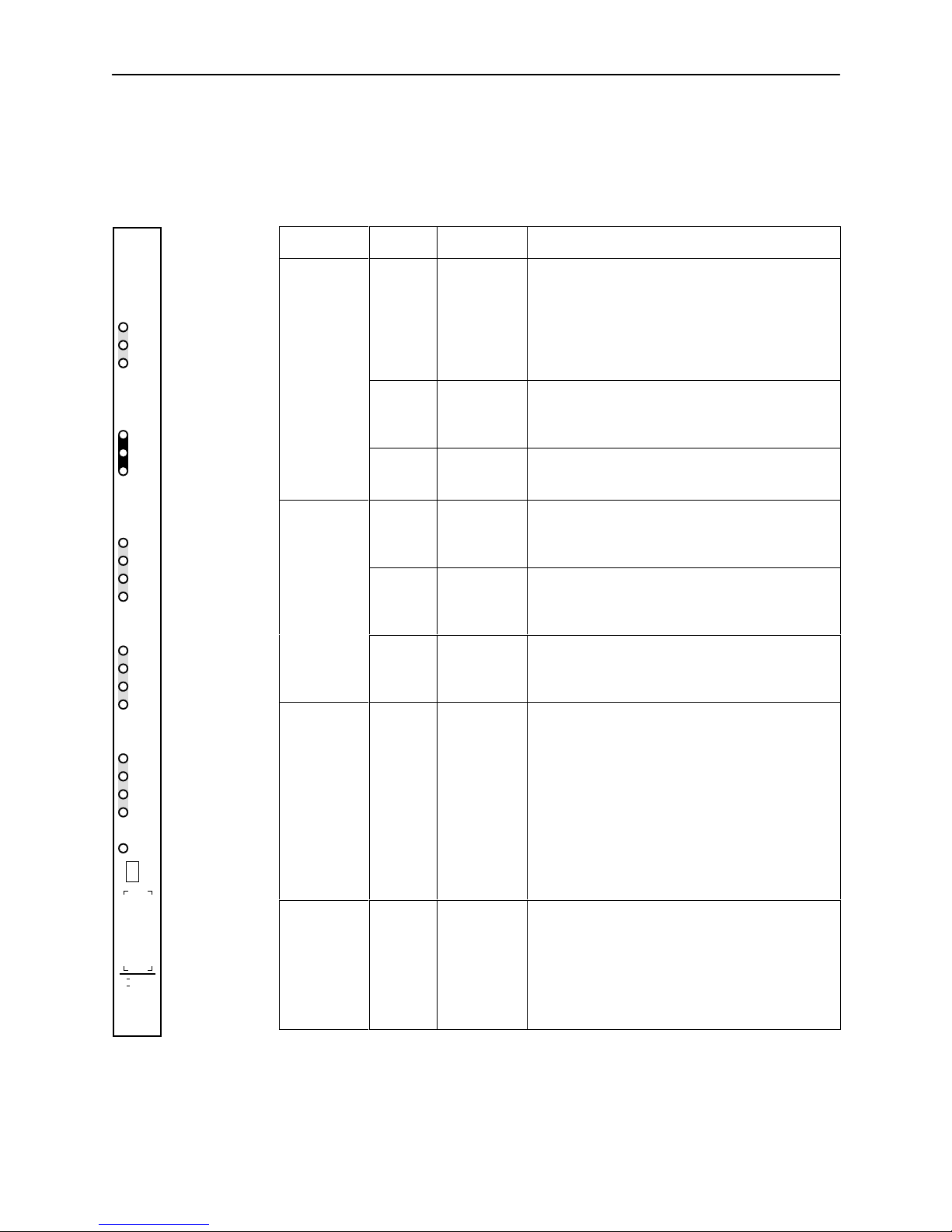

8324 IDSL Card LEDs
The following table describes the meaning and states of the LEDs on the Hotwire
8324 IDSL card faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green,
Winking
Green, On
Off
Card functioning normally. Winking describes a
recurring pulse when the LED is ON longer than
OFF at a ratio of approximately 10:1.
8324 IDSL card failure. System processing
functions have stopped.
No power to card.
Alrm Yellow, On
Off
Alarm is present on the 8324 IDSL card. ATM
interface is not being detected.
Normal operation, no alarms.
Test Yellow, On
Off
Test in progress.
Normal operation, no tests.
ATM BUS TX Green,
Blinking
Off
Packets are being transmitted. LED blinks on
and off about five times per second.
Inactive.
RX Green,
Blinking
Off
Packets are being received. LED blinks on and
off about five times per second.
Inactive, link down.
LOC Off
Yellow,
Blinking
Normal operation.
ATM bus clock is not present.
DSL PORT 1/13,
2/14,
3/15,
4/16,
5/17,
6/18,
7/19,
8/20,
9/21,
10/22,
11/23,
12/24
Green, On
Off
Green,
Blinking
Green,
Reverse
Winking
DSL link is up.
DSL link is disabled.
Port test or DSL handshaking is in progress.
LED blinks on and off about five times per
second.
DSL link is down. Reverse winking describes a
recurring pulse when the LED is OFF longer
than ON at a ratio of approximately 10:1.
ALT BANK 13-24
1-12 Yellow, On
Off
One of the ports not currently being displayed
by the port status LEDs is either in a Test Mode,
there is a DSL handshake in progress, the DSL
link is down, or there has been a card reset.
The ports not currently displayed by the port
status LEDs are functioning normally. Status is
OK.
6 8323-A2-GZ40-00
March 2000
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor
directly for any help needed. For additional information concerning warranty,
sales, service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:
HInternet: Visit the Paradyne World Wide Web site at www.paradyne.com.
(Be sure to register your warranty at www.paradyne.com/warranty.)
HTelephone: Call our automated system to receive current information by fax
or to speak with a company representative.
—Within the U.S.A., call 1-800-870-2221
—Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail
them to Technical Publications, Paradyne Corporation, 8545 126th Ave. N.,
number and title of this document in your correspondence. Please include your
name and phone number if you are willing to provide additional clarification.
Trademarks
Hotwire is a registered trademark of Paradyne Corporation. MVL is a trademark
of Paradyne Corporation. All other products and services mentioned herein are
the trademarks, service marks, registered trademarks, or registered service
marks of their respective owners.
*8323-A2-GZ40-00*
*8323–A2–GZ40–00*
Copyright E2000 Paradyne Corporation. Printed in U.S.A.
