Pepperl+Fuchs WCS-PNG410 Manuale utente

WCS-PNG410

Interface Module

PROFINET

Manual

With regard to the supply of products, the current issue of the following document is applicable: The

General Terms of Delivery for Products and Services of the Electrical ndustry, published by the Central

Association of the Electrical ndustry (Zentralverband Elektrotechnik und Elektroindustrie (ZVE ) e.V.)

in its most recent version as well as the supplementary clause: "Expanded reservation of proprietor-

ship"

Worldwide

Pepperl+Fuchs Group

Lilienthalstr. 200

68307 Mannheim

Germany

Phone: +49 621 776 - 0

E-mail: info@de.pepperl-fuchs.com

Nort American Headquarters

Pepperl+Fuchs nc.

1600 Enterprise Parkway

Twinsburg, Ohio 44087

USA

Phone: +1 330 425-3555

E-mail: sales@us.pepperl-fuchs.com

Asia Headquarters

Pepperl+Fuchs Pte. Ltd.

P+F Building

18 Ayer Rajah Crescent

Singapore 139942

Phone: +65 6779-9091

E-mail: sales@sg.pepperl-fuchs.com

https://www.pepperl-fuchs.com

WCS-PNG410

Contents

2020-03

1 Introduction................................................................................................................ 4

1.1 Content of t is Document............................................................................. 4

1.2 Target Group, Personnel ............................................................................... 4

1.3 Symbols Used ................................................................................................ 4

2 Product description................................................................................................... 6

2.1 Use and Application ...................................................................................... 6

2.2 Dimensions..................................................................................................... 6

2.3 Design of t e Device...................................................................................... 7

3 Installation................................................................................................................ 10

3.1 Mounting....................................................................................................... 10

3.2 Electrical Connection .................................................................................. 11

3.3 Dismounting................................................................................................. 13

4 Commissioning........................................................................................................ 14

4.1 Introduction.................................................................................................. 14

4.2 Connecting t e WCS Read Head................................................................ 15

4.3 Connection to t e Network ......................................................................... 16

4.4 Integrating t e Interface Module into t e Network................................... 17

4.5 Data Format for Modules ............................................................................ 20

5 Communication wit WCS read eads .................................................................. 22

5.1 Data Protocols ............................................................................................. 22

5.2 Option-E—Extended, Type WCS3B-LS2*E*, RS-485................................. 25

6 Appendix .................................................................................................................. 28

6.1 Cable Routing in t e RS-485 Bus ...............................................................28

6.2 Data Cable .................................................................................................... 30

2020-03

WCS-PNG410

ntroduction

1 Introduction

1.1 Content of t is Document

This document contains information required to use the product in the relevant phases of the

product life cycle. This may include information on the following:

•Product identification

•Delivery, transport, and storage

•Mounting and installation

•Commissioning and operation

•Maintenance and repair

•Troubleshooting

•Dismounting

•Disposal

The documentation comprises the following parts:

•This document

•Datasheet

n addition, the documentation may comprise the following parts, if applicable:

•EU-type examination certificate

•EU declaration of conformity

•Attestation of conformity

•Certificates

•Control drawings

•nstruction manual

•Other documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount-

ing lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation, com-

missioning, operation, maintenance, and dismounting of the product. The personnel must have

read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note

For full information on the product, refer to the further documentation on the nternet at

www.pepperl-fuchs.com.

WCS-PNG410

ntroduction

2020-03

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. t is mandatory

that you observe these warning messages for your personal safety and in order to avoid prop-

erty damage.

Depending on the risk level, the warning messages are displayed in descending order as fol-

lows:

Informative Symbols

Action

This symbol indicates a paragraph with instructions. You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note

This symbol brings important information to your attention.

2020-03

WCS-PNG410

Product Description

2 Product Description

2.1 Use and Application

The WCS-PNG410 interface module acts as an interface between the WCS read head and the

PROF NET O controller. The device has two PROF NET ports. The second port can be used

as an outgoing PROF NET port. Data is transferred between the WCS read head and the inter-

face module via an RS-485 interface. The data from the interface module to the controller is

transferred via the PROF NET protocol.

You can connect a maximum of four LS221 (and/or LS121) WCS read heads to one WCS-

PNG410 interface module. f you connect several WCS read heads, they must have different

addresses. The number of connected WCS read heads is configured in the hardware project

planning.

The interface module supports the operation of read heads with the Extended option (WCS3B-

LS*E*), with distances of up to 629 meters.

2.2 Dimensions

The interface module housing has the following dimensions.

Figure 2.1 Dimensions

115

100 23

WCS-PNG410

Product Description

2020-03

2.3 Design of t e Device

Device Components

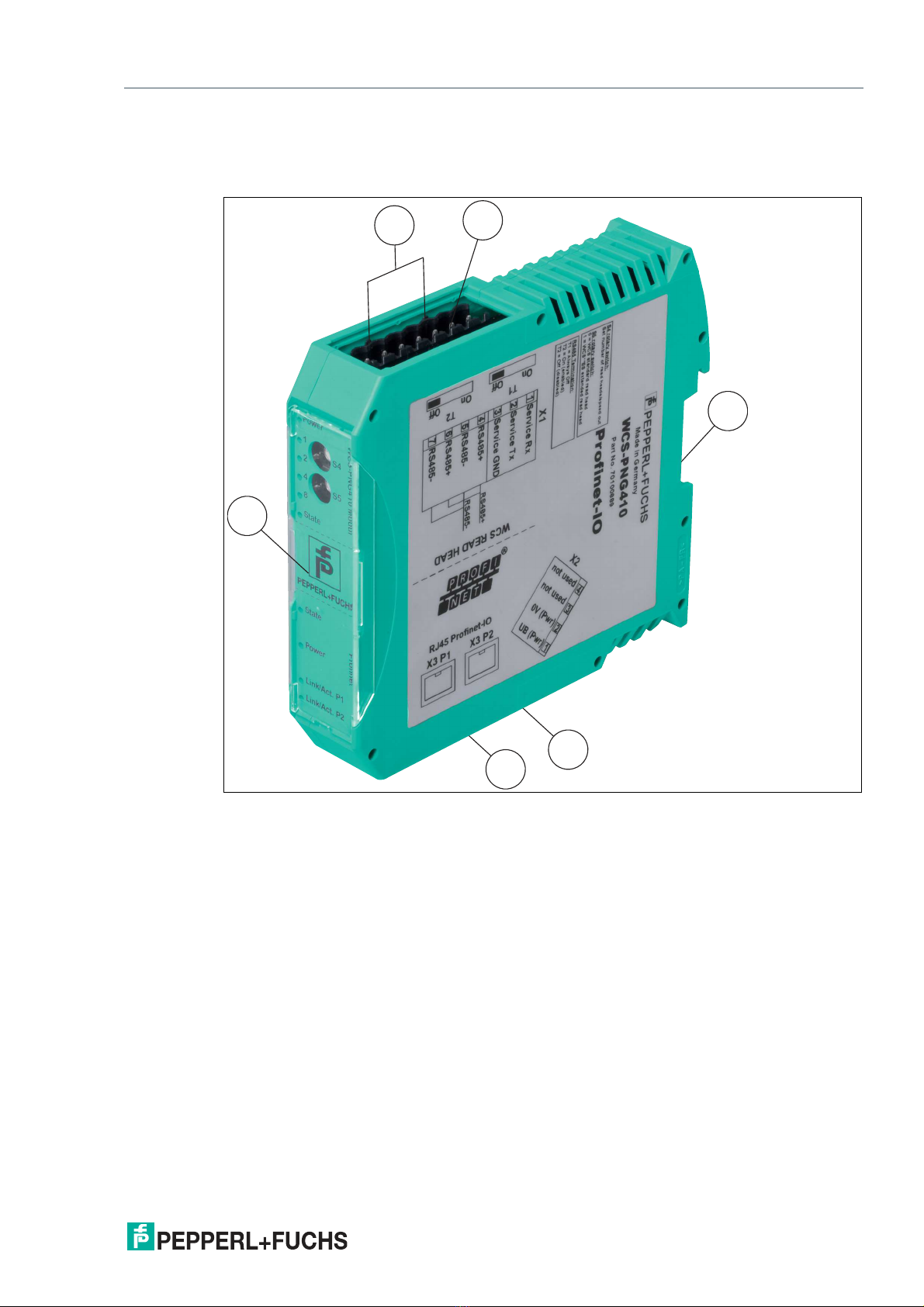

Figure 2.2 nterface module overview

1RS-485 bus termination slide switch

2X1: RS-485 interface

3Mounting bracket

4X2: Connection for power supply

5X3: PROF NET O communication interface

6Front panel with rotary coding switch and LED status indicator

2020-03

WCS-PNG410

Product Description

Front Panel

Figure 2.3 Front panel overview

WCS read ead: LED status indicator and rotary coding switc

Power/State:

The "Power/State" LED lights up green: voltage supply is present.

State:

The "State" LED is green: Data is being exchanged with the WCS read heads. The four "Error

No/Select D" LEDs are used to display the number of the currently polled WCS read head.

The "State" LED lights up red: The interface module has detected an error or a warning. The

interface module displays the binary-coded error and/or warning number via the "Error

No/Select D" LEDs.

Error No/Select ID Read ead

address

8 4 2 1

00010

00101

01002

10003

Table 2.1 Display via the four "ErrorNo/Select D" LEDs when the "State" LED lights up green

Error (No. 1...5): Switch the interface module off and back on. f the error occurs

again, the module must be replaced.

Warning (No. 6...15): The warning provides information. The interface module displays

the warning for one minute and then resets automatically.

Power/State

State

WCS-PNG410 Modul

State

Power

Link/Act. P1

Link/Act. P2

PROFINET

WCS-PNG410

Product Description

2020-03

Rotary Coding Switc es S4 and S5

Rotary coding switch S4 has no function. Rotary coding switch S5 is used to determine the pro-

tocol used (WCS or WCS Extended); see chapter 4.2.

LED ErrorNo/Select ID Error number Error description

LED8 LED4 LED2 LED1

0000 0

Reserved

0001 1

Hardware error

0010 2

EEPROM error

0011 3

nternal memory error

0100 4

Fieldbus hardware error or incorrect

fieldbus D

0101 5

Script error

0110 6

Reserved

0111 7

WCS read head communication, RS

send buffer overflow

1000 8

WCS read head communication, RS

receive buffer overflow

1001 9

WCS read head communication, RS

timeout

1 0 1 0 10

General fieldbus error

1 0 1 1 11

Parity error or frame check error

1 1 0 0 12

Reserved

1 1 0 1 13

Fieldbus configuration error

1 1 1 0 14

Fieldbus data buffer overflow

1 1 1 1 15

Reserved

Table 2.2 Significance of the error codes (display via the four "Error No/Select D" LEDs when the

"State" LED lights up red and thus indicates an error or a warning)

2020-03

WCS-PNG410

Product Description

PROFINET: LED Status Indicator

State:

Power:

The "Power" LED is green: The LED is connected directly to the electrically isolated supply

voltage for the PROF NET side.

Link/Activity P1:

The "Link/Activity" LED on port 1 is controlled directly by the PROF NET processing unit and is

green if Ethernet link pulses are found. When there is data traffic on the network, the LED

flashes green at the same speed as the sent/received data.

Link/Activity P2:

The "Link/Activity" LED on port 2 is controlled directly by the PROF NET processing unit and is

green if Ethernet link pulses are found. When there is data traffic on the network, the LED

flashes green at the same speed as the sent/received data.

"State" LED PROFINET interface state

Lights up green Data exchange in progress

Flashes green PROF NET is initialized, waiting for connection to O controller

Lights up red Error with PROF NET hardware

Flashes red Error during PROF NET initialization

Table 2.3 "State" LED display
