IOLAN SCG Quick Start Guide
P/N 5500439-10 (Rev C 1
IOLAN SCG
Quick Start Guide
______________________________________________________________
The IOLAN SCG gives you a way to access serial devices remotely from
anywhere there is a network connection.
This guide covers basic installation and configuration and is intended for
first time setup or product evaluation.
Complete details can be found in the following guides at
www.perle.com/downloads.
•IOLAN User’s Guide V5.0 and greater
•IOLAN (CLI Command Line Interface Reference Guide V5.0 and
greater
•IOLAN SCG Hardware Installation Guide
IOLAN SCG Models
All IOLAN SCG models have the following basic hardware set.
•16/32/48 RS232 RJ45 ports (depending on the model ordered
•An RJ45, auto-sensing Ethernet 10/100/1000 Mbps port
•1 Micro-USB and 1 RS232 RJ45 Console Admin Port
What’s in the box?
The following components are included with your product:
IOLAN SCG Chassis: 1U-tall (1.75 inch , rack-mountable chassis
with 16/32/48 RS232 RJ45 ports
AC power cable
Quick Start Guide (this guide
Rack mount kit
1 meter CAT5 straight-through patch cable
Adapter to convert from Cisco (RJ45 pin-out to DB9F
What You Need to Supply
Before you can begin, you need to have the following:
•A serial cable(s to connect serial devices to your IOLAN unit
IOLAN SCG Quick Start Guide
2
•An Ethernet CAT5e 10/100/1000BASE-T cable to connect the
IOLAN unit to the network
Hardware Features
SCG Front View
SCG Back View
Configuring the Unit
The IOLAN SCG features several different configuration methods (i.e.
HTTP, Telnet, SNMP as well as an external Windows based Utility
(DeviceManager . For the most up to date documentation on any
IOLAN SCG features please refer to the Perle website at
www.perle.com
Initial Setup for the IOLAN SCG
1. Connect power to the IOLAN SCG.
2. Connect an Ethernet cable to the IOLAN SCG, then to your
network.
3. Establish a session or connect using the DeviceManager and set
an IPv4 address.
4. Connect Serial Devices.
IOLAN SCG Quick Start Guide
3
Connecting the Power
When the power is connected to the IOLAN, the System Ready LED will
cycle through several sequences and will end in a solid green once the
unit is fully booted and ready to be configured. If the LED is not solid
green after two minutes, see the IOLAN SCG Hardware Installation
Guide for more information.
Connecting Ethernet
Connect the LAN cable from the Ethernet connector on the back of the
IOLAN SCG to your network. An Cat5e cable is recommended for 1000
Mbps connections.
Speed Indicator (on Ethernet Connector)
•Green—1000 Mbps (flashes with activity
•Orange—100 Mbps (flashes with activity
•Off—No LAN connection
Activity Indicator
•Off—No serial activity
•On—Tx/Rx flashes with transmit/receive serial activity
IOLAN SCG Quick Start Guide
4
Setting an IPv4 address
1. Install the Perle DeviceManager software to your laptop or PC.
2. Start the DeviceManager program from installed programs.
3. Under the DeviceManager menu, select File, then select Connect
to.
4. Your IOLAN will show as Unconfigured in the list.
5. Select your IOLAN from the list and select the Assign IP button.
6. Assign a valid IP address to the IOLAN that is on your network.
7. You will be prompted by the software for the admin password
before being able to connect and configure the IOLAN
(superuser (case sensitive .
8. You should change the admin password to restrict unauthorized
access to the IOLAN.
9. You will need to reboot the IOLAN SCG using the power switch
on the back of the unit to have the new IP address take effect.
Connecting the Serial Device
Connect devices, workstations, servers or routers using a straight
through serial cable. Should your environment need to use rolled
cables, the IOLAN software provides that ability through software
configuration. See the IOLAN User’s Guide V5.0 and greater for more
information.
Registering the IOLAN
You should register your IOLAN online at:
www.perle.com/support_services/warranty_reg.asp
Contacting Technical Support
Contact information for the Perle Technical Assistance Center (PTAC
can be found at the link below.
www.perle.com/support_services/support_request.shtm
Altri manuali per IOLAN SCG
4
Indice
Altri manuali Perle Server
Perle
Perle IOLAN SDS4 W Manuale
Perle

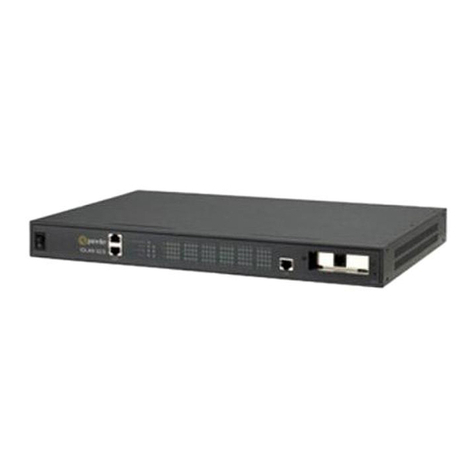

Perle IOLAN CSS Manuale di istruzioni
