Phase Technologies CI-15 Istruzioni originali

T E C H N O L O G Y

Custom Installation Series

Owners Manual / Installation Instructions

Power FL-8 Power FL-10 Power FL-12

CI-15

MSE Audio Group 8650 College Boulevard Overland Park, Kansas 66210 (888) PHASE-TK

www.mseaudio.com www.phasetech.com

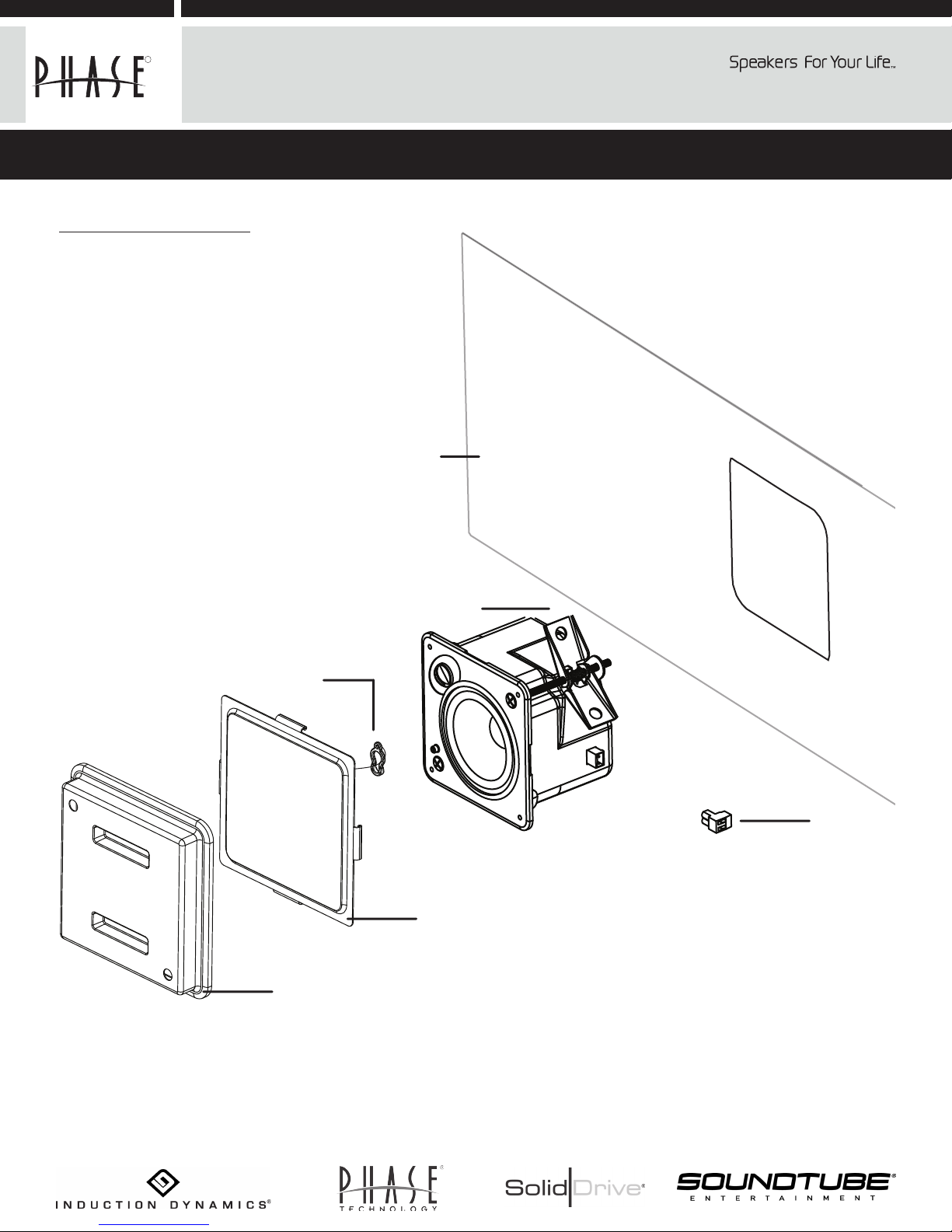

Box contents

1 Speaker

1 Grille

1 Paint mask

1 Cutout hole template

1 Euroblock connector

Pre-construction bracket (sold separately)

SpeedWing™ mounting arms

Grille safety clip

Euroblock connector

Grille

Paint mask

T E C H N O L O G Y

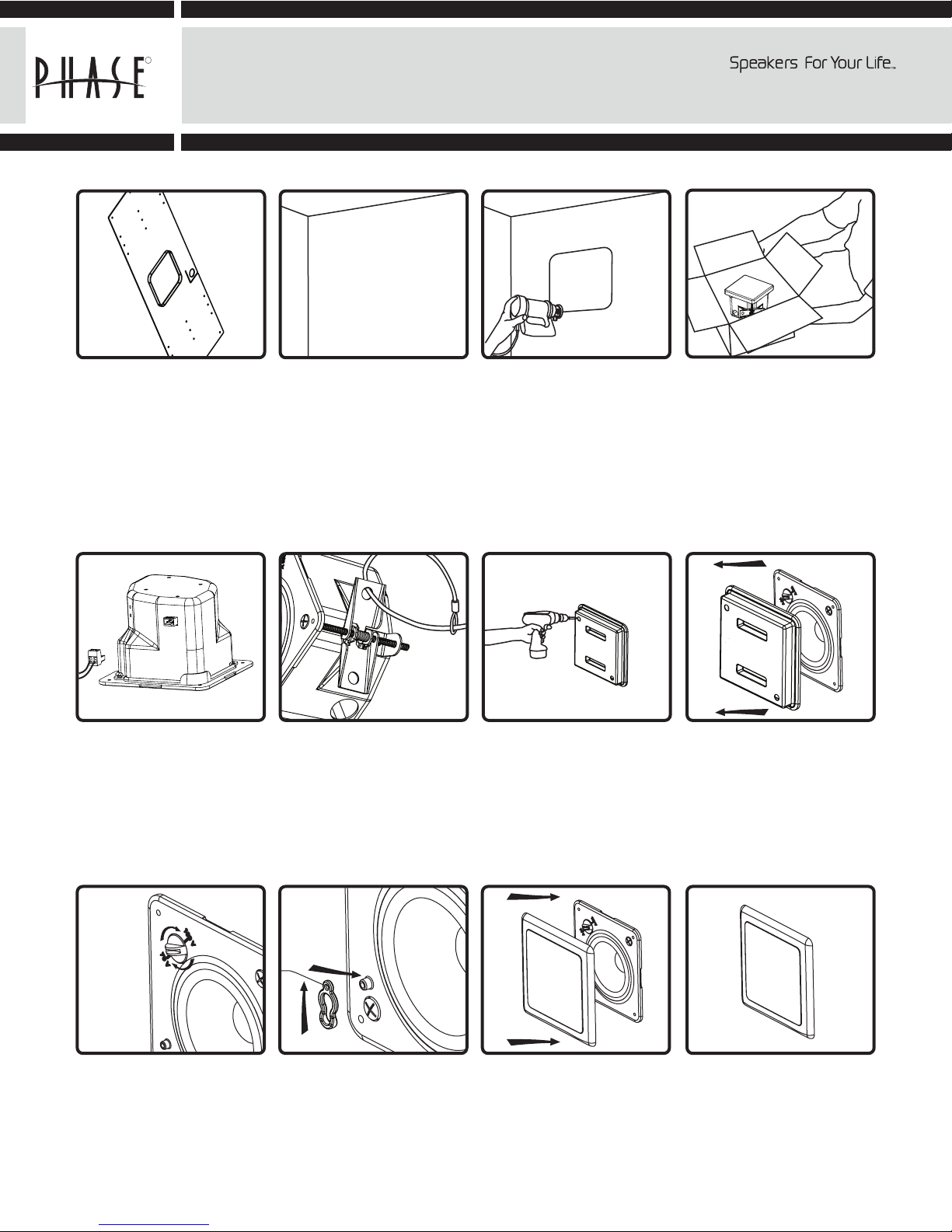

Installation Instructions: Installing the

CI-15 in an Existing Wall

5. Insert speaker in hole.

Tighten the two clamping

screws. DO NOT

OVERTIGHTEN.

2. Use provided cutout

template to mark hole. Use

RotoZip or other tool to cut

hole in wall. Hole size: 4 in.

(102 mm) tall x 4 in. (102

mm) wide.

4. If required, attach

seismic restraint system to

the hole in the metal

clamping arm, then to

reinforced structure (safety

cable not included).

6. Remove paint mask

unless painting is required.

In that case, follow steps

7-10 when painting is

complete.

10. Done!

8. Attach grille safety clip

by placing the large end of

the clip over snap-fit post

(1), then sliding clip until

small end snaps into place

around post (2).

9. Align tabs on snap-fit

grille with slots in baffle,

gently press grille into place.

7. Adjust tap switch to

proper setting. Switch is

preset to the 8-ohm mode.

3. Connect Euroblock to

speaker wires, and connect

to speakers.

1. Unpack speaker. Leave

paint mask in place until

after speaker is installed or

painting is complete.

T E C H N O L O G Y

Installation Instructions: Installing the CI-15

Using the Pre-Construction Bracket

4. r. Leave

paint mask in place until

after speaker is installed or

painting is complete.

6. If required, attach

seismic restraint system to

the hole in the metal

clamping arm, then to

reinforced structure (safety

cable not included).

12. Done!

1. Nail or screw bracket to

studs.

2. Finish installing wall. 3. Use RotoZip or other tool

to cut hole.

8. Remove paint mask

unless painting is required.

In that case, follow steps

9-12 when painting is

complete.

7. Insert speaker in hole.

Tighten the two clamping

screws. DO NOT

OVERTIGHTEN.

10. Attach grille safety clip

by placing the large end of

the clip over snap-fit post

(1), then sliding clip until

small end snaps into place

around post (2).

11. Align tabs on snap-fit

grille with slots in baffle,

gently press grille into

place.

9. Adjust tap switch to

proper setting. Switch is

preset to the 8-ohm mode.

Unpack speake

5. Connect Euroblock to

speaker wires, and connect

to speakers.
